HY-A60 Automaitc tube filling and sealing machine

The HY-A60 filling and sealing machine adopts a fully automatic PLC control system to realize unmanned operation of the entire production process from tube loading to finished product output. As a professional plastic tube filling and sealing machine, its driving part is fully closed, which can effectively prevent dust and impurities from entering the internal structure, ensure the long-term stable operation of the equipment and the cleanliness of the production process. The tube washing and feeding links of this tube filling sealing machine are driven by pneumatic components, with accurate action and reliable performance, fundamentally avoiding the errors and low efficiency caused by manual operation.

Availability:

Quantity:



Inquire Add to Basket

Model:
HY-A60
Brand:
HONEMIX

Product Description

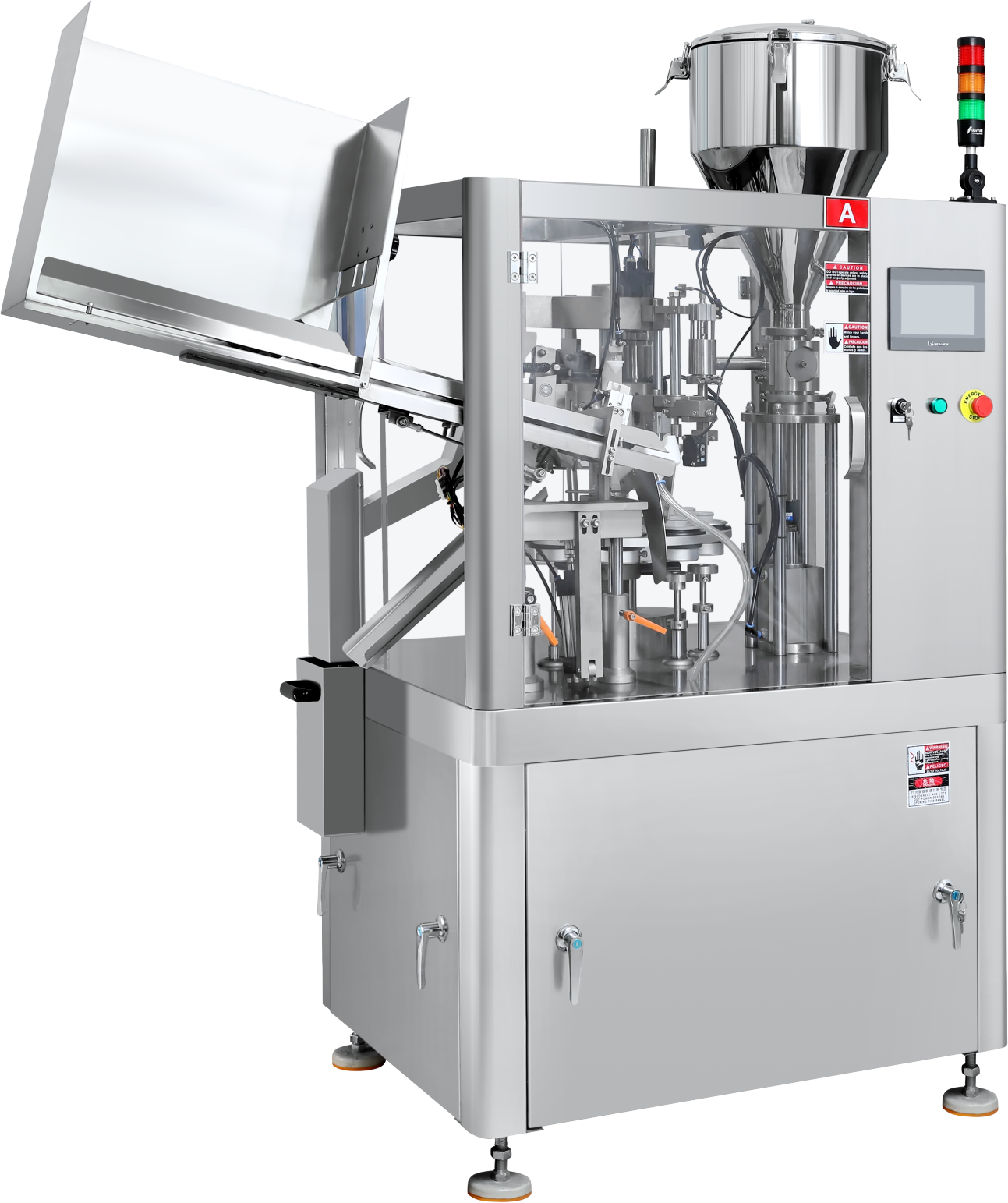

HY-A60 Automatic Plastic Tube Filling and Sealing Machine

The HY-A60 automatic tube filling and sealing machine is a high-efficiency, fully automated packaging equipment tailored for the daily chemical, pharmaceutical, food and cosmetics industries. It integrates multiple core processes such as tube washing, feeding, filling, sealing and code printing, and is especially the ideal toothpaste plastic tube filling and sealing machine for mass production of plastic tube packaging products. Relying on compact structure, high filling precision and intelligent control system, this fully automatic tube filler sealer has become a key equipment for enterprises to improve production efficiency and meet GMP production standards in plastic tube packaging production.

automatic-tube-filling-sealing-machine

Product Overview

The HY-A60 filling and sealing machine adopts a fully automatic PLC control system to realize unmanned operation of the entire production process from tube loading to finished product output. As a professional plastic tube filling and sealing machine, its driving part is fully closed, which can effectively prevent dust and impurities from entering the internal structure, ensure the long-term stable operation of the equipment and the cleanliness of the production process. The tube washing and feeding links of this tube filling sealing machine are driven by pneumatic components, with accurate action and reliable performance, fundamentally avoiding the errors and low efficiency caused by manual operation.

Whether it is paste, liquid or viscous materials such as toothpaste, facial cleanser, medical ointment and jam, this plastic tube filler sealer machine can be perfectly adapted. It can automatically complete photoelectric induction orientation, mark identification, batch number printing and finished product sorting and output. The integrated automated process not only greatly reduces the labor cost of enterprises, but also significantly improves the consistency and standardization of product packaging, making it a mainstream choice for modern automatic tube filling and sealing machine application in various industries.

Core Advantages

Compact & Durable Structural Design

The integrated compact design of the HY-A60 tube filling and sealing machine greatly saves the factory floor space, and the fully closed driving part effectively extends the service life of the equipment and reduces the later maintenance frequency. The whole machine is made of high-quality industrial materials, with strong overall stability and no obvious vibration during high-speed operation, which is a typical advantage of high-quality plastic tube filling and sealing machine.

Pneumatic Control & High Filling Precision

The tube washing and feeding system of this fully automatic tube filling and sealing machine is driven by pneumatic pressure, with accurate positioning and fast response speed. The filling accuracy is ≤±1%, which can ensure the consistency of the filling volume of each tube, avoid material waste caused by inaccurate filling, and prevent product quality problems due to insufficient or excessive filling, which is the core performance of professional toothpaste tube filling and sealing machine.

Intelligent Temperature & Photoelectric Orientation Control

Equipped with an independent intelligent temperature control and cooling system, the HY-A60 plastic tube filling and sealing machine can accurately adjust the sealing temperature according to different plastic tube materials and thicknesses, ensuring that the tube sealing is firm and beautiful without edge warping, air leakage or material seepage. The photoelectric induction automatic orientation function can quickly and accurately identify the tube mark, with a 100% recognition rate, and realize precise alignment and code printing, solving the common positioning deviation problem of ordinary tube filling sealing machine.

GMP Standard & Food-grade Contact Materials

All parts of the HY-A60 tube filler and sealer that are in direct contact with materials are made of 316L stainless steel, which fully meets the GMP production standards of the pharmaceutical, food and daily chemical industries. It has the characteristics of corrosion resistance, high temperature resistance and easy cleaning, can be quickly disassembled and cleaned after production, and avoid secondary pollution of materials, which is the necessary standard configuration of high-end automatic tube filling and sealing machine.

Comprehensive Safety Protection System

The HY-A60 plastic tube filler sealer machine is equipped with a professional safety interlock shutdown function. When the protective door is opened during the operation of the equipment, the machine will stop running immediately to prevent personal injury of the operator. The built-in overload protection device can effectively protect the motor and other core components when the equipment is overloaded, reduce the failure rate of the equipment, and ensure the safety and continuity of production.

Easy Operation & Flexible Parameter Adjustment

The humanized operation interface of this toothpaste tube filling sealing machine is simple and easy to learn, and the on-site staff can master the operation skills without professional and systematic training. The filling volume, production speed and other core parameters can be adjusted steplessly, and the production specifications can be quickly switched, which can adapt to the packaging needs of plastic tubes of different sizes and materials, and has strong versatility and adaptability.

Optional Devices

In order to meet the personalized production needs of different enterprises in various industries, the HY-A60 automatic tube filling and sealing machine is equipped with a variety of optional devices, which can be flexibly configured according to the actual production situation and process requirements:

Chiller: Strengthen the cooling effect of the sealing part, improve the sealing efficiency and quality of high-speed production, and adapt to the continuous operation of plastic tube filling and sealing machine for a long time.
Date Coding Embossing: Realize embossing and printing of production date, batch number, shelf life and other product information on the tube, with clear and wear-resistant marks, meeting the traceability requirements of tube filling and sealing machine production.
Automatic Tube Feeding Magazine: Realize automatic and continuous tube feeding, further improve the automation degree of the whole production line, and effectively increase the production capacity of the fully automatic tube filling and sealing machine.
Change Parts: Quickly replace matching accessories to adapt to the packaging production of plastic tubes with different diameters and lengths, and improve the multi-specification production capacity of the HY-A60 tube filling and sealing machine.

Technical Parameters

表格

Parameter	Specification
Filling volume	1-250ml/unit (Adjustable)
Filling accuracy	≦±1%
Production capacity	2400-3000unit/hour (Adjustable)
Applicable tube diameter	Φ10-50 mm
Applicable tube length	50-200mm
Hopper volume	40L
Power supply	380V/220V (Optional)
Working air pressure	0.4-0.6 MPa
Equipped motor power	1.1KW
Total machine power	5kw
Inner wind motor power	0.37kw
Convulsions motor power	0.37kw
Overall dimension	1950×760×1850（mm）
Net weight	About 950 Kg

Application Scope

The HY-A60 plastic tube filling and sealing machine is a multi-functional automatic tube filling and sealing machine with a wide range of applications, and is widely used in various industries that use plastic tubes for packaging production, especially for paste and viscous material packaging:

Daily chemical industry: The most professional toothpaste tube filling and sealing machine, and also applicable to facial cleanser, hand cream, hair conditioner, shoe polish, detergent and other plastic tube packaging.
Pharmaceutical industry: Packaging of medical ointment, medical gel, topical liniment, herbal plaster and other pharmaceutical products, in line with GMP standard tube filling sealing machine.
Food industry: Small package of jam, honey, salad dressing, peanut butter, chocolate sauce and other food materials, food-grade plastic tube filler sealer machine.
Cosmetics industry: Facial mask essence, eye cream, foundation, body lotion, lip gloss and other cosmetic plastic tube packaging, high-precision tube filler and sealer.

As a high-performance fully automatic tube filling and sealing machine, the HY-A60 can realize the efficient, standardized and automated packaging of paste, liquid and viscous materials, effectively improve the production efficiency and product packaging quality of enterprises, and is an indispensable core equipment for modern enterprises to realize the automated upgrading of plastic tube packaging production and improve product market competitiveness.
