HY-AFM
Honemix

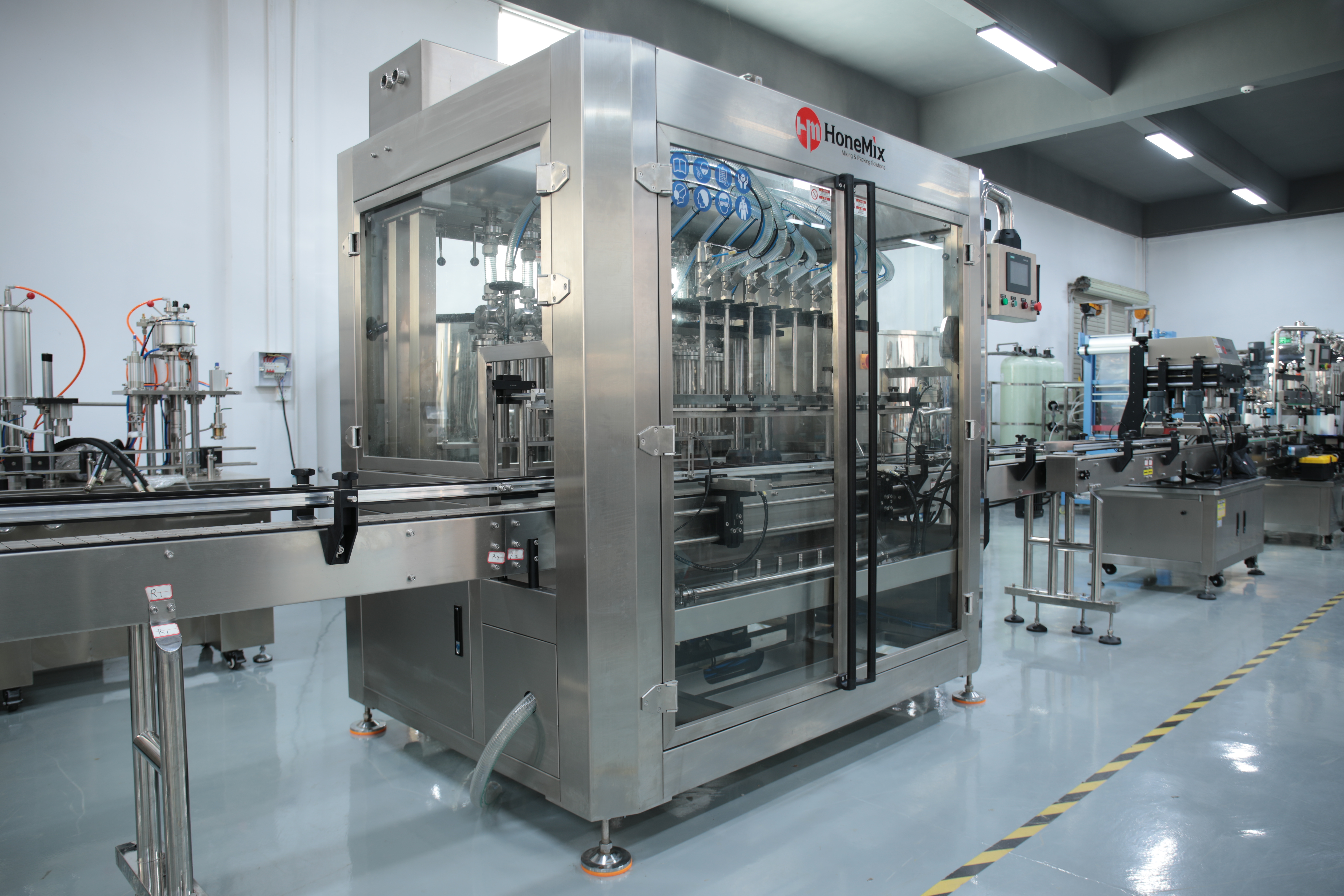

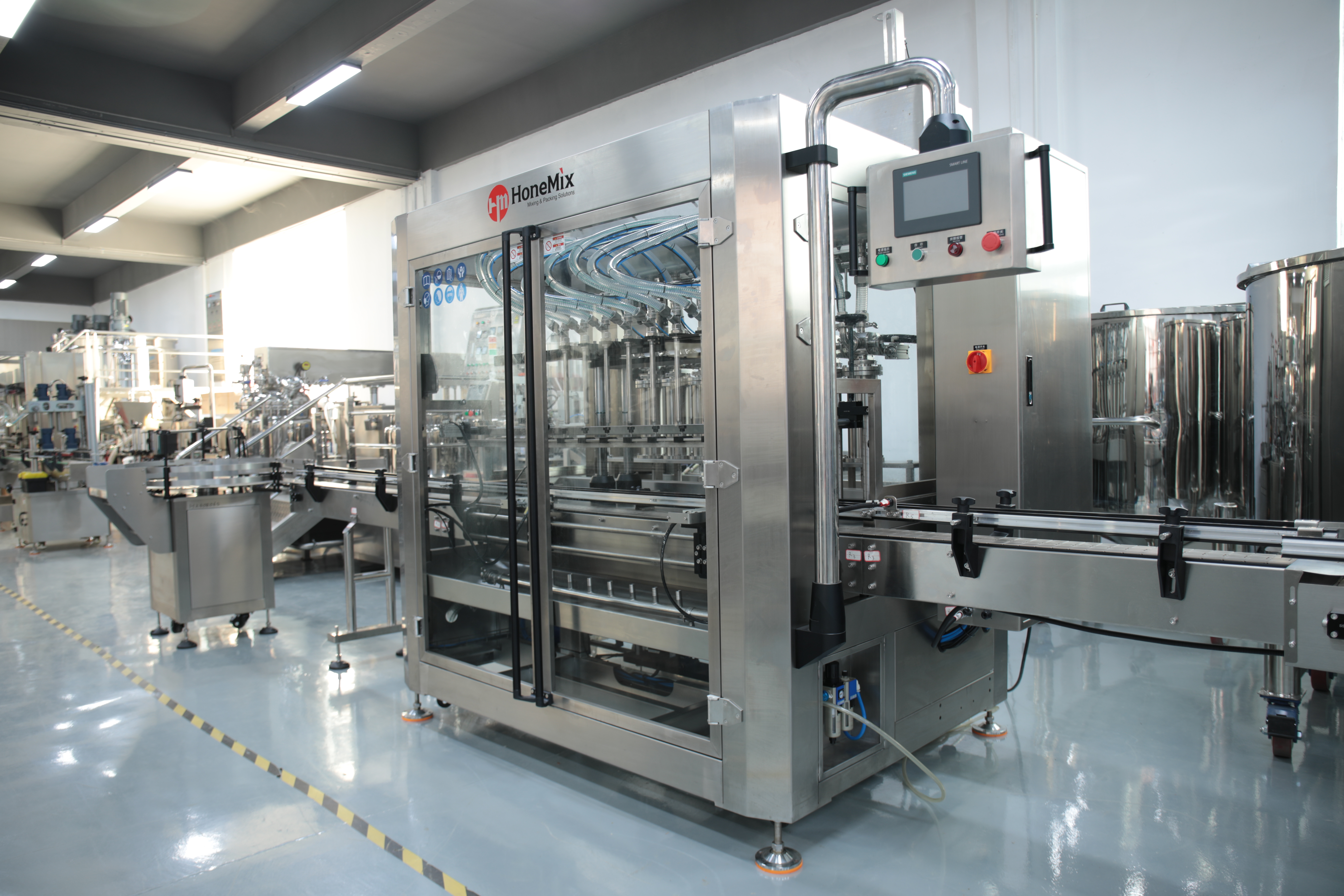

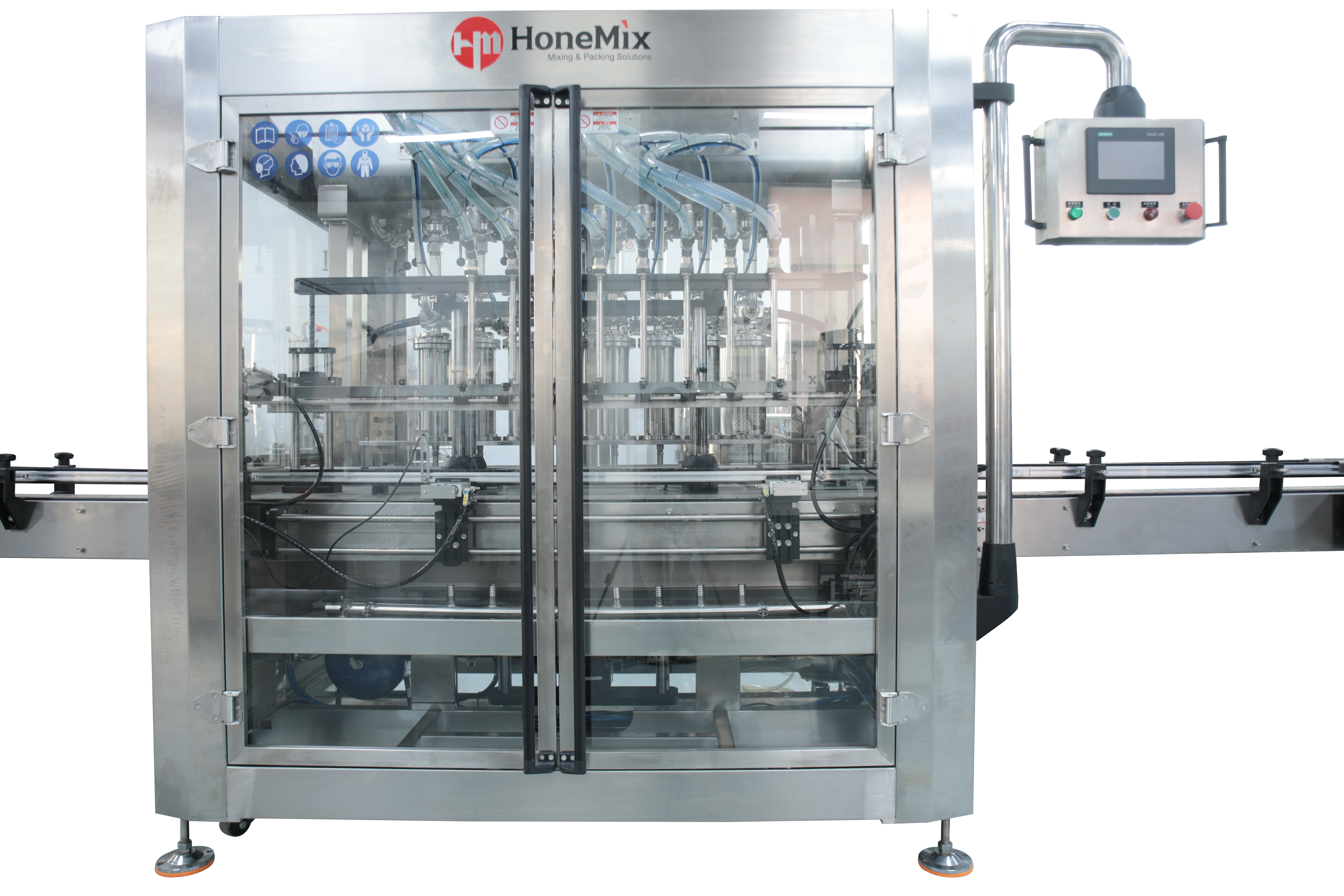

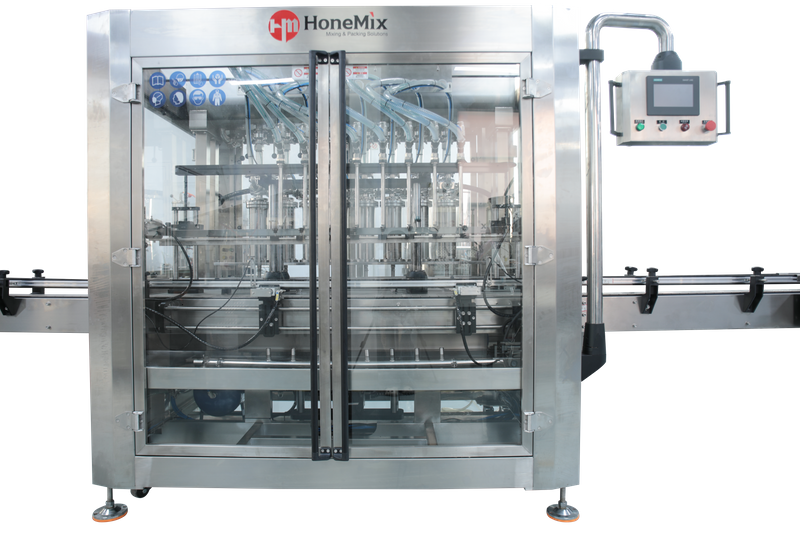

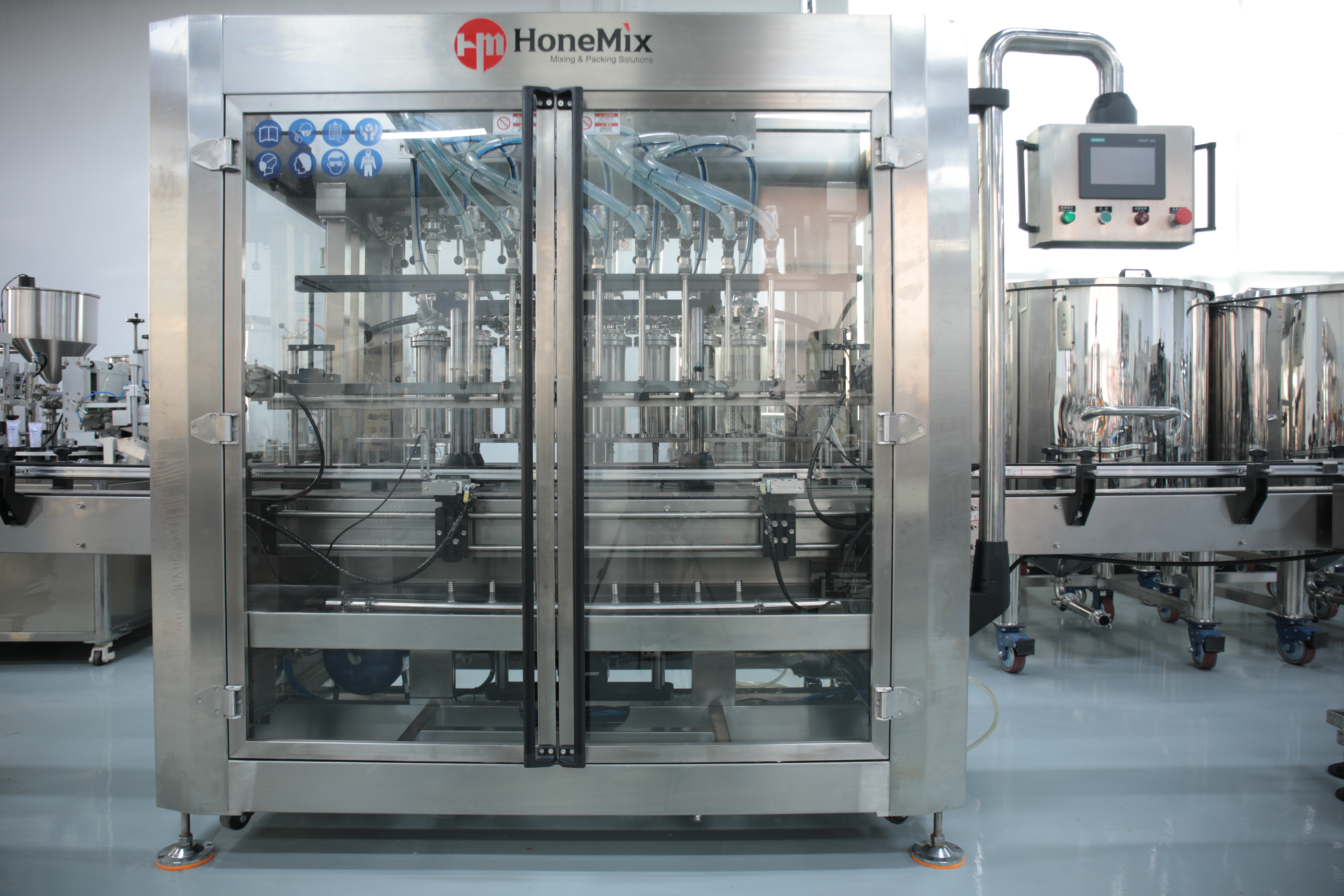

In the competitive industries of cosmetics, pharmaceuticals, and food processing, precision and efficiency are paramount. Our Fully Automatic Servo Drive Piston Filling Machine is a high-performance solution designed for medium to large-scale production lines. It is specifically engineered to handle a wide spectrum of products, ranging from thin liquids to highly viscous creams, gels, scrubs with exfoliating particles, and even food pastes.
This machine utilizes advanced piston filling technology combined with a servo motor drive system (or pneumatic system, based on configuration). It is integrated with a PLC (Programmable Logic Controller) and a user-friendly HMI (Human-Machine Interface) touch screen, allowing operators to adjust filling volumes, speeds, and parameters with ease. The multi nozzles design significantly increases production capacity, allowing you to fill multiple containers simultaneously without sacrificing the ±1% accuracy that modern packaging demands.
High Precision Filling: Equipped with high-quality pistons and seals, ensuring consistent fill accuracy (typically ≤±1%).
Versatile Application: Handles a wide viscosity range—from water-like toners to thick creams and toothpaste.
Anti-Drip Nozzles: Prevents material waste and keeps the machine and containers clean.
Easy Cleanability (CIP): Quick-disassembly design for hoppers and pistons, making cleaning and changeover between batches fast and efficient.
Touch Screen Control: Paperless parameter setting with memory for up to 50 different product recipes.
No | Item | Description |

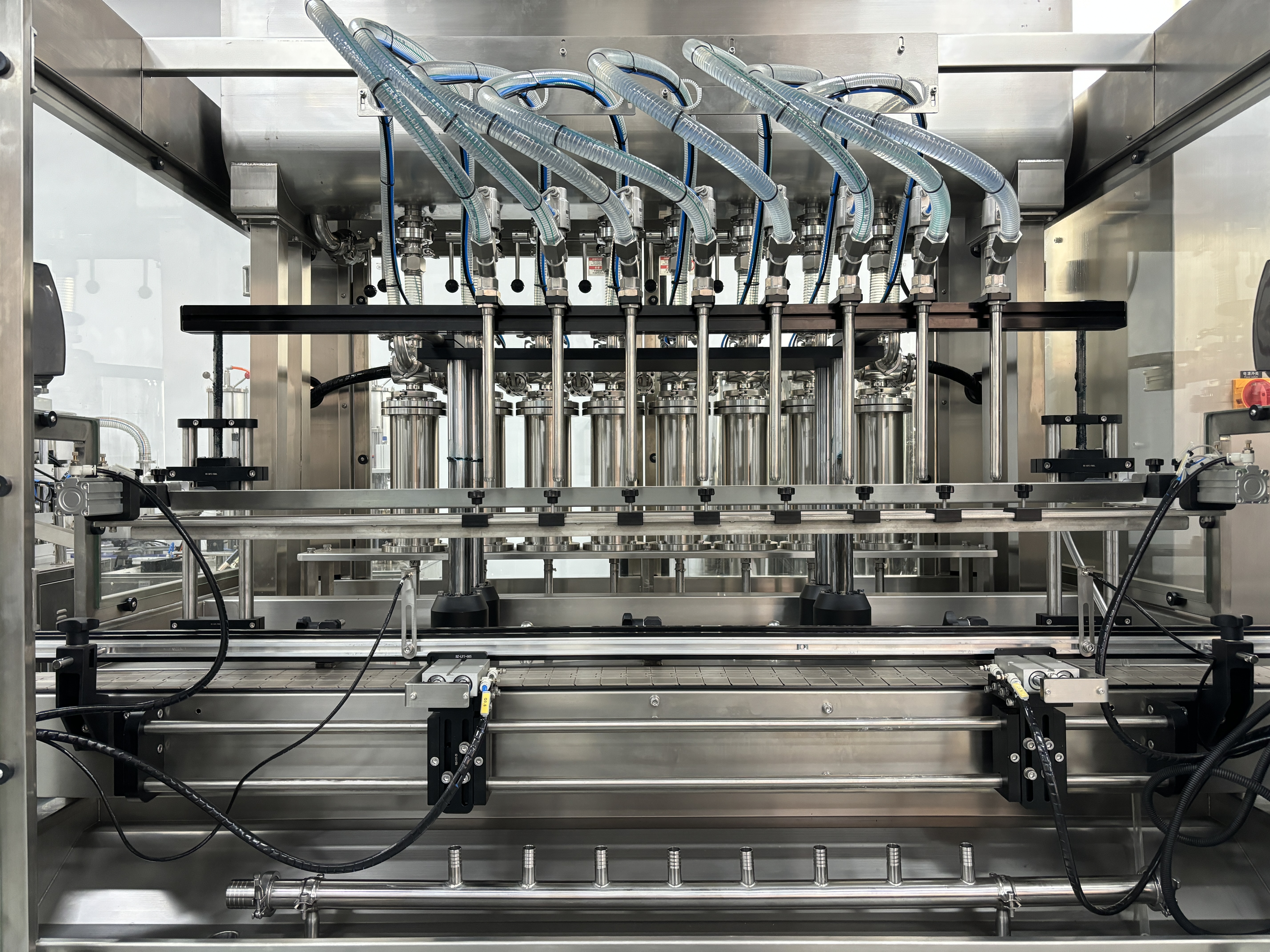

1 | Filling head | 6 filling nozzles( anti-drop and servo motor control) |
2 | Filling volume | |
3 | Filling speed | |
4 | Power supply | AC220V / 50Hz，Single Phase (design as your requirements) |
5 | Power | 3KW |
6 | Filling Precision | ＜±1% |
7 | Air Pressure | 0.4-0.8Mpa |
8 | Driven Type | Servo motor control |
9 | Filling Nozzle | Servo motor/Pneumatic Lifting control |
10 | Automatic Grade | Automatic |
11 | Material | SUS304/SUS316L |
12 | PLC | Mitsubishi |
13 | HMI | Weinview |
14 | Servo motor | TECO |
15 | Low-voltage | SCHNEIDER |
16 | Detection sensor | OMRON |
This 8-head filler is the backbone of any modern cosmetic production line. It is ideal for filling:
Cosmetics: Shampoo, Conditioner, Lotion, Sunscreen, Foundation, Mask packs.
Pharmaceuticals: Syrups, Liniments, Gels.
Food: Honey, Edible Oil, Sauce, Ketchup, Peanut Butter.
As a direct manufacturer, we offer not only competitive factory prices but also comprehensive after-sales support, including installation guidance and technical consultation. This machine is built to run 24/7, ensuring your business can scale up without downtime.
Q: Can this machine handle products with particles (like a scrub)?
A: Yes, the piston filling design is very effective for handling suspended particles that might damage rotary pumps.
Q: Is it easy to change the filling volume?
A: Absolutely. You can adjust the volume via the touch screen interface in seconds, or make fine manual adjustments on the piston stroke.
