Purchasing industrial mixing equipment presents a high-risk, long-term operational commitment. Capital stakes are undeniably high when you select machinery for your manufacturing plant. A poorly specified machine can easily disrupt your entire supply chain. Inconsistent emulsions, entrapped air, and lengthy clean-in-place (CIP) cycles directly impact your daily yield. They drain corporate profitability and create severe bottlenecks in standard operations. To prevent these costly issues, plant managers need a highly reliable specification strategy. This article provides an objective, engineering-focused framework for evaluating different mixer configurations. You will learn how to accurately assess systems based on fluid viscosity, target batch size, and strict facility constraints. We also explore essential structural choices and complex automation standards. Applying these principles ensures a verifiable return on investment and guarantees smoother production runs for years to come.
Always calculate "working volume" (typically 70-80% of total vessel capacity) to avoid under-sizing equipment for target batch yields.
Opting for a Vacuum Emulsifying Mixer with Hydraulic Lift significantly reduces batch changeover and cleaning times for multi-product facilities.
High-viscosity formulations require specific triple-coaxial agitation systems to prevent motor burnout and ensure uniform shear.
Evaluating Total Cost of Ownership (TCO) must include utility requirements (steam, chilled water) and control system scalability (PLC).

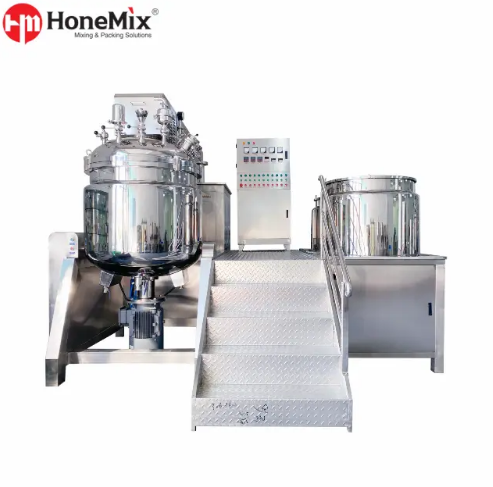

Specifying a vacuum emulsifying mixer begins with a rigorous assessment of your baseline production data. Engineers must move beyond basic volume estimates. You must analyze exact fluid behaviors under thermal and mechanical stress.
You must distinguish between total vessel volume and effective working volume. Industrial mixing vessels cannot operate safely at 100% capacity. Vigorous agitation introduces kinetic energy. This energy often causes rapid liquid expansion and foaming. We recommend calculating a working volume at 70% to 80% of the total vessel capacity. Operating above this threshold risks product overflow. It also compromises the vacuum seal and damages overhead exhaust filters.
Fluid viscosity dictates your entire mechanical design. You measure viscosity in Centipoise (cP). A formulation's maximum cP determines the necessary motor torque and gear reduction ratios. Low-viscosity fluids flow easily. High-viscosity fluids demand aggressive mechanical force to achieve homogeneous blending. Heavy pastes require robust PTFE wall scrapers to physically push the product back into the high-shear zones.
Viscosity Range (cP) | Typical Product Example | Required Agitation System |
|---|---|---|
1 - 1,000 | Toners, Light Serums | Standard high-shear, low torque motors |
1,000 - 50,000 | Lotions, Daily Creams | Anchor stirrer, medium torque, single scraping |
50,000 - 200,000+ | Thick Ointments, Pastes | Triple-coaxial, high torque, dual-directional scraping |
Heating and cooling phases consume the most cycle time. You must evaluate the thermal dynamics of your specific formulation. Mixers utilize different jacket designs to transfer temperature. Dimple jackets perform exceptionally well for high-pressure steam heating. They create turbulent flow, which maximizes heat transfer rates. Conversely, half-pipe jackets handle high-volume chilled water flow efficiently. Your choice depends directly on the specific utility hookups available in your facility.
Choosing the physical architecture of your mixer impacts daily ergonomics. It also dictates your cleaning protocols and maintenance schedules.
A Vacuum Emulsifying Mixer with Hydraulic Lift provides exceptional operational flexibility. The entire top cover, along with the agitation assembly, raises vertically. This exposes the interior bowl completely. It is ideal for facilities executing frequent product changeovers. Operators gain unrestricted access for thorough visual inspection. They can manually scrub complex agitator blades.
However, you must account for specific facility constraints. The primary consideration is vertical space. The raised cover requires significantly higher ceiling clearance. Additionally, the hydraulic cylinders demand scheduled maintenance to prevent fluid leaks. You must inspect the pneumatic seals regularly to maintain a pristine manufacturing environment.
Fixed-cover systems offer a vastly different operational paradigm. The lid remains permanently bolted or welded to the main mixing vessel. This design best suits dedicated, single-product manufacturing lines. These lines typically rely on fully automated CIP (Clean-in-Place) and SIP (Sterilization-in-Place) systems.
Consider the engineering trade-offs carefully. Fixed systems feature lower upfront manufacturing costs. They easily fit into facilities with restricted ceiling heights. Yet, they limit mechanical access to the vessel interior. If a stubborn batch burns onto the vessel wall, manual intervention becomes incredibly difficult.
Configuration Chart Comparison:
Feature | Hydraulic Lift System | Fixed-Cover System |
|---|---|---|
Access Level | Full interior exposure | Restricted, via manway only |
Best Application | Multi-product, frequent changeovers | Single-product, high-volume runs |
Cleaning Method | Manual scrubbing and visual verification | Automated spray balls (CIP) |
Ceiling Requirement | High clearance needed | Standard clearance sufficient |
Agitation goes far beyond simple stirring. It involves complex fluid dynamics, shear rates, and precise mechanical alignment.
Engineers often use a Vacuum Toothpaste Mixer for Cosmetics as a structural benchmark. This represents the pinnacle of high-viscosity, high-density applications. Such equipment utilizes powerful wall-scraping agitation. Dense formulations exhibit poor thermal conductivity. If the material near the heated vessel wall remains stagnant, it burns. Constant scraping physically moves this heated layer. It pushes the material back into the center vortex, preventing localized overheating.
The placement of the high-shear homogenizer changes the flow pattern entirely.
Bottom homogenizers: These sit at the lowest point of the vessel. They are ideal for processing small working volumes. They generate intense shear exactly where gravity pulls the heaviest particles.
Top homogenizers: These descend from the main cover. Engineers prefer them for highly space-constrained bases. They also support specific powder-induction workflows where powders enter from the upper manifold.
Introducing dry powders into liquid phases causes common manufacturing headaches. Traditional top-dumping creates airborne dust. It also causes agglomeration, commonly known as "fish-eyes." Vacuum powder induction solves this problem directly. The system utilizes the internal vessel vacuum. It aggressively draws powders sub-surface, directly into the high-shear zone.
Standard Vacuum Induction Steps:
Establish a strong internal vacuum within the main mixing vessel.
Activate the high-shear homogenizer to create a liquid vortex.
Open the sub-surface induction valve to pull powders precisely into the spinning rotor.
Maintain agitation until particles fully hydrate, eliminating all dry pockets.
Regulatory compliance dictates equipment design just as heavily as fluid dynamics. You must specify exact metallurgical and digital standards.
Current Good Manufacturing Practices (cGMP) require strict material choices. You must mandate 316L stainless steel for all wetted parts. The "L" stands for low carbon, which resists corrosion from harsh chemical chlorides. For non-wetted structural components, 304 stainless steel provides adequate durability. Surface finish matters immensely. Demand a specific surface roughness (Ra) requirement. An Ra value below 0.4 micrometers prevents microscopic bacterial adhesion.
You must scrutinize every valve, pipe, and seal. Sanitary design relies on eliminating hidden crevices.
Dead-leg-free valves: Ensure flush-mounted bottom valves. A "dead leg" traps stagnant product, inviting contamination.
Self-draining geometries: Specify conical or dished bottom profiles. The vessel must empty completely using simple gravity.
Mechanical seals: Mixing shafts require robust sealing. We strongly recommend double mechanical seals equipped with a pressurized barrier fluid. This prevents external pathogens from entering the vacuum chamber.
Operators control these complex processes via electronic interfaces. Traditional relay-logic controls use physical push-buttons. They are inexpensive but rely entirely on operator memory. Conversely, PLC/HMI setups (using brands like Siemens or Allen-Bradley) offer recipe-driven automation. A PLC guarantees that heating, mixing, and cooling phases occur identically every single time.
For pharmaceutical and high-end cosmetic production, data logging is not optional. You must assess CFR 21 Part 11 compliance requirements. This FDA regulation governs electronic records and electronic signatures. The mixer's control system must log operator logins, parameter changes, and precise batch temperatures. This creates an unalterable audit trail for quality assurance teams.
Procuring advanced equipment involves integration challenges. You must foresee facility limitations before the machine arrives on your loading dock.
Many plant managers fall into a predictable trap. They install high-capacity mixers without upgrading their facility's infrastructure. A massive jacketed vessel requires massive energy. If your existing steam boilers lack adequate output, heating a 2000-liter batch might take three hours instead of forty minutes. Similarly, undersized water chillers will extend cooling phases drastically. You must calculate the required BTU loads and upgrade your utilities to meet specific cycle-time demands.
The high-speed homogenizer relies on precision mechanical seals. These seals utilize microscopic layers of liquid for lubrication. Running the homogenizer dry destroys these expensive seals in mere seconds. Addressing this risk requires automated interlocks. You must install level sensors and flow switches. If the PLC detects insufficient liquid or lost barrier fluid pressure, it must disable the motor instantly.
Never accept delivery without rigorous testing. Factory Acceptance Testing (FAT) represents your final safety net. A physical or virtual FAT is a non-negotiable step before finalizing the purchase. Do not rely on simple water-testing protocols. Water does not simulate the mechanical stress of a 100,000 cP paste. You must utilize your actual raw materials. Run a complete batch at the manufacturer's facility. Verify the shear rates, check the scraper efficiency, and validate the exact discharge times.
Selecting the optimal equipment demands strict adherence to engineering principles. You must evaluate the interplay between product viscosity, changeover frequency, and sanitary compliance. Prioritize these operational realities over the base price of the machine. Failing to account for working volumes or ceiling heights leads to permanent operational bottlenecks. We recommend compiling a comprehensive User Requirement Specification (URS). Detail your exact product viscosities, target batch sizes, and current facility utility limits. Armed with this hard data, you can initiate a targeted Request for Quote (RFQ) with reputable manufacturers.
A: Standard lead times typically range from 12 to 16 weeks. Highly customized units requiring complex PLC programming, specialized barrier seals, or extensive Factory Acceptance Testing (FAT) can extend timelines to 20 weeks or more. Always align delivery schedules with your facility upgrade timelines.
A: Choose a bottom-entry homogenizer for intense high-shear processing of smaller working volumes and heavy gravity-fed solids. Select a top-entry design if your facility has severe under-vessel space constraints or if your process relies heavily on top-mounted vacuum powder induction manifolds.
A: Yes, provided it utilizes a sophisticated variable frequency drive (VFD) and a triple-coaxial agitation system. You can reduce scraper speeds for thin lotions and maximize torque for thick pastes. However, cleaning protocols must adapt to prevent cross-contamination between distinctly different formulations.
A: You need an industrial steam boiler capable of rapid high-pressure injection for the heating phase. For cooling, you require a dedicated industrial chiller supplying high-flow chilled water. Compressed air is also necessary for operating pneumatic valves and hydraulic lift mechanisms.
