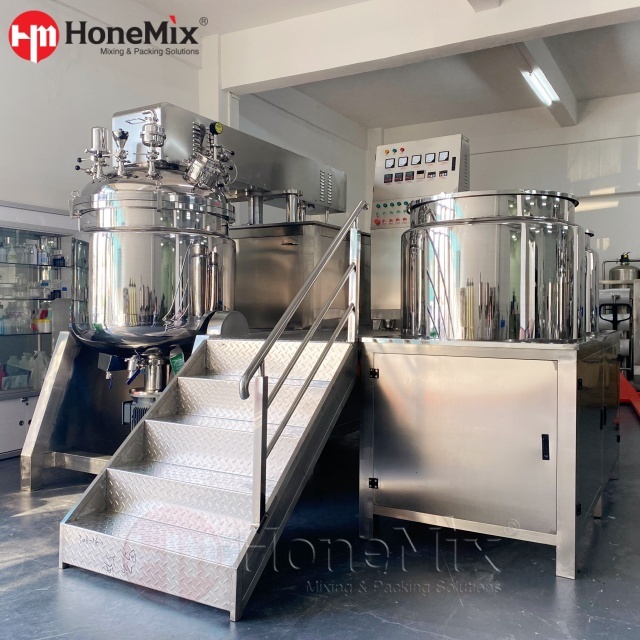

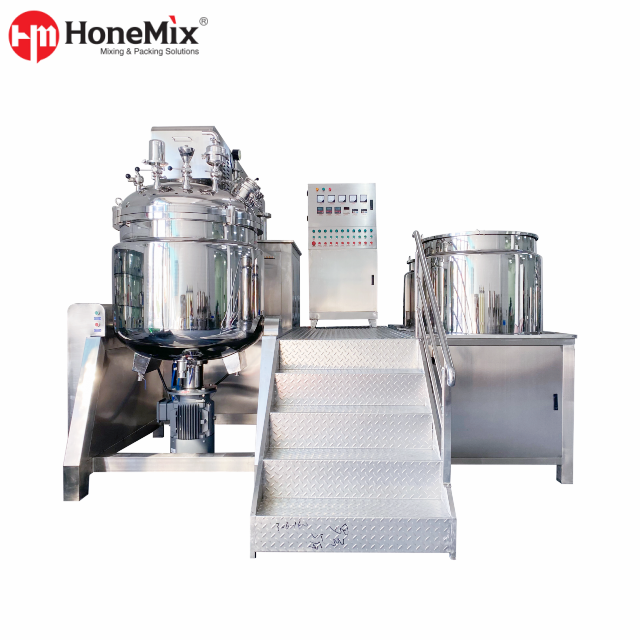

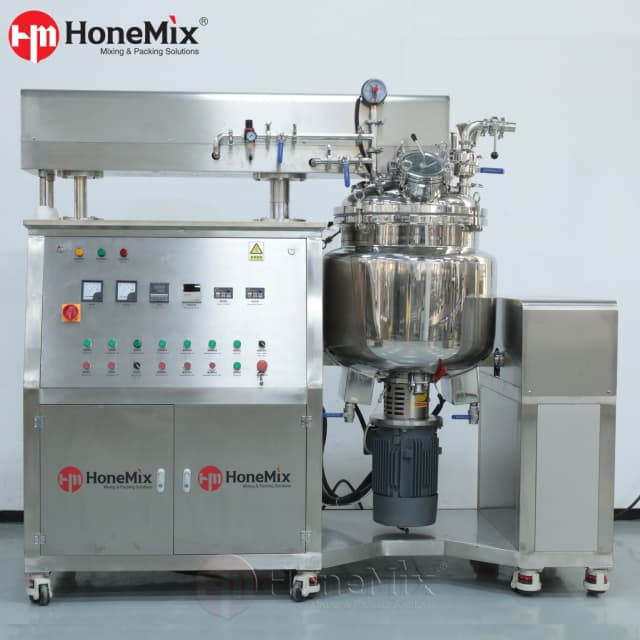

HVE-BLT Hydraulic Lifting Vacuum Emulsifying Mixer 50–500 L
The HONEMIX HVE-BLT Hydraulic Lifting Vacuum Emulsifying Mixer is designed for flexible 50–500 L commercial batch production.
It combines hydraulic lifting, wall-scraping agitation, high-shear homogenizing, vacuum processing and jacket heating/cooling in one integrated system. The straightforward push-button control supports reliable batch production, easy operation and convenient product changeovers.
The hydraulic lifting structure provides easier access to the vessel and mixing system for cleaning, inspection, maintenance and product changeover.
Suitable for creams, lotions, sunscreens, conditioners, gel creams, ointments and other emulsified or semi-solid products.
The HVE-BLT is designed for manufacturers running small- to medium-scale commercial batches where straightforward operation and flexible product changeover are more important than advanced recipe automation.
The lifting cover and mixing assembly allow operators to access the processing area more easily between batches, making the machine particularly practical for plants producing several cream, lotion or gel formulations with operator-controlled processing.
For manufacturers that require PLC/HMI recipe management, batch repeatability and data-oriented control, the HVE-BFT is the more suitable configuration.
Process System
Hydraulic Lifting

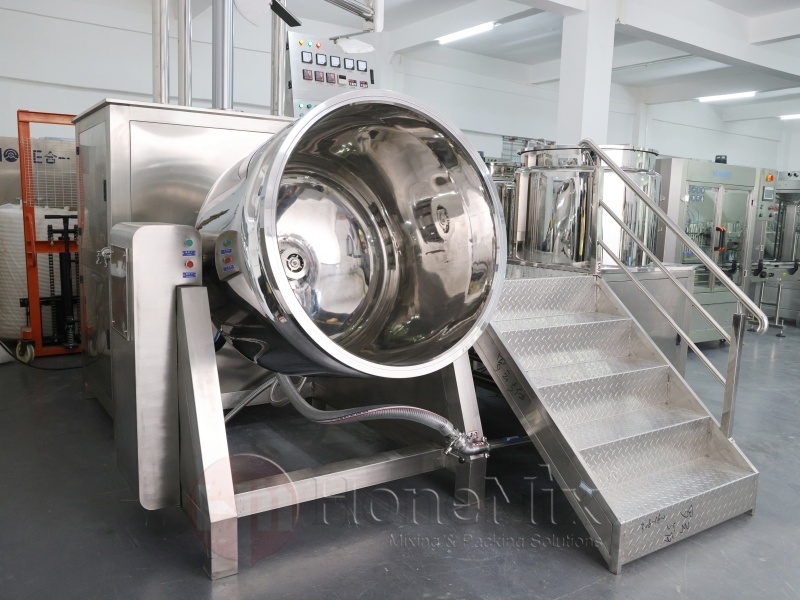

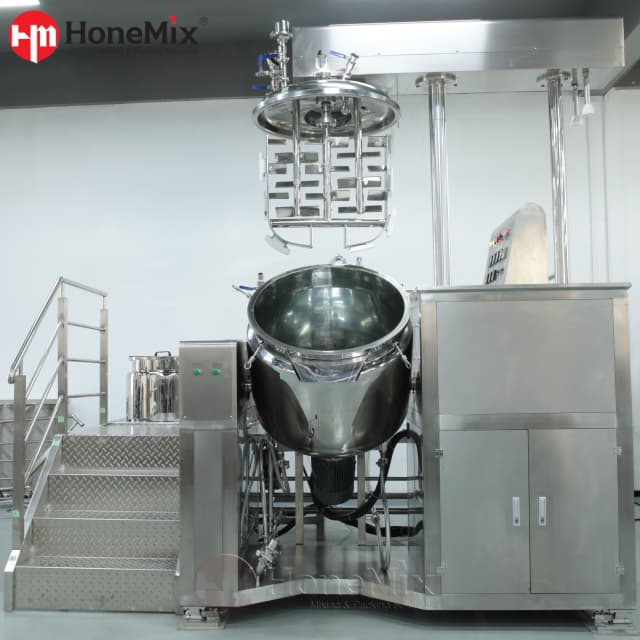

The hydraulic system lifts the vessel cover and mixing assembly, providing better access for inspection, cleaning and maintenance.
This configuration is especially useful where formulations are changed regularly or the vessel needs frequent operator access.
Mixing & Homogenizing

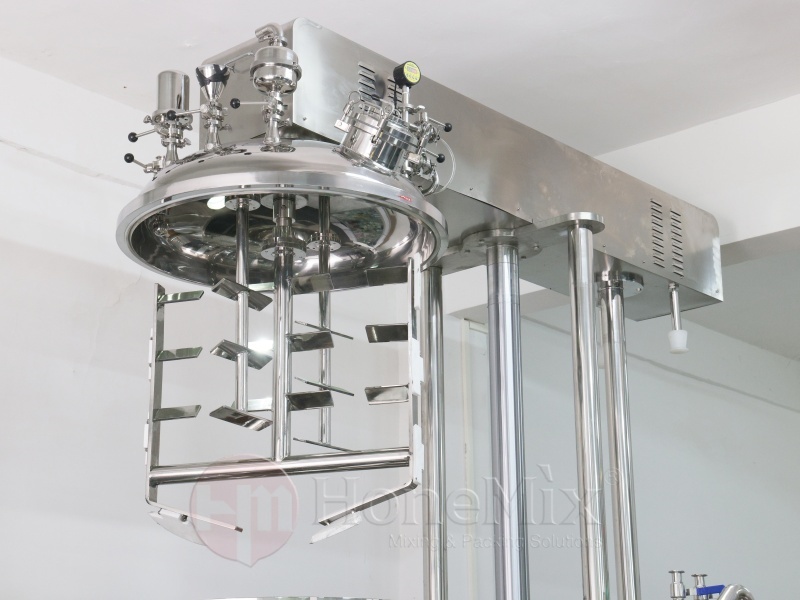

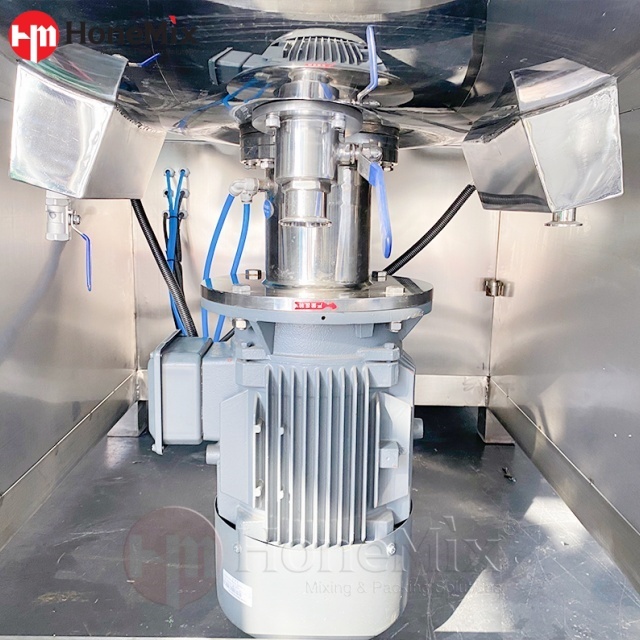

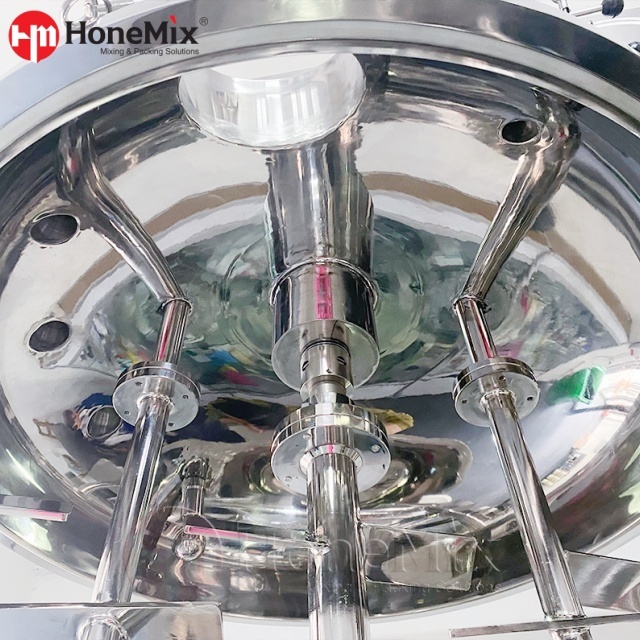

Wall-scraping agitation keeps material circulating through the vessel while the high-shear rotor-stator homogenizer supports dispersion and emulsification.
Mixing and homogenizer speed are adjustable to match different formulation stages and viscosities.
Vacuum Processing
Vacuum operation helps reduce entrapped air during emulsification and supports smoother product appearance before downstream filling.

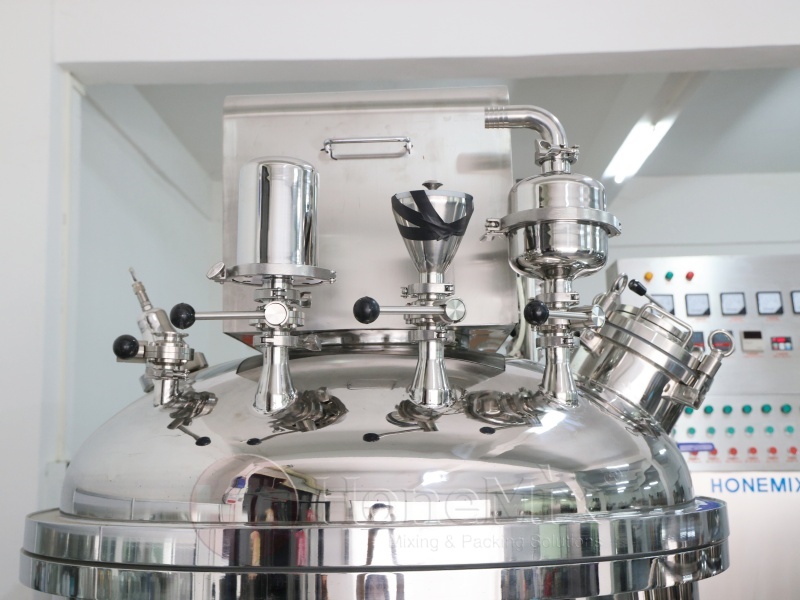

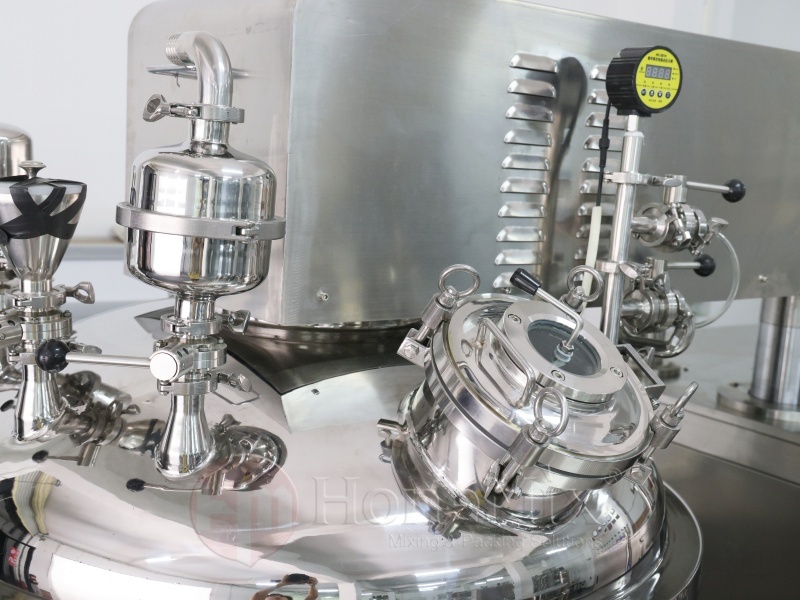

Vacuum suction feeding can also be configured for transferring water- and oil-phase materials into the main vessel.
Heating & Cooling
The jacket can be configured for electric heating, hot water or steam, with jacket cooling for controlled emulsifying and cooling stages.
Technical Parameters
Model / Capacity
Working Capacity
Homogenizer Power / Speed
Agitator Power / Speed
Disperser Power / Speed
Vacuum Pump
50 L
15–50 L
2.2 kW / 0–3,600 rpm
1.1 kW / 0–65 rpm
0.37 kW / 0–1,400 rpm
0.75 kW
100 L
30–100 L
4 kW / 0–3,600 rpm
1.5 kW / 0–65 rpm
0.55 kW / 0–1,400 rpm
1.5 kW
200 L
60–200 L
5.5 kW / 0–3,600 rpm
3 kW / 0–65 rpm
0.75 kW / 0–1,400 rpm
2.2 kW
300 L
90–300 L
7.5 kW / 0–3,600 rpm
4 kW / 0–65 rpm
1.1 kW / 0–1,400 rpm
2.2 kW
500 L
150–500 L
11 kW / 0–3,600 rpm
5.5 kW / 0–65 rpm
1.5 kW / 0–1,400 rpm
3 kW
Item
Reference Configuration
Vacuum
−0.08 to −0.09 MPa(g)
Heating Method
Electric / Hot Water / Steam
Cooling
Jacket Cooling
Product-Contact Material
SS316L

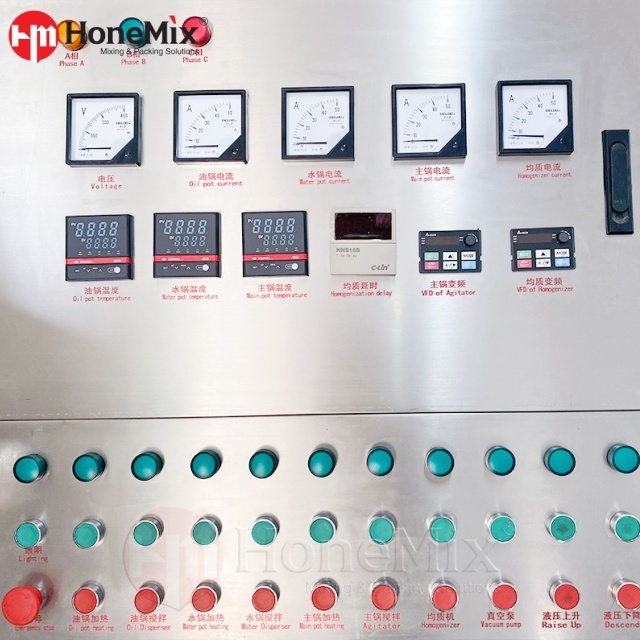

Control
Push-Button Control
Power Supply
220–480 V, 50/60 Hz, 3-Phase
Typical Maximum Viscosity
≤100,000 mPa·s (cP), depending on formulation, batch size and mixer configuration. Higher-viscosity configurations are available by project.
Typical Final Droplet Size
Approximately 2μm
Reference values only. Final performance and machine configuration depend on formulation, batch size, viscosity, process requirements and the approved technical specification.

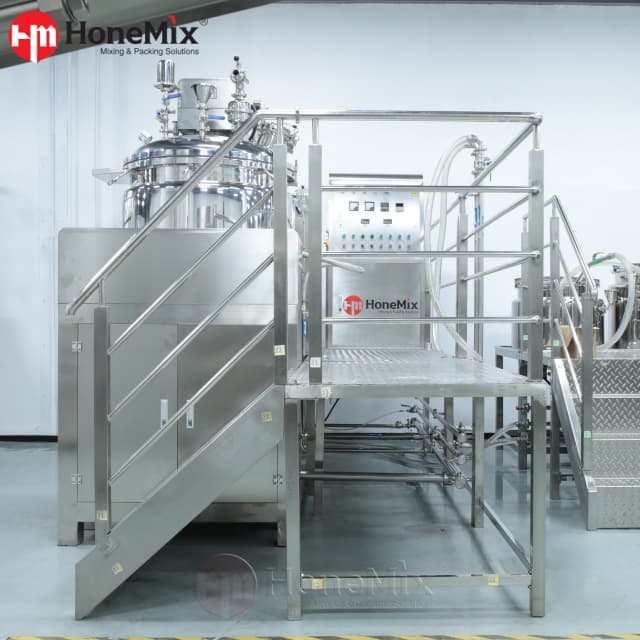

Water and oil phase tanks, working platform, vacuum suction feeding, pneumatic valves, pump discharge, positive-pressure discharge, external circulation, tilting discharge and CIP cleaning configuration can be selected according to the project.
1. What is the HVE-BLT hydraulic lifting vacuum emulsifying mixer used for?
It is designed for producing creams, lotions, sunscreens, conditioners, gel creams, ointments and similar emulsified products in 50–500 L batches.
2. Why use a hydraulic lifting emulsifying mixer?
The lifting structure provides easier access to the vessel and mixing system for cleaning, inspection, maintenance and frequent product changeover.
3. What is the recommended viscosity range?
Suitable for cream and emulsion of1,000–100,000 mPa·s (cP) viscosity. Final configuration depends on formulation, batch volume, temperature and required mixing performance.
4. Does the HVE-BLT use PLC recipe control?
The HVE-BLT is positioned primarily as a push-button controlled production mixer. For recipe-oriented PLC/HMI production, the HVE-BFT is the recommended configuration.
