ACM-FW
Honemix

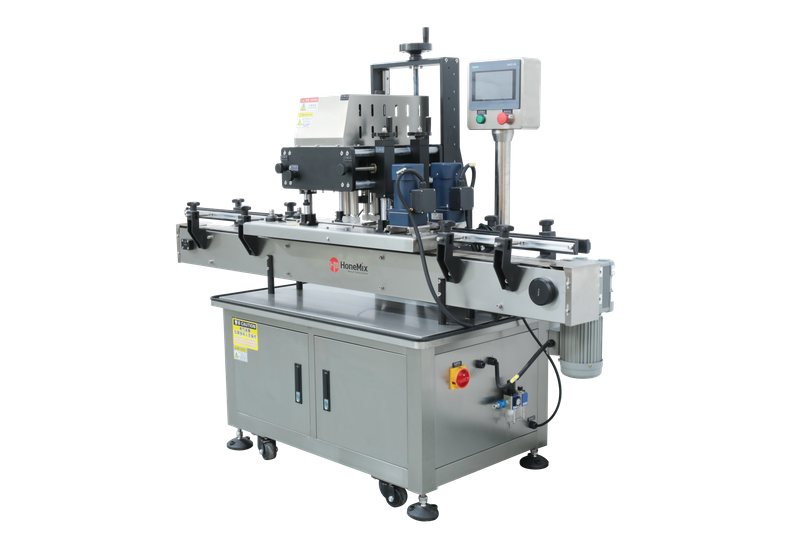

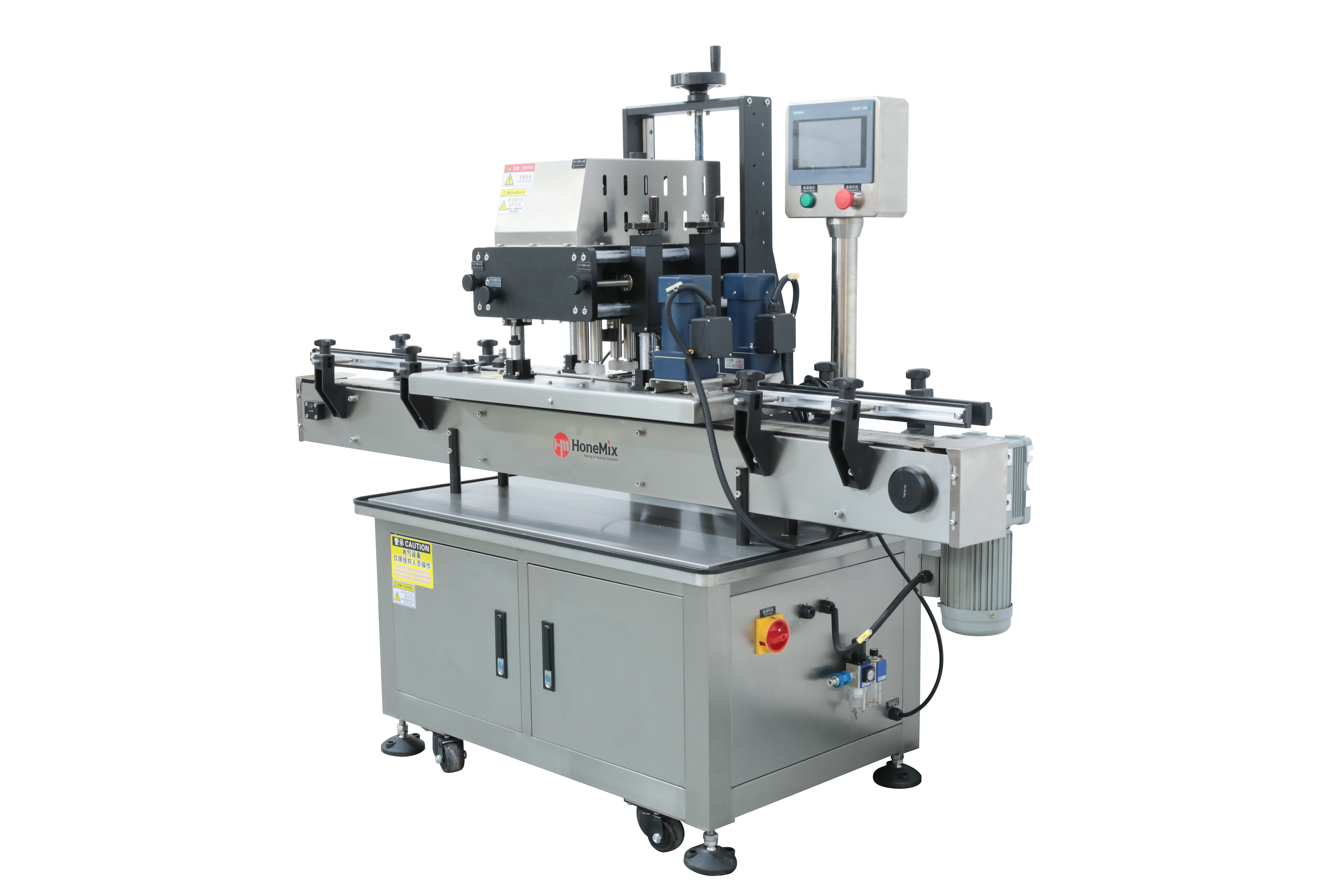

For manufacturers requiring reliable, high-speed capping solutions, the Fully Automatic Four-Wheel Screw Capping Machine delivers exceptional performance. Designed with a rotary four-wheel capping mechanism, this machine applies screw caps with consistent torque, ensuring each container is sealed securely without cross-threading or damage.
Unlike traditional single-head or chuck-style cappers, the four-wheel design provides superior grip and stability during the capping process. The cap is guided and tightened by four synchronized rotating wheels that gently yet firmly secure the closure. This design is particularly effective for applications requiring precise torque control—such as cosmetic bottles, pharmaceutical vials, beverage containers, and household chemical packaging.
The system is fully controlled by a PLC with a touch screen interface, allowing for quick setup, torque adjustment, and real-time production monitoring. Constructed with a durable stainless steel frame and food-grade components, this capping machine meets GMP standards for cosmetic, pharmaceutical, and food manufacturing environments.
1. Four-Wheel Rotary Capping Mechanism
The machine features four synchronized capping wheels arranged around the container neck. As bottles pass through the capping station, the wheels rotate to tighten caps with consistent torque. This design provides excellent stability and prevents caps from tilting or cross-threading—even at high speeds.
2. Precise Torque Control
The capping torque is easily adjustable via the touch screen interface or mechanical adjustment. This allows operators to fine-tune the tightening force for different cap sizes, materials, and closure requirements—ensuring secure seals without over-tightening or damaging caps.
3. Versatile Cap & Bottle Handling
Designed to accommodate a wide range of screw cap types and container sizes:
Cap Diameter: 15mm – 80mm (customizable)
Bottle Height: 50mm – 300mm (adjustable)
Bottle Diameter: 20mm – 120mm (adjustable)
The machine handles various cap styles including flat caps, pump caps, child-resistant closures, and sports caps.
4. High-Speed Operation
With capping speeds of up to 40–80 bottles per minute (depending on bottle size and cap type), this machine significantly improves production throughput compared to manual or semi-automatic capping methods.
5. Automatic Cap Feeding
The system is equipped with a vibratory cap elevator or sorter that automatically orients and feeds caps to the capping station. This eliminates manual cap placement and ensures continuous operation.
6. No-Bottle-No-Cap Function
Integrated sensors detect the presence of bottles at the capping station. If a bottle is missing, the machine automatically skips cap feeding, preventing waste and ensuring smooth operation.
7. User-Friendly Control System
The PLC and HMI touch screen provide intuitive operation, recipe storage for up to 100 different products, and real-time diagnostics. Changeover between different bottle and cap sizes typically takes less than 15 minutes.
8. Durable & Hygienic Construction
The machine frame is constructed from SUS304 stainless steel, while all product-contact and wear parts are designed for durability and easy cleaning. The stainless steel design ensures corrosion resistance and compliance with sanitary standards.
Bottle Feeding: Containers enter the capping station via the stainless steel conveyor, guided by adjustable rails.
Cap Feeding: The vibratory cap elevator orients and feeds caps to the capping head. Caps are presented to the waiting bottles.
Cap Placement: A cap placement mechanism positions the cap onto the bottle neck.
Four-Wheel Tightening: The four capping wheels descend and rotate simultaneously, gripping the cap and tightening it to the preset torque. The synchronized wheels ensure even pressure and prevent cross-threading.
Bottle Discharge: Capped bottles continue along the conveyor to the next production stage (labeling, packaging, etc.).
| Parameter | Specification |
|---|---|
| Machine Type | Fully Automatic Four-Wheel Screw Capping Machine |
| Capping Mechanism | 4 synchronized rotary capping wheels |
| Applicable Cap Type | Screw caps, flip-top caps, pump caps, child-resistant caps, sports caps |
| Cap Diameter Range | 15mm – 80mm (customizable up to 120mm) |
| Bottle Height Range | 50mm – 300mm (adjustable) |
| Bottle Diameter Range | 20mm – 120mm (adjustable) |
| Capping Speed | 30 – 80 bottles/min (depending on bottle size and cap type) |
| Torque Adjustment | Adjustable via HMI or mechanical adjustment (depending on model) |
| Cap Feeding | Vibratory cap elevator / sorter (automatic orientation) |
| Control System | PLC + HMI Touch Screen (with recipe storage) |
| Power Supply | 220V / 380V, 50/60Hz, single phase or three phase |
| Power Consumption | 1.0 – 2.0 kW |
| Air Supply | 0.4 – 0.6 MPa (for cap feeding and optional functions) |
| Machine Material | SUS304 Stainless Steel + Anodized Aluminum |
| Conveyor | Stainless steel chain conveyor with variable speed control |
| Dimensions (L×W×H) | Approx. 2000 × 900 × 1600 mm (varies by configuration) |
| Weight | Approx. 300 – 450 kg |
| Optional Features | – Torque monitoring & data logging - Rejection system for improperly capped bottles - Integration with filling and labeling lines - Stainless steel cap elevator |
This four-wheel screw capping machine is suitable for a wide range of industries and products:
Cosmetics & Personal Care: Lotion bottles, shampoo bottles, cream jars, serum bottles, perfume bottles.
Pharmaceuticals: Medicine bottles, syrup containers, supplement vials, dropper bottles.
Food & Beverage: Sauce bottles, honey jars, edible oil containers, beverage bottles.
Household & Chemical: Cleaning solution bottles, detergent containers, lubricant bottles.
Factory Direct Manufacturing
As a direct manufacturer, we offer competitive factory pricing with strict quality control. Each machine undergoes comprehensive testing before shipment to ensure reliable performance.
Gentle Yet Secure Capping
The four-wheel design applies even pressure around the cap, preventing damage to delicate caps or bottles while ensuring a secure seal. This is especially important for cosmetic and pharmaceutical products where closure integrity is critical.
Quick Changeover Capability
With adjustable guide rails, tool-less wheel adjustments, and recipe storage, switching between different bottle and cap sizes is fast and straightforward—ideal for contract packers and facilities with diverse product lines.
High-Speed Efficiency
Designed for continuous operation, this machine handles high production volumes with minimal downtime, significantly reducing labor costs compared to manual capping.
Easy Integration
The machine can be easily integrated into existing production lines, connecting with filling machines, labeling machines, and packaging equipment for fully automated operations.
Global Support
We provide comprehensive after-sales support, including installation guidance, video tutorials, spare parts availability, and lifetime technical consultation.
Q: What types of caps can this machine handle?
A: The machine handles a wide variety of screw caps including flat caps, flip-top caps, pump caps, child-resistant closures, and sports caps. Custom configurations are available for specialized cap types.
Q: How is the capping torque adjusted?
A: Torque is easily adjusted via the touch screen interface (for servo-controlled models) or through mechanical adjustment of the wheel pressure and rotation speed.
Q: Can this machine handle oval or square bottles?
A: Yes. The machine can accommodate flat, oval, and square bottles with appropriate guide rail adjustments. The four-wheel design adapts well to various bottle shapes.
Q: What happens if a cap is cross-threaded?
A: The machine’s precision torque control and even wheel pressure minimize the risk of cross-threading. Optional torque monitoring systems can detect improper capping and trigger a rejection mechanism.
Q: Does the machine require compressed air?
A: Yes, compressed air is typically required for the cap feeding system and optional features. Standard requirement is 0.4–0.6 MPa of clean, dry air.
Q: What is the warranty?
A: The machine comes with a 12-month warranty covering non-consumable parts, with lifetime technical support.
