ALM-R
Honemix

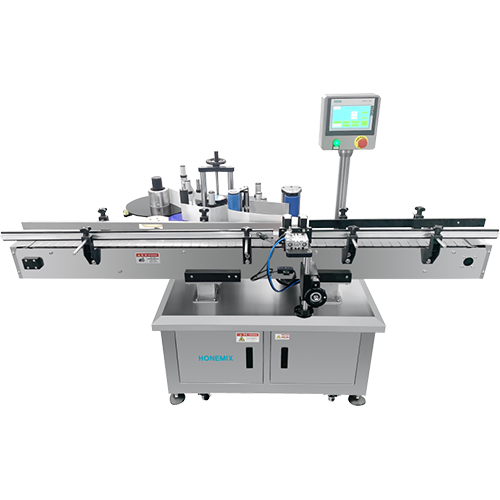

For manufacturers seeking precise, efficient, and reliable labeling solutions, the Automatic Round Bottle Labeling Machine delivers exceptional performance. Specifically designed for cylindrical containers, this automatic wrap-around label applicator applies labels seamlessly around round bottles, vials, jars, and cans with consistent accuracy and high speed.
Whether you’re labeling cosmetic lotion bottles, pharmaceutical vials, food jars, or beverage containers, this machine ensures that every label is applied smoothly—without wrinkles, bubbles, or misalignment. The system is fully controlled by a PLC with a touch screen interface, allowing for quick setup, parameter adjustment, and real-time production monitoring.
Constructed with a durable stainless steel frame and food-grade components, this labeling machine meets GMP standards for cosmetic, pharmaceutical, and food manufacturing environments. Its compact footprint and user-friendly design make it an ideal choice for both small-batch production and high-volume packaging lines.
1. Precision Wrap-Around Labeling
The machine is engineered specifically for round bottles, applying labels that wrap completely around the container or cover a designated portion. The labeling head uses a servo-driven or stepper motor system to ensure precise label placement with an accuracy of ≤±1mm.
2. Versatile Bottle Handling
Designed to accommodate a wide range of bottle sizes and shapes, the machine features adjustable guide rails, bottle handling mechanisms, and a variable-speed conveyor. It handles:
Bottle Diameter: 20mm – 120mm (customizable)
Bottle Height: 30mm – 300mm (customizable)
3. High-Speed Operation
With a labeling speed of up to 40–80 bottles per minute (depending on bottle size and label length), this machine significantly improves production efficiency compared to manual labeling.
4. User-Friendly Control System
The PLC and HMI touch screen provide intuitive operation, recipe storage for up to 100 different products, and real-time diagnostics. Changeover between different bottle sizes and label types takes just minutes.
5. Durable & Hygienic Construction
The machine frame is constructed from SUS304 stainless steel, while all product-contact and wear parts are designed for durability and easy cleaning. The stainless steel design ensures corrosion resistance and compliance with sanitary standards.
6. Optional Features
Customize your labeling machine with a range of optional features:
Hot stamp or inkjet coder – for batch number, expiration date, or lot code printing
Orientation/positioning system – for spot labeling or consistent label orientation
Label missing detection – sensor to detect missed labels and reject incomplete bottles
Automatic bottle feeding & collection – for fully automated production lines
Pressure roller system – for enhanced adhesion on curved or textured surfaces
| Parameter | Specification |
|---|---|
| Machine Type | Automatic Round Bottle Labeling Machine |
| Applicable Bottle Shape | Cylindrical / Round containers |
| Bottle Diameter Range | 20mm – 120mm (customizable up to 180mm) |
| Bottle Height Range | 30mm – 300mm (customizable) |
| Label Type | Self-adhesive / pressure-sensitive labels (roll-fed) |
| Label Width | 10mm – 200mm (customizable) |
| Label Length | 10mm – 350mm (customizable) |
| Labeling Speed | 20 – 80 bottles/min (depending on bottle size and label length) |
| Labeling Accuracy | ≤±1mm |
| Label Roll Diameter | Max. 300mm (inner core: 76mm) |
| Conveyor Speed | Variable speed (adjustable via frequency drive) |
| Control System | PLC + HMI Touch Screen (with recipe storage) |
| Power Supply | 220V / 110V, 50/60Hz, single phase |
| Power Consumption | 1.0 – 1.5 kW |
| Air Supply | 0.4 – 0.6 MPa (if optional air-assisted features are included) |
| Machine Material | SUS304 Stainless Steel + Anodized Aluminum |
| Dimensions (L×W×H) | Approx. 2000 × 1000 × 1500 mm (varies by configuration) |
| Weight | Approx. 200 – 300 kg |
This round bottle labeling machine is suitable for a wide range of industries and products:
Cosmetics & Personal Care: Lotion bottles, shampoo bottles, serum vials, essential oil bottles, cream jars, perfume bottles.
Pharmaceuticals: Syrup bottles, tablet vials, dropper bottles, sterile vials.
Food & Beverage: Sauce bottles, honey jars, edible oil bottles, beverage containers, spice jars.
Household & Chemical: Cleaning solution bottles, detergent containers, lubricant bottles.
Factory Direct Manufacturing
As a direct manufacturer, we offer competitive factory pricing with strict quality control. Each machine undergoes comprehensive testing before shipment to ensure reliable performance.
Quick Changeover Capability
With adjustable guide rails and recipe storage, switching between different bottle sizes and label types takes less than 10 minutes—ideal for contract packers and facilities with diverse product lines.
Precision & Consistency
The servo-driven labeling head ensures consistent label placement across thousands of bottles, eliminating the variability associated with manual labeling.
Easy Integration
The machine can be easily integrated into existing production lines, connecting with filling machines, capping machines, and packaging equipment for fully automated operations.
Global Support
We provide comprehensive after-sales support, including installation guidance, video tutorials, spare parts availability, and lifetime technical consultation.
Q: Can this machine handle both full-wrap and spot labeling?
A: Yes. The machine can be configured for either full-wrap labeling (label covers the entire circumference) or spot labeling (label applied to a specific position). An optional orientation system is available for consistent spot label placement.
Q: Does it work with transparent labels?
A: Yes. The labeling system is equipped with a label sensor that detects both opaque and transparent labels, ensuring reliable operation with clear or clear-on-clear materials.
Q: How is the label alignment adjusted?
A: Label alignment is easily adjusted via the touch screen interface. The system stores recipe settings, so once a product is set up, operators can recall it instantly for future runs.
Q: Can a coder be integrated for date printing?
A: Yes. The machine can be equipped with a hot stamp coder, inkjet printer, or thermal transfer printer to apply batch numbers, expiration dates, and other variable information during the labeling process.
Q: What is the warranty?
A: The machine comes with a 12-month warranty covering non-consumable parts, with lifetime technical support.
