HPM-APF
Honemix

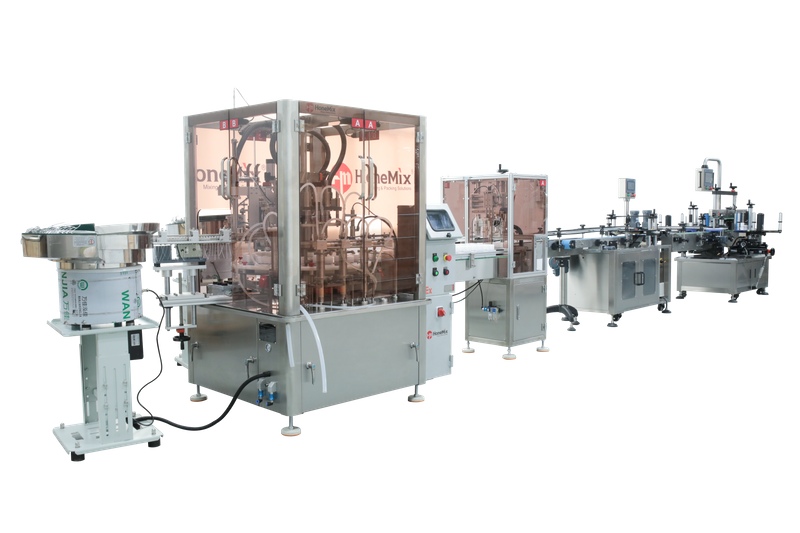

For manufacturers of perfumes, colognes, essential oils, and other high-value low-viscosity liquids, the Automatic Rotary Table Perfume Filling Machine delivers unparalleled precision, cleanliness, and production efficiency. Designed specifically for the delicate requirements of fragrance filling, this machine ensures accurate volumetric dosing while preserving product integrity and minimizing waste.
Unlike inline fillers that require extensive guide rail adjustments for different bottle sizes, the rotary table design offers exceptional versatility. The machine features a rotating indexing turntable with multiple filling stations, allowing for seamless handling of round, square, oval, and uniquely shaped perfume bottles. This makes it ideal for contract packers, luxury fragrance manufacturers, and facilities with diverse product portfolios.
The system is fully controlled by a PLC with a touch screen interface, providing precise volume adjustment, recipe storage, and real-time production monitoring. Constructed with SUS316L stainless steel and food-grade components, the machine meets GMP standards and is specifically engineered to handle alcohol-based formulations without corrosion or contamination.
1. Rotary Table Indexing System
The heart of this machine is its precision rotary indexing table, which transports bottles through multiple stations—including filling, optional crimping, and cap placement—in a continuous, synchronized motion. This design ensures consistent bottle handling, minimizes footprint, and allows for higher output compared to linear systems.
2. High-Precision Filling Technology
Designed for low-viscosity, alcohol-based products, the machine utilizes one of several precision filling technologies:
Magnetic Drive Pump: Seal-less design prevents leakage and is ideal for volatile fragrances.
Peristaltic Pump: Product contacts only the tubing, ensuring zero cross-contamination and easy cleaning.
Servo-Driven Piston: For applications requiring ultra-high accuracy with minimal shear.
3. Anti-Drip & Foam-Free Filling
Each filling nozzle is equipped with an anti-drip mechanism to prevent product waste and maintain a clean work environment. Optional bottom-up filling nozzles allow for submerged filling, preventing foam formation when filling thin, alcohol-based liquids.
4. Versatile Bottle Handling
The rotary table features adjustable bottle holders (pockets) that accommodate a wide range of bottle shapes and sizes without requiring change parts. Standard specifications:
Bottle Diameter: 10mm – 80mm
Bottle Height: 30mm – 200mm
Bottle Shape: Round, square, oval, flat, and custom shapes
5. Automatic Cap Placement (Optional)
The machine can be equipped with an automatic cap placement station for pre-crimping or cap pre-positioning, integrating seamlessly with downstream capping equipment for complete production automation.
6. Easy Cleaning & Quick Changeover
All product-contact parts are designed for rapid disassembly without tools. The rotary table’s modular design allows for fast changeover between different bottle sizes—typically under 15 minutes—making it ideal for facilities with multiple SKUs.
7. Intelligent Control System
The PLC and HMI touch screen provide intuitive operation, recipe storage for up to 100 different products, and real-time diagnostics. Features include:
No-bottle-no-fill sensors
Low-level alarms
Production counter and batch reporting
Password-protected settings
Bottle Loading: Bottles are manually or automatically loaded onto the rotary indexing table. Each bottle is held securely in a precision pocket.
Indexing: The rotary table rotates incrementally, moving bottles through each station.
Filling: At the filling station, nozzles descend into the bottles. The filling system dispenses the preset volume with high accuracy. Anti-drip nozzles ensure a clean cut-off.
Optional Crimping/Capping: Bottles move to the optional cap placement or crimping station for pre-closure.
Bottle Unloading: Filled bottles are automatically ejected onto a conveyor or collection tray for downstream processing.
Parameter | Specification |
|---|---|
Machine Type | Fully Automatic Rotary Table Perfume Filling Machine |
Number of Stations | 4 / 6 / 8 / 12 / 16 Stations (customizable) |
Filling Heads | 2 / 4 / 6 / 8 Heads (matched to station count) |
Filling Principle | Magnetic Pump / Peristaltic Pump / Servo Piston (based on product requirements) |
Filling Range | 5ml – 500ml (customizable from 1ml – 1000ml) |
Filling Accuracy | ≤±0.5% |
Applicable Viscosity | ≤ 5,000 cps (ideal for water-like, alcohol-based, and low-viscosity liquids) |
Bottle Diameter Range | 10mm – 80mm (adjustable; customizable) |
Bottle Height Range | 30mm – 200mm (adjustable; customizable) |
Production Capacity | 30 – 80 bottles/min (depending on stations, fill volume, and bottle size) |
Nozzle Type | Anti-drip nozzles (optional lift-up / bottom-fill nozzles) |
Control System | PLC + HMI Touch Screen (with recipe storage) |
Power Supply | 220V / 380V, 50/60Hz, single phase or three phase |
Power Consumption | 1.5 – 3.0 kW |
Air Supply | 0.4 – 0.6 MPa |
Machine Material | SUS304 / SUS316L Stainless Steel (product contact) |
Dimensions (L×W×H) | Approx. 1800 × 1500 × 1800 mm (varies by configuration) |
Weight | Approx. 400 – 800 kg |
Optional Features | – Automatic cap placement station |
This rotary table filling machine is specifically designed for low-viscosity, high-value products:
Fragrances: Perfume, cologne, eau de toilette, body spray, fragrance oils.
Essential Oils: Pure essential oils, aromatherapy blends, carrier oils.
Cosmetics: Facial serums, toners, micellar water, liquid foundations.
Pharmaceuticals: Oral syrups, liquid medicines, antiseptic solutions.
Beverages: Small-batch spirits, flavored syrups, tinctures.
Designed for Fragrance Applications
Perfume filling requires extreme precision and cleanliness. This machine is purpose-built with materials and technologies that handle alcohol-based, volatile formulations without corrosion, evaporation, or contamination.
Compact & Efficient Design
The rotary table design occupies significantly less floor space than equivalent inline systems while delivering higher output. Its modular construction allows for easy integration with upstream and downstream equipment.
Factory Direct Manufacturing
As a direct manufacturer, we offer competitive pricing with strict quality control. Each machine undergoes rigorous testing with actual product samples before shipment.
Quick Changeover Capability
With adjustable bottle pockets, tool-less disassembly, and recipe storage, switching between different bottle sizes and products takes minutes—essential for contract packers and multi-SKU manufacturers.
Global Support
We provide comprehensive after-sales support, including installation guidance, video tutorials, spare parts availability, and lifetime technical consultation.
Q: What is the advantage of a rotary table filler over an inline filler?
A: Rotary table fillers offer a smaller footprint, higher precision due to synchronized indexing, and easier changeover for multiple bottle shapes. They are particularly well-suited for small to medium-sized bottles like perfumes.
Q: Can this machine handle glass perfume bottles with spray pumps?
A: Yes. The machine can be configured with an automatic cap placement or pre-crimping station to position spray pumps or caps before downstream crimping equipment.
Q: How is the filling volume adjusted?
A: Filling volume is easily adjusted via the touch screen interface. The system stores recipes, so once a product is set up, operators can recall it instantly for future runs.
Q: Does the machine prevent foaming when filling alcohol-based perfumes?
A: Yes. Optional bottom-up filling nozzles allow the nozzle to descend to the bottom of the bottle, filling from the bottom up to minimize agitation and prevent foam formation.
Q: How is the machine cleaned between different fragrances?
A: The machine features quick-disassembly design for all product-contact parts. For automated cleaning, CIP (Clean-in-Place) options are available to flush the system between batches.
Q: What is the warranty?
A: The machine comes with a 12-month warranty covering manufacturing defects, with lifetime technical support.
