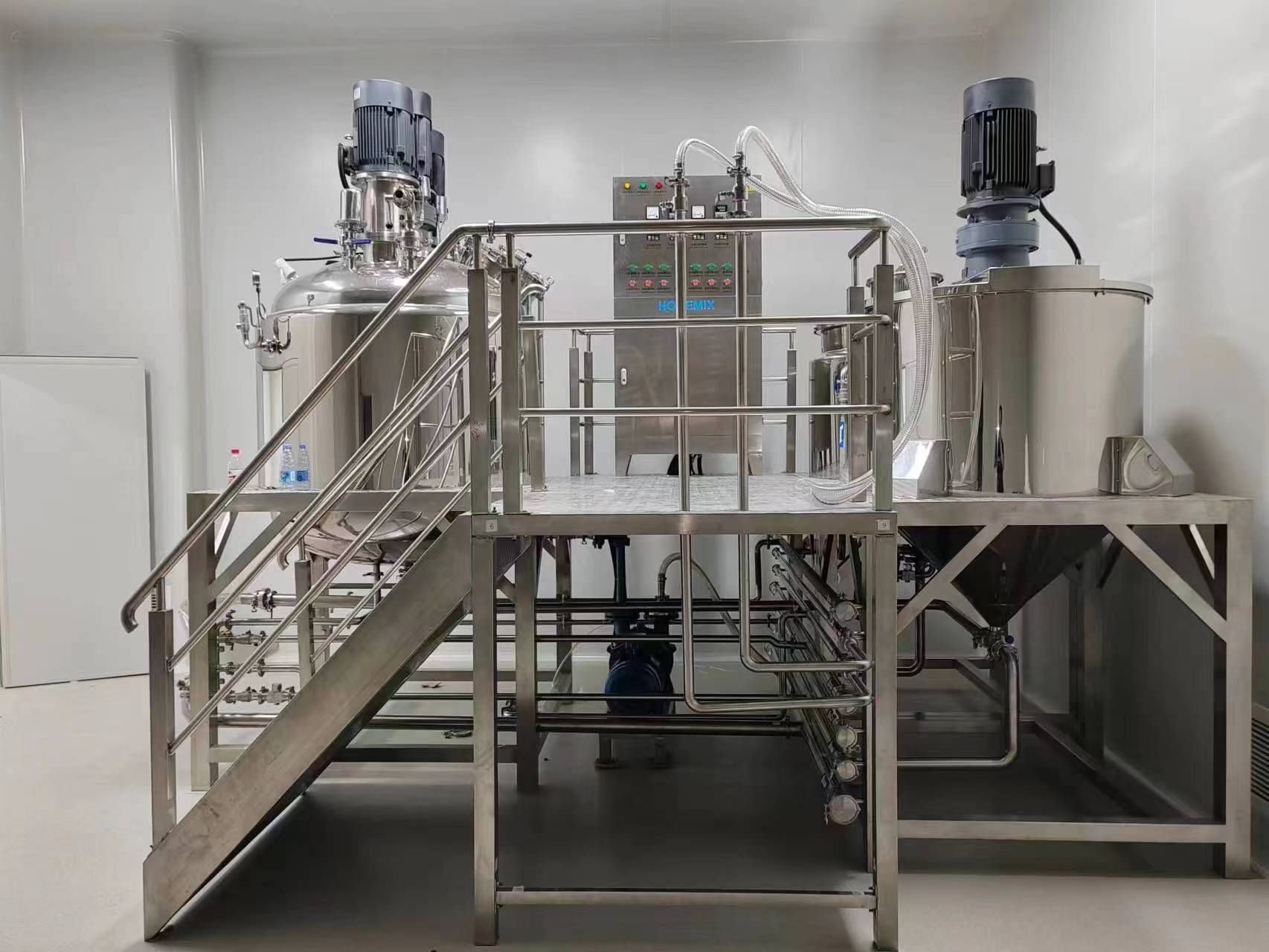

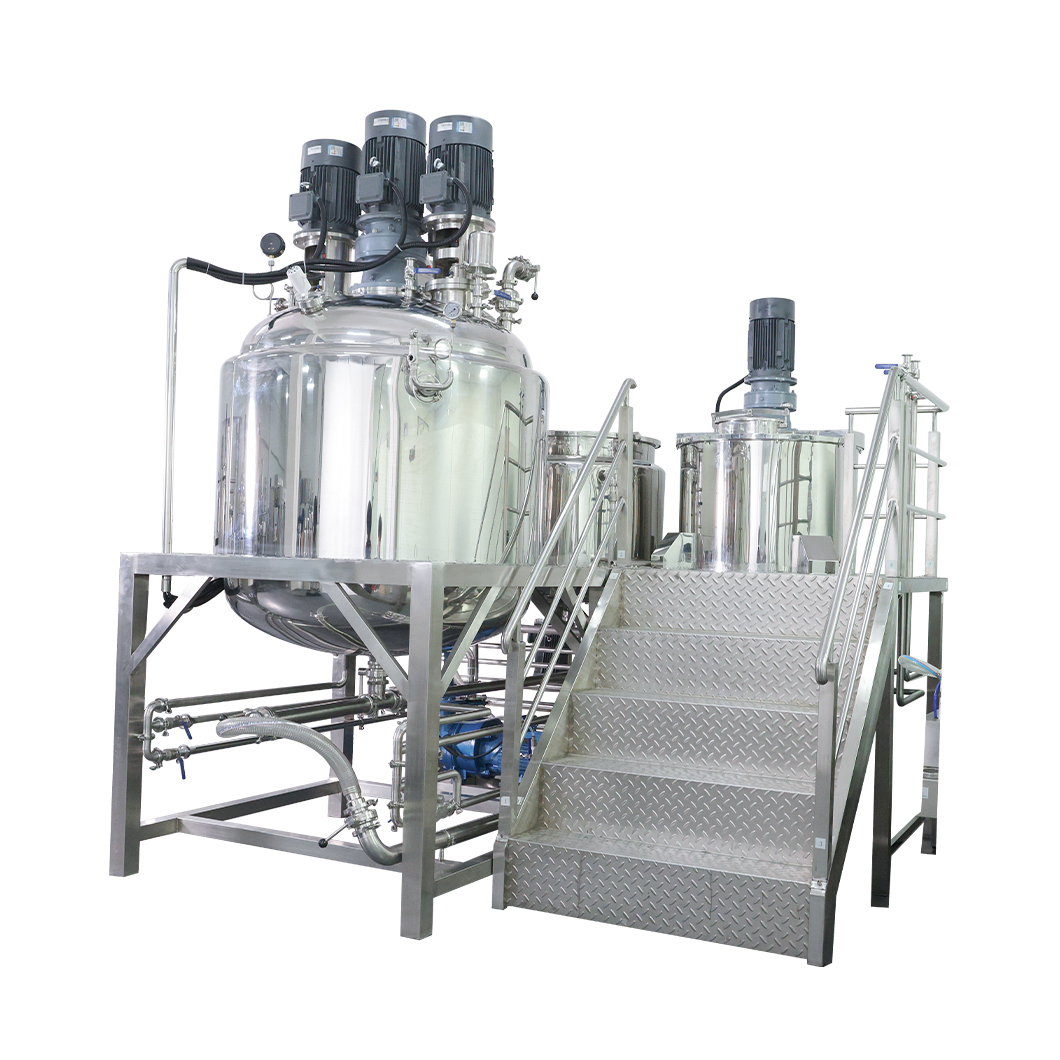

HTM-FC 1000L Customize Toothpaste making machine with Vacuum

Product Description

Professional 1000L Vacuum Mixing Kettle for Cosmetics & Toothpaste Production
Designed for high-demand cream and paste production (e.g., cosmetics, toothpaste), this kettle features 316L stainless steel for material contact and 304 stainless steel for structural parts. The interior mirror polish meets GMP standards, ensuring safe and hygienic production.

Key Features

1. Premium Material & Craftsmanship

• Material contact parts: 316L stainless steel (high corrosion resistance)

• Non-contact parts: 304 stainless steel

• Mirror polish inside and outside, easy to clean, GMP compliant

2. Main Kettle System

• Capacity: 1000L (design capacity: 1300L)

• Structure: Top/bottom heads, top head with flange for easy maintenance

• Configurations: Feed inlet, sight glass with pressure manhole, lighting, vacuum pressure gauge, spray ball, breather, fragrance inlet

3. Efficient Mixing & Dispersion

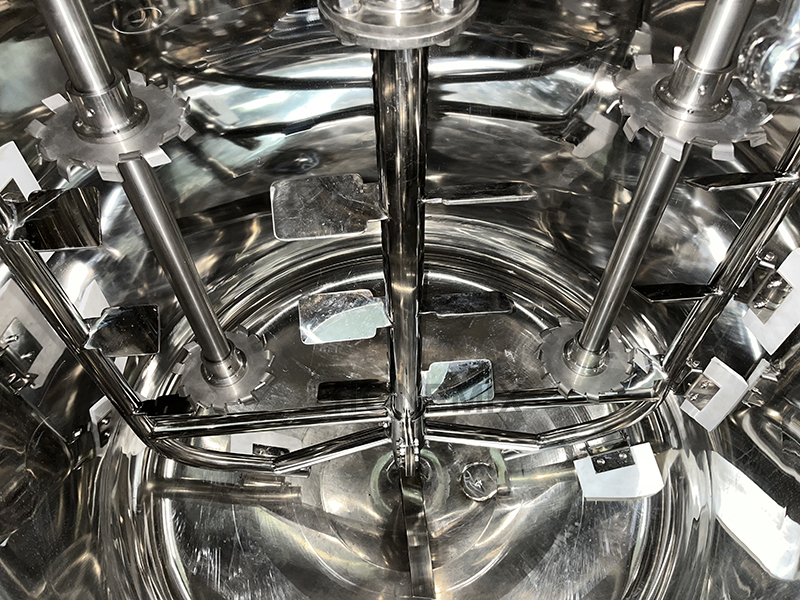

• Anchor-type scraper stirring system with 7.5KW Siemens/ABB motor and reducer

• Variable frequency drive for adjustable mixing speed

• High-speed dispersing disk designed for toothpaste production

• Optional bottom homogenizer for refined product texture

4. Multi-functional Auxiliary Systems

• Jacketed heating/cooling for temperature control

• Vacuum feeding system: sucks liquid and powder materials through bottom outlet/auxiliary inlet

• Oil/water kettle: 0.5/0.8x main kettle capacity, with jacketed heating and high-speed disperser

• Powder kettle: 1000L with high-torque spiral agitator for pre-mixing and vacuum transfer

5. Control System

• Push-button independent controls, user-friendly and reliable

Applications

• Toothpaste, creams, gels, and cosmetic pastes

• Pharmaceutical ointments, food sauce mixing
