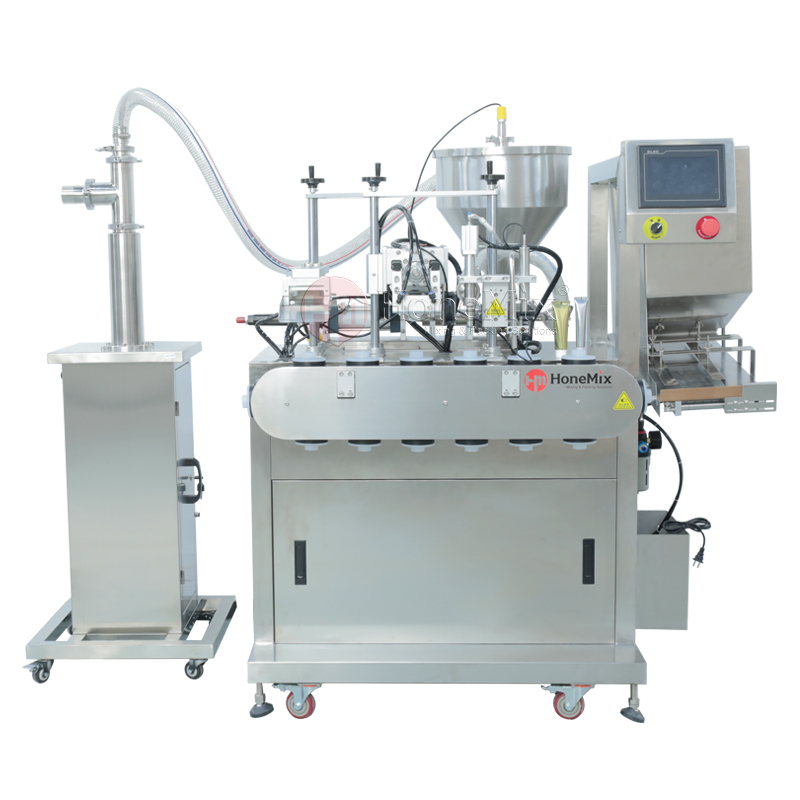

Automatic Linear Ultrasonic Tube Filling and Sealing Machine
This automatic linear ultrasonic tube filling and sealing machine is an innovative packaging solution engineered for high-efficiency and precision processing of plastic and laminated tubes. Distinguished from traditional rotary-type machines, its linear structural design redefines space utilization and operational convenience, integrating a full range of automatic functions to streamline the tube packaging workflow for diverse products. It is ideal for small and medium-sized production batches, laboratory trials, and regular production lines across multiple industries, delivering stable performance and high-quality packaging results.
Core Structural Advantage: Linear Layout vs Rotary Design
The machine adopts a linear layout that stands out against rotary tube filling and sealing equipment with remarkable structural merits. Its compact design significantly reduces the floor space required, making it a perfect fit for workshops with limited area or production lines that need flexible layout adjustment. Unlike rotary machines with complex rotating components, the linear structure features a clear and straightforward mechanical flow, which not only simplifies daily operation for operators but also greatly lowers the difficulty of maintenance and part replacement. All functional modules are arranged in a linear sequence, allowing for quick troubleshooting and routine upkeep, effectively reducing production downtime and improving overall operational efficiency.
Full-Automatic Operational Workflow
Realizing a one-stop automatic tube processing solution, the machine eliminates the need for extensive manual intervention in the core production process, ensuring consistent processing quality and stable output. The complete automatic workflow includes:
Automatic tube feeding: Precisely transports empty tubes to the processing station with high positioning accuracy, laying a solid foundation for subsequent procedures.
Automatic alignment: Intelligently aligns tube labels and structural marks to ensure standardized and aesthetically pleasing finished products, meeting the high requirements of brand packaging.
Automatic filling: Equipped with a high-precision dosing system that delivers accurate filling volume for each tube, avoiding material waste and ensuring product dosage consistency.
Automatic ultrasonic sealing: Adopts advanced ultrasonic sealing technology to create a tight, airtight seal on tube ends. The ultrasonic process ensures fast and reliable sealing without damaging tube materials, effectively extending the shelf life of packaged products by preventing leakage and oxidation.
Code stamping: Integrates an integrated code stamping function to print production dates, batch numbers, shelf life and other critical information on tube surfaces with clear and durable marking, complying with product traceability and regulatory requirements.
Automatic tail cutting: Precisely cuts off excess material at the sealed tube ends, ensuring neat and uniform tube tail shapes for a refined finished product appearance.
Automatic tube ejection: Automatically conveys the fully processed and finished tubes to the collection area, completing the entire packaging cycle and facilitating subsequent sorting and packaging.
Technical Parameters
| Parameter Category | Specification Details |
| Applicable Tube Materials | Polyethylene (PE), Polypropylene (PP), all laminated tubes (including Polyfoil tubes) |
| Filling Volume Range | 10 – 250 ml |
| Filling Accuracy | ≤ ±1% of the set volume (supports high-precision microdose filling) |
| Sealing Technology | Advanced ultrasonic sealing (temperature/pressure/frequency electronically controlled) |
| Coding Function | Single/dual-sided coding, customizable fonts (date/batch number/shelf life printable) |
| Production Capacity | Up to 12 tubes per minute (stable output for continuous operation) |
| Tube Caliber Adaptation | Universal adaptation for standard plastic/laminated tube calibers (customizable for special sizes) |
| Power Supply | 220V/380V 50/60Hz (customizable according to regional electrical standards) |
| Air Pressure Requirement | 0.6 – 0.8 MPa (stable pneumatic control for all automatic actions) |
| Overall Dimensions | L1500×W800×H1600 mm (compact linear design, customizable for line integration) |
| Net Weight | 350 kg (sturdy structure with optimized weight distribution) |
| Control System | PLC controller with 7/10-inch color touch screen (multi-parameter storage & one-click switching) |
| Hygiene Grade | Food/Pharmaceutical grade (AISI 304 main body, AISI 316 product contact parts) |
Premium Material & Precision Performance
High-Quality Construction
The main body of the machine is constructed from high-grade food and pharmaceutical-grade AISI 304 stainless steel, featuring corrosion resistance, rust proofing and easy cleaning. All parts that come into contact with products are made of ultra-high-purity AISI 316 stainless steel materials, which meet strict hygiene standards and prevent any contamination to the filled products, making the machine suitable for the packaging requirements of high-hygiene industries. The smooth surface design of all components further reduces the risk of material residue and bacterial growth, simplifying the cleaning and sterilization process.
Unmatched Filling & Sealing Precision
High-precision filling: The filling system is calibrated to achieve an extremely low filling error rate, ensuring accurate dosage even for micro-volume filling requirements starting at 0.4 ml. It can adapt to the filling of different volume specifications, with a wide adjustable range to meet the packaging needs of various product types.
Reliable ultrasonic sealing: The electronic control system precisely regulates ultrasonic sealing parameters such as frequency, pressure and working time, ensuring consistent sealing quality for each tube. The sealed tube ends have strong structural strength, passing strict sealing performance tests to prevent product leakage and deterioration during storage and transportation.
Intuitive & Intelligent Control
The machine is equipped with a professional PLC control system and a human-machine interactive touch screen, which enables intuitive operation and real-time monitoring of the production process. Operators can easily set and adjust parameters such as filling volume, sealing intensity, code content and production speed on the touch screen, with the system storing multiple sets of process parameters for quick switching between different product production tasks. It is also fitted with a production output counter, which accurately records the number of finished products, facilitating production management and statistical work. In addition, intelligent sensors are installed at key stations to detect abnormal conditions in real time and issue automatic alarms, effectively avoiding defective products and equipment damage.
Versatile Industrial Applications
This linear ultrasonic tube filling and sealing machine is designed with strong compatibility, suitable for filling and sealing a wide range of tube materials including polyethylene (PE), polypropylene (PP) and various laminated tubes (including polyfoil tubes). It is applicable to the packaging of diverse products across multiple industries, such as:
Cosmetics: Creams, lotions, gels, facial masks, hair care products and other cosmetic formulations;
Pharmaceuticals: Ointments, topical medicines, pharmaceutical creams and other pharmaceutical products with strict hygiene and dosage requirements;
Daily care: Dental care products (toothpaste, dental gels), hand sanitizers, body lotions and other daily chemical products;
Animal care: Pet ointments, animal care gels and other pet products;
Food industry: Edible pastes, sauces, honey, jam and other food products with paste or gel consistency;
Chemical industry: Small-dose industrial gels, adhesives, lubricants and other chemical products.
Its high precision and strict hygiene design make it particularly suitable for industries with high regulatory requirements such as pharmaceuticals and food, while its flexible adjustability can meet the diverse packaging needs of cosmetics and daily chemical enterprises for small and medium batches of products.
Compliance & Easy Sterilization
Adhering to international cGMP (current Good Manufacturing Practices) standards, the machine is built with GMP-compliant materials and components, including FDA-certified seals and gaskets for all contact parts, with complete material certification documents available for inspection and verification. The modular design of the whole machine allows for easy disassembly of all components—each part can be quickly removed for thorough cleaning, sterilization and autoclaving, meeting the strict sterilization requirements of pharmaceutical, food and other high-hygiene industries.
For enterprises in need of equipment verification and validation, we can provide a complete set of professional documentation packages, including Factory Acceptance Test (FAT) protocols, Site Acceptance Test (SAT) protocols, Installation Qualification (IQ) protocols and Operational Qualification (OQ) protocols, to fully comply with the equipment regulatory requirements of various industries and help customers complete the production qualification and audit process smoothly.
Ideal for Diverse Production Scenarios
This machine is carefully designed to adapt to various production needs, serving as an ideal entry-level equipment for new enterprises and a flexible processing device for mature enterprises. It is perfectly suited for small and medium-sized production batches, short production runs and customized product processing, and can also be integrated into regular production lines for continuous and stable operation. Its compact size, easy operation and low maintenance cost make it a cost-effective packaging solution for both laboratory R&D trials and formal industrial production, helping enterprises improve production efficiency while controlling operational costs.
Every component of the machine is manufactured with rigorous quality control, ensuring long-term stable operation and reliable performance. We provide comprehensive after-sales support including equipment installation guidance, operator training and regular maintenance advice, committed to creating a worry-free production experience for customers and becoming a reliable partner for enterprise packaging production.
