HY-A100C
HONEMIX

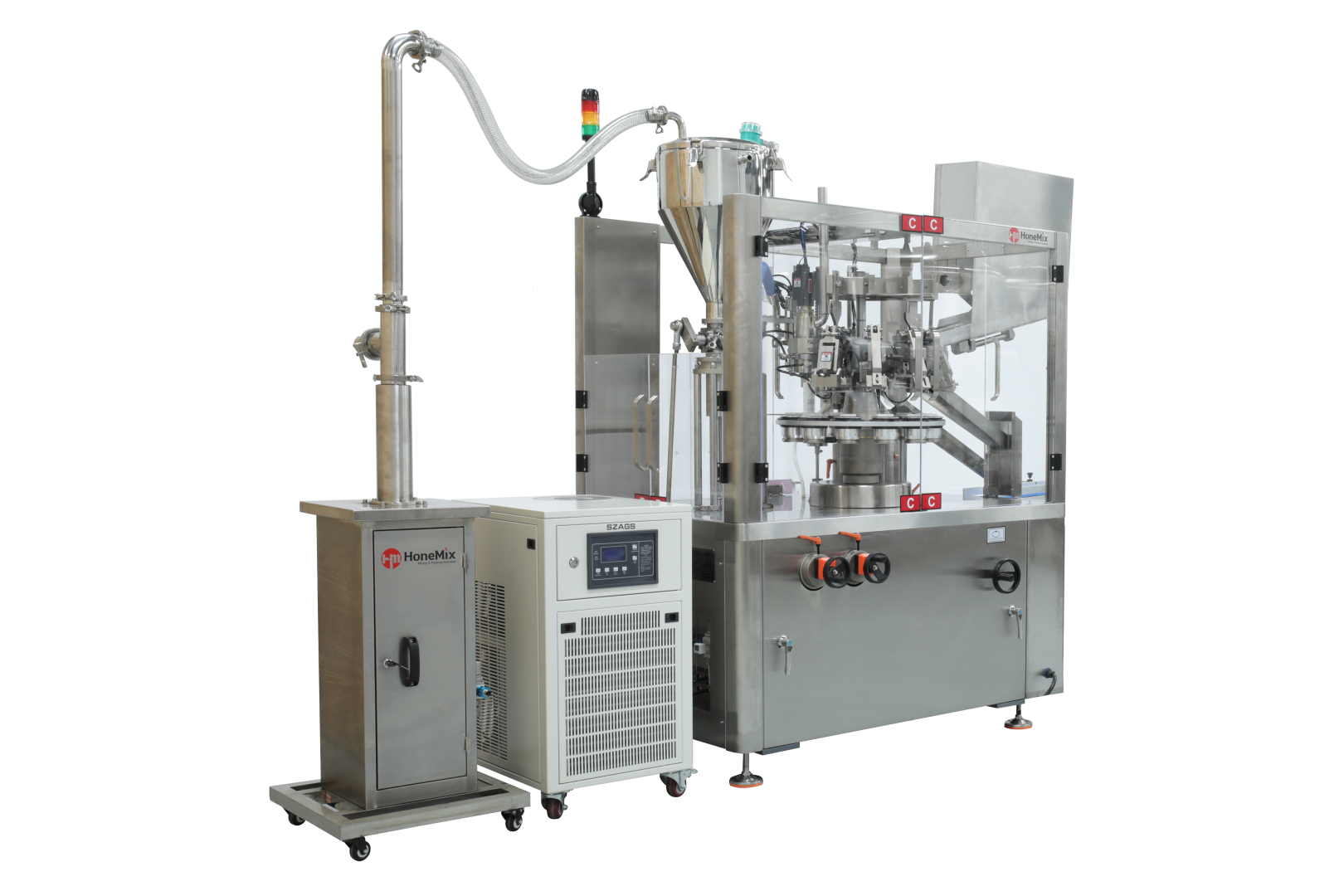

Fully automatic integrated process: The whole process of tube washing, feeding marking identification, filling, folding, sealing, code printing and finished product output is controlled by an intelligent automatic system, which greatly reduces manual operation and improves production efficiency.
High precision and multi-scenario adaptation: Support multi-color filling and special tube filling, and realize special-shaped sealing process; The filling accuracy is ≤±0.5%, which meets the high precision requirements of pharmaceutical and daily chemical products.
Stable and reliable structural design: Compact overall design, fully closed driving part, effective dustproof and anti-interference; Pneumatic tube washing and feeding ensure accurate and stable material transmission, and photoelectric induction realizes automatic tube orientation without manual calibration.
Intelligent temperature control and safety protection: Equipped with intelligent temperature control and cooling system, the sealing temperature is adjustable and the effect is stable; The contact parts are made of 316L stainless steel, which meets GMP pharmaceutical production standards; With safety interlock shutdown (automatic shutdown when the door is opened) and overload protection function, the production safety is guaranteed.
Easy operation and adjustment: The equipment parameters are adjustable, and it can be quickly adapted to the production of tubes of different specifications, with low post-maintenance difficulty and short debugging time.
Chiller, Date Coding Embossing, Automatic Tube Feeding Magazine, Change Parts
| Parameter | Specification |
|---|---|
| Filling volume | 1-400ml/unit (Adjustable) |
| Filling accuracy | ≦±0.5% |
| Production capacity | 4000-4800unit/hour (Adjustable) |
| Applicable tube diameter | Φ10-60 mm |
| Applicable tube length | 50-240mm |
| Hopper volume | 40L |
| Power supply | 380V/220V (Optional) |
| Air pressure | 0.4-0.6 MPa |
| Machine power | 9kw |

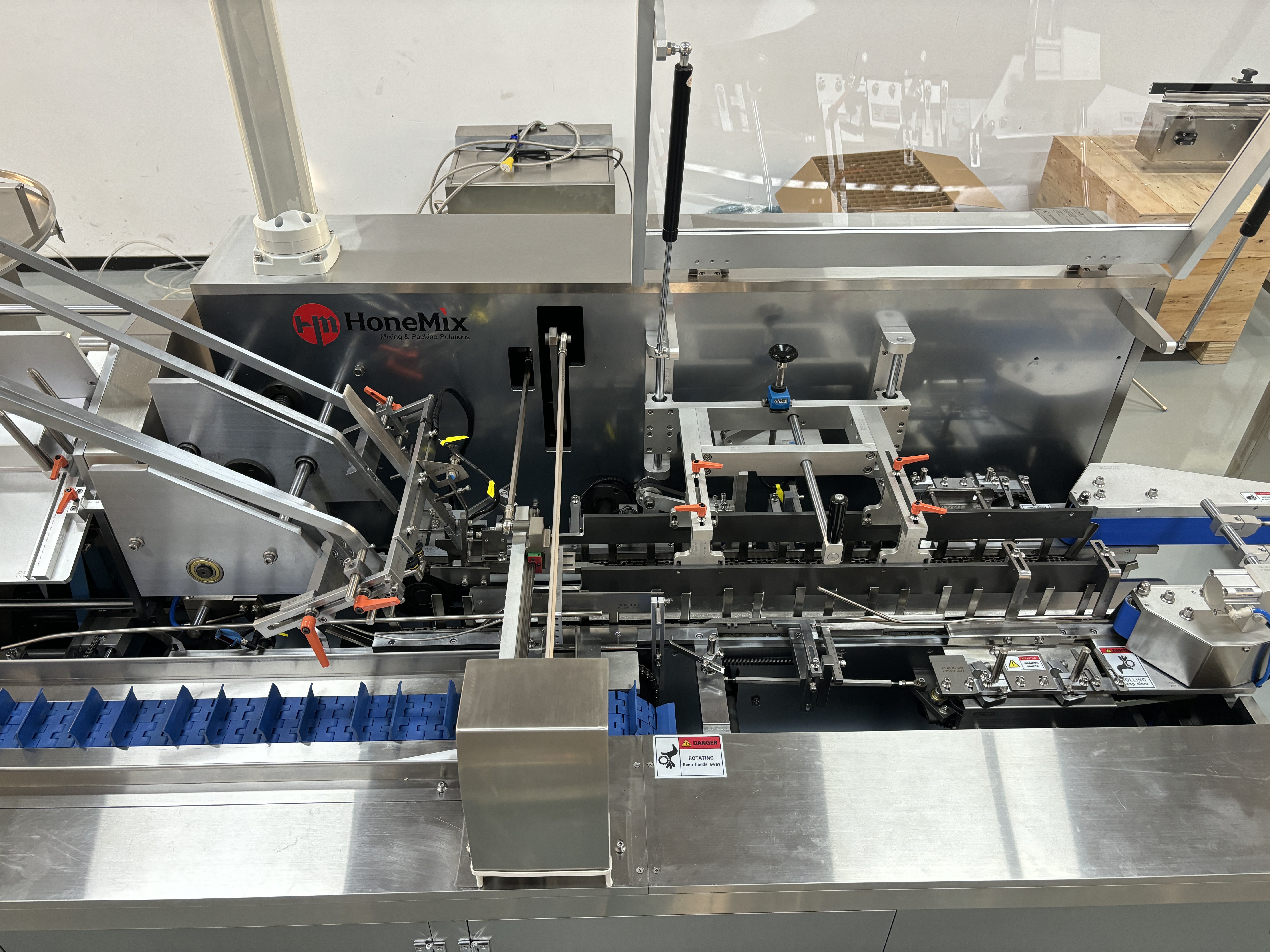

Multi-scenario application & high compatibility: It is suitable for intermittent cartoning of medicine plates, hoses, ampoules and similar products, and is perfectly matched with the finished product output of HY-A100C tube filling and sealing machine; It has a wide adaptability to carton sizes, and the adjustment is simple when changing product specifications, which is suitable for both mass single-variety production and small-batch multi-variety production.
Fully automatic high-efficiency operation: Automatically complete the whole process of leaflet folding, carton opening, product loading, batch number printing (steel letter/ink spray) and carton sealing; The maximum production capacity can reach 150 boxes/min, and the frequency conversion speed regulation is adopted to realize stepless speed adjustment of the equipment according to the production rhythm of HY-A100C.
Intelligent control & fault prompt: Adopt PLC control system and man-machine interface operation, which is simple and easy to learn; The photoelectric monitoring is equipped at each station. If an abnormality occurs during operation, the machine will automatically stop and display the fault reason, which is convenient for timely troubleshooting and reduces production loss.
Stable structure & safe and reliable: Integrate mechanical, electrical, optical and pneumatic technologies, driven by servo motor with stable operation and accurate positioning; The original main drive rear design is convenient for daily maintenance and power part overhaul; With empty box rejection function, the intelligent detection system can reject the cartons without products or leaflets at the outlet to ensure the qualification rate of finished products.
Flexible production line combination: It can be connected with HY-A100C tube filling and sealing machine, blister packaging machine, weight checker and other equipment to form a one-stop automatic packaging production line, which greatly improves the overall production efficiency of the workshop.
| Parameter | Specification |
|---|---|
| Production capacity | 90-150 boxes/min (Adjustable) |
| Applicable carton size | Max:200×80×60mm / Min:50×20×15mm |
| Applicable leaflet size | Max:260×190mm / Min:100×100mm |
| Carton paper specification | 250-300g/m² |
| Leaflet paper specification | 55-65g/m² |
| Air consumption | 20m³/h (Air pressure 0.50-0.7MPa) |
| Motor power | 1.5kw |
| Power supply | 380V 50HZ |
| Overall dimension | 3600×1200×1600mm |
| Machine weight | 1200kg |

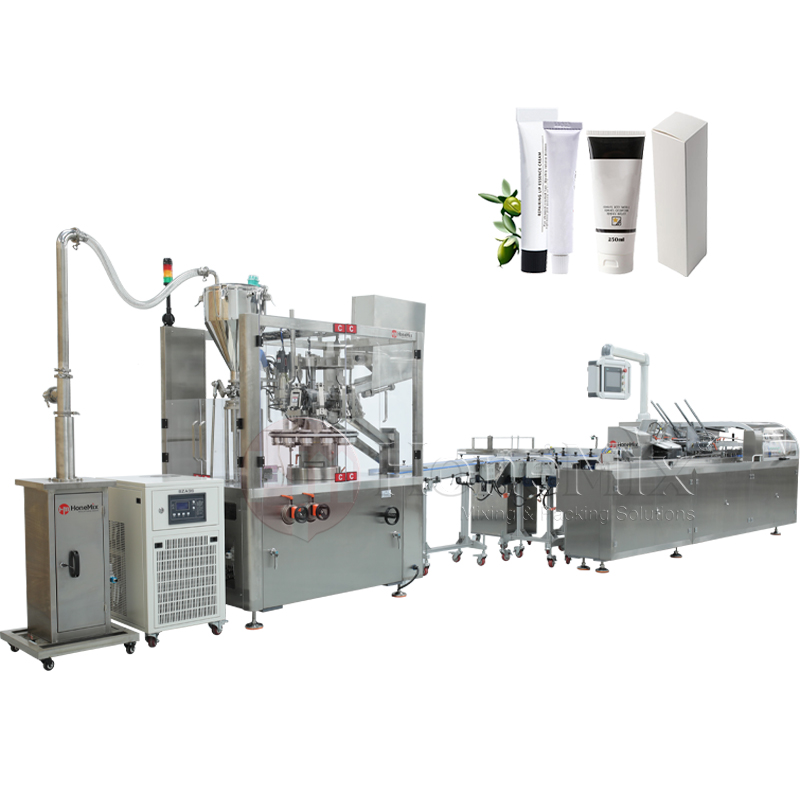

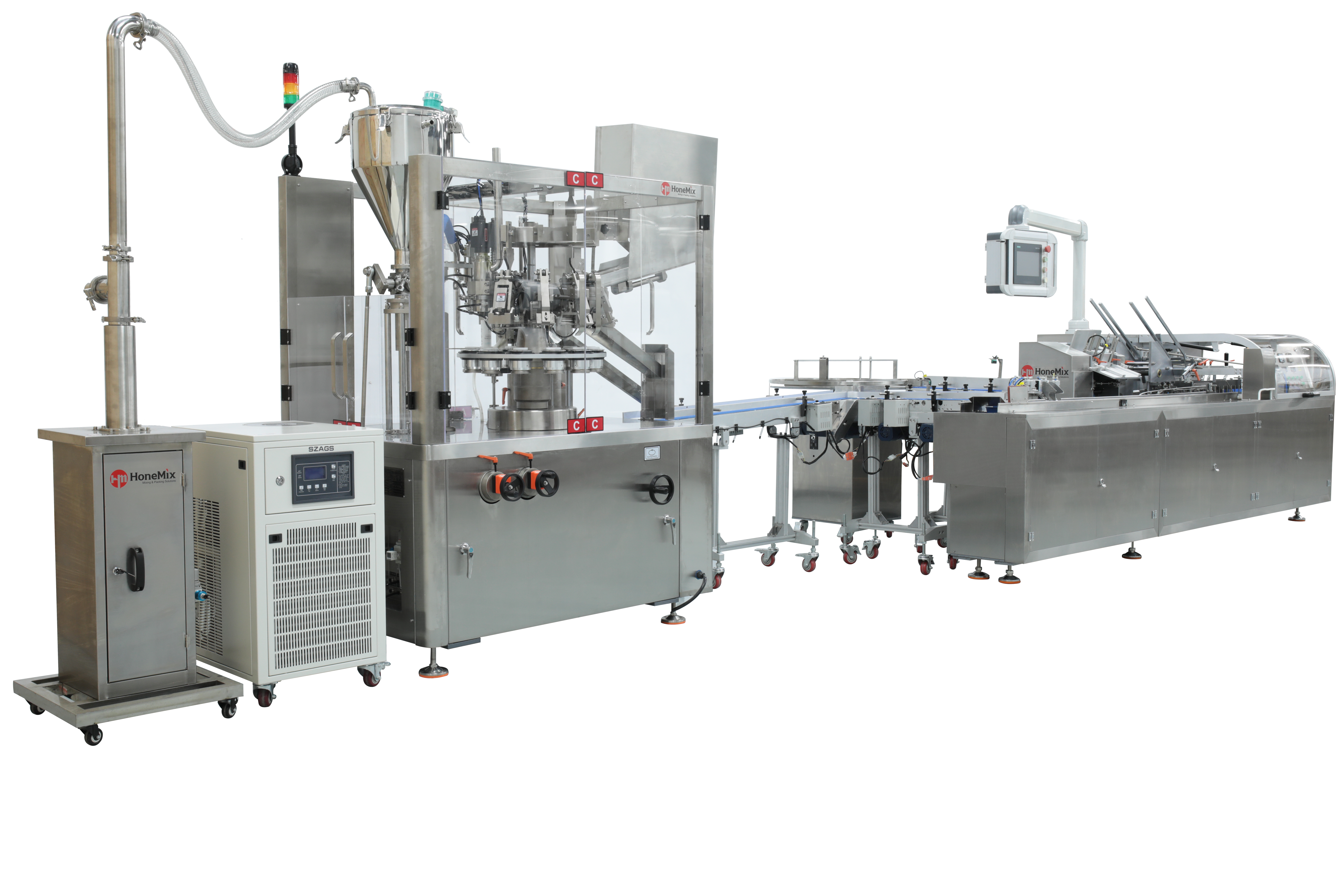

Whole process automation: From tube filling and sealing to finished product cartoning, no manual intervention is needed in the whole process, which reduces labor cost and avoids human error.
High matching production rhythm: The adjustable production capacity of the two equipments can be flexibly matched, and the production line can run stably without the problem of material accumulation or shortage.
Meet high-standard production requirements: Both equipments meet the GMP pharmaceutical production standards, and the contact parts are made of food-grade/stainless steel materials, which is suitable for the high-standard packaging requirements of pharmaceutical, daily chemical and cosmetic industries.
Space-saving & easy maintenance: The compact design of the two equipments is suitable for the layout of small and medium-sized workshops; The structural design is humanized, and the daily maintenance and part replacement are simple and convenient.
