ALM-DS
Honemix

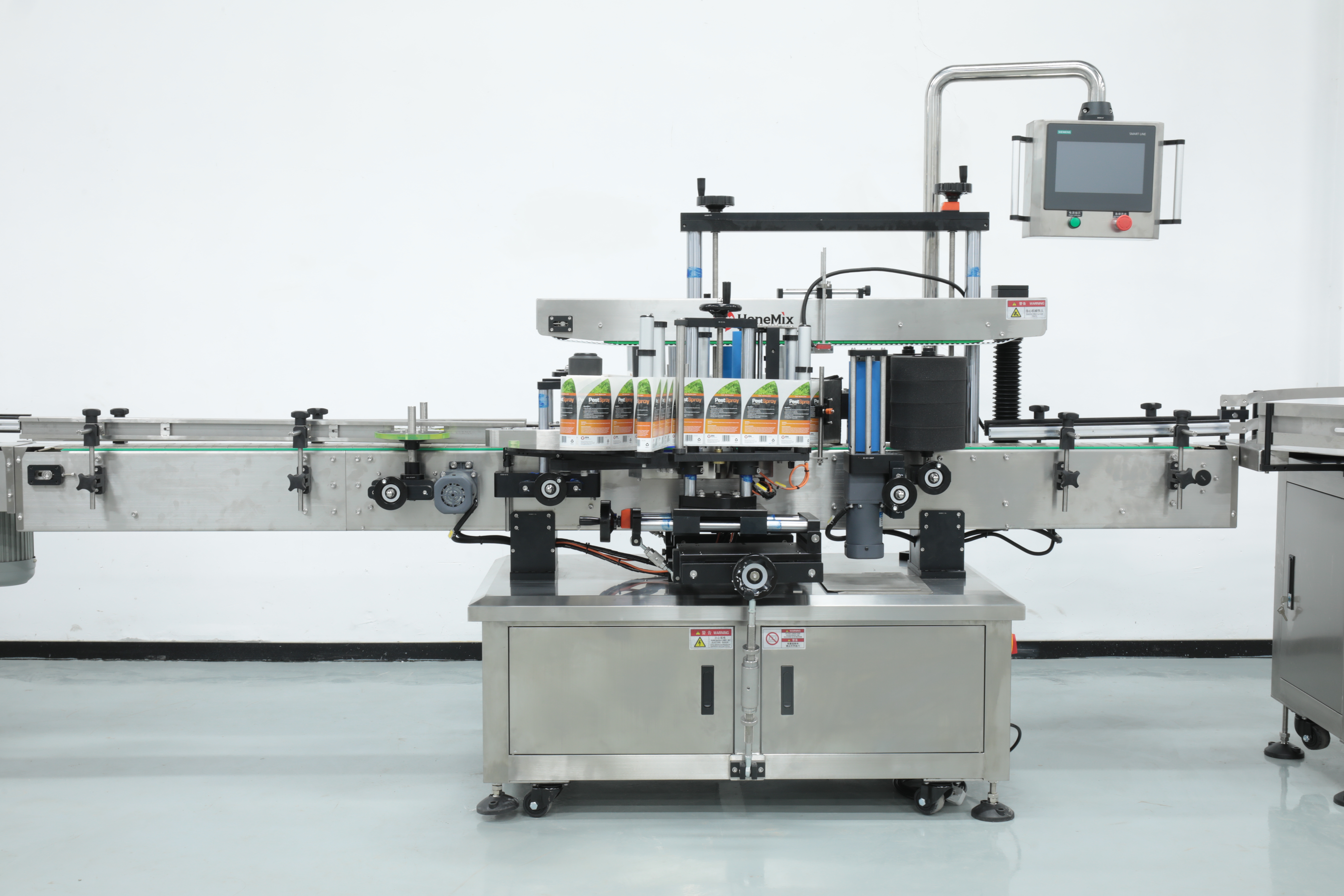

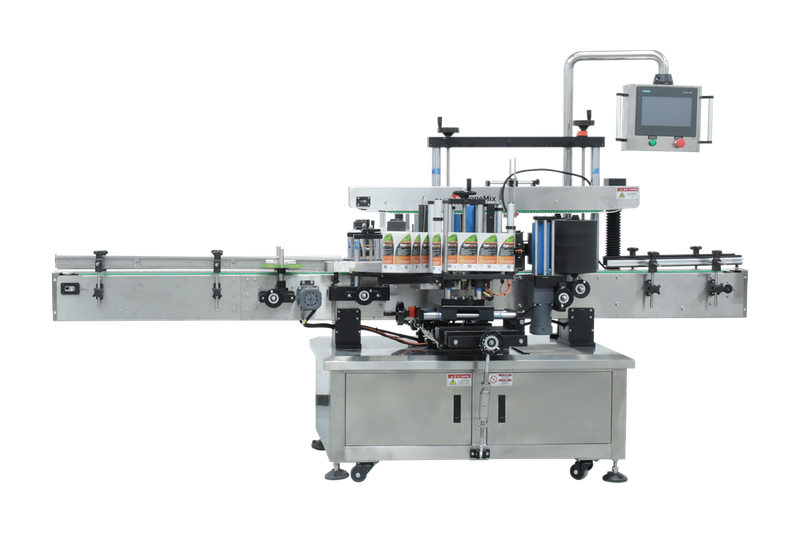

For manufacturers requiring precise, high-speed labeling on flat, square, oval, or rectangular containers, the Automatic Double-Sided Labeling Machine delivers exceptional performance. Designed to apply labels simultaneously to both the front and back surfaces of a bottle—or to two separate positions on a single container—this automatic labeling system ensures consistent placement, alignment, and adhesion for a professional finished appearance.
Ideal for a wide range of products including cosmetic bottles, pharmaceutical vials, beverage containers, and household chemical packaging, this machine eliminates the need for two separate labeling operations. By applying both labels in a single pass, it significantly improves production efficiency while maintaining accuracy within ≤±1mm.
The system is fully controlled by a PLC with a touch screen interface, allowing for quick setup, recipe storage, and real-time production monitoring. Constructed with a durable stainless steel frame and food-grade components, this labeling machine meets GMP standards for cosmetic, pharmaceutical, and food manufacturing environments.
1. Simultaneous Front & Back Labeling
The machine features two independent labeling heads that apply labels to both sides of the container in one continuous operation. Each labeling head is servo-driven, ensuring precise label placement and synchronization with bottle movement.
2. Versatile Bottle Handling
Designed for flat, square, oval, and rectangular containers, the machine accommodates a wide range of bottle sizes:
Bottle Width: 20mm – 150mm (adjustable)
Bottle Height: 30mm – 300mm (adjustable)
Bottle Thickness: 10mm – 100mm (adjustable)
The adjustable guide rails and bottle positioning system ensure stable handling for various container shapes.
3. High-Speed Operation
With labeling speeds of up to 60–120 bottles per minute (depending on bottle size, label length, and configuration), this machine dramatically improves production throughput compared to manual or single-sided labeling.
4. Precision Label Placement
The servo-driven labeling heads deliver consistent accuracy of ≤±1mm for both front and back labels. Optional vision systems can be integrated for enhanced alignment on irregular or difficult-to-handle containers.
5. User-Friendly Control System
The PLC and HMI touch screen provide intuitive operation, recipe storage for up to 100 different products, and real-time diagnostics. Changeover between different bottle sizes and label types typically takes less than 15 minutes.
6. Durable & Hygienic Construction
The machine frame is constructed from SUS304 stainless steel, while all product-contact and wear parts are designed for durability and easy cleaning. The stainless steel design ensures corrosion resistance and compliance with sanitary standards.
7. Optional Features
Customize your labeling machine with a range of optional features:
Hot stamp or inkjet coder – for batch number, expiration date, or lot code printing on one or both labels
Corner labeling attachment – for applying labels around bottle corners
Round bottle attachment – for converting the machine to handle cylindrical containers
Label missing & rejection system – sensor to detect missed labels and reject incomplete bottles
Automatic bottle feeding & collection – for fully automated production lines
| Parameter | Specification |
|---|---|
| Machine Type | Automatic Double-Sided Labeling Machine |
| Applicable Bottle Shape | Flat, square, oval, rectangular containers |
| Bottle Width Range | 20mm – 150mm (customizable) |
| Bottle Height Range | 30mm – 300mm (customizable) |
| Bottle Thickness Range | 10mm – 100mm (customizable) |
| Label Type | Self-adhesive / pressure-sensitive labels (roll-fed) |
| Label Width (per head) | 10mm – 150mm (customizable) |
| Label Length (per head) | 10mm – 300mm (customizable) |
| Labeling Heads | 2 independent servo-driven heads |
| Labeling Speed | 40 – 120 bottles/min (depending on bottle size and label length) |
| Labeling Accuracy | ≤±1mm |
| Label Roll Diameter | Max. 350mm (inner core: 76mm) |
| Conveyor Speed | Variable speed (adjustable via frequency drive) |
| Control System | PLC + HMI Touch Screen (with recipe storage) |
| Power Supply | 220V / 380V, 50/60Hz, single phase or three phase |
| Power Consumption | 1.5 – 2.5 kW |
| Air Supply | 0.4 – 0.6 MPa (for optional features) |
| Machine Material | SUS304 Stainless Steel + Anodized Aluminum |
| Dimensions (L×W×H) | Approx. 2500 × 1400 × 1500 mm (varies by configuration) |
| Weight | Approx. 400 – 600 kg |
This double-sided labeling machine is suitable for a wide range of industries and products:
Cosmetics & Personal Care: Lotion bottles, shampoo bottles, perfume boxes, skincare jars, soap boxes.
Pharmaceuticals: Medicine bottles, prescription vials, supplement containers, cartons.
Food & Beverage: Sauce bottles, honey jars, beverage bottles, condiment containers.
Household & Chemical: Cleaning solution bottles, detergent containers, lubricant bottles, pesticide containers.
Factory Direct Manufacturing
As a direct manufacturer, we offer competitive factory pricing with strict quality control. Each machine undergoes comprehensive testing before shipment to ensure reliable performance.
Efficiency Through Integration
By combining front and back labeling into a single operation, this machine eliminates the need for two separate machines or multiple manual steps, reducing labor costs and floor space requirements while increasing throughput.
Quick Changeover Capability
With adjustable guide rails, independent labeling head positioning, and recipe storage, switching between different bottle sizes and label types is fast and straightforward—ideal for contract packers and facilities with diverse product lines.
Precision & Consistency
The servo-driven labeling heads ensure consistent label placement across thousands of bottles, eliminating the variability associated with manual or pneumatic labeling systems.
Easy Integration
The machine can be easily integrated into existing production lines, connecting with filling machines, capping machines, and packaging equipment for fully automated operations.
Global Support
We provide comprehensive after-sales support, including installation guidance, video tutorials, spare parts availability, and lifetime technical consultation.
Q: Can this machine handle round bottles?
A: The standard configuration is designed for flat, square, and oval bottles. However, we offer a round bottle attachment that allows the machine to convert to cylindrical bottle labeling when needed.
Q: Can the two labeling heads apply different label sizes?
A: Yes. Each labeling head operates independently, allowing you to apply different label sizes, materials, or even different information (such as multilingual labels) on the front and back surfaces.
Q: How is the label alignment adjusted?
A: Label alignment is easily adjusted via the touch screen interface. The system stores recipe settings, so once a product is set up, operators can recall it instantly for future runs.
Q: Can a coder be integrated for date printing?
A: Yes. The machine can be equipped with hot stamp coders, inkjet printers, or thermal transfer printers to apply batch numbers, expiration dates, and other variable information during the labeling process.
Q: What happens if a bottle arrives without a label applied?
A: Optional label missing detection sensors can be installed to identify bottles that have missed a label. These bottles can be automatically rejected from the production line or trigger an alarm for operator attention.
Q: What is the warranty?
A: The machine comes with a 12-month warranty covering non-consumable parts, with lifetime technical support.
