HPM-M
Honemix

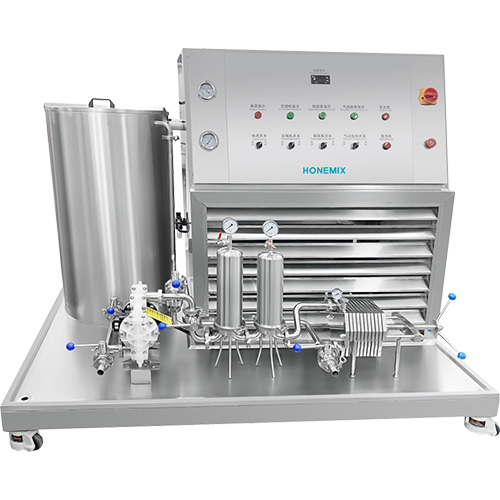

For fragrance manufacturers seeking a comprehensive, all-in-one solution, the Perfume Making Machine delivers complete production capability in a single integrated system. This advanced equipment combines essential perfume manufacturing processes—including blending, homogenization, low-temperature freezing, and precision filtration—into one streamlined platform, eliminating the need for multiple separate machines and reducing production complexity.
Designed specifically for the unique requirements of fragrance production, this machine handles the complete workflow from raw material blending to finished product stabilization. Whether you are producing fine perfumes, colognes, essential oil blends, or alcohol-based cosmetic formulations, this system ensures consistent quality, exceptional clarity, and optimal stability in every batch.
The machine integrates a high-efficiency mixing vessel with precision temperature control, active cooling capabilities, and multi-stage filtration. Constructed entirely from SUS316L stainless steel with PTFE-compatible components, the system is engineered to handle alcohol-based, volatile formulations without corrosion or contamination. A PLC with touch screen interface provides intuitive control over all processing parameters, with recipe storage for different formulations and real-time production monitoring.
1. Complete Fragrance Production Workflow
This all-in-one system integrates three essential processes:
Blending & Homogenization: High-efficiency mixing ensures complete dissolution of fragrance oils, alcohol, and fixatives.
Low-Temperature Freezing: Active cooling accelerates wax precipitation and stabilizes the formulation.
Precision Filtration: Multi-stage filtration removes precipitated particles for crystal-clear finished products.
2. High-Performance Mixing System
The machine features a variable-speed mixing mechanism with customizable agitator configurations (anchor, turbine, or propeller) to suit different product viscosities and blending requirements. Uniform mixing ensures consistent fragrance distribution and complete homogenization.
3. Precision Low-Temperature Control
An integrated refrigeration system provides precise temperature control, typically ranging from -20°C to +10°C. This capability enables:
Cold aging: Accelerated stabilization and wax precipitation
Temperature-sensitive blending: Maintaining optimal conditions for delicate fragrance notes
Consistent processing: Uniform temperature distribution throughout the batch
4. Multi-Stage Filtration System
After the freezing cycle, the product passes through precision filtration to achieve optical clarity:
Pre-filtration: Removes larger particles and precipitated waxes
Fine filtration: Captures micro-particles and colloidal residues
Polishing filtration: Achieves premium clarity for luxury fragrances
5. Hermetic & Volatile-Safe Design
All product-contact components are sealed to prevent evaporation of alcohol-based formulations. The closed-system design minimizes VOC loss, preserves delicate top notes, and ensures operator safety.
6. Sanitary Construction & Easy Cleaning
Constructed from sanitary-grade SUS316L stainless steel with smooth welds and polished surfaces, the machine is designed for easy cleaning between batches. CIP (Clean-in-Place) compatibility is available for automated cleaning.
Raw Material Loading: Fragrance oils, alcohol, and other ingredients are loaded into the jacketed mixing vessel.
Blending & Homogenization: The mixing mechanism operates at programmed speeds to achieve complete dissolution and uniform distribution of all components.
Low-Temperature Freezing: The refrigeration system cools the product to the set temperature while mixing continues, ensuring uniform chilling and accelerated wax precipitation.
Filtration: The chilled product is transferred through the multi-stage filtration system, removing precipitated particles and achieving optical clarity.
Finished Product Collection: The clarified, stabilized perfume is collected and ready for bottling.
Parameter | Specification |
|---|---|
Machine Type | Perfume Making Machine (Blending, Freezing & Filtration Integrated) |
Tank Capacity | 100L / 200L / 300L / 500L / 1000L (customizable) |
Tank Material | SUS316L Stainless Steel (product contact) |
Tank Design | Jacketed (double-wall) with high-density insulation |
Temperature Range | -20°C to +80°C (customizable) |
Temperature Accuracy | ≤±1°C |
Cooling Method | Refrigeration compressor with coolant circulation |
Heating Method | Electric heating / Steam / Thermal oil (optional) |
Mixing Type | Anchor / Scraper / Turbine / Propeller (customizable) |
Mixing Speed | 0 – 150 rpm (variable frequency drive controlled) |
Motor Power | 1.5 kW – 7.5 kW (depending on tank size) |
Filtration Type | Multi-stage cartridge filtration / Plate & frame filter (optional) |
Filtration Precision | 0.2µm – 10µm (customizable) |
Control System | PLC + HMI Touch Screen (with recipe storage for up to 100 formulations) |
Power Supply | 380V / 220V, 50/60Hz, three phase |
Power Consumption | 8 – 30 kW (depending on configuration) |
Air Supply | 0.4 – 0.6 MPa |
Machine Material | SUS304 Stainless Steel (frame and non-contact) |
Dimensions (L×W×H) | Varies by configuration |
Optional Features | – Nitrogen blanketing for oxygen-sensitive formulations |
This complete perfume making system is ideal for:
Fine Fragrances: Perfume, eau de parfum, eau de toilette, eau de cologne
Essential Oils: Pure essential oils, aromatherapy blends, carrier oil formulations
Alcohol-Based Cosmetics: Toners, micellar water, aftershaves, liquid sanitizers
Pharmaceutical Tinctures: Herbal extracts and alcohol-based medicinal solutions
Beverage Flavors: Concentrated flavor essences and tinctures
All-in-One Solution
Eliminate the need for separate blending tanks, chilling units, and filtration systems. This integrated machine handles the complete perfume manufacturing process, reducing equipment costs, floor space requirements, and production complexity.
Superior Product Quality
The combination of precise blending, controlled low-temperature processing, and multi-stage filtration ensures crystal-clear, stable fragrances that meet the highest quality standards for luxury products.
Factory Direct Manufacturing
As a direct manufacturer, we offer competitive pricing with strict quality control. Each system undergoes comprehensive testing before shipment.
Customizable to Your Production Scale
From small-batch artisanal production to high-volume manufacturing, we offer capacities from 100L to 1000L and beyond, with configurations tailored to your specific requirements.
Global Support
We provide comprehensive after-sales support, including installation guidance, process optimization consultation, spare parts availability, and lifetime technical support.
Q: What processes does this machine perform?
A: The machine integrates three essential perfume manufacturing processes: blending/homogenization, low-temperature freezing/stabilization, and precision filtration.
Q: Can this machine handle different fragrance formulations?
A: Yes. The touch screen interface allows storage of up to 100 different recipes, enabling quick changeover between formulations.
Q: What is the typical production cycle time?
A: Cycle time varies depending on formulation and batch size. A typical cycle including blending, freezing, and filtration may range from 24 to 72 hours for the stabilization phase.
Q: Is the machine suitable for small-batch production?
A: Yes. We offer tank capacities starting from 100L, ideal for boutique fragrance houses and R&D applications.
Q: What is the warranty?
A: The machine comes with a 12-month warranty covering manufacturing defects, with lifetime technical support.
