Conveyor speed: 0-15m(adjustable)
Packing material: PVC, PP, POF, PE etc.
Heating system: steam generator
Power: 18KW(customized)
Shrinking tunnel: L1300xW200×H200mm
Dimension: 1700×790×1600mm
| Quantity: | |
|---|---|
FSM-S
HONEMIX

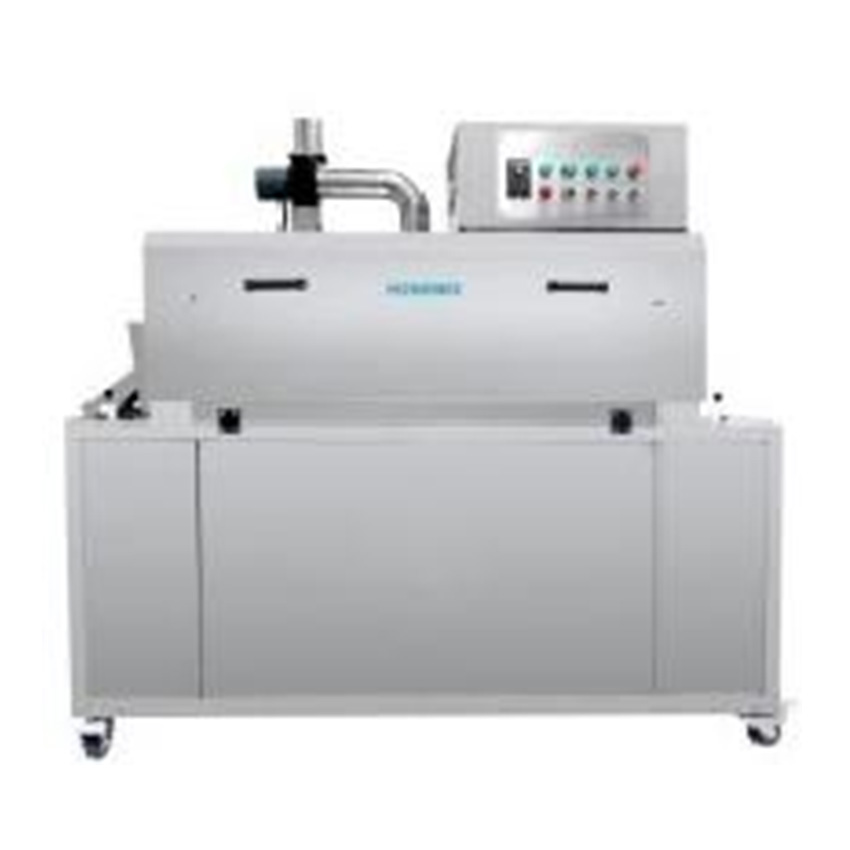

The Steam heating Film Shrinking Tunnel is an automated packaging solution designed to achieve tight, wrinkle-free film wrapping via high-temperature steam heating. Integrating steam generation, product conveying, and film shrinking functions in a compact unit, this machine delivers consistent packaging quality for goods of various sizes (from small electronic accessories to medium-sized cartons) , making it ideal for businesses pursuing efficient, professional packaging processes while reducing film waste. Its core advantage lies in steam’s uniform heat distribution—unlike hot air systems that often create localized overheating— which prevents film deformation and ensures optimal adhesion to product surfaces, even for items with subtle contour variations.
Precise Steam Control: Equipped with an adjustable steam generation system producing 32kg/h evaporation capacity (steam pressure range: 0.3-0.8MPa) and 0-12m/min conveying speed, adapting to different film thicknesses (PVC: 0.05-0.15mm, PET: 0.03-0.1mm, PP: 0.04-0.12mm, PA: 0.02-0.08mm) . A built-in temperature sensor automatically adjusts steam output based on ambient temperature (5-35°C) to maintain stability.
Durable Construction: Whole frame made of 304 corrosion-resistant steel (thickness: 2mm) , with a load capacity of 25kg and compact dimensions (L2135W706H1370mm) for space-saving installation in workshops or production lines. The conveyor belt uses wear-resistant PU material, which is easy to clean and replace.
Smart Operation: PLC control system (with 7-inch touchscreen) enables one-click parameter adjustment, with real-time monitoring of steam pressure, temperature, and conveyor speed—data can be exported via USB for production analysis. An alarm system triggers alerts for low water levels or abnormal pressure to reduce manual intervention.
Eco-friendly Design: Energy-saving steam recycling module captures and reuses 30% of waste steam, cutting power consumption by 15% compared to traditional hot air shrinkers . It also uses water-saving technology, requiring only 1.2L of water per hour for continuous operation.
Food Industry: Secondary packaging for bottled sauces (e.g., soy sauce, chili sauce), canned fruits (e.g., peach, orange cans), and frozen food boxes (e.g., frozen pizza, dumpling packs).
Electronics Sector: Wrapping for small appliance bundles (e.g., phone chargers, wireless earbuds, smart watch accessories) to prevent scratches during transportation.
Logistics & Retail: Carton bundling (e.g., 3-5 stacked corrugated boxes) and gift box surface finishing (e.g., Christmas gift sets, luxury skincare boxes) for a neat appearance.
Pharmaceuticals: Outer packaging of non-sterile medical device kits (e.g., first-aid kits, blood glucose test strip boxes) to enhance moisture resistance.
Q: What film types are compatible?
A: Works with all common shrink films including PVC, PET, PP, and PA, with film thickness ranging from 0.02mm to 0.15mm . For best results, use PET film for high-temperature-resistant products and PVC film for cost-sensitive applications.
Q: How to maintain the steam generator?
A: Descaling is required every 200 working hours using the machine’s built-in descaling function (descaling agent provided with the machine); replace the water filter (5μm precision) monthly to avoid mineral deposits blocking steam nozzles.
Q: Can it handle irregularly shaped products?
A: Yes, the adjustable conveyor height (780mm standard, adjustable range: 650-900mm) and 360° steam nozzles (12 nozzles in total, evenly distributed) ensure uniform shrinking for irregular items (e.g., curved toy boxes, triangular tool kits).
Q: What’s the average power consumption during operation?
A: Under standard working conditions (processing 10kg products/h, ambient temperature 25°C), the average power consumption is 1.2KW/h, significantly lower than hot air shrinkers (average 1.5KW/h) due to the steam recycling system.
