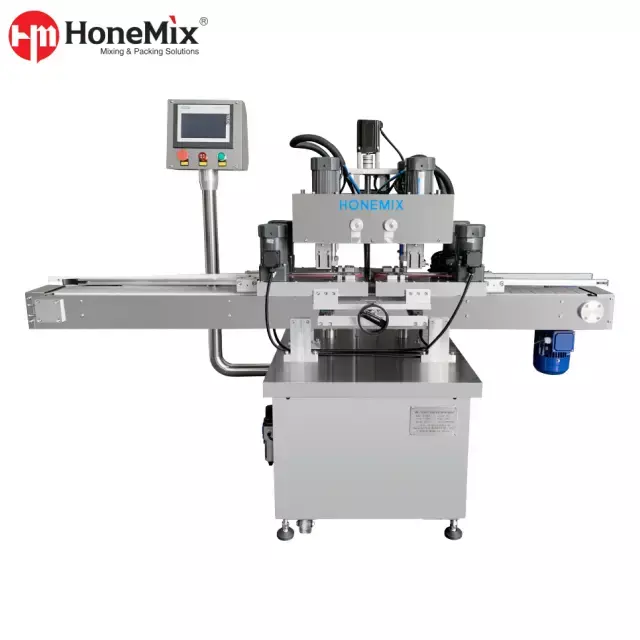

ACM-HS Automatic Double Head High Speed Capping Machine

ACM-HS Automatic Double Head High Speed Capping Machine Overview

The ACM-HS is an automatic in-line capping machine built for factories that want to improve the speed, consistency and repeatability of bottle capping. Instead of relying on manual tightening, the machine uses automatic bottle conveying, positioning and dual-station cap tightening to help reduce labor dependence and improve finished packaging quality.

For cosmetic, personal care, daily chemical, pharmaceutical and food packaging manufacturers, capping quality directly affects leakage control, product appearance, transportation safety and customer experience. The ACM-HS helps solve common production issues such as unstable manual torque, low capping efficiency, inconsistent cap tightness and slow changeover between bottle sizes.

The machine can be used as a stand-alone capping unit or connected with filling machines, labeling machines, coding machines, conveyors and rotary tables to form a more complete packaging line.

Core Machine Features

1. Double Head High Speed Capping Structure

The ACM-HS is equipped with two screw capping stations, allowing two bottles to be capped in one working cycle. This structure helps increase throughput compared with single-head capping machines and is suitable for production lines that need higher daily output.

The two-station design is especially useful for factories producing skincare bottles, shampoo bottles, lotion bottles, cleaning liquid bottles, oral liquid bottles, pump bottles and similar packaging formats.

2. Four-Motor Capping System

The machine uses 4 powerful motors to support stable high-speed capping performance. This helps the capping heads work with better force distribution and smoother operation during continuous production.

For buyers, this means better suitability for long operating hours, more stable cap tightening and improved production efficiency compared with basic low-speed capping equipment.

3. Siemens Touch Screen HMI

The ACM-HS comes with a Siemens touch screen HMI, making daily operation more convenient for operators. Production parameters can be adjusted through the interface, helping reduce setup time during bottle or cap changeover.

The HMI is useful for controlling production speed, machine operation status and adjustment settings, especially when the machine is used in multi-product production environments.

4. Wide Bottle Compatibility

The machine supports different bottle shapes including:

• Round Bottles

• Flat Bottles

• Square Bottles

Standard applicable bottle specifications include 40–115 mm diameter and 80–320 mm height, with customization available according to actual bottle samples. The applicable bottle neck diameter is 25–120 mm, also customizable based on cap and container design.

This makes the ACM-HS suitable for brands, OEM/ODM factories and contract manufacturers that need one capping machine to cover multiple product lines.

5. Suitable For Screw Caps And Pump Heads

The ACM-HS can be used for screw caps, pump heads and similar closures. It is suitable for many common bottle packaging types used in cosmetics, personal care, daily chemicals, food and pharmaceutical products.

Typical closure applications include:

• Screw Caps

• Lotion Pump Heads

• Spray Pump Heads

• Flip-Top Screw Caps

• Plastic Bottle Caps

• Cosmetic Bottle Caps

• Daily Chemical Bottle Caps

Final compatibility should be confirmed with bottle and cap samples before production.

6. Stable Capping Rate

The machine is designed to reach a ≥99% screw cap rate under suitable production conditions. Stable bottle positioning, proper cap matching and correct torque adjustment help reduce loose caps, over-tightening, crooked caps and packaging defects.

For factories exporting products to Europe and North America, consistent cap quality is especially important for reducing leakage risk during shipping and improving final product presentation.

7. SUS304 Stainless Steel Structure

The main machine material is SUS304 stainless steel, which is suitable for clean packaging environments and daily industrial use. The structure is durable, easy to maintain and suitable for production lines handling cosmetics, personal care products, food-related products and daily chemical liquids.

8. Reliable Electrical And Pneumatic Components

The ACM-HS uses well-known component brands for better reliability:

• PLC: Omron

• HMI: Siemens Touch Screen

• Low-Voltage Electrical: Schneider

• Detection Sensor: SICK

• Pneumatic Cylinder: AIRTAC

• Speed Control: Inverter Control

These component choices help improve machine stability, reduce downtime and make maintenance easier for industrial users.

Main Applications

The ACM-HS Automatic Double Head High Speed Capping Machine is suitable for a wide range of bottle packaging projects.

Cosmetics And Skincare

• Toner Bottles

• Lotion Bottles

• Cream Bottles

• Serum Bottles

• Essence Bottles

• Makeup Remover Bottles

• Sunscreen Bottles

• Cosmetic Pump Bottles

Personal Care And Daily Chemical

• Shampoo Bottles

• Conditioner Bottles

• Shower Gel Bottles

• Hand Soap Bottles

• Body Wash Bottles

• Detergent Bottles

• Cleaning Liquid Bottles

• Disinfectant Bottles

Food, Pharma And Light Liquid Packaging

• Sauce Bottles

• Oral Liquid Bottles

• Health Product Bottles

• Spray Bottles

• Pump Head Bottles

• Small And Medium Plastic Bottles

How The ACM-HS Helps Production

The ACM-HS is a strong choice when a factory needs to solve these packaging problems:

• Manual capping speed is too slow

• Cap tightness is inconsistent

• Bottles leak during transportation

• Operators need frequent adjustment for different bottle sizes

• One capping machine must handle several bottle shapes

• The production line needs to match a faster filling machine

• Pump heads and screw caps require more stable tightening

• The factory wants a more professional automatic packaging workflow

For manufacturers planning an integrated filling and capping line, the ACM-HS can be connected with automatic filling machines, bottle turntables, labeling machines, coding machines and collection tables according to production layout.

Technical Parameters

Note: Final specifications can be customized according to bottle sample, cap sample, closure type, required torque, production speed, voltage, conveyor direction and complete line layout.

Optional Configurations

• Customized Bottle Positioning System

• Customized Conveyor Length And Direction

• Cap Feeding System According To Cap Type

• Connection With Automatic Filling Machine

• Connection With Labeling Machine And Coding Machine

• Bottle Turntable Or Collection Table

• Customized Voltage For Different Markets

• Customized Guarding And Safety Design

• Integration Into Complete Filling, Capping And Labeling Line

• Sample Testing Before Final Machine Design

Why Choose ACM-HS?

The ACM-HS is suitable for buyers who need more than a basic capping machine. It provides a stronger balance of speed, compatibility and operational convenience for factories producing multiple bottled products.

It is especially recommended when the buyer needs:

• Higher capping speed than single-head machines

• More consistent screw cap tightening

• A machine for round, flat and square bottles

• Support for both screw caps and pump heads

• Adjustable production speed for different SKUs

• A capping unit that can connect with a complete filling line

• Reliable electrical components for long-term industrial use

• Customized design based on real bottle and cap samples

For small batch production, a semi-automatic capping machine may be enough. For factories that need faster output, better repeatability and easier line integration, the ACM-HS provides a more efficient automatic solution.

FAQ

1. What Is The ACM-HS Automatic Double Head High Speed Capping Machine Used For?

It is used for tightening screw caps, pump heads and similar closures on bottles. It is suitable for cosmetics, personal care, daily chemical, food, pharmaceutical and light liquid packaging applications.

2. What Bottle Shapes Can This Machine Handle?

The ACM-HS can handle round bottles, flat bottles and square bottles. Bottle diameter, height and neck size can be customized according to actual samples.

3. What Is The Production Capacity?

The standard production capacity is 45–70 BPM, adjustable according to bottle size, cap type, operator setup and line configuration. Higher or customized capacity should be evaluated based on samples and production requirements.

4. Can The Machine Work With Pump Heads?

Yes. The machine can be used for screw caps, pump heads and similar closures. Final compatibility should be confirmed with cap samples before order confirmation.

5. Can It Be Connected With A Filling Machine?

Yes. The ACM-HS can be connected with automatic filling machines, labeling machines, conveyors, coding machines and bottle turntables to build a complete packaging line.

6. Can The Machine Be Customized?

Yes. Bottle size range, cap compatibility, conveyor direction, electrical configuration, voltage, cap feeding method and line layout can be customized according to the buyer’s production needs.
