AFM-LCM Automatic Liquid & Cream Cycle Filling Line

AFM-LCM Automatic Liquid & Cream Cycle Filling Line Overview

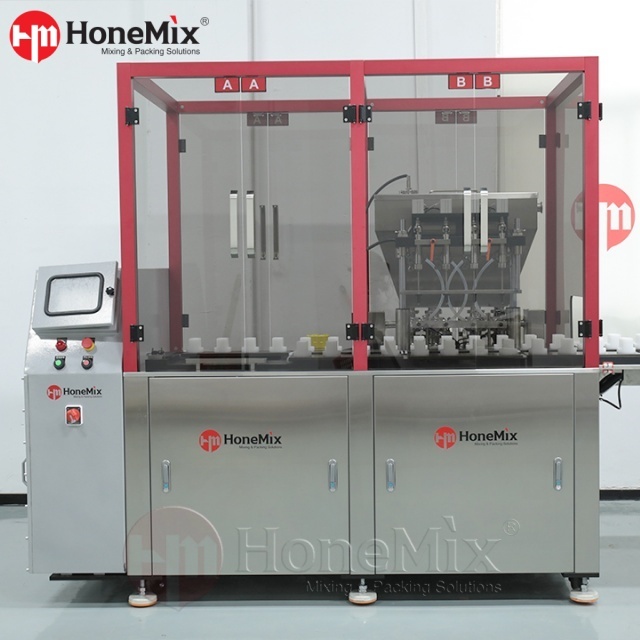

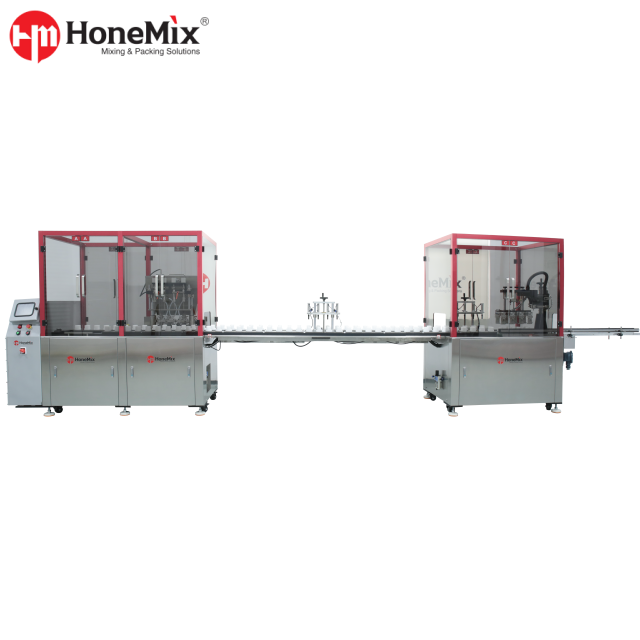

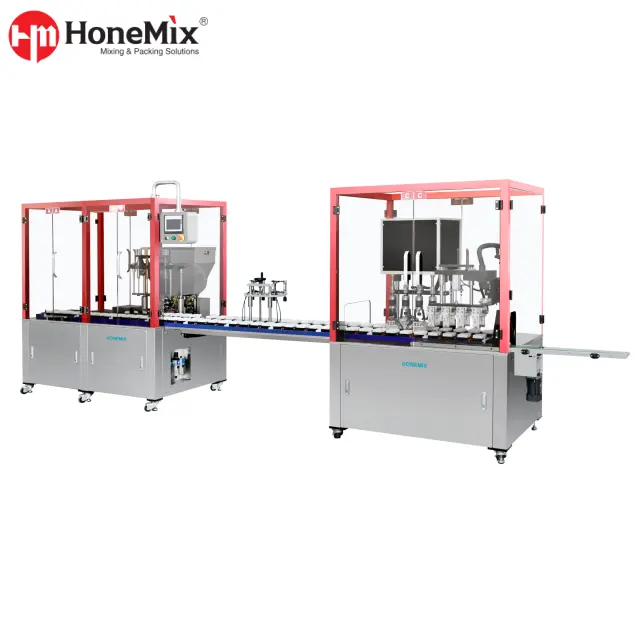

The HONEMIX Servo Piston Filling Line is a compact cycle-type filling and capping system designed for liquid and cream products in small to medium bottle formats. Bottles are placed into adjustable circulating molds, then move through filling, inner plug pressing, cap tightening, and final pressing stations in sequence. This structure supports stable transfer and more efficient handling of varied bottle designs.

The machine uses 4 servo-controlled piston filling heads and a servo screw capping system with adjustable torque, helping buyers improve fill consistency, reduce cap damage risk, and maintain product presentation standards across production batches. Product-contact parts are made of SUS316L, while the frame uses SUS304, supporting hygiene, corrosion resistance, and easier cleaning.

Core Features and Advantages

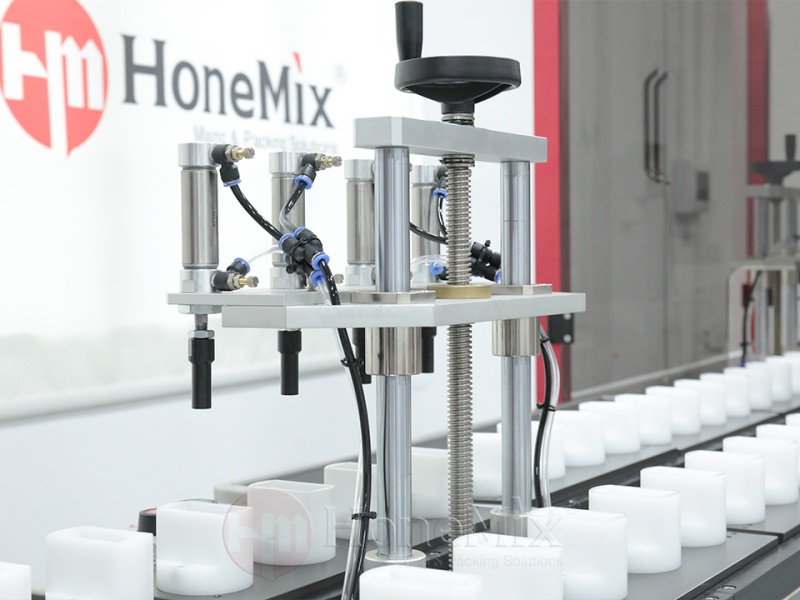

1. Adjustable Mold Circulation System

Unlike conventional lines that rely heavily on change parts, this machine uses an adjustable mold circulation design to handle different bottle shapes and sizes within its working range. That makes it highly suitable for factories with frequent packaging changes or diverse product portfolios.

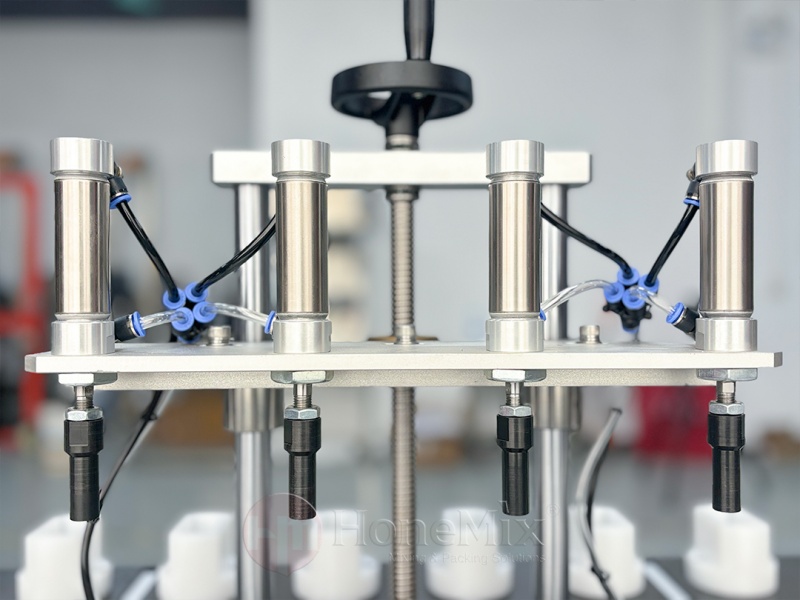

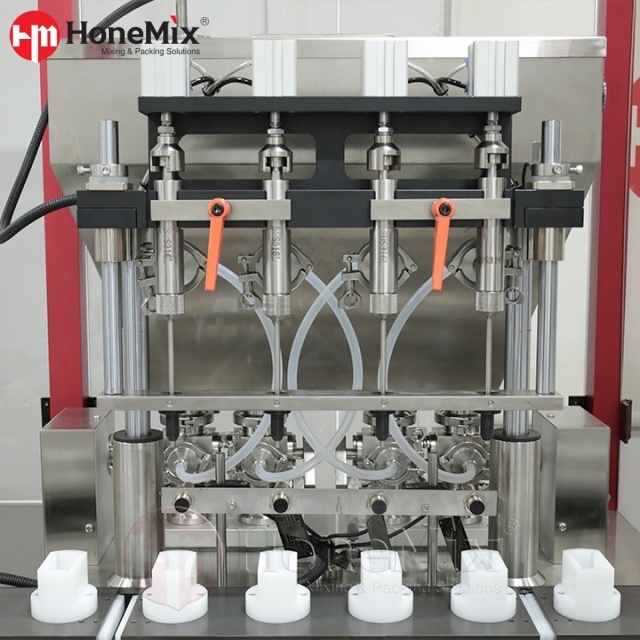

2. 4-Head Servo Piston Filling

Each filling head is independently servo driven, helping improve dosing stability and repeatability. The machine supports a 5–100 mL filling range and is designed for both lower-viscosity liquids and higher-viscosity cream products.

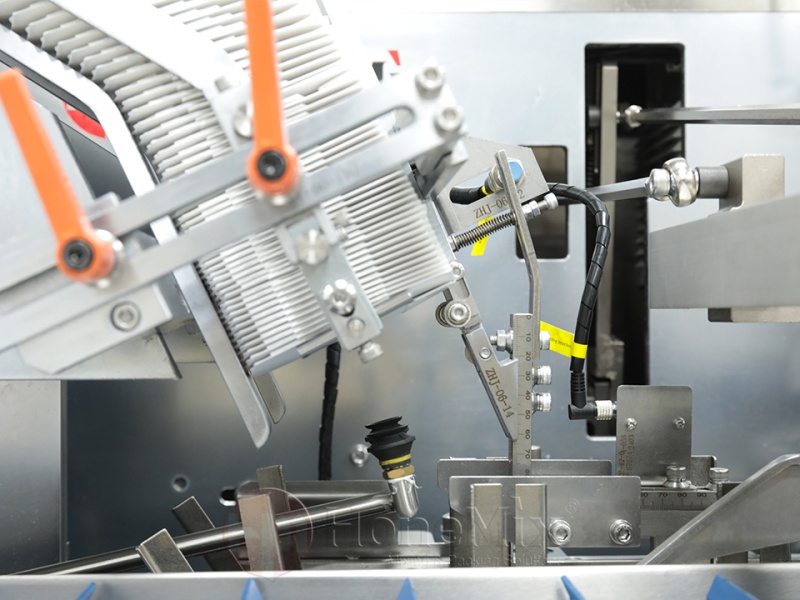

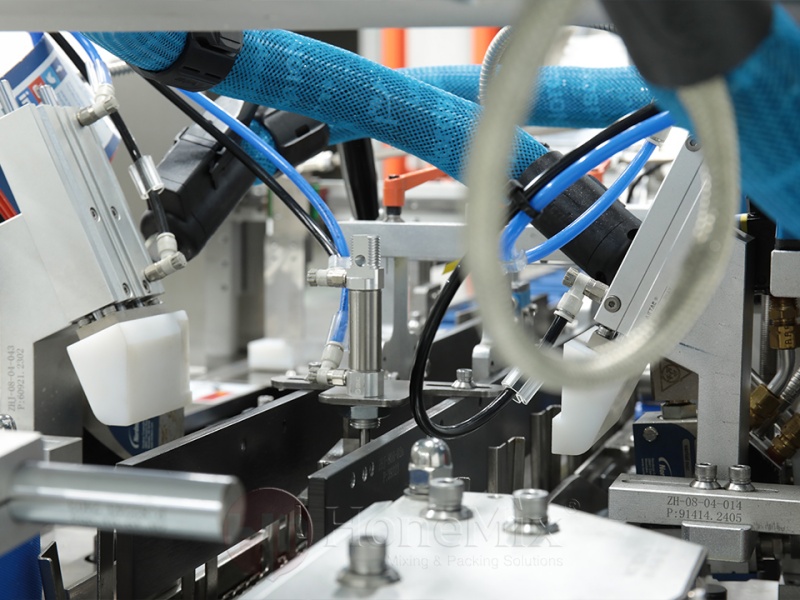

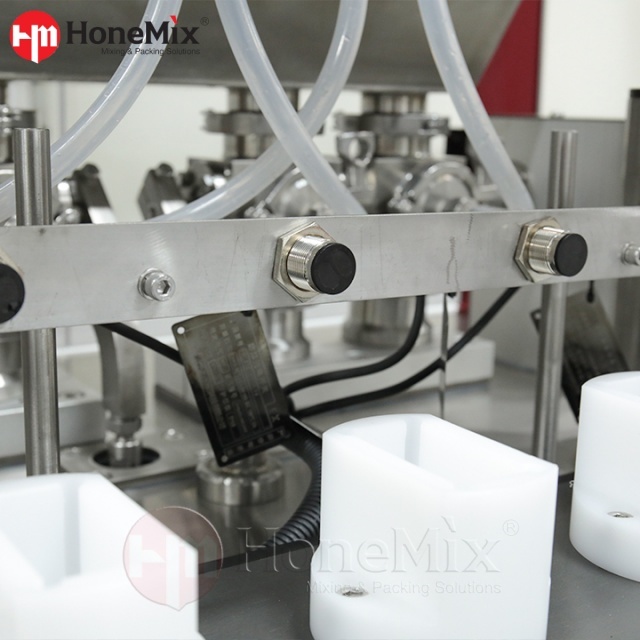

3. Integrated Plug Pressing and Capping

The line combines automatic inner plug pressing, servo screw capping, and automatic snap-cap pressing in one production path. This reduces transfer steps, improves workflow continuity, and supports more consistent closure performance.

4. Smart Control for Stable Operation

The system is equipped with Delta PLC and Delta HMI touch screen controls for parameter setting, monitoring, and day-to-day operation. Overload protection, low air pressure alarms, and safety interlocks to help protect operators and equipment.

5. Hygienic Stainless Steel Construction

Product-contact components use SUS316L stainless steel, while structural parts use SUS304. This configuration supports hygiene-focused manufacturing, corrosion resistance, and easier batch-to-batch cleaning in cosmetics, pharmaceuticals, and food applications.

6. Compact Layout and Maintenance Convenience

The line integrates several production stages into one system footprint and the source page states the piston filling structure is designed for quick disassembly and cleaning. For buyers, this means easier daily maintenance, reduced downtime during cleaning, and more practical use of workshop space.

Application Industries and Suitable Products

Industries

• Cosmetics and personal care

• Pharmaceutical manufacturing

• Food processing

• Household and daily chemical production

Suitable Products

• Creams

• Lotions

• Serums

• Gels

• Foundations

• Face masks

• Topical ointments

• Liquid medicines

• Sauces

• Pastes

• Honey

• Edible oils

• Liquid soaps

• Detergents

• Cleaning agents

Technical Parameters

Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.

Why Choose Us

1. Built for Real Production Flexibility

HONEMIX positions this line around adjustable mold circulation rather than purely tooling-based changeover. For B2B buyers, that means better adaptability for multi-bottle production and reduced switching friction.

2. Integrated Filling and Closure Workflow

Instead of purchasing separate stations, buyers get a more complete production solution that combines filling and key closure operations in one coordinated line.

3. Practical Hygiene and Material Quality

SUS316L product-contact parts support demanding manufacturing standards and easier cleaning in regulated or hygiene-sensitive sectors.

4. Better Operator Experience

Touch-screen control, servo-driven accuracy, and safety protections help reduce operational complexity and improve day-to-day production confidence.

5. Long-Term Service Support

Customers receive installation guidance, training support resources, spare parts service, and lifetime technical consultation.

FAQ

1. What products can this filling line handle?

It is suitable for both liquids and creams, including lotions, serums, gels, foundations, face masks, ointments, sauces, honey, detergents, and similar products. Final suitability depends on viscosity, bottle format, and closure type.

2. What bottle sizes and fill volumes can it support?

A 5–100 mL filling range and an adjustable mold system designed to accommodate different bottle shapes and sizes within the machine’s application range.

3. Is the machine fully automatic?

The line automates filling, plug pressing, screw capping, and cap pressing, while bottle loading and some cap placement steps are described as manual or assisted, making it a highly integrated but partially operator-assisted solution.

4. How accurate is the filling performance?

The machine is specified at ≤ ±1% filling accuracy, supported by independent servo-controlled piston filling heads. Actual performance will depend on product characteristics and operating conditions.
