AFM-GP Automatic Liquid Gear Pump Filling Line

AFM-GP Automatic Liquid Gear Pump Filling Line Overview

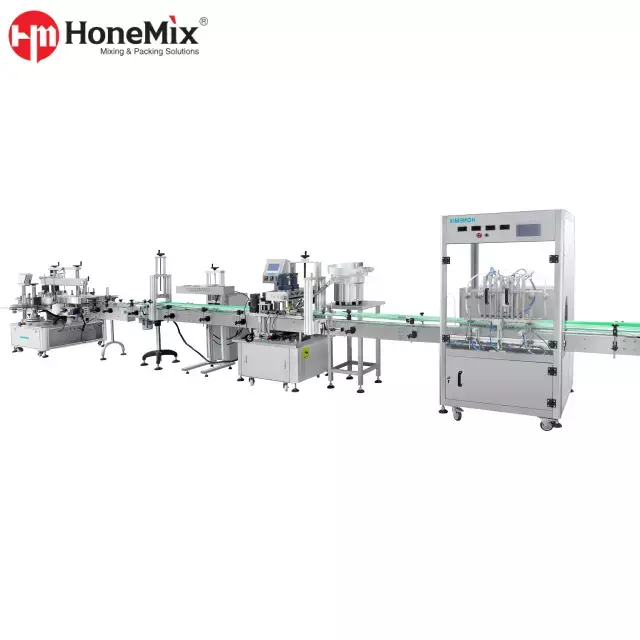

The AFM-GP Automatic Liquid Gear Pump Filling Line is built for factories that need accurate bottle filling, reliable capping and simple changeover for different liquid products. Compared with a single filling machine, this line provides a more complete packaging process by connecting bottle feeding, filling, capping and output conveying.

The machine uses a pump filling system to keep liquid flow stable and easy to control. For products that require cleaner filling and less residue, the anti-drip glass one-way valve helps reduce leakage and product waste. The straight-line feeding structure gives the line better bottle compatibility, making it suitable for different packaging formats used in cosmetics, personal care, daily chemical and light liquid production.

For buyers who produce multiple SKUs, the AFM-GP line is especially useful because the filling volume, filling head selection, conveyor speed and bottle positioning can be adjusted through the control system.

Core Machine Features

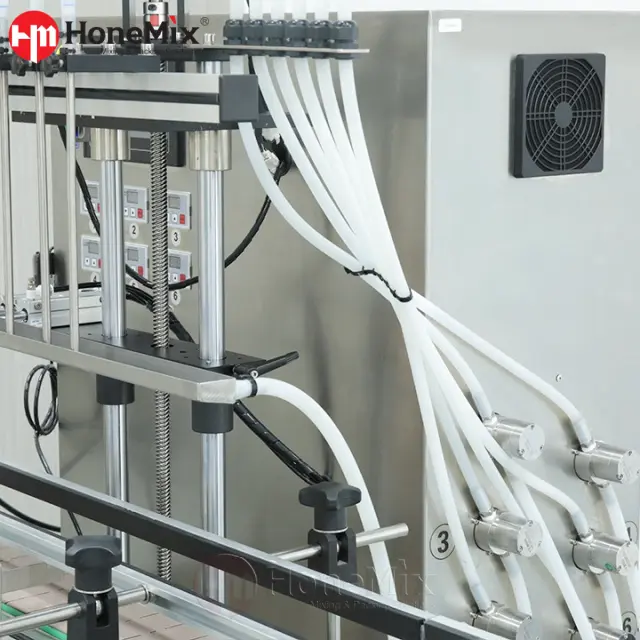

1. Gear Pump Filling System

The AFM-GP uses a stainless steel gear pump filling structure for stable liquid delivery. It is suitable for water-based and oil-based products that need consistent filling performance. The pump system is convenient for cleaning and pipe replacement, which helps reduce downtime when changing formulas or product types.

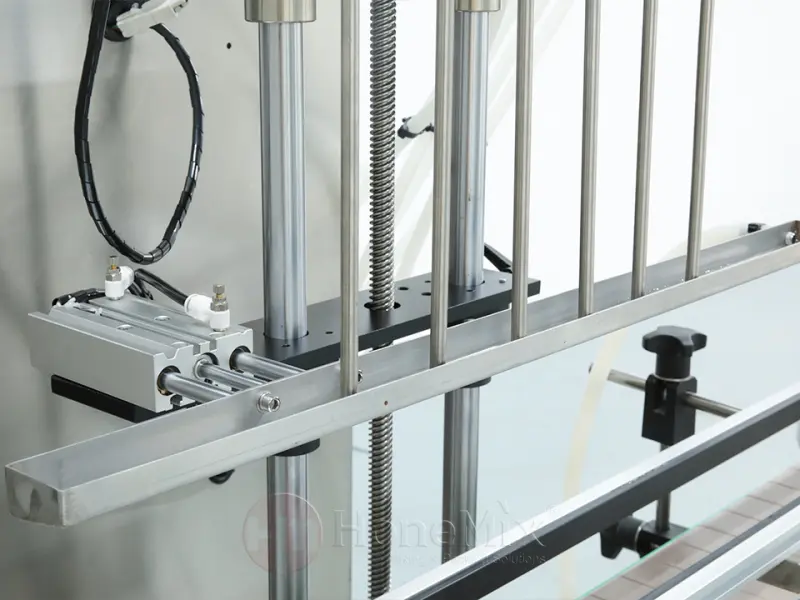

2. Anti-Drip Filling Valve

The filling station can be equipped with an anti-drip glass one-way valve. This design helps reduce dripping after filling and keeps the bottle mouth, conveyor and working area cleaner. It is useful for products such as toner, oil, essence, fragrance liquid and other formulas where visible residue can affect packaging quality.

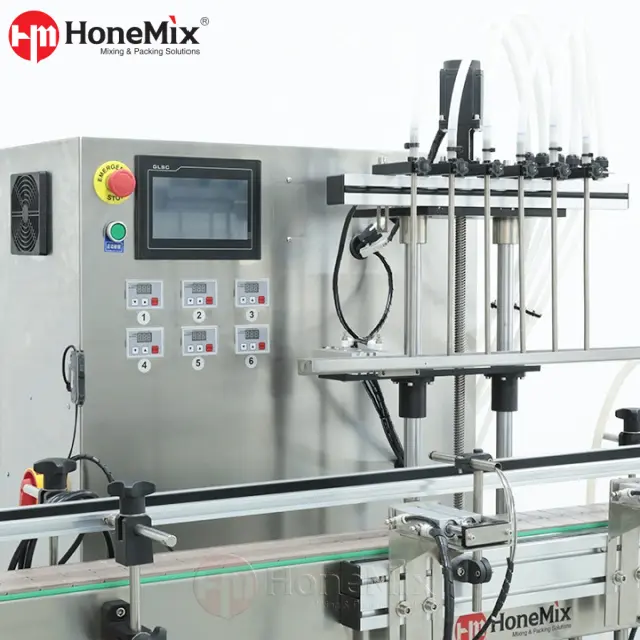

3. 4–8 Customizable Filling Heads

Standard filling head options include 4, 6 and 8 nozzles. The final filling head quantity can be customized according to the required output, bottle size, filling volume and factory layout. A single filling head can be selected or disabled flexibly, which makes production adjustment easier.

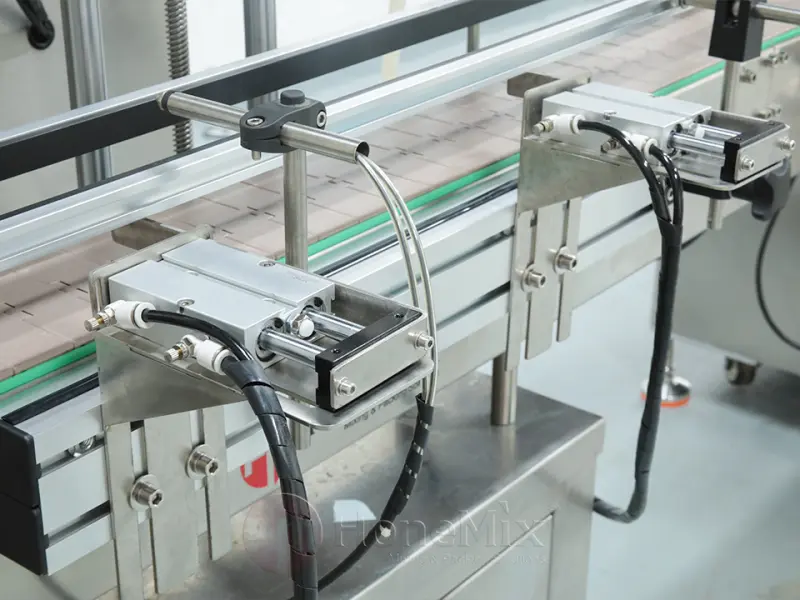

4. Automatic Bottle Detection

The automatic detection system senses bottles entering and leaving the filling area. It supports no bottle no filling, helping reduce product waste and avoid incorrect filling during continuous production.

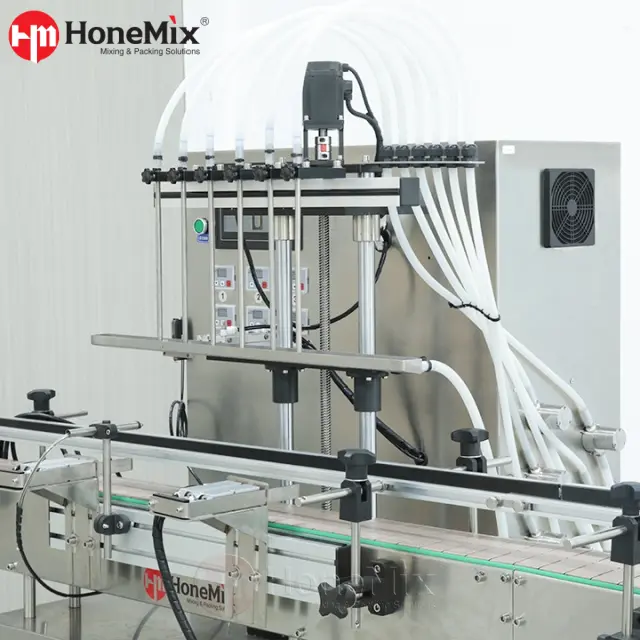

5. Straight-Line Bottle Feeding Design

The straight-line conveyor structure supports a wide range of packaging materials and bottle shapes. It can work with round bottles, flat bottles and square bottles. This makes the line suitable for manufacturers that use different bottle designs for different brands or product series.

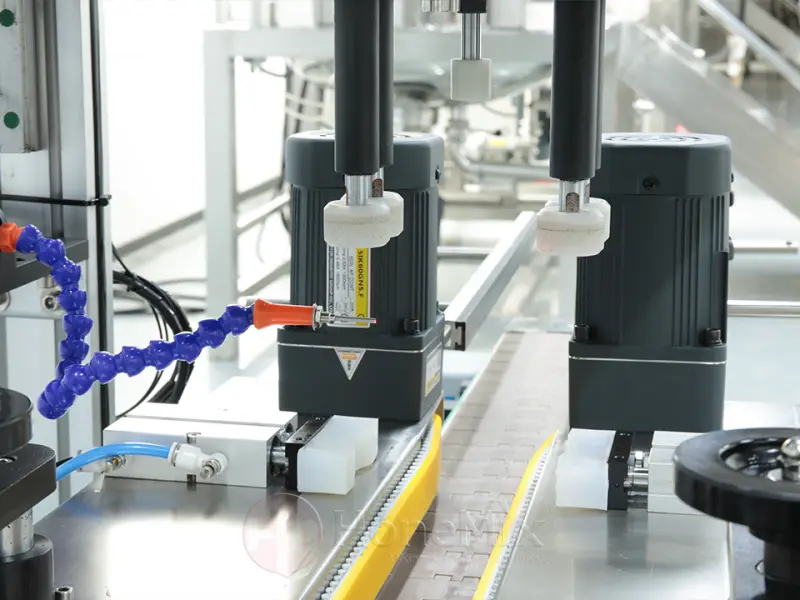

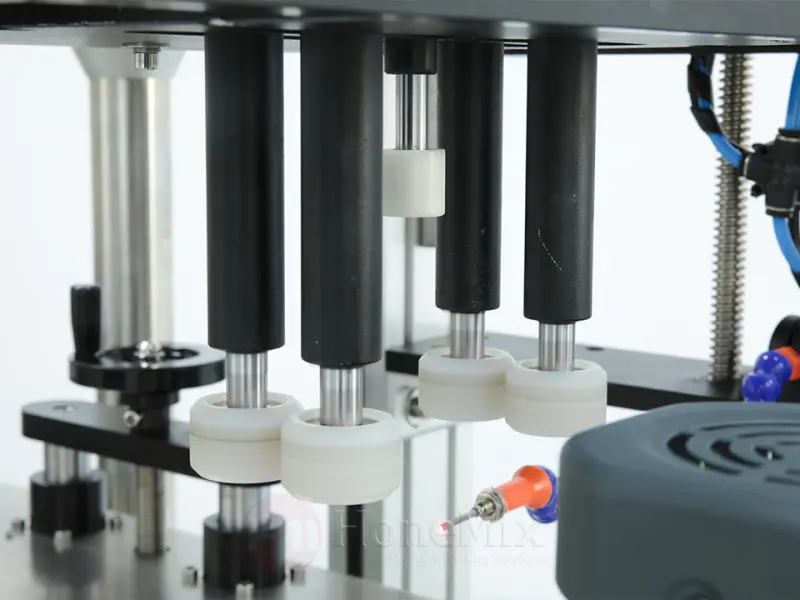

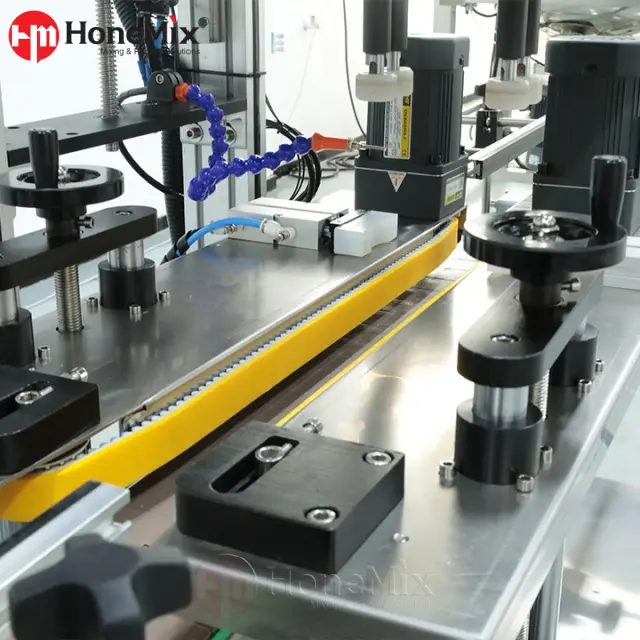

6. Automatic Capping Section

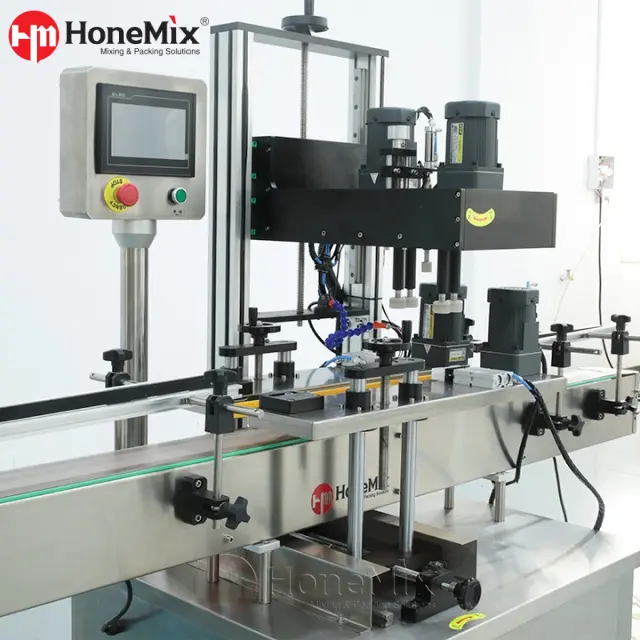

The filling line can be matched with an automatic capping unit for screw caps, pump heads and other customized cap types. Cap diameter and bottle height can be designed according to the customer’s packaging sample.

7. HMI Touch Screen Control

The HMI control system allows operators to adjust filling time, filling volume, conveyor speed, filling head selection and other production parameters. It helps improve repeatability and makes daily operation easier for factory workers.

Main Applications

The AFM-GP automatic liquid filling line is suitable for many flowable products, including:

Cosmetics And Skincare

• Toner

• Facial Mist

• Essence Water

• Makeup Remover

• Cosmetic Oil

• Hair Oil

• Body Oil

• Light Serum

• Fragrance Liquid

Personal Care And Daily Chemical

• Liquid Soap

• Hand Sanitizer

• Disinfectant Liquid

• Cleaning Liquid

• Low-Viscosity Shampoo

• Body Wash

• Detergent Liquid

Light Food, Pharma And Chemical Liquids

• Oral Liquid

• Light Syrup

• Essential Oil

• Chemical Liquid

• Water-Based Solution

• Oil-Based Liquid

Technical Parameters

Optional Configurations

• 4-head, 6-head, 8-head or customized filling nozzle quantity

• Cylinder-driven or servo-driven filling nozzle lifting

• 2 L/min, 5 L/min or customized pump flow

• Customized bottle feeding turntable

• Automatic cap feeding system

• Capping machine for screw caps or pump heads

• Labeling machine connection

• Bottle collecting table

• SUS316L product contact parts

• Customized voltage and electrical components

• Protective cover or safety guarding

• Full filling, capping and labeling line layout design

Why Choose AFM-GP?

The AFM-GP is a practical choice for buyers who need a flexible liquid filling and capping solution instead of a simple semi-automatic filler. It is suitable for factories producing different bottle sizes, different liquid formulas and multiple product SKUs.

It helps solve common production problems such as unstable filling volume, dripping after filling, slow manual capping, difficult product changeover and inconsistent bottle handling. With automatic bottle detection, HMI control and customizable filling heads, the line can support more stable daily production for cosmetic, personal care, daily chemical and light liquid manufacturing.

For small and medium factories, the 4-head configuration is a cost-effective starting option. For higher production demand, the line can be upgraded to 6 or 8 filling heads, or customized according to bottle samples and target output.

FAQ

1. What Products Can The AFM-GP Filling Line Fill?

It is suitable for flowable liquid and oil products, such as toner, essence water, sanitizer, fragrance liquid, cosmetic oil, hair oil, body oil, cleaning liquid and other low-to-medium viscosity liquids.

2. Can The Filling Heads Be Customized?

Yes. Standard options include 4, 6 and 8 filling heads. The number of nozzles can also be customized according to filling volume, bottle size and production capacity.

3. Does The Machine Support No Bottle No Filling?

Yes. The automatic detection system can identify bottle position and stop filling when no bottle is detected, helping reduce product waste.

4. What Bottle Types Can Be Used?

The line can work with round bottles, flat bottles and square bottles. Bottle width, height and conveyor layout can be customized based on actual packaging samples.

5. Can It Be Used For Oil Products?

Yes. The AFM-GP is suitable for both water-based and oil-based liquid products. Pump flow and filling nozzle design can be selected according to product fluidity.

6. Can The Line Be Connected With Labeling Or Packing Machines?

Yes. The filling line can be connected with capping, labeling, coding, bottle collecting and other packaging equipment to form a more complete production line.
