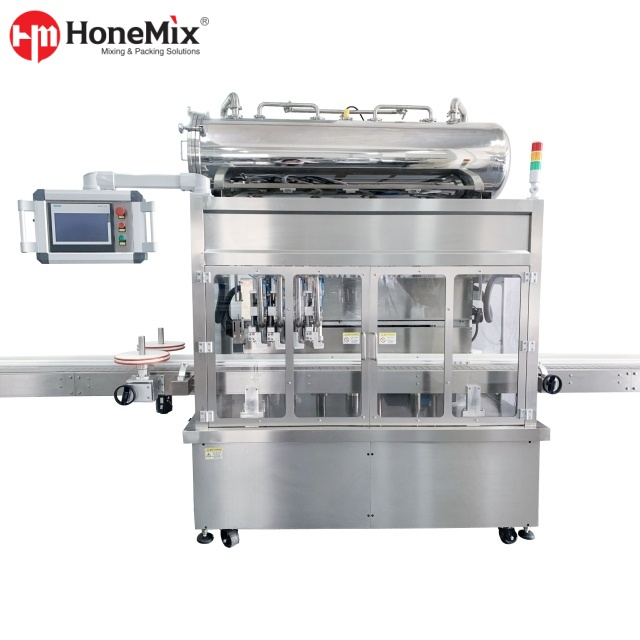

The HONEMIX HY-AFM Automatic Tracking Nozzle Filling Machine is a high-speed Automatic Tracking Nozzle Filling Machine designed for liquid and cream products that require stable output, clean filling, and scalable production. Built for manufacturers in cosmetics, food, chemical, and pharmaceutical processing, this High Speed Filling Line helps buyers improve filling consistency, labor efficiency, and line integration while keeping operation straightforward for daily production.
| Quantity: | |
|---|---|
HY-AFM
HONEMIX
The HY-AFM offers a stronger balance of speed, consistency, and flexibility. This Automatic Tracking Filler is designed around automatic tracking piston filling and can be configured for liquid and cream applications across a wide filling range. It is especially suitable for brands and factories that want to move from labor-dependent filling to a more repeatable, scalable packaging process. This product comes with 2 or 4 filling heads, with a filling range from 10 ml to 5000 ml (depending on the configuration), and a filling accuracy of ±0.5%.

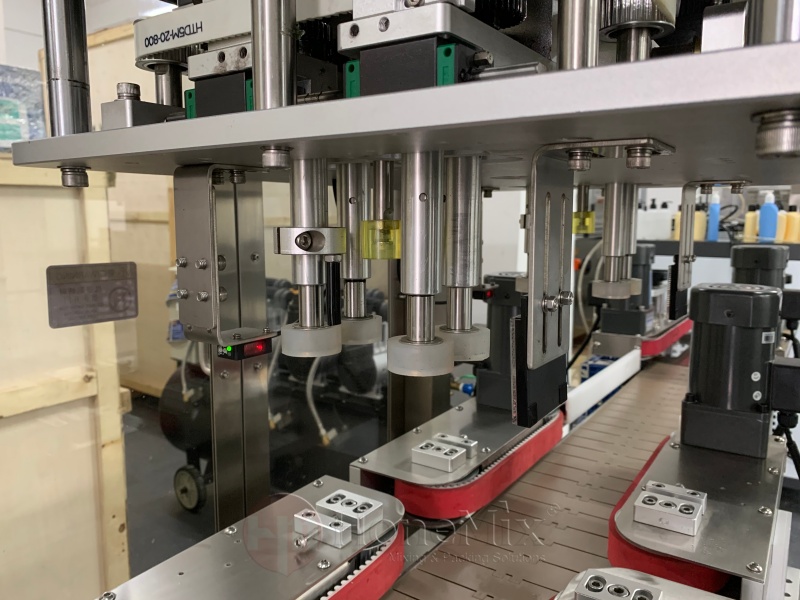

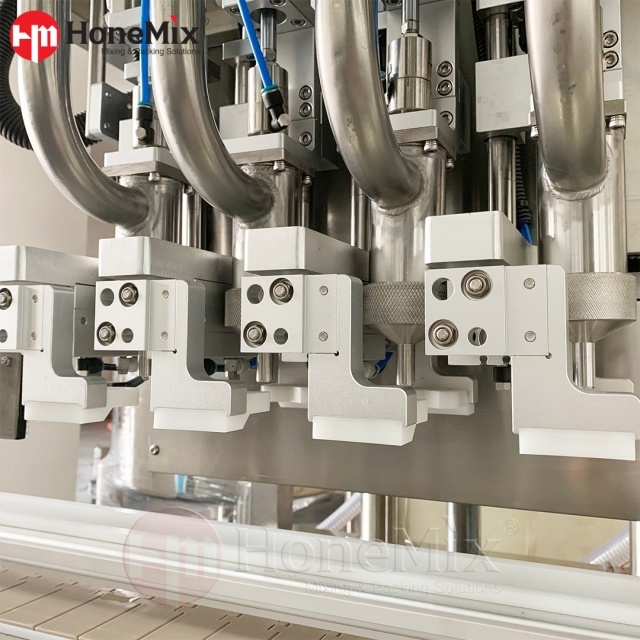

The machine is built for 60–90 BPM output, making it a practical High Speed Filling Line choice for factories targeting higher throughput without sacrificing control. Its tracking nozzle design helps maintain more stable filling during continuous bottle movement.

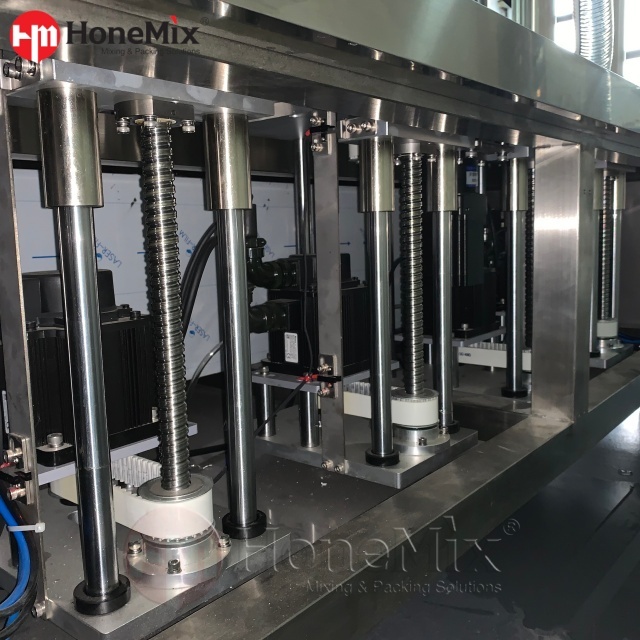

As a Servo Piston Filling Machine, the HY-AFM is well suited to both free-flowing liquids and higher-viscosity cream products. The servo-based filling structure supports more precise volume control and better batch-to-batch consistency.

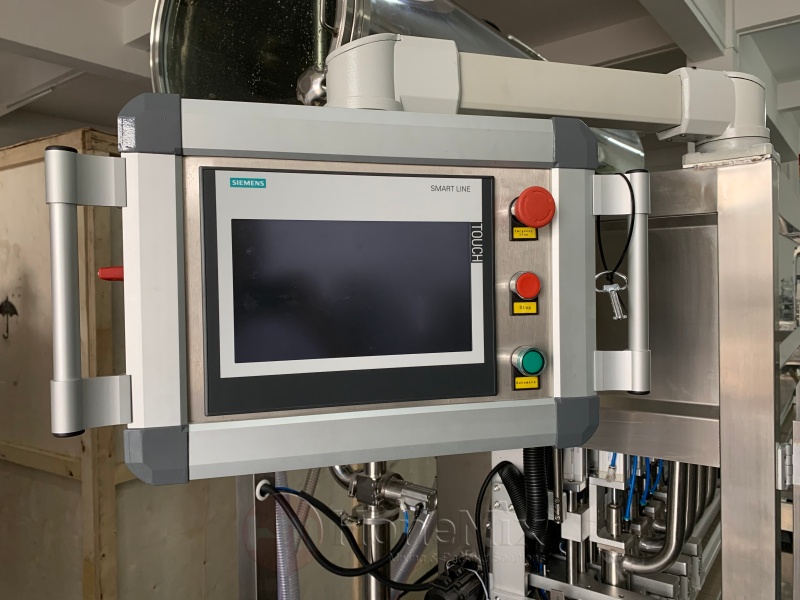

This PLC Filling Machine uses an automatic PLC control system with HMI operation for easier parameter setting, faster product switching, and more standardized daily use. Recipe saving helps operators store settings for different products and reduces setup variation between shifts.
Product-contact parts use SUS316L stainless steel, while other structural parts use SUS304. This material combination supports hygiene, corrosion resistance, and easier cleaning for B2B buyers working with cosmetics, food, and pharma-related products.
The machine is designed for more convenient format change, including quick bottle switching logic and simplified adjustment. That makes it a strong fit for manufacturers handling multiple SKUs, contract production, or OEM/ODM packaging needs.

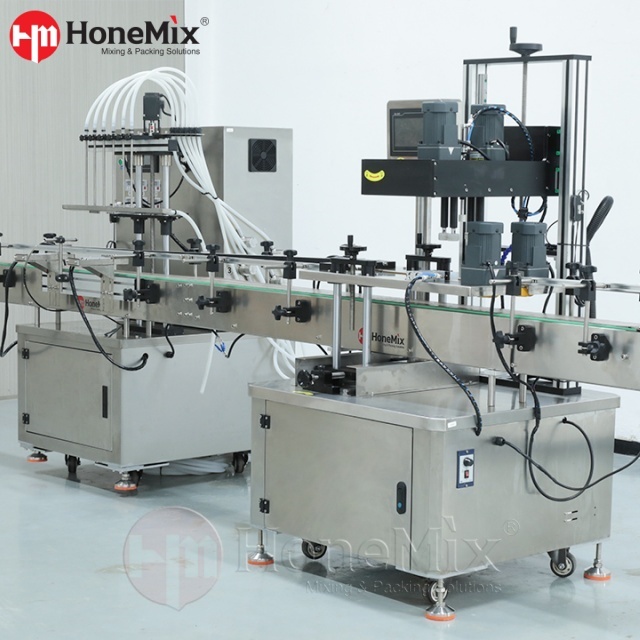

This Liquid And Cream Filling Machine can be part of a broader Cream Filling Line with bottle detection and capping functions, helping reduce manual handling and improve total line efficiency.
Industry | Suitable Products |
|---|---|
Cosmetics & Personal Care | Lotion, cream, shampoo, conditioner, liquid soap, serum, gel |
Food | Sauce, syrup, edible liquid products, condiments |
Household Chemical | Detergent, cleaning liquid, dishwashing liquid |
Pharmaceutical / Daily Chemical | Topical liquids, cream-type products, similar viscous formulations |
Item | Specification |
|---|---|
Model | HY-AFM |
Filling Heads | 2 / 4 Heads |
Filling Range | 10–100 ml / 20–250 ml / 50–500 ml / 100–1000 ml / 500–5000 ml |
Capacity | 60–90 BPM |
Filling Type | Automatic Tracking Piston Filling |
Filling Accuracy | ±0.5% |
Control System | Automatic PLC Control + HMI |
Material Grade | SUS316L Contact Parts, SUS304 Other Parts |

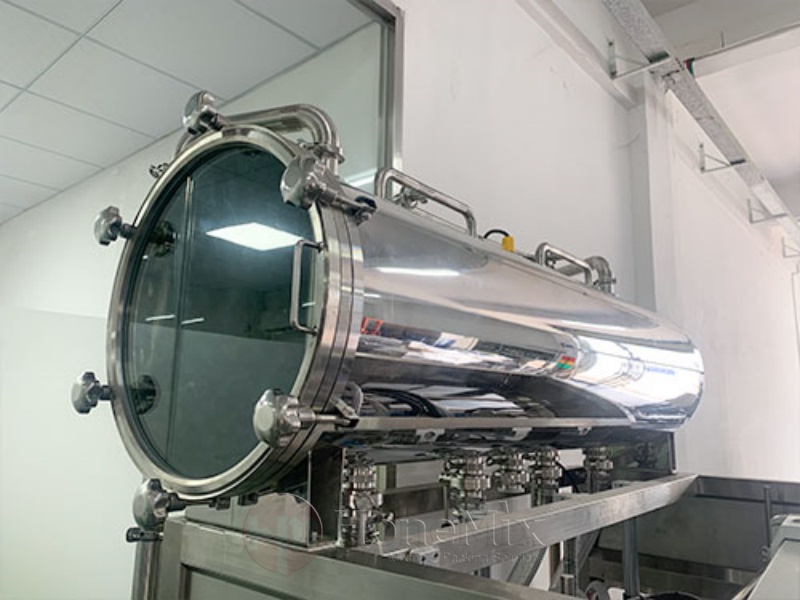

Hopper | 300 L Product Hopper with Sight Glass |
Cleaning Design | CIP-Oriented Cleaning Structure |
Functions | Automatic Filling, Bottle Detecting, Capping |
Power Supply | 3 kW, 110/220 V, 50/60 Hz, Single Phase |
Machine Dimension | 6800 × 1100 × 1830 mm |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
We are a manufacturer focused on R&D, production, sales, and after-sales service for machinery used in cosmetics, food, and pharmaceutical production.
We can provide customized solutions and intelligent solutions for complete lines, not only standalone machines.
We offer installation and commissioning, operation training, repair and maintenance support, plus 24-hour consulting response.
We follows strict quality control and also have CE, GMP, ISO certifications and supplier verification certificates..
This machine is suitable for liquid and cream products used in cosmetics, food, chemical, and pharmaceutical applications. Typical products include shampoo, detergent, liquid soap, hair conditioner, and similar viscous or semi-viscous formulations.
Capacity is 60–90 BPM, depending on product characteristics, fill volume, bottle format, and final line configuration.
The machine is built around PLC + HMI control, with parameter setting on screen and recipe-saving support for different products. That helps reduce manual adjustment and makes repeat production easier for operators and maintenance teams.
Not as standard. This is a filling machine, so its main task is accurate, efficient container filling. If your process requires product heating/cooling, vacuum deaeration, or homogenizing before filling, those functions are normally handled by upstream tanks, mixers, or vacuum emulsifying systems. We can support complete line planning for those requirements.
Ready to Match the Right Filling Line to Your Product?Tell us your product viscosity, bottle type, fill volume, target speed, and required functions, and we will recommend the right configuration for your project.
