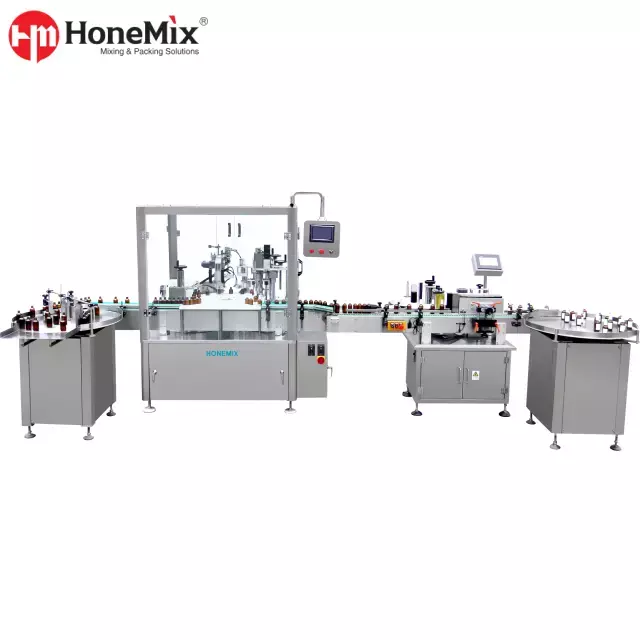

The HONEMIX AFM-DGM Automatic Dropper Bottle Rotary Filling Line is designed for small-bottle liquid packaging, including essential oils, facial serums, fragrance oils and other low-viscosity cosmetic products.
The system integrates rotary bottle feeding, peristaltic pump filling, dropper or pump head placement, servo capping, automatic labeling and bottle collection into one compact production line. It helps manufacturers achieve consistent filling, reliable capping and efficient small-bottle packaging with less manual handling.
With a reference output of 30–40 bottles/min, the AFM-DGM supports different bottle and closure configurations. Optional automatic cartoning and carton overwrapping equipment can be added to meet secondary packaging requirements.
| Quantity: | |
|---|---|
AFM-DGM
HONEMIX
The AFM-DGM Automatic Dropper Bottle Rotary Filling Line is built for brands and factories that need an efficient solution for packaging liquid products in small glass or plastic bottles.
During production, empty bottles are placed on the rotary feeding table and guided into the filling section. The peristaltic pump delivers consistent dosing, followed by automatic placement of dropper components or pump heads according to the selected bottle configuration. The servo capping system then tightens the closures with controlled torque before bottles move through the integrated labeling section.
After labeling, finished bottles are transferred to the collection table for inspection or secondary packaging. The AFM-DGM can also be configured to work with automatic cartoning and carton overwrapping equipment, depending on the packaging format and production requirements.
This machine is especially suitable for products that need clean filling and frequent formula changeover, because the peristaltic pump structure allows the product to mainly contact the filling tube rather than the internal machine body.
The rotary bottle feeding table supports continuous bottle loading and smooth transfer into the filling section. This structure is compact and suitable for small-bottle packaging lines where workshop space and operation convenience are important.
The filling system uses a peristaltic pump, which is commonly preferred for low-viscosity liquid products such as essential oil, serum and fragrance oil.
It helps support:
Cleaner liquid transfer
Easy tube replacement
Better formula changeover
Reduced product residue inside the machine
Stable filling for small-volume bottles
The machine can be configured for dropper caps, pump heads or similar small-bottle closures depending on the customer’s packaging format. This makes it suitable for essential oil bottles, serum bottles and other cosmetic liquid containers.
The servo capping system helps control capping movement more precisely. It is useful for improving cap tightening consistency and reducing packaging defects caused by unstable manual capping.
The integrated labeling system applies labels after filling and capping, helping maintain consistent label placement and reduce manual handling. The labeling configuration can be adapted to different bottle sizes and label specifications.
After filling, capping and labeling, finished bottles are transferred to the collection table for inspection and handling. Depending on production requirements, the system can be integrated with downstream secondary packaging equipment.
The AFM-DGM rotary filling line is suitable for many low-viscosity liquid products, including:
Essential Oil
Facial Serum
Skincare Essence
Fragrance Oil
Hair Oil
CBD-Free Cosmetic Oil
Liquid Toner
Ampoule Liquid
Nail Care Oil
Sample-Size Cosmetic Liquid
Herbal Extract Liquid
Light Personal Care Liquid
This machine can be customized for different small-bottle packaging formats, such as:
Glass Dropper Bottles
Essential Oil Bottles
Serum Bottles
Small Round Bottles
Cosmetic Sample Bottles
Bottles With Pipette Caps
Bottles With Pump Heads
Bottles With Screw Caps
Item | Specification |
|---|---|
Model | AFM-DGM |
Filling Volume | 5–100ml, Customized |
Production Speed | 30–40BPM |
Filling Accuracy | ≥99% |
Filling Method | Peristaltic Pump Filling |
Bottle Feeding | Rotary Bottle Feeding Table |
Capping Method | Servo Capping |
Labeling | Integrated Automatic Labeling |
Bottle Collection | Automatic Collection Table |
Main Power | 2KW |
Voltage | 110/220V, 50/60Hz |
Suitable Products | Essential Oil, Serum, Cosmetic Liquid, Fragrance Oil |
Customization | Bottle Size, Filling Volume, Cap Type, Electrical Standard, Line Layout |
Note: Final specifications can be adjusted according to bottle shape, cap type, liquid characteristics, target output and factory layout.
Customized filling volume range
Different peristaltic pump configurations
Dropper cap feeding system
Pump head feeding system
Bottle detection system
No-bottle, no-filling function
Customized bottle guide rails
Labeling adjustments for different bottle and label specifications
Optional batch coding or date marking system
Customized voltage and electrical standards
Connection to automatic cartoning equipment
Optional carton overwrapping equipment
Customized secondary packaging line integration
The AFM-DGM is a strong choice when buyers need more than a basic tabletop filler but do not need a large high-speed linear production line.
It is suitable for factories that want:
A compact automatic line for small bottles
Cleaner filling for essential oil or serum products
More stable cap tightening than manual operation
Easier formula changeover with peristaltic pump filling
Better production efficiency for cosmetic liquid packaging
A customizable filling, capping and labeling line for different small-bottle packaging requirements
For essential oil, serum and small-bottle skincare production, this line helps reduce manual handling, improve packaging consistency and make daily production easier to manage.
The AFM-DGM is used for automatic filling, capping and labeling of essential oil bottles, serum bottles, fragrance oil bottles and other small cosmetic liquid containers. It integrates bottle feeding, filling, closure placement, capping, labeling and finished-bottle collection in one production line.
The standard filling range shown for this model is 5–100ml, and the filling volume can be customized according to the customer’s bottle size and production needs.
This machine uses a peristaltic pump filling system, which is suitable for low-viscosity liquids and products that require cleaner filling and easier tube replacement.
Yes. The AFM-DGM can be configured for dropper bottle packaging, including dropper feeding, placement and servo capping.
The reference production speed is 30–40 bottles per minute, depending on bottle size, filling volume, cap type and product characteristics.
Yes. The AFM-DGM already integrates bottle feeding, filling, capping, labeling and collection. It can be configured to work with automatic cartoning and carton overwrapping equipment for additional retail packaging requirements. Downstream equipment selection depends on bottle and carton dimensions, production speed and line layout.
Need an automatic filling line for essential oil, serum or cosmetic liquid bottles?
Send us your bottle size, filling volume, cap type, product sample and target production speed. HONEMIX can help recommend a suitable AFM-DGM rotary filling line configuration for your dropper bottle packaging process.
