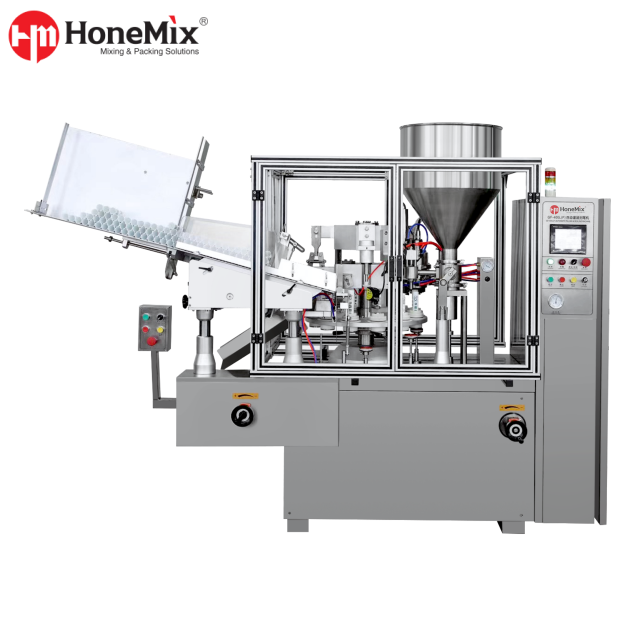

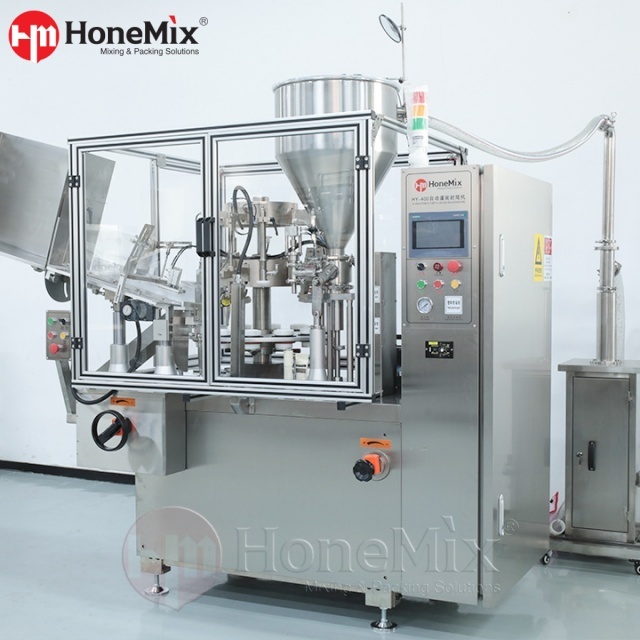

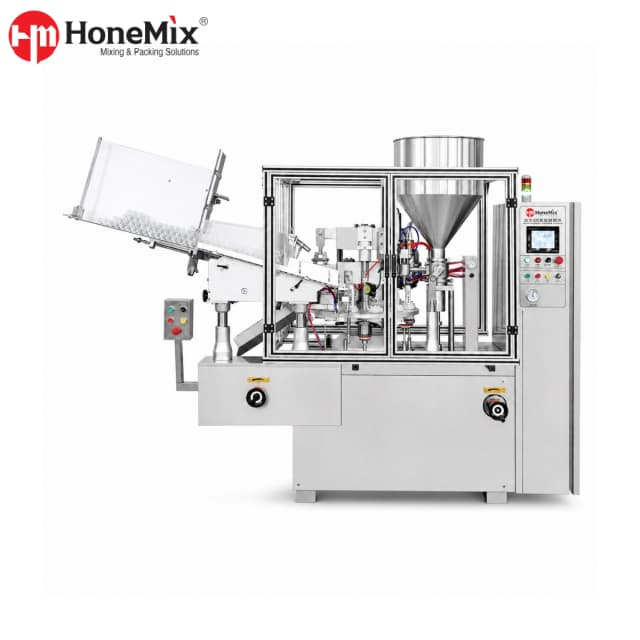

The HONEMIX HY-A400 Automatic Tube Filling and Sealing Machine is engineered for manufacturers that need stable output, clean sealing quality, and reliable automation in tube packaging. Designed for plastic tubes, laminated tubes, and aluminum tubes, this system integrates tube feeding, mark detection, filling, sealing, printing, cutting, and discharge in one compact production unit.
This automatic tube filling machine helps reduce manual handling, improve fill consistency, and support faster, more scalable packaging operations across cosmetics, pharmaceutical, personal care, food, and selected chemical applications. Capacity is 2400–3600 tubes per hour, with the page also highlighting 50–60 pcs/min operation.
| Quantity: | |
|---|---|
HY-A400
HONEMIX
The HY-A400 is a premium tube filling and sealing machine developed for buyers who care about packaging precision, changeover flexibility, and dependable long-run output. Rather than relying on multiple standalone stations, the machine combines the essential packaging steps into a single automated workflow: tube feeding, print mark checking, filling, sealing, coding/printing, cutting, and discharge.
This makes the system especially suitable for companies producing cream, gel, ointment, paste, lotion, and similar semi-viscous products in tubes. The HY-A400 is positioned as a practical solution for improving throughput, reducing operator dependency, and maintaining a more uniform finished-pack appearance.

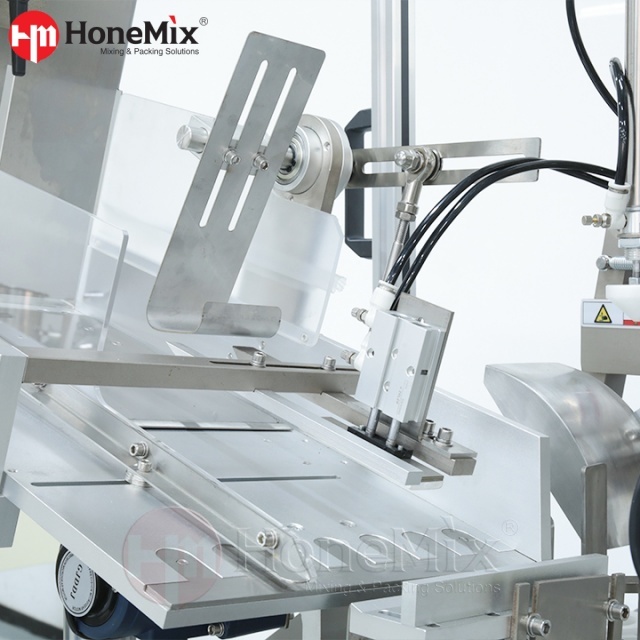

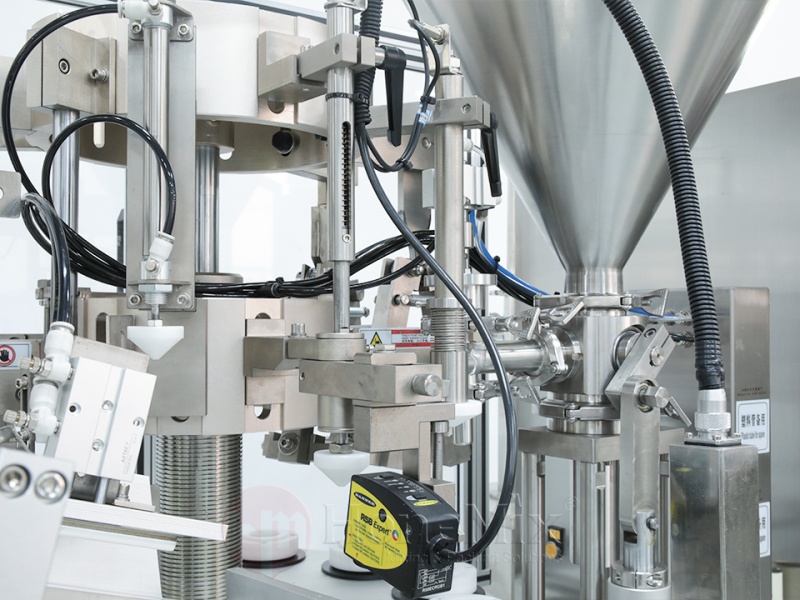

The machine combines automatic tube feeding, mark registration, filling, sealing, printing, cutting, and discharge in one unit, helping reduce manual intervention and streamline line design.
This plastic tube filling machine is published as compatible with plastic tubes, laminated tubes, and aluminum tubes, making it a strong fit for contract manufacturers and multi-category brands. Adjustable or custom molds support different tube diameters.

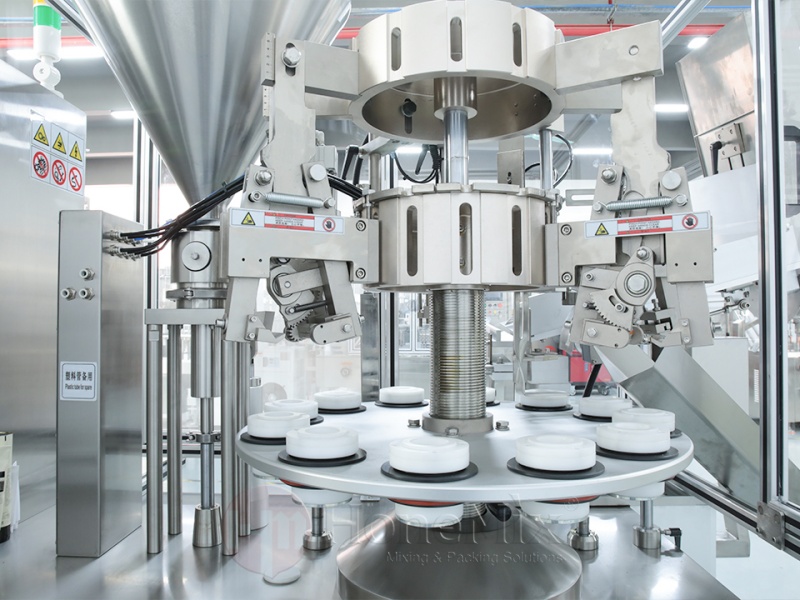

HONEMIX presents the machine as a high-precision filling solution, while the typical filling accuracy at ±1–2% depending on product type and volume. It has an accuracy of ±1% and is equipped with an anti-drip filling configuration.

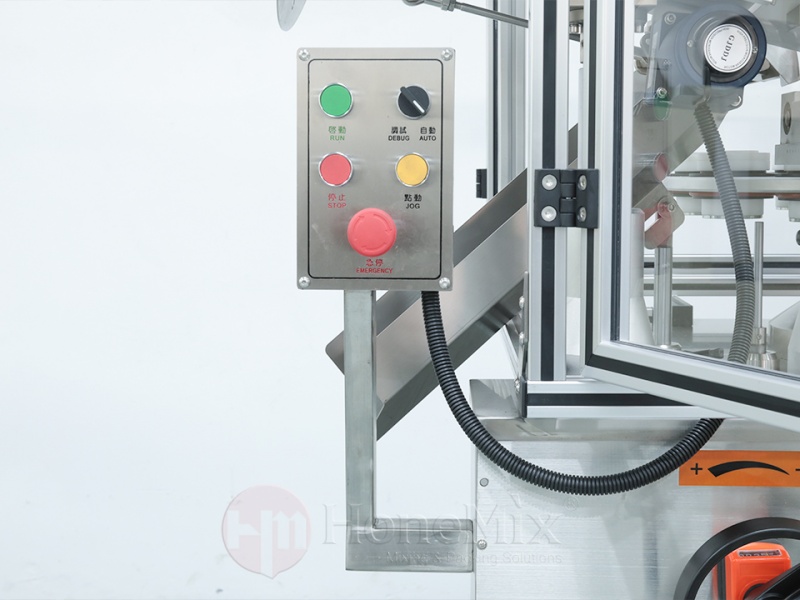

This is a user-friendly PLC controller equipped with a touchscreen interface. It utilizes Mitsubishi PLCs and HMI controllers, which is very useful for familiar industrial control systems and facilitates easier troubleshooting.

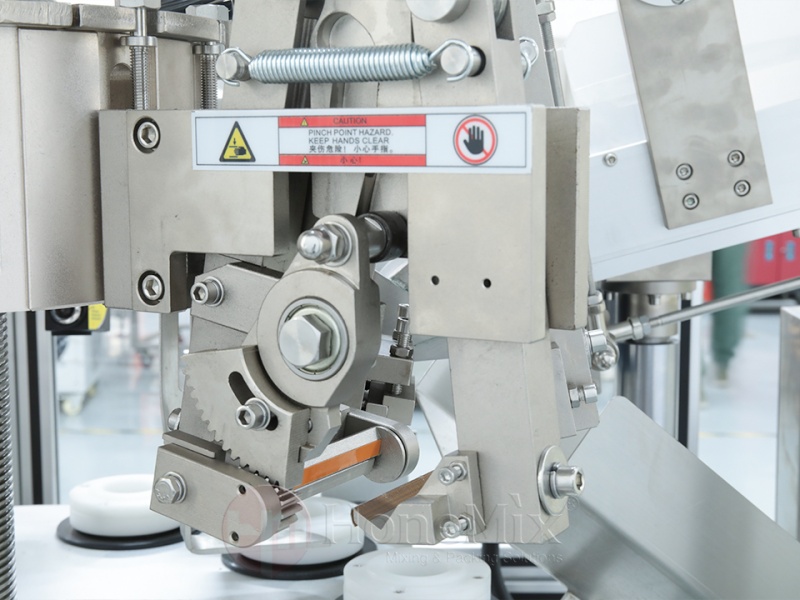

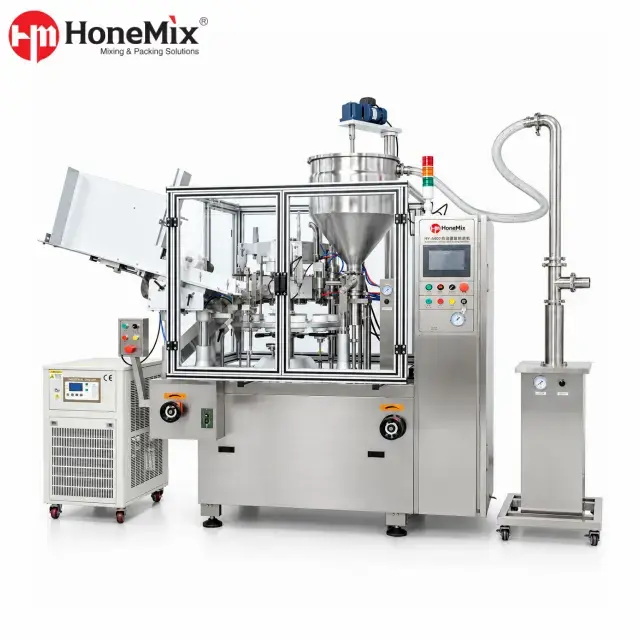

The built-in heating power is 3KW, and the heating method is hot air heating. Supporting products also include external cooling and water-cooled coolers to enhance the sealing stability of the hose packaging.
Using SUS316L material and GMP standard, while the broader description references stainless-steel construction for corrosion resistance and easy cleaning. Combined with touchscreen operation and automated discharge, the machine is positioned for easier daily operation and maintenance in hygiene-sensitive production environments.
The HY-A400 cosmetic tube filling machine is suitable for:
Industry | Suitable Products |
|---|---|
Cosmetics | Face cream, lotion, sunscreen, hand cream, gel |
Pharmaceutical & Healthcare | Ointment, topical cream, herbal gel, medical paste |
Personal Care | Toothpaste, hair gel, shampoo in tube format |
Food | Sauce, paste, jam in tubes |
OEM/ODM Manufacturing | Multi-SKU tube packaging for private label production |
Parameter | Specification |
|---|---|
Model | HY-A400 |
Brand | HONEMIX |
Machine Type | Automatic Tube Filling And Sealing Machine |
Tube Types | Plastic Tubes, Laminated Tubes, Aluminum Tubes |
Capacity | 2400–3600 Tubes/Hour |
Speed Reference | 50–60 Pcs/Min |
Filling Volume | 2–5ml / 5–30ml / 10–140ml / 30–300ml |
Filling Accuracy | Typical ±1–2% depending on product and volume; The error is ±1%. |
Main Functions | Tube Feeding, Mark Checking, Filling, Sealing, Printing, Cutting, Discharge |
Control System | PLC Touch Screen Control; Mitsubishi PLC & HMI |
Heating Method | Inner Heating, 3KW |
Cooling Method | External Cooling and Water Cooling Chiller |
Main Power | 2KW |
Heating Type | Hot Air Heating Type |
Material Grade | SUS316L Material, GMP Standard |
Drive Note | Mechanical Link Drive |
Dimensions | 2620 × 1236 × 1980 mm |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
This product is an example of packaging equipment to help buyers assess the truly important factors: production stability, filling consistency, hygiene, specification flexibility, and long-term operational ease.
Integrated automation, mark checking, high-precision filling, and stable sealing help reduce visual and volumetric variation between finished tubes.
With published output up to 2400–3600 tubes/hour and one-unit integration of multiple steps, the HY-A400 is positioned to improve throughput while reducing manual touches.
SUS316L and GMP standard, which is important for buyers serving cosmetics, pharmaceutical, food, and personal care markets.
Tube material compatibility plus customizable molds makes the machine better suited for factories managing changing customer formulas, tube diameters, and packaging formats.
The machine is presented as compatible with plastic tubes, laminated tubes, and aluminum tubes. It can also be customized with different tube molds for different diameters.
50–60 pcs/min, and the specification section gives 2400–3600 tubes/hour. Actual output will depend on product viscosity, fill volume, tube format, and operator setup.
HONEMIX the machine as using PLC touch-screen control.
Using inner heating, 3KW, and describes the machine as hot air heating type.
Yes. Application scope includes cosmetics, pharmaceuticals, personal care, food, and OEM/ODM production, with examples such as creams, lotions, sunscreens, gels, ointments, toothpaste, sauces, and jams in tubes.
If you are sourcing an Automatic Tube Filling Machine, Laminated Tube Filling Machine, or Automatic Tube Sealing Machine for higher consistency and better production efficiency, the HONEMIX HY-A400 is a strong candidate for OEM/ODM and factory-scale packaging projects.
Send us your tube size, filling volume, product viscosity, and target output. We will help you confirm the right configuration, mold solution, and quotation for your production line.
