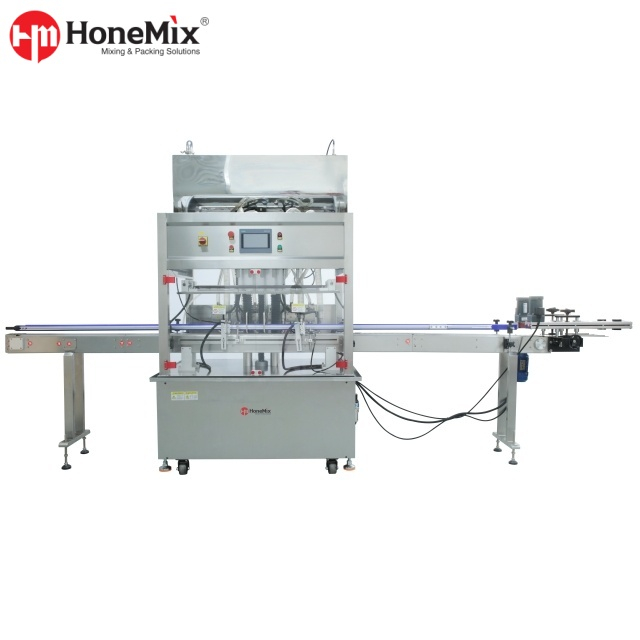

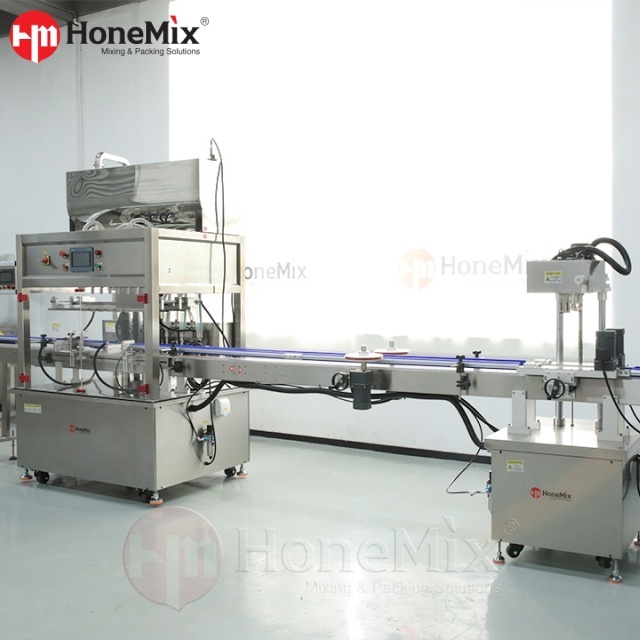

Designed for manufacturers that need accurate dosing, stable capping performance, and faster format changeovers, the HONEMIX HY-AFM Automatic Gear Pump Filling & Capping Line combines servo-driven gear pump filling with automatic screw capping in one compact system. It is suitable for low- to medium-viscosity liquid and semi-liquid products such as toners, essential oils, lotions, syrups, liquid soaps, and similar packaged products.
This Gear Pump Filling Capping Line gives buyers a practical balance of output, hygiene, flexibility, and control. As an Automatic Liquid Filling Machine and Bottle Filling And Capping Line, it is built for production environments that value consistency, reduced waste, and easier operation.
| Quantity: | |
|---|---|
HY-AFM
HONEMIX

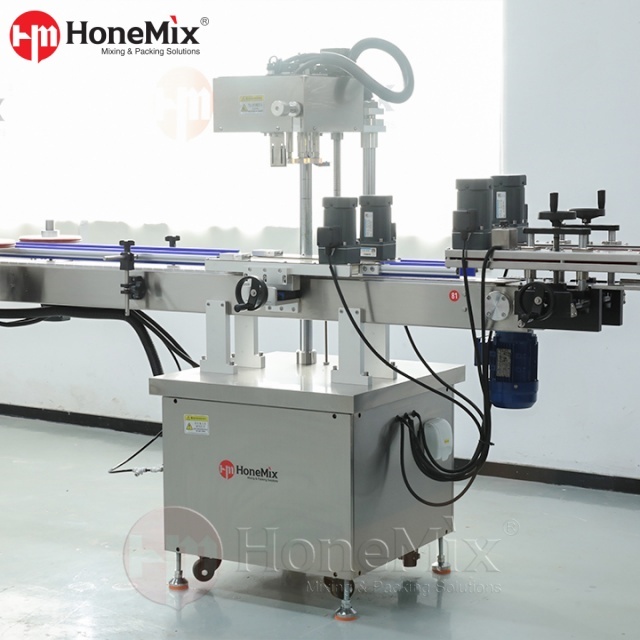

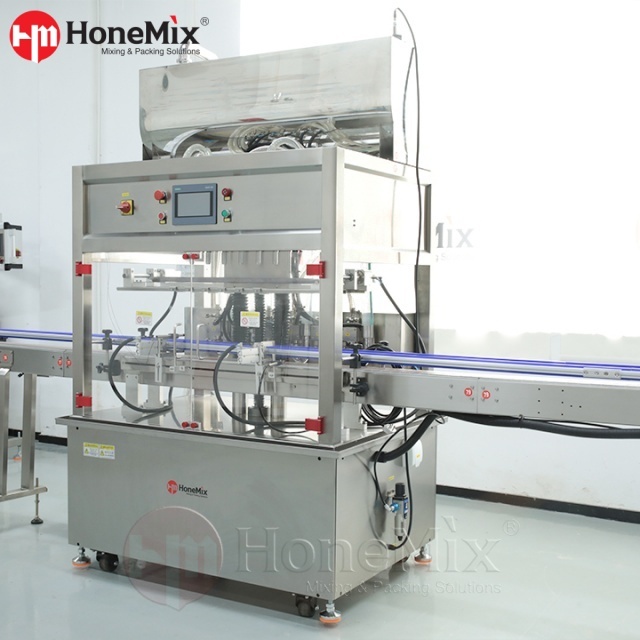

This system is engineered for repeatable filling accuracy and consistent cap application across a broad range of liquid products. The line uses gear pump filling technology for low- to medium-viscosity formulations and pairs it with an Automatic Screw Capping Machine for continuous, efficient downstream packaging.
The control architecture is built around PLC operation with a touch screen interface, enabling real-time monitoring and stored production recipes for faster product changeovers. The source page states that the system can store up to 100 product recipes, making it suitable for OEM/ODM factories and brands handling multiple SKUs.
Whether you are building a Cosmetic Filling Line, a Pharmaceutical Liquid Filling Line, or a Food Sauce Filling Machine setup, this line is positioned as a compact, high-output solution for clean, controlled, and commercially efficient production.
Gear pump filling is particularly suitable for liquids with low to medium viscosity, reducing product waste and improving batch consistency.

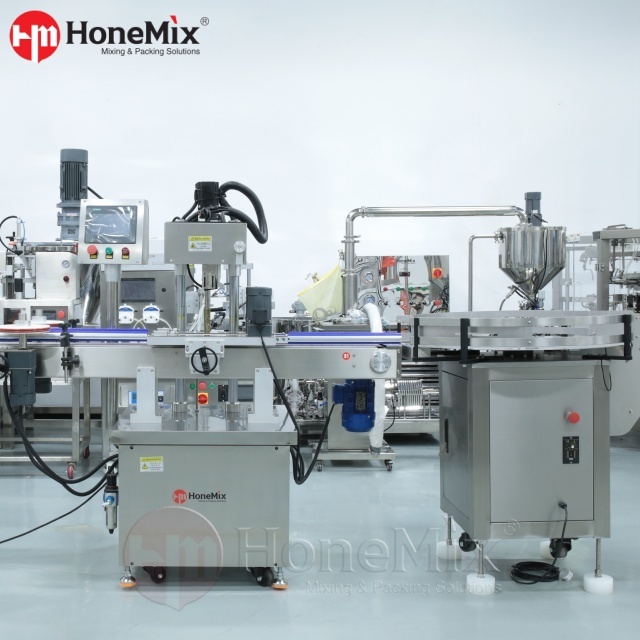

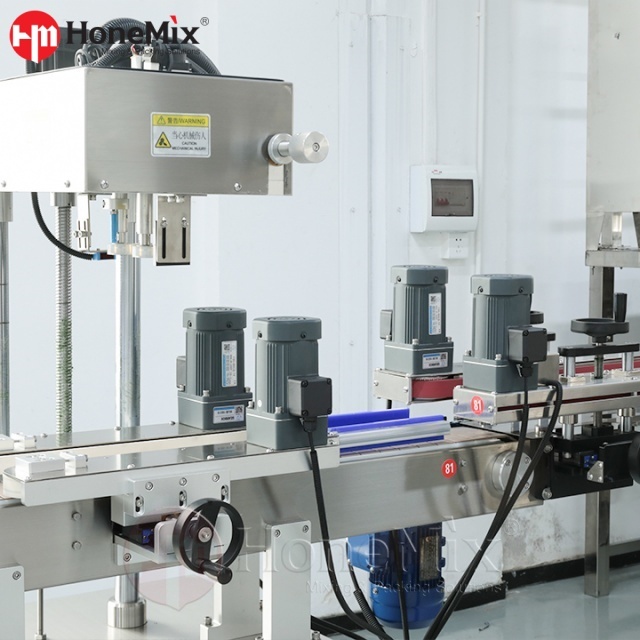

The line combines liquid filling and screw capping in one system, helping reduce labor dependency, shorten handling time between stations, and improve line continuity. This integrated design can improve production efficiency while saving floor space.
The machine is controlled by PLC with an HMI interface, with English and Chinese display on the standard page specification. Recipe storage and touchscreen adjustment support faster changeovers and more controlled operation.

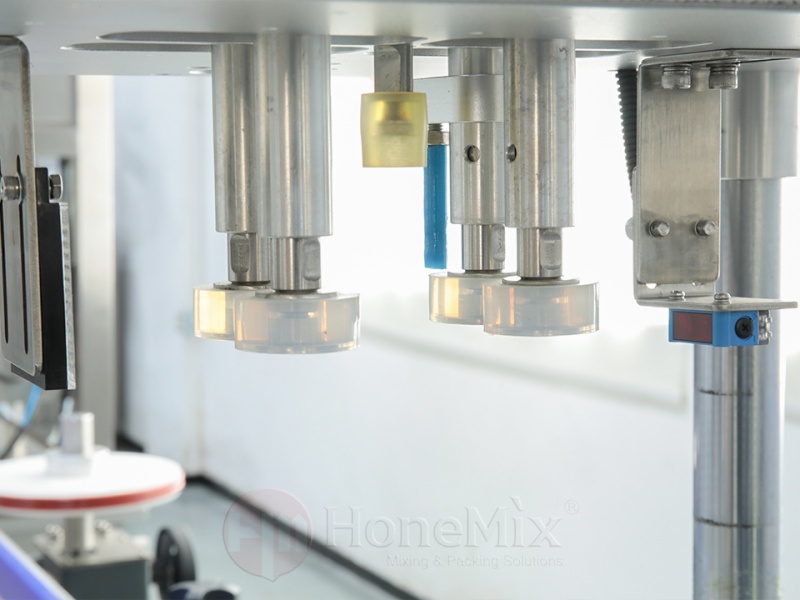

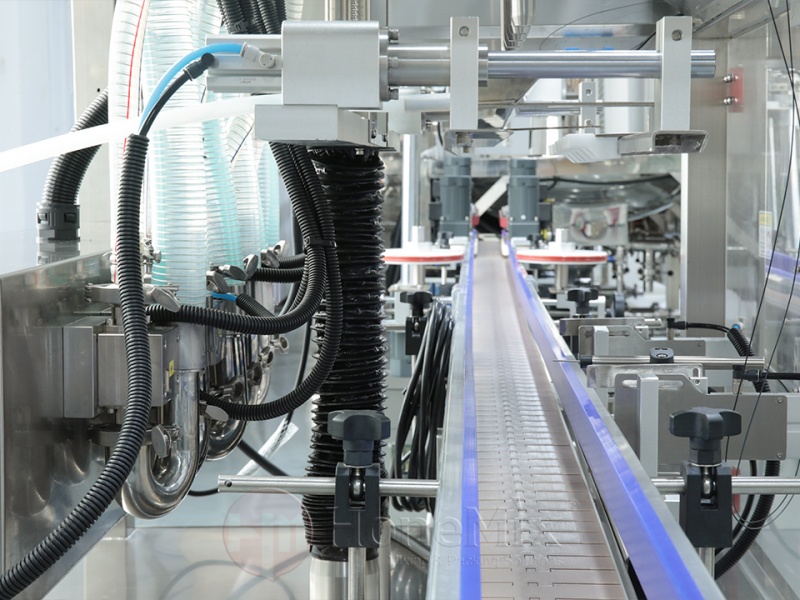

The line is designed to handle different bottle sizes and shapes through adjustable guide rails and conveyor settings. It is also suitable for multiple cap styles, including flat caps, pump caps, and child-resistant closures.

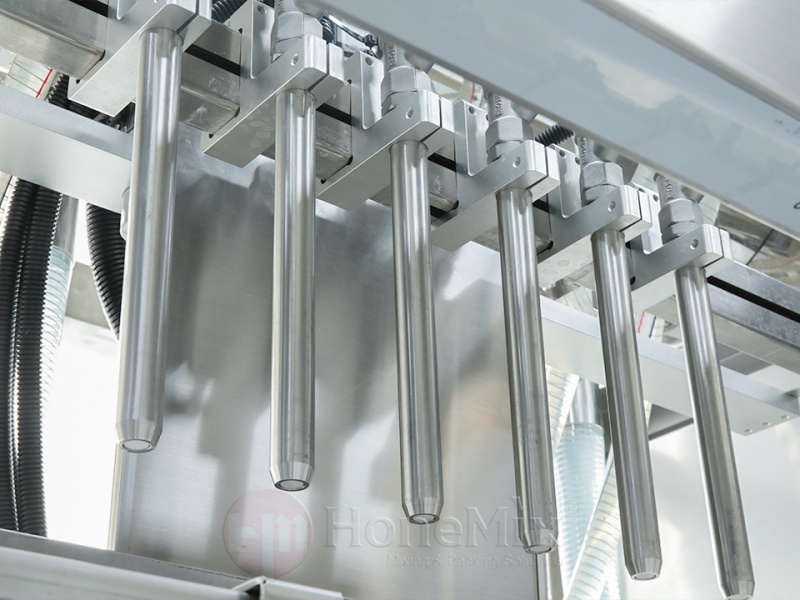

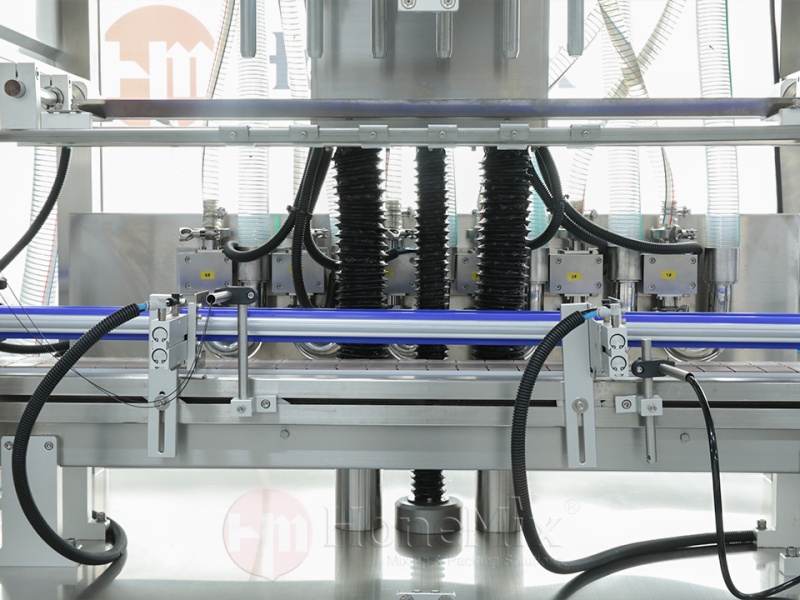

No-drip nozzles help keep the working area cleaner and reduce mess during production. Optional lift-up nozzles support bottom-up filling for thin liquids where foaming or splashing must be controlled.
The machine is built with SUS304 stainless steel and anodized aluminum, offering corrosion resistance and easier cleaning. The gear pumps and nozzles are designed for quick disassembly without special tools, with CIP-ready options available.
Cosmetics And Personal Care
Pharmaceuticals
Food And Beverage
Household Chemicals
Toners
Serums
Facial Cleansers
Liquid Soaps
Shampoos
Conditioners
Oral Syrups
Liquid Medicines
Topical Solutions
Edible Oils
Vinegar
Honey
Liquid Seasonings
Dish Soap
Hand Sanitizer
Cleaning Solutions
Item | Specification |
|---|---|
Model | HY-AFM |
Filling Heads | 4 Filling Nozzles |
Filling Volume | 50–5000 ml |
Filling Speed / Capacity | 30–60 BPM, Adjustable |
Filling Precision | ＜±1% |
Control System | PLC + Touch Screen HMI |
HMI Language | English And Chinese |
Filling Nozzle Function | Pneumatic Lifting Control |
Capping Type | Automatic Screw Capping |
Power Supply | AC220V / 50Hz, Single Phase, Can Be Designed To Requirements |
Power | 3 KW |
Air Pressure | 0.4–0.8 MPa |
Material Grade | SUS304 |
Automatic Grade | Automatic |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Lift-up nozzles for bottom-up filling when handling foaming or splash-prone liquids.
Cap elevator or cap sorter for automated cap feeding and orientation.
Adjustable guide rails and conveyor settings for different bottle sizes and bottle shapes.
Recipe-based operation for multi-product production runs.
CIP-ready design option for faster cleaning between batches.
Power supply customization according to local factory requirements.
Integration into existing packaging lines for broader automation layouts.
It is designed for low- to medium-viscosity liquid and semi-liquid products, including toners, essential oils, lotions, syrups, liquid soaps, edible oils, liquid seasonings, and similar products used in cosmetics, pharmaceutical, food, and household chemical applications.
Gear pump fillers are better suited for low- to medium-viscosity liquids and offer very high filling accuracy with lower shear stress on sensitive formulations. Piston fillers are generally more suitable for higher-viscosity creams or products containing particles.
Yes. The conveyor guide rails and handling components are adjustable for different bottle sizes and shapes.
The capping section is typically supplied with a vibratory cap elevator or sorter to help orient caps before application.
Yes. The gear pumps and nozzles are designed for quick disassembly without special tools, and CIP-ready options are available for easier cleaning between batches.
If you are comparing suppliers for a high-accuracy liquid filling and capping solution, send us your bottle sample, fill volume, product viscosity, cap type, and target output.
We will help you evaluate the right Gear Pump Filling Capping Line configuration for your factory, confirm compatibility with your products and packaging, and provide a quotation tailored to your production goals.
