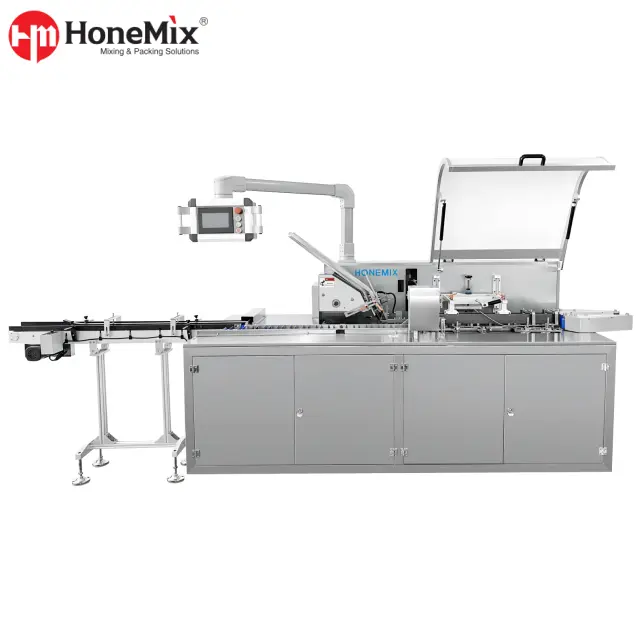

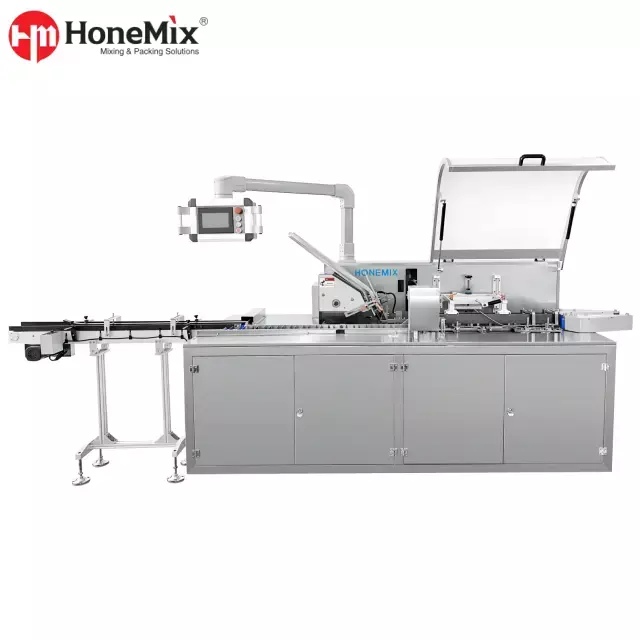

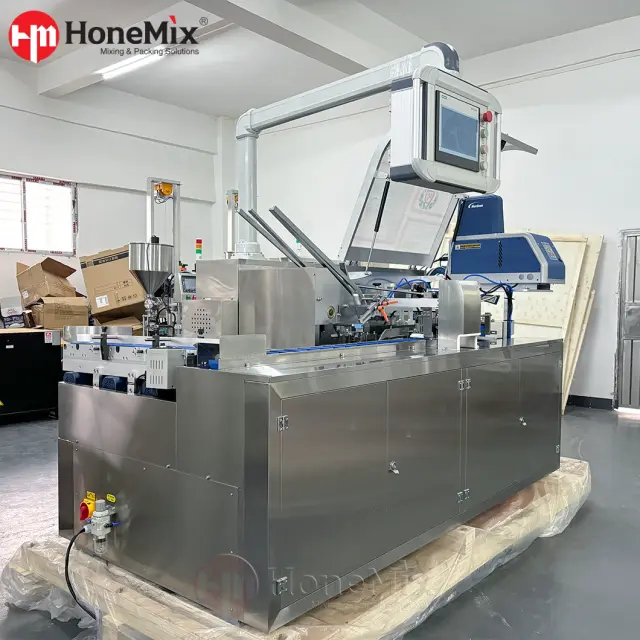

HY-ZHJ-120 Automatic Cartoning Machine For Tubes And Bottles

HY-ZHJ-120 Automatic Cartoning Machine For Tubes And Bottles Overview

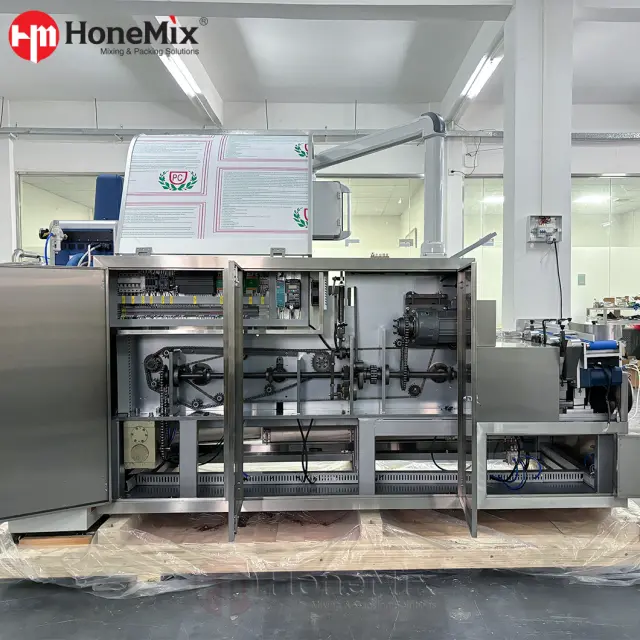

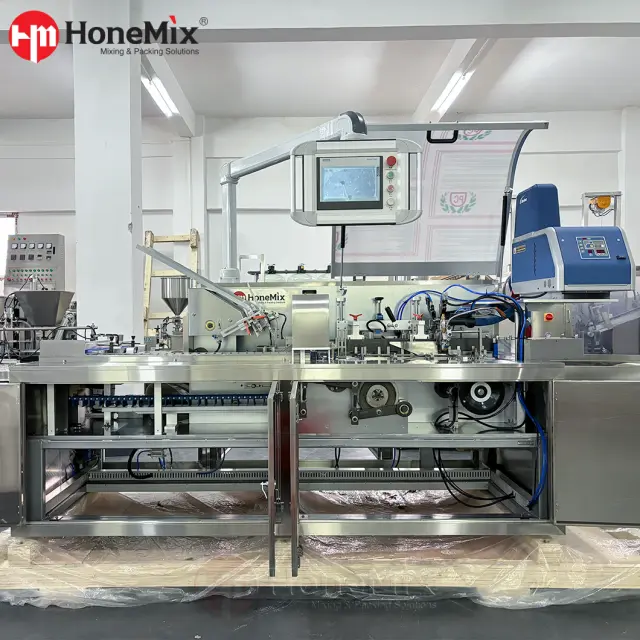

The HY-ZHJ-120 automatic horizontal cartoner is built for factories that need a more efficient way to pack single products into folding cartons. During operation, the machine opens the flat carton, feeds the product into the carton, folds the leaflet if required, closes the carton flaps and can emboss or print batch numbers according to the production process.

It is widely used for products such as cosmetic tubes, small bottles, pharmaceutical bottles, oral liquid bottles, cream tubes, ointment tubes, personal care products and other similar items that require retail carton packaging.

For buyers who are upgrading from manual cartoning, this machine can improve packing speed, reduce labor dependency and make the final carton appearance more consistent. For automated production lines, it can be connected with filling machines, labeling machines, tube filling machines, bottle feeding systems, conveyors and inspection equipment.

Core Machine Features

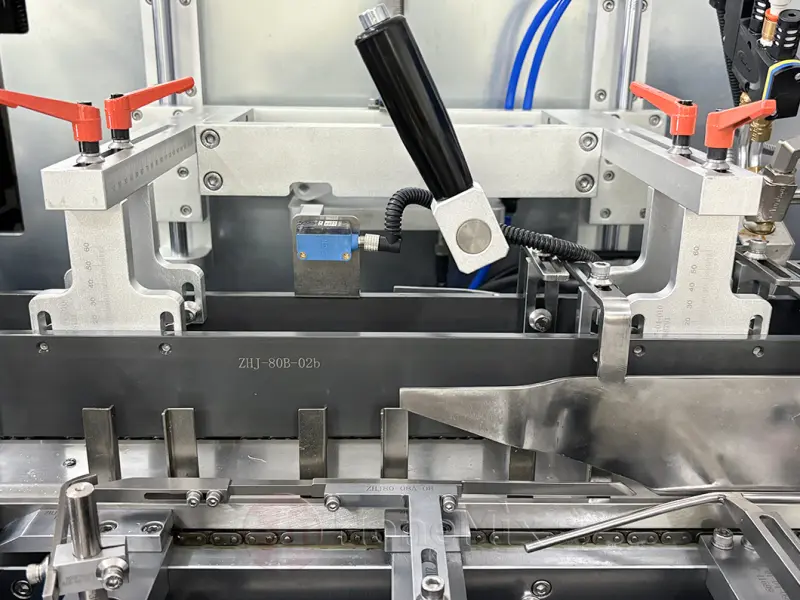

1. Automatic Carton Opening And Forming

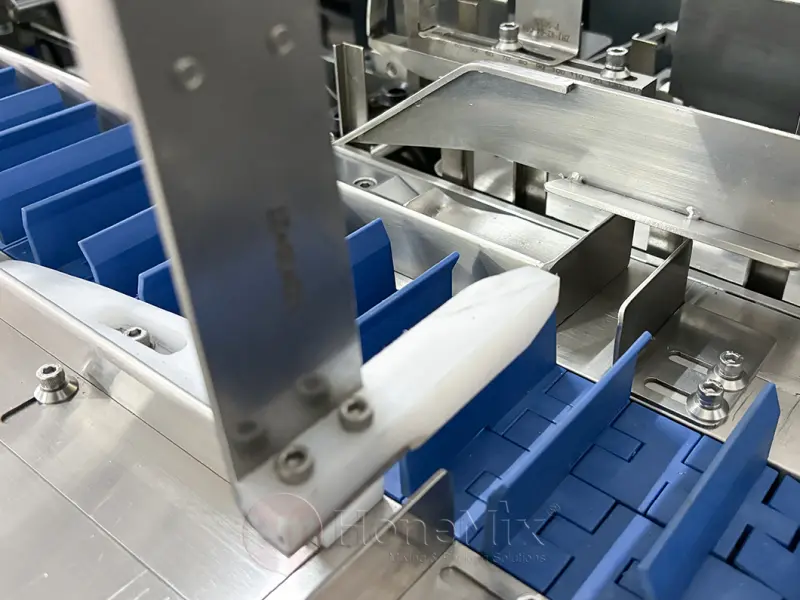

The machine automatically takes flat cartons from the carton magazine, opens them and positions them for product insertion. This helps reduce manual carton handling and keeps the packing process more stable.

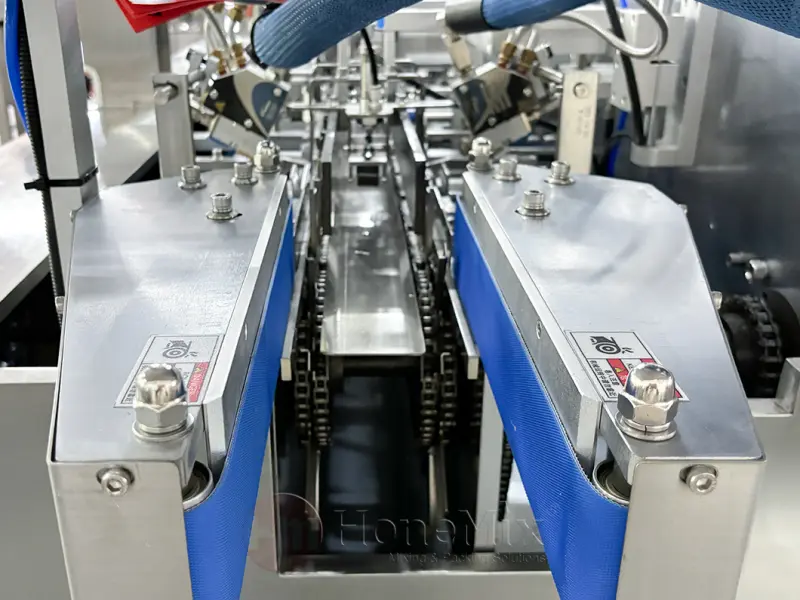

2. Product Feeding System

The feeding system can be designed according to the product type, such as tubes, bottles or similar items. Product feeding can be adjusted based on product shape, orientation and line speed.

3. Leaflet Folding And Inserting

The machine can fold instruction leaflets and insert them together with the product into the carton. This is useful for pharmaceutical, cosmetic, personal care and regulated products that require user instructions or product information leaflets.

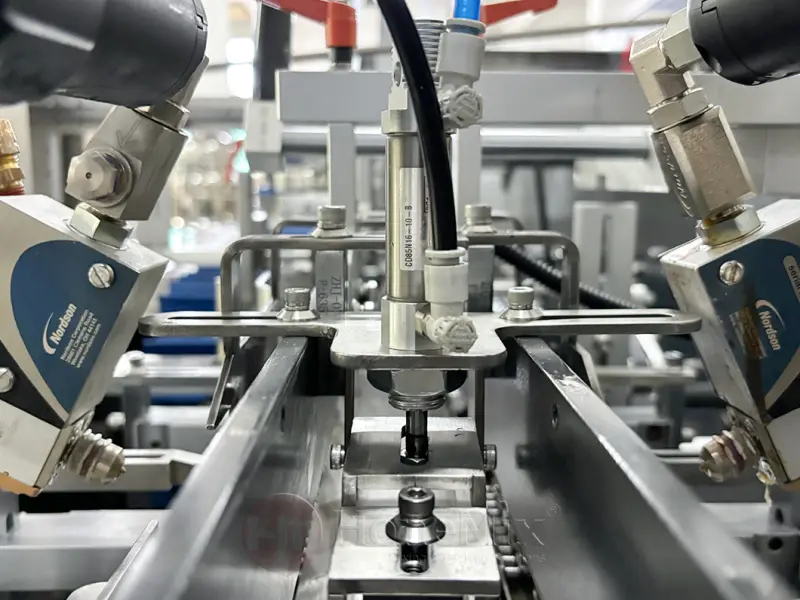

4. Carton Closing And Flap Tucking

The standard configuration is suitable for reverse tuck cartons. Replacement parts can be added for straight tuck carton requirements. This makes the machine more flexible for different carton packaging styles.

5. Batch Number Coding Or Embossing

The machine can support batch number embossing or coding to help manufacturers meet traceability and packaging identification requirements.

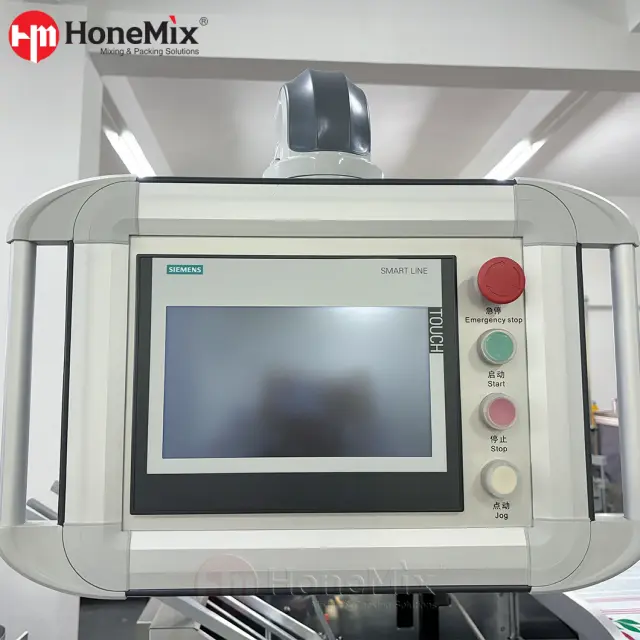

6. PLC Touch Screen Control

The HY-ZHJ-120 uses a touch screen and PLC control system for convenient operation. Operators can adjust machine parameters, monitor working status and troubleshoot production issues more easily.

7. Stainless Steel Machine Structure

The SUS304 stainless steel frame provides a clean, durable and professional structure for daily production environments. It is suitable for cosmetic, pharmaceutical, personal care and food-related packaging workshops.

Main Applications

Cosmetics And Personal Care

• Cream Tubes

• Lotion Bottles

• Serum Bottles

• Cosmetic Tubes

• Facial Cleanser Tubes

• Sunscreen Tubes

• Hair Care Bottles

• Personal Care Products

Pharmaceutical And Healthcare

• Medicine Bottles

• Oral Liquid Bottles

• Ointment Tubes

• Small Vials

• Health Product Bottles

• Instruction Leaflet Cartons

Food, Daily Chemical And Light Industry

• Small Food Bottles

• Household Product Bottles

• Daily Chemical Tubes

• Similar Retail Carton Packaging Products

Technical Parameters

Note: Final specifications can be customized according to product size, carton structure, packaging speed, voltage, feeding method and factory layout.

Main Electrical And Pneumatic Components

Optional Configurations

• Customized product feeding system

• Bottle feeding system

• Tube feeding system

• Leaflet folding and inserting system

• Batch number coding or embossing

• Straight tuck carton configuration

• Customized conveyor connection

• Integration with filling machine, tube filling machine or labeling machine

• Customized voltage and electrical components

• Safety cover and protection design

• Full packaging line layout design

Why Choose The HY-ZHJ-120 Automatic Cartoning Machine?

The HY-ZHJ-120 is suitable for manufacturers who need an automatic cartoning solution for medium-speed packaging lines. Compared with manual carton packing, it provides better speed, repeatability and carton appearance. Compared with oversized high-speed cartoners, it offers a more compact and practical solution for cosmetic, pharmaceutical, personal care and daily chemical factories.

It is a strong choice when buyers need:

• Automatic carton packing for tubes or bottles

• Stable carton opening and closing

• Lower labor cost in packaging

• More consistent retail carton appearance

• Flexible connection with existing filling or packaging machines

• Custom design for different product and carton sizes

FAQ

1. What Products Can The HY-ZHJ-120 Automatic Cartoning Machine Pack?

It can pack tubes, bottles and other similar products. Common applications include cosmetic tubes, small bottles, pharmaceutical bottles, ointment tubes, oral liquid bottles and personal care products.

2. What Is The Standard Packing Speed?

The standard capacity is about 60–80 cartons/min, depending on product shape, carton material, feeding stability and packaging requirements.

3. Can The Carton Size Be Customized?

Yes. The standard carton size range is from 50 × 20 × 15 mm to 190 × 90 × 60 mm. Custom designs can be made according to the buyer’s carton size and product dimensions.

4. What Carton Type Does This Machine Support?

The standard machine is designed for reverse tuck cartons. Straight tuck cartons can also be supported by adding suitable replacement parts.

5. Can It Be Connected With A Filling Line?

Yes. The machine can be connected with filling machines, tube filling machines, labeling machines, conveyors and other packaging equipment to build a complete production line.

6. Is The Machine Suitable For Cosmetic And Pharmaceutical Packaging?

Yes. The stainless steel structure, automatic leaflet folding, carton forming and stable product feeding make it suitable for cosmetic, pharmaceutical, personal care and similar industries.
