AFM-LCR Automatic Mascara Filling Machine

For manufacturers seeking reliable, high-performance filling solutions for thick, viscous, or abrasive products, the Fully Automatic Pressure Filling Machine delivers exceptional results. Utilizing pneumatic pressure and precision piston technology, this machine is specifically engineered to handle high-viscosity materials—including creams, ointments, pastes, gels, and even products with particulates—with unmatched accuracy and consistency.

Availability:

Quantity:



Inquire Add to Basket

Model:
AFM-LCR
Brand:
Honemix

Product Description

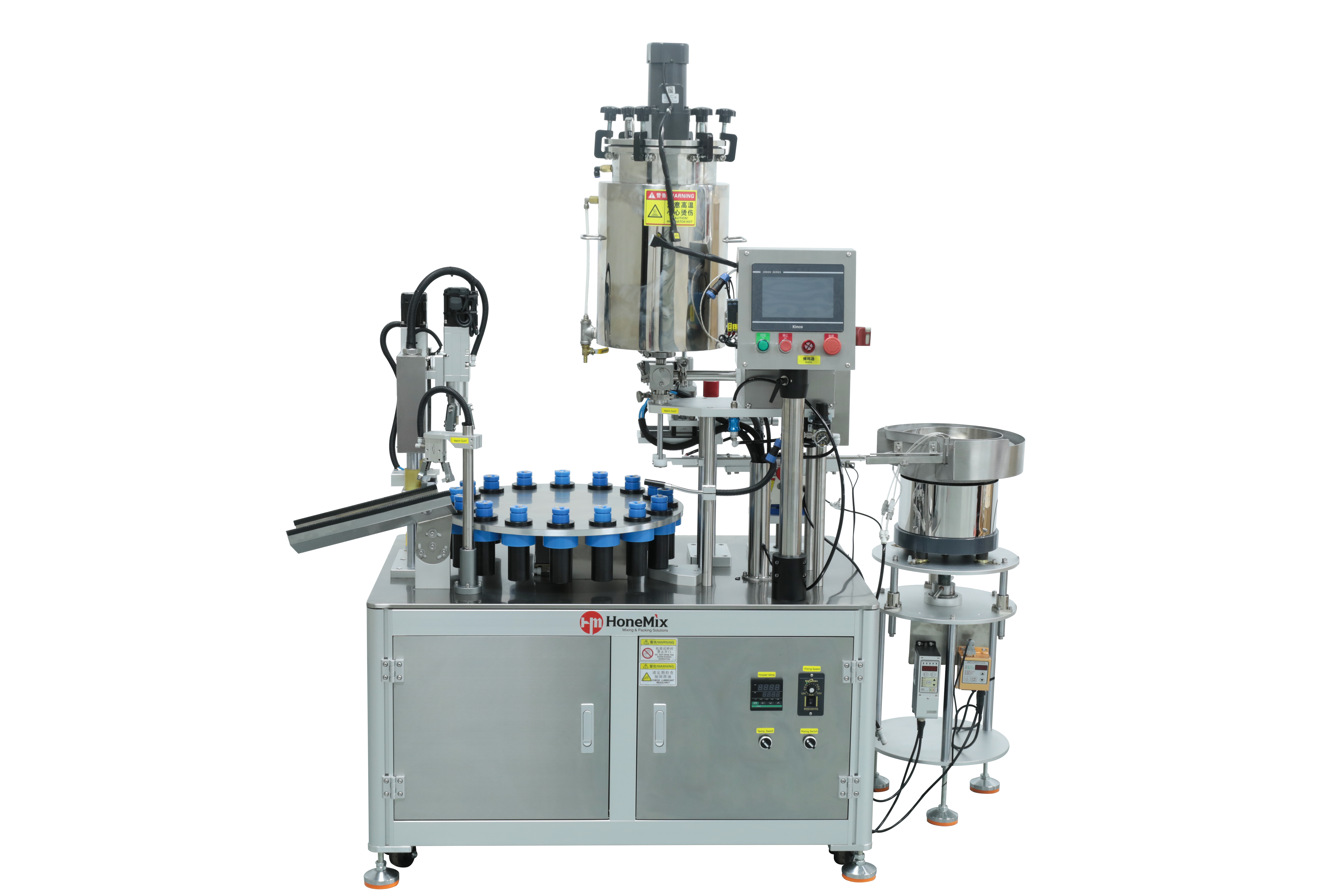

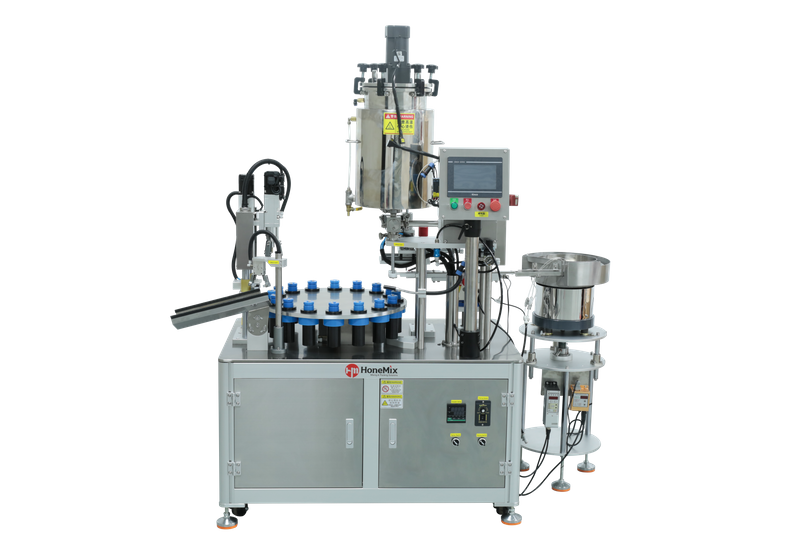

Automatic Turntable Pressure Filling Capping Machine for Cosmetics (Mascara, Lip Gloss)

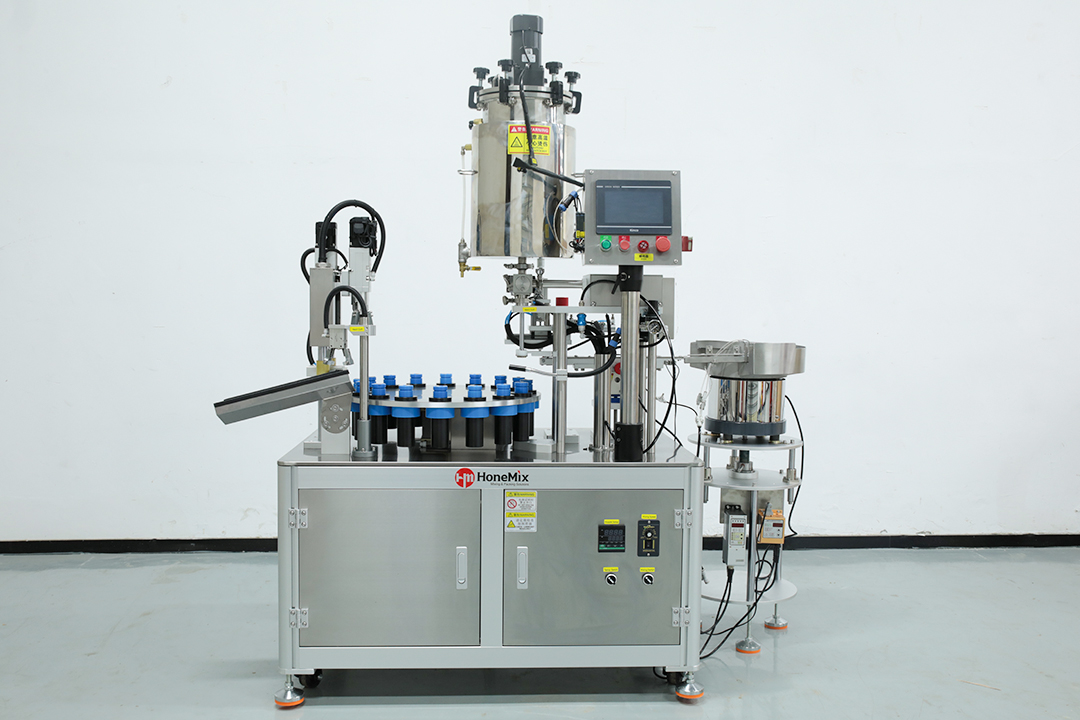

pressure filling machine

In the competitive cosmetic industry, efficiency, precision and consistency are crucial. For high-viscosity, small-capacity products like mascara and lip gloss, traditional equipment often has flaws. Our automatic turntable pressure filling capping machine solves these pain points, realizing one-stop production to cut labor costs and ensure stable quality.

Focused on 1-20ml high-viscosity cosmetics, it solves flow and filling accuracy issues, meeting cosmetic GMP standards.

Core Advantages: Tailor-Made for Cosmetic High-Viscosity Small-Capacity Products

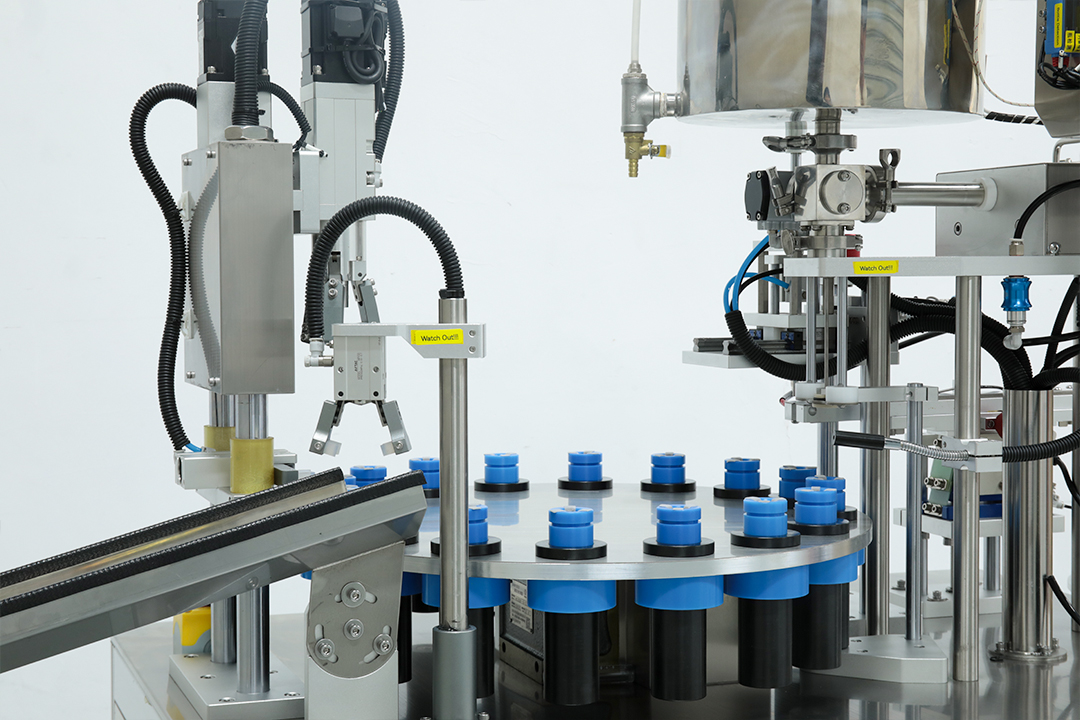

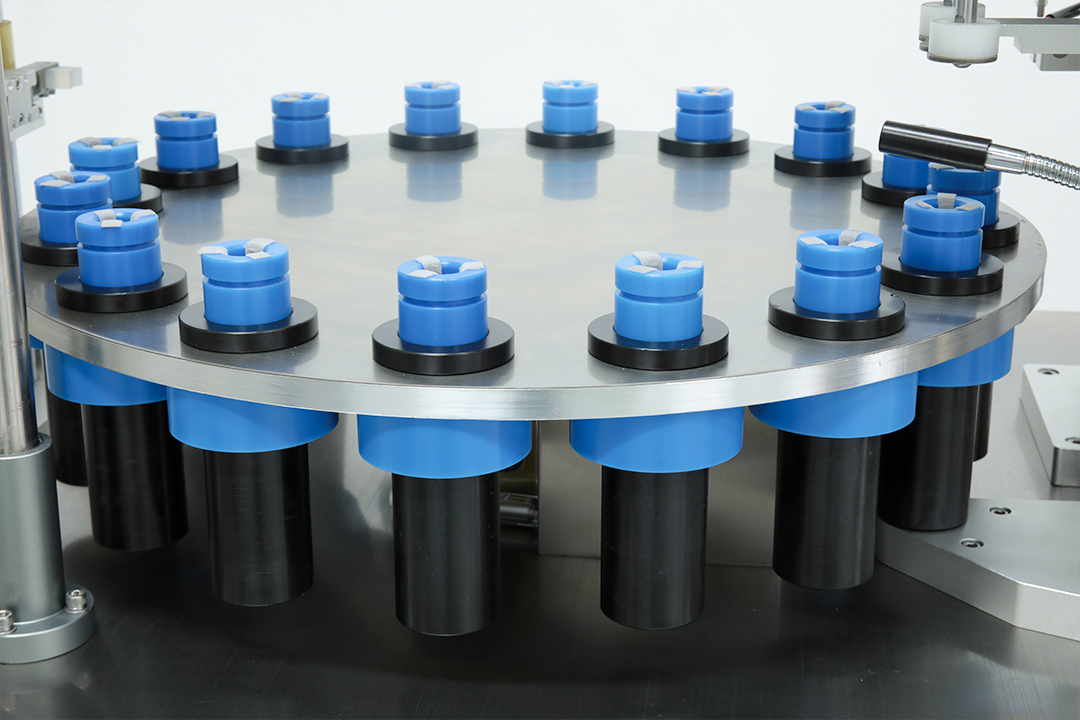

1. Precision-Driven Turntable Structure: Stable & Efficient

Adopting indexer turntable structure with ±30 seconds positioning accuracy, it ensures precise alignment of bottles at all stations, reducing waste. Space-saving design and adjustable bottle grooves adapt to small-batch, multi-variety cosmetic production.

2. Servo Drive System: High Precision & Adaptability

Full servo drive control (filling + capping) enables ±1% filling accuracy (1-20ml stepless adjustment). It smoothly pushes high-viscosity materials, with 99%+ capping qualification rate.

3. Pressure Sealed Barrel: Solve High-Viscosity Flow Issues

Equipped with pressure-sealed material barrel, it promotes smooth material flow, avoiding residue and air bubbles. Optional 304/316 stainless steel contact parts meet GMP and FDA standards.

4. Full-Automatic One-Stop Operation: Labor-Saving & Efficient

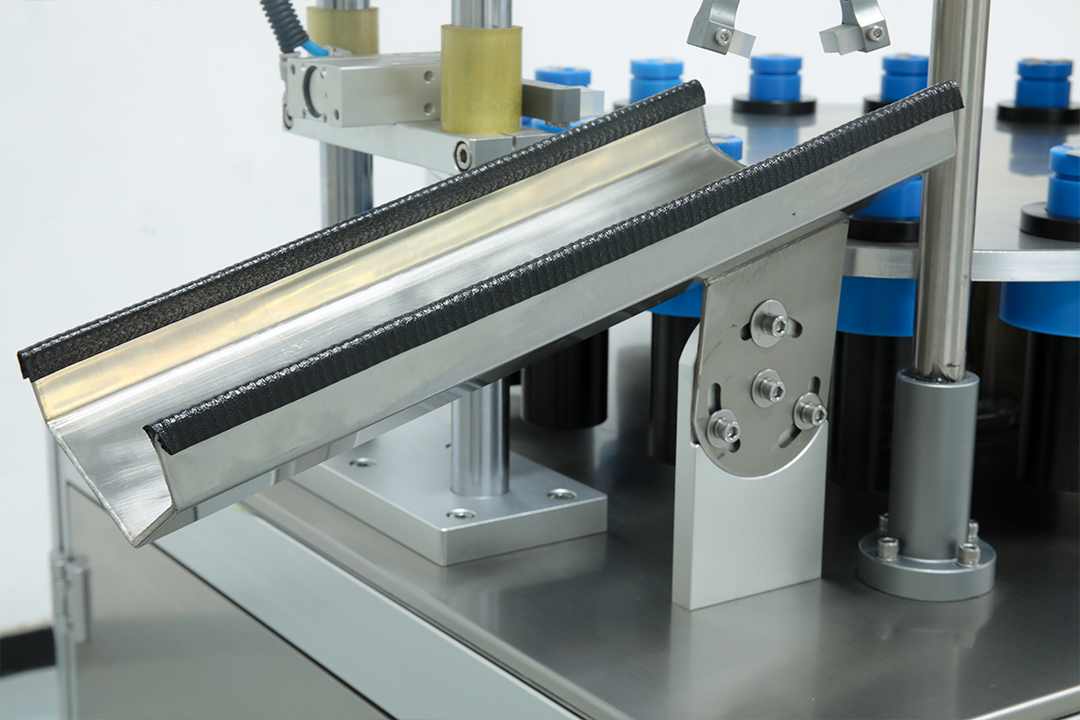

Integrates automatic bottle feeding, servo piston filling, plugging, brush loading, capping and ejection—no manual intervention. 40-80 bottles/min efficiency supports 24-hour continuous operation.

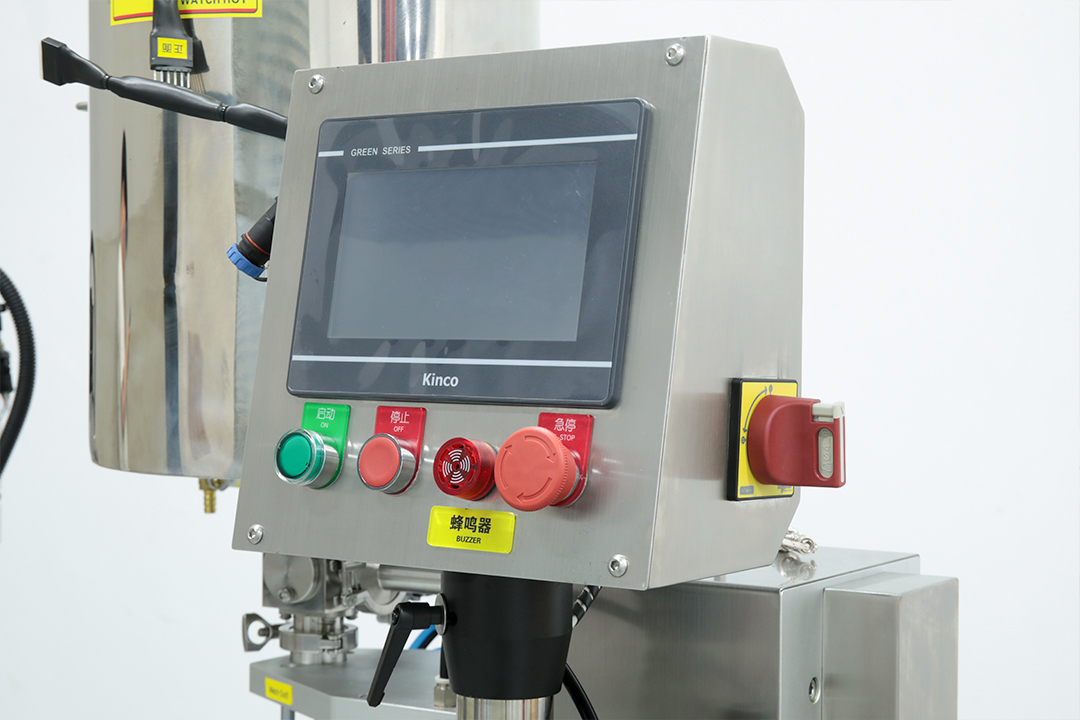

5. Intelligent Touch Screen Control: Easy to Operate & Maintain

7-inch touch screen with user-friendly interface, 100-group parameter storage for quick product switching. Fault alarm and modular design simplify maintenance and reduce downtime.

6. Humanized Safety Design

Infrared safety sensors and overload protection prevent accidents. Transparent cover for real-time observation; anti-dripping nozzle and soft capping part keep products and equipment clean.

Product Specifications

Item	Specification
Application	High-viscosity, small-capacity cosmetics (mascara, lip gloss, etc.)
Filling Range	1-20ml (stepless adjustable, customizable)
Filling Accuracy	±1%
Production Efficiency	30-40 bottles/min (adjustable)
Drive System	servo motor drive
Control System	7-inch touch screen, PLC control
Contact Material	304/316 stainless steel (optional)
Material Barrel	Pressure-sealed (20L standard, customizable)
Bottle Adaptation	Diameter: 12-50mm, Height: 50-150mm (adjustable)
Power Supply	AC220V/50Hz, 2KW
Air Pressure	0.4-0.8Mpa
Machine Size	180012001600mm (customizable)
Weight	450kg
Safety Protection	Infrared sensor, overload protection, transparent cover
GMP Compliance	Yes (meets GMP & FDA standards)

Why Choose Our Cosmetic Filling Capping Machine?

Our machine stands out with targeted advantages for cosmetic production:

Targeted for high-viscosity, small-capacity cosmetics, solving industry pain points
Servo drive + indexer turntable: high precision, low waste
Full automation: one-stop operation, labor-saving, error-free
Stainless steel + pressure-sealed barrel: hygienic, GMP-compliant
Intelligent control + modular design: easy to operate and maintain
Adjustable design: fits multiple cosmetic bottle types

Application Scenarios

Widely used in cosmetic factories, processing enterprises and laboratories for:

Eyelash products:mascara, eyelash primer (small capacity)
Lip products: lip gloss, lip oil, lip glaze (tube type)
Eyebrow products: eyebrow gel, eyebrow cream
Other small-capacity cosmetics: concealer, liquid blush

After-Sales Service

Comprehensive after-sales support for worry-free use:

On-site installation, commissioning and operator training
1-year quality guarantee, free wearing parts replacement (non-man-made)
24-hour online technical support
Preferential long-term spare parts supply

Ideal for large factories and SMEs alike, our automatic turntable pressure filling capping machine boosts efficiency and cuts costs. Contact us for a customized solution and free quotation!
