ACM-FW
Honemix

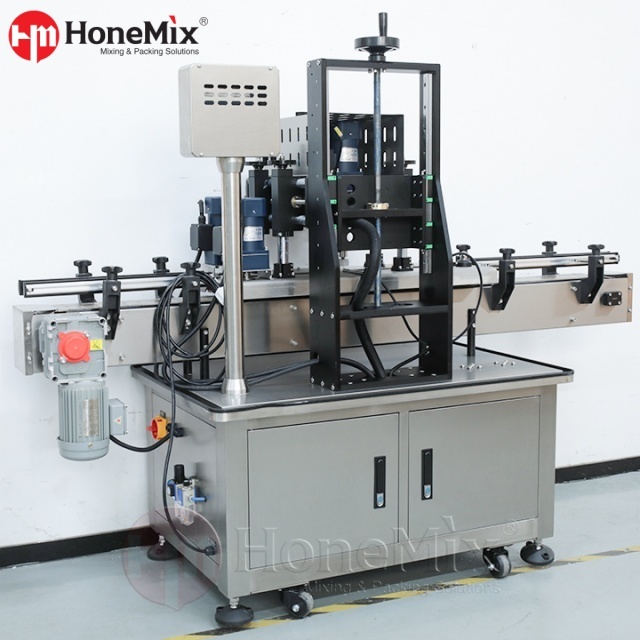

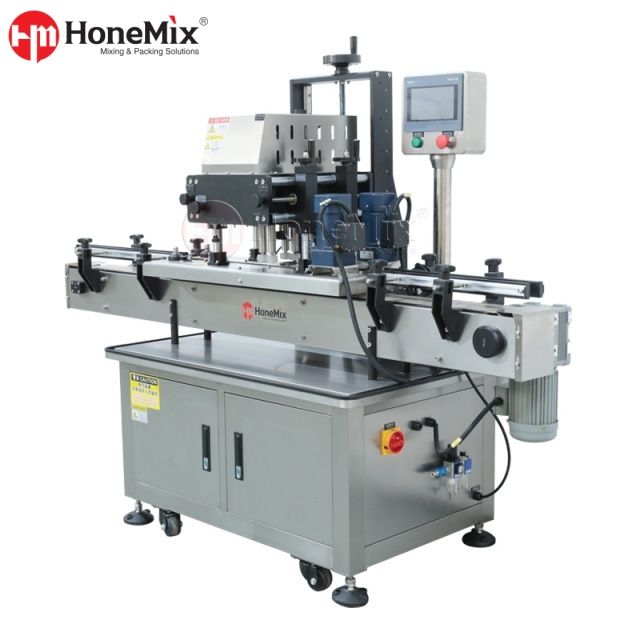

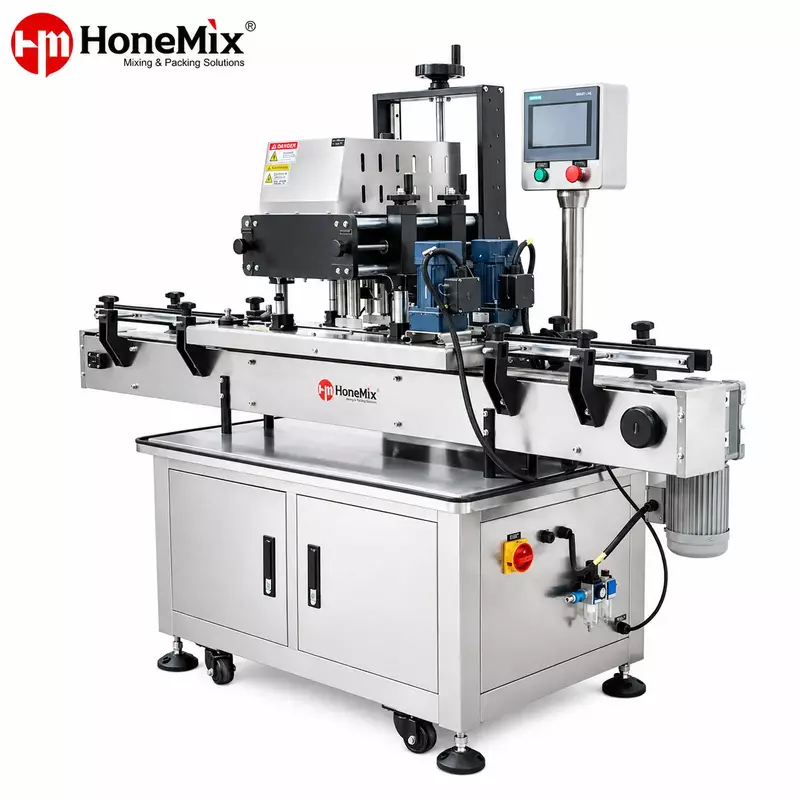

This Four-Wheel Capping Machine is engineered for automatic inline screw capping where closure consistency matters as much as output. Compared with simpler capping structures, the four synchronized wheels provide more even gripping force around the cap, helping buyers improve sealing reliability while protecting cap appearance and container integrity.
It works across cosmetic bottles, pharmaceutical containers, beverage packaging, and household chemical products, while integrating into automated filling and labeling lines.

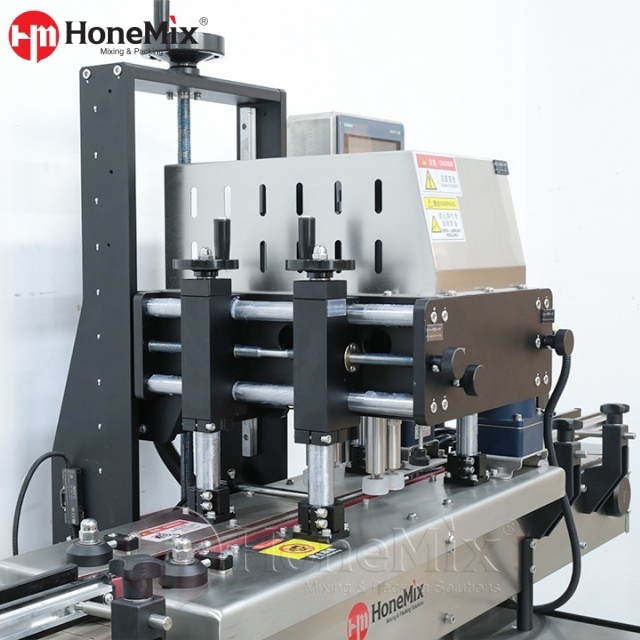

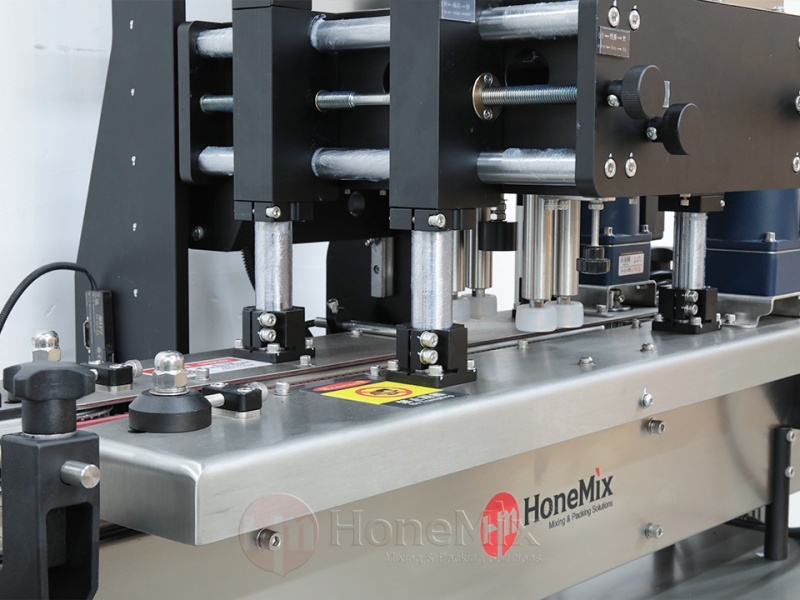

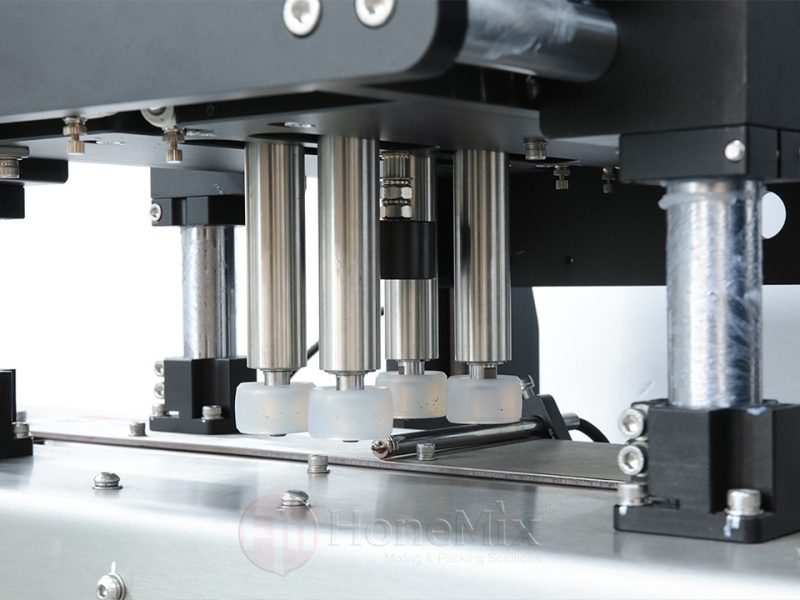

The core advantage of this Automatic Screw Capping Machine is its four synchronized rotary wheels. Instead of relying on a single tightening point, the cap is gripped evenly from multiple sides, which helps improve torque consistency and reduces the risk of crooked caps, cross-threading, and cap surface damage.
The machine supports torque adjustment through the HMI or mechanical adjustment, depending on model configuration. This gives buyers better control when switching between flat caps, pump caps, sports caps, child-resistant closures, and other screw-cap formats.
HONEMIX lists a cap diameter range of 15–80 mm, customizable up to 120 mm, with bottle height adjustment from 50–300 mm and bottle diameter adjustment from 20–120 mm. That range makes this Bottle Capping Machine practical for mixed production lines and private-label operations with frequent SKU variation.
With an output range of 30–80 bottles per minute, this High-Speed Capping Machine is built for continuous inline packaging rather than low-volume bench work. It is a strong fit for factories that want to reduce manual capping labor and improve production efficiency without sacrificing closure quality.
The system can be equipped with a vibratory cap elevator or sorter for automatic cap orientation and feeding. It also uses sensor-based no-bottle-no-cap logic to reduce cap waste and support smoother, more stable line operation.

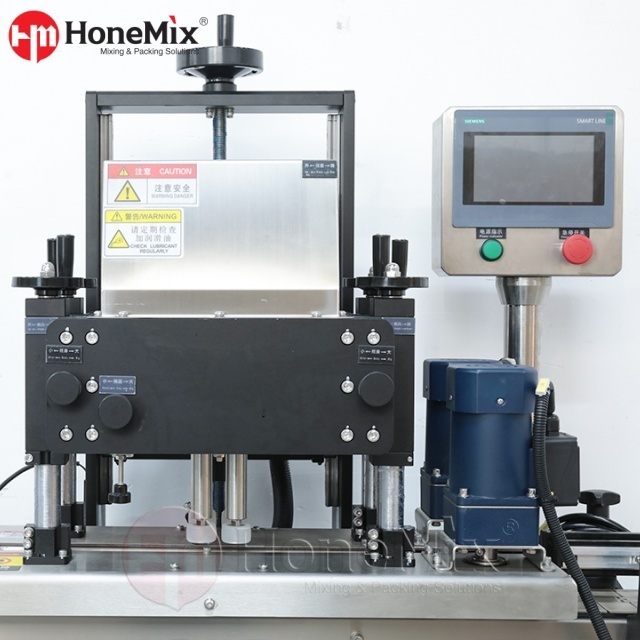

The PLC Bottle Capper interface includes touch screen operation, recipe storage for up to 100 products, and real-time diagnostics. HONEMIX states that changeover between different bottle and cap sizes typically takes less than 15 minutes, which is valuable for factories running multiple packaging formats in the same shift.
Industry | Suitable Products | Why It Fits |
|---|---|---|
Cosmetics & Personal Care | Lotion bottles, shampoo bottles, serum bottles, cream jars, perfume bottles | Supports attractive packaging, stable torque, and gentle cap handling |
Pharmaceuticals | Medicine bottles, syrup bottles, supplement containers, dropper bottles | Helps improve sealing consistency and hygienic operation |
Food & Beverage | Sauce bottles, honey jars, edible oil containers, beverage bottles | Suitable for inline capping with automatic feeding and stable throughput |
Household & Chemical | Detergent bottles, cleaning solution bottles, lubricant containers | Handles various bottle formats and supports continuous production |
Parameter | Specification |
|---|---|
Machine Type | Fully Automatic Four-Wheel Screw Capping Machine |
Model | ACM-FW |
Capping Mechanism | 4 synchronized rotary capping wheels |
Applicable Cap Types | Screw caps, flip-top caps, pump caps, child-resistant caps, sports caps |
Cap Diameter Range | 15–80 mm, customizable up to 120 mm |
Bottle Height Range | 50–300 mm |
Bottle Diameter Range | 20–120 mm |
Capping Speed | 30–80 bottles/min |
Torque Adjustment | Via HMI or mechanical adjustment, depending on model |
Cap Feeding | Vibratory cap elevator / sorter |
Control System | PLC + HMI touch screen with recipe storage |
Power Supply | 220V / 380V, 50/60Hz, single phase or three phase |
Power Consumption | 1.0–2.0 kW |

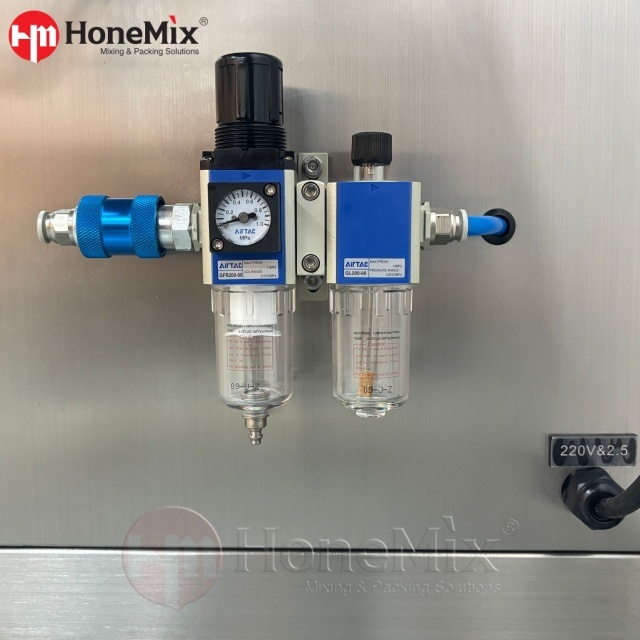

Air Supply | 0.4–0.6 MPa |
Machine Material | SUS304 stainless steel + anodized aluminum |

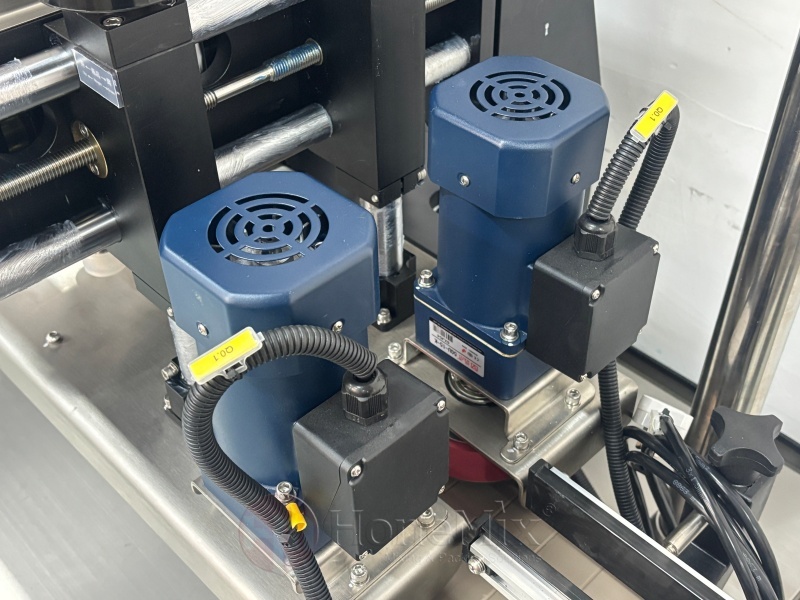

Conveyor | Stainless steel chain conveyor with variable speed control |
Dimensions | Approx. 2000 × 900 × 1600 mm |
Weight | Approx. 300–450 kg |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Option | Buyer Value |
|---|---|
Torque Monitoring & Data Logging | Better quality traceability and tighter process control |
Reject System For Improperly Capped Bottles | Helps protect downstream packaging quality |
Integration With Filling And Labeling Lines | Supports full automatic packaging line layout |
Stainless Steel Cap Elevator | Improves hygiene and matches sanitary production environments |
Extended Cap Size Customization | Supports wider SKU coverage |
Bottle Guide / Handling Adjustment | Improves fit for round, flat, oval, or square bottles |
It is designed for multiple screw-cap formats, including flat caps, flip-top caps, pump caps, child-resistant caps, and sports caps. Custom configurations are also available for specialized cap styles.
The torque can be adjusted through the touch screen interface or by mechanical adjustment, depending on the model configuration.
Yes. It can handle flat, oval, and square bottles with the appropriate guide rail adjustments, making it suitable for multi-format packaging lines.
Yes. The listed air requirement is 0.4–0.6 MPa, mainly for cap feeding and optional functions.
Yes. The machine can be integrated with filling machines, labeling machines, and other packaging equipment, and it also offers intelligent line solutions and customized support.
If you are sourcing an Automatic Screw Capping Machine for cosmetics, pharmaceuticals, food, or chemical packaging, this HONEMIX Four-Wheel Capping Machine gives you a practical balance of speed, torque stability, hygiene, and line integration flexibility. Send us your bottle sample, cap type, target output, and line layout requirements, and we will recommend the right configuration, optional functions, and quotation for your project.
