The HONEMIX ALM-DS Automatic Double-Side Labeling Machine is designed for manufacturers that need accurate, stable, and efficient front-and-back labeling for flat, square, oval, and rectangular containers. It combines dual-head labeling, PLC touch-screen control, and fast product changeover in one production-ready system built for cosmetic, pharmaceutical, food, and household chemical packaging lines.
Higher labeling consistency, lower labor dependence, easier line integration, and better finished-pack appearance. This makes it a strong choice for factories, contract packers, and brand owners that need reliable packaging performance with room for customization.
| Quantity: | |
|---|---|
ALM-DS
HONEMIX

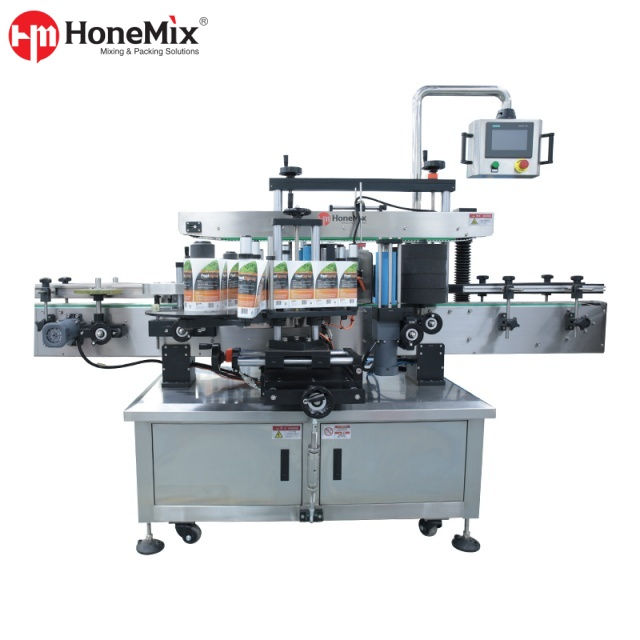

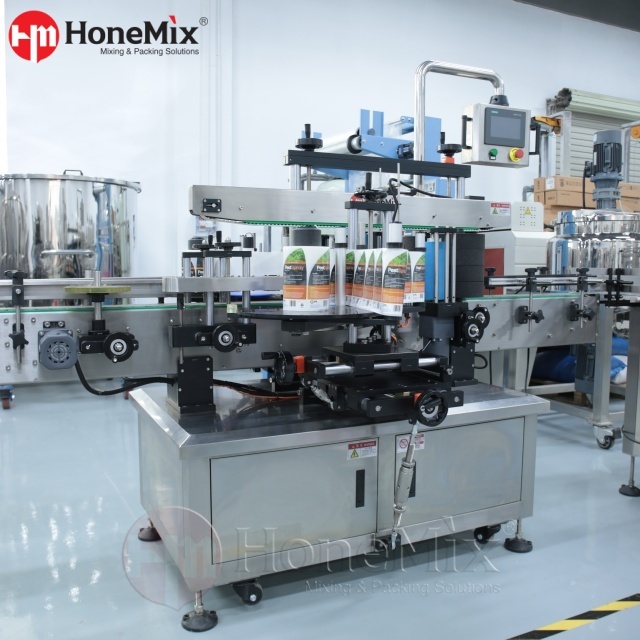

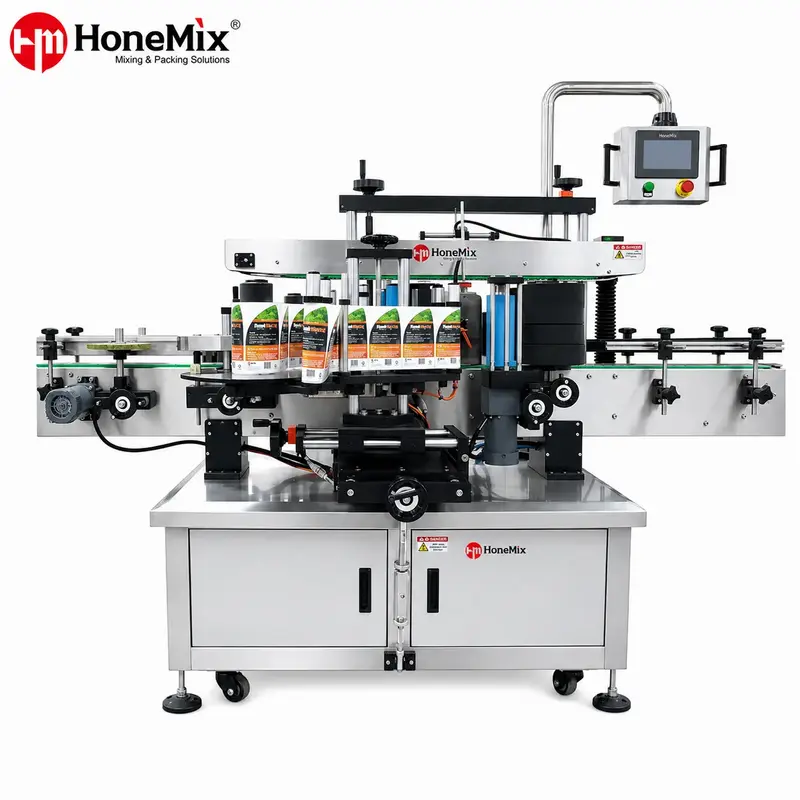

This automatic double side labeling machine is built for companies that need professional label application on two sides of a container without adding separate labeling steps. The machine uses two independent servo-driven labeling heads to label both sides of a bottle, or two positions on one container, in a continuous process. That design improves production efficiency while helping maintain a clean, aligned, premium shelf presentation.
Compared with manual labeling or single-side systems, this solution is better suited for buyers focused on repeatability, output, and labor efficiency. It is especially valuable when packaging quality directly affects brand perception, export compliance, and retail presentation.

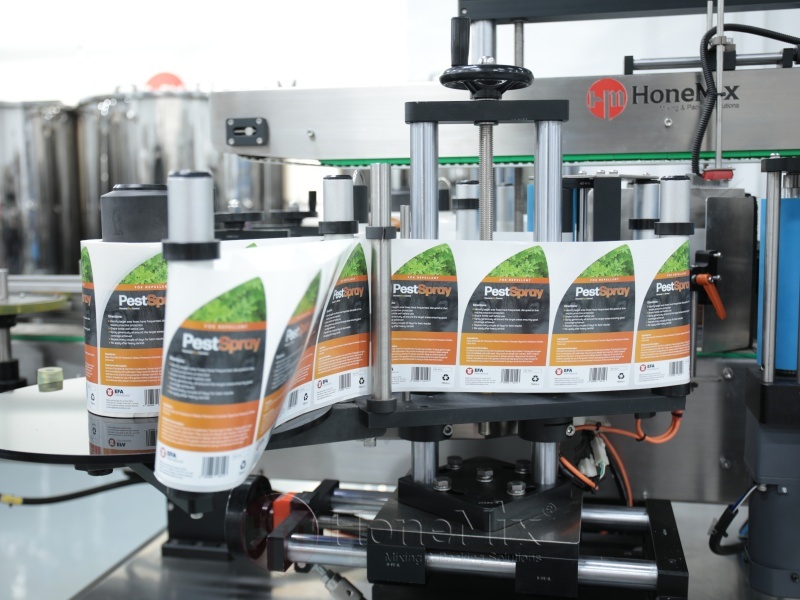

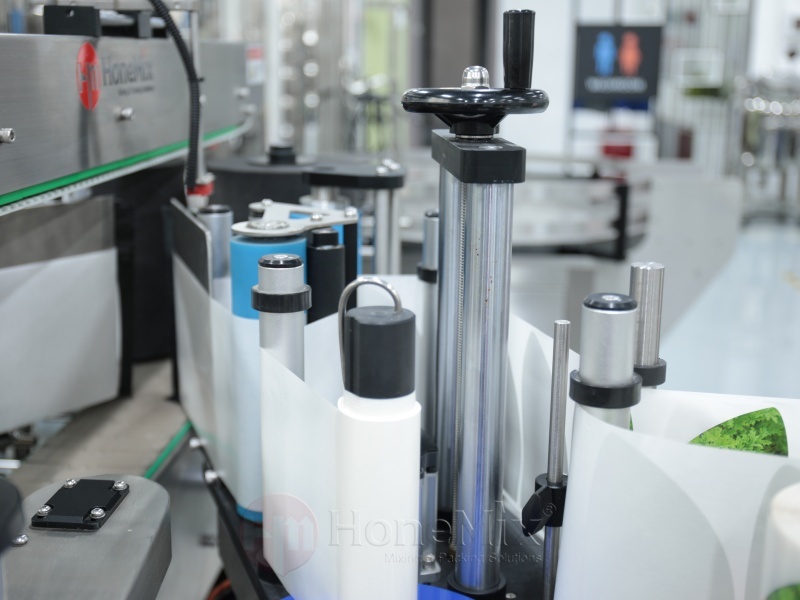

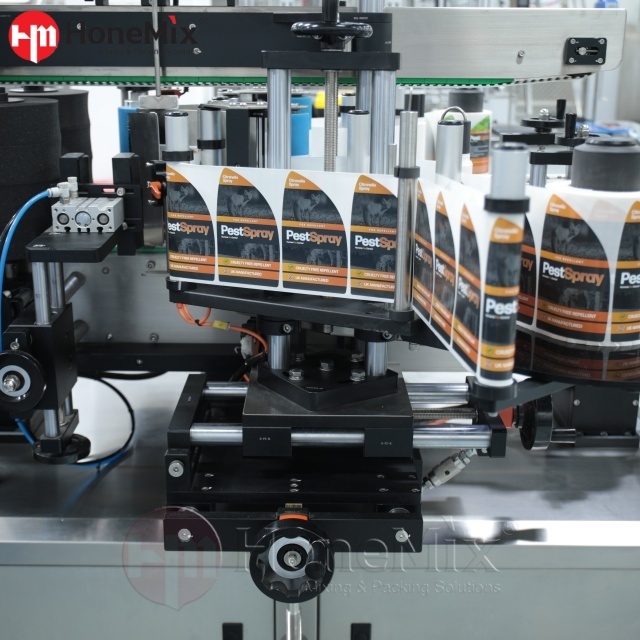

Two independent servo-driven labeling heads allow simultaneous application on both sides of the bottle. This reduces process steps and supports stable, synchronized labeling performance at production speed.

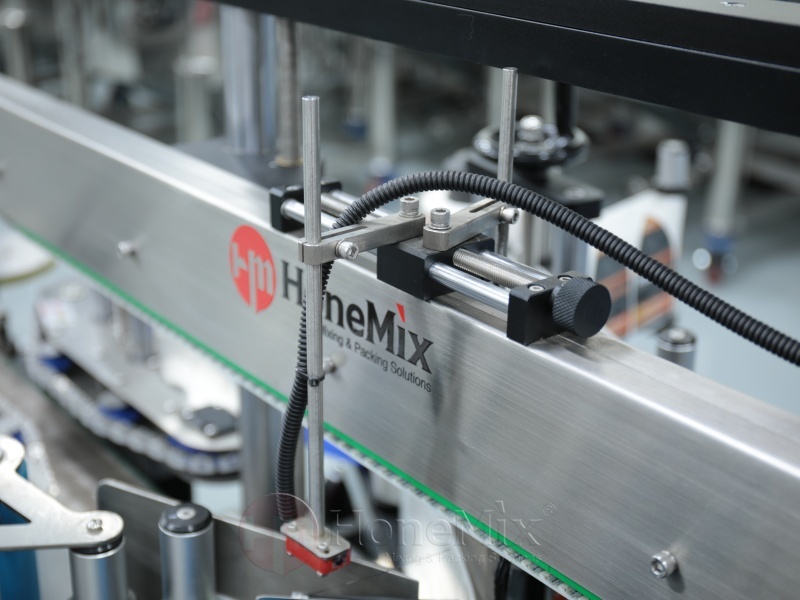

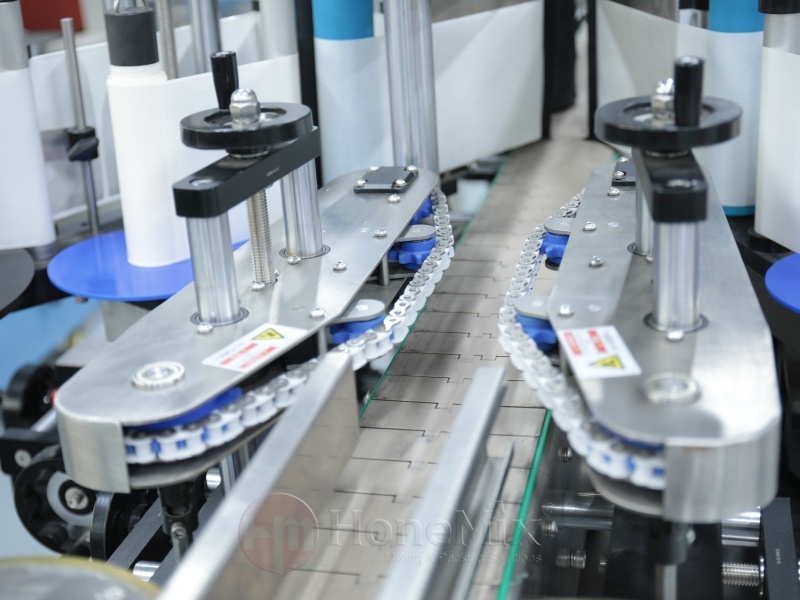

The machine is suitable for flat, square, oval, and rectangular containers, making it practical for manufacturers running multiple SKUs across cosmetics, pharmaceuticals, food, and chemical packaging. Adjustable guide rails and bottle positioning help stabilize different bottle formats during operation.
With a labeling speed of 40–120 bottles per minute, this automatic labeling machine is designed for factories that need stronger line efficiency without sacrificing appearance quality. It is well suited for both growing production volumes and established packaging lines.
Labeling accuracy up to ≤±1 mm helps improve finished product consistency across large batches.

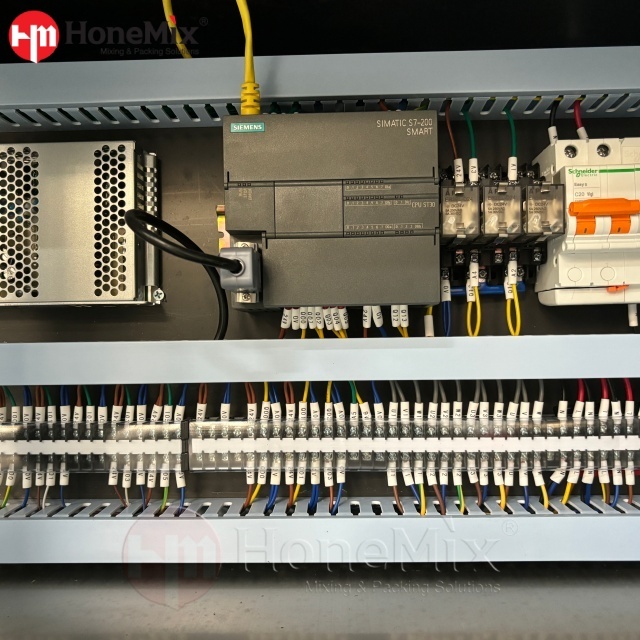

The machine uses a PLC + HMI touch screen control system with recipe storage for up to 100 products and real-time diagnostics. This helps operators reduce setup time, simplify daily use, and make changeovers faster and more repeatable.Changeover typically takes less than 15 minutes.
The frame uses SUS304 stainless steel, supporting corrosion resistance, cleanability, and suitability for regulated production settings. For buyers in cosmetics, food, and pharmaceutical manufacturing, this supports hygiene expectations and long-term equipment durability.
Industry | Suitable Products |
|---|---|
Cosmetics & Personal Care | Lotion Bottles, Shampoo Bottles, Skincare Bottles, Soap Boxes, Perfume Boxes |
Pharmaceuticals | Medicine Bottles, Prescription Vials, Supplement Containers, Cartons |
Food & Beverage | Sauce Bottles, Honey Jars, Beverage Bottles, Condiment Containers |
Household & Chemical | Detergent Bottles, Cleaning Solution Bottles, Lubricant Bottles, Pesticide Containers |
Parameter | Specification |
|---|---|
Machine Type | Automatic Double-Sided Labeling Machine |
Applicable Bottle Shape | Flat, Square, Oval, Rectangular Containers |
Bottle Width Range | 20 mm – 150 mm |
Bottle Height Range | 30 mm – 300 mm |
Bottle Thickness Range | 10 mm – 100 mm |
Label Type | Self-Adhesive / Pressure-Sensitive Labels |
Label Width | 10 mm – 150 mm per head |
Label Length | 10 mm – 300 mm per head |
Labeling Heads | 2 Independent Servo-Driven Heads |
Labeling Speed | 40 – 120 Bottles/Min |
Labeling Accuracy | ≤±1 mm |
Label Roll Diameter | Max. 350 mm, Inner Core 76 mm |
Conveyor Speed | Variable Speed, Frequency Drive Adjustable |
Control System | PLC + HMI Touch Screen |
Power Supply | 220V / 380V, 50/60Hz, Single or Three Phase |
Power Consumption | 1.5 – 2.5 kW |
Air Supply | 0.4 – 0.6 MPa for optional features |
Machine Material | SUS304 Stainless Steel + Anodized Aluminum |
Dimensions | Approx. 2500 × 1400 × 1500 mm |
Weight | Approx. 400 – 600 kg |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
HONEMIX is not only supplying a labeling machine. It is delivering a packaging solution that helps manufacturers improve label appearance, product consistency, and production presentation for export and branded markets.
This machine is a strong fit for buyers who care about:
stable labeling quality
production efficiency
hygienic structure
multi-bottle flexibility
customization potential
lower labor dependency
easier integration with filling, capping, and packaging lines
By combining two-sided labeling into one process, the machine helps reduce manual handling, save floor space, and improve output efficiency.
We provides installation guidance, video support, spare parts availability, lifetime technical consultation, and a 12-month warranty for non-consumable parts.
This machine is designed for flat, square, oval, and rectangular containers. With an optional round bottle attachment, it can also be adapted for cylindrical bottles.
The speed range of 40–120 bottles per minute, depending on bottle size, label length, and configuration.
Yes. It uses a PLC + HMI touch screen with recipe storage, allowing operators to save settings and quickly recall them during changeover.
Yes. The machine can be configured with hot stamp coders, inkjet printers, or other coding systems to print batch numbers, expiration dates, and related variable information during labeling.
We offer installation guidance, video tutorials, spare parts support, lifetime technical consultation, and a 12-month warranty for non-consumable parts.
If you are sourcing an Automatic Double Side Labeling Machine for cosmetics, pharmaceuticals, food, or household chemical packaging, send HONEMIX your bottle type, label size, target speed, and line layout. We can help you evaluate the right configuration, optional functions, and integration approach for your production needs.
