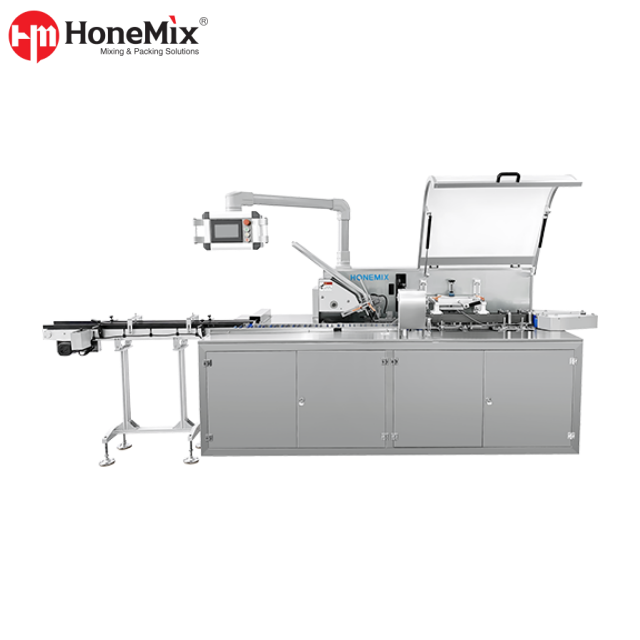

The HY-ZHJ-150 Automatic Fold And Tuck Cartoning Machine is designed for manufacturers that need stable, efficient, and presentation-ready secondary packaging for cosmetics, pharmaceuticals, and daily care products. It automates carton opening, product insertion, leaflet placement, and carton closing in one integrated process.
For buyers looking to reduce manual labor, improve packing consistency, and prepare for scalable line automation, this automatic cartoning machine offers a practical balance of speed, flexibility, and production control. The speed of 80–120 cartons per minute and positions the machine for cosmetic, pharmaceutical, personal care, household, and oral care packaging applications.
| Quantity: | |
|---|---|
HY-ZHJ-150
HONEMIX
The HY-ZHJ-150 is a fold and tuck cartoning machine built for branded consumer goods and regulated packaging environments where visual presentation, packing accuracy, and workflow efficiency matter. Compared with manual or semi-automatic cartoning, it provides a cleaner, more repeatable process for handling cartons, folded leaflets, and packaged products.
This machine is well suited for companies packing bottles, tubes, sachets, soap bars, toothbrush kits, and similar retail-ready items into cartons. Its multi-servo synchronized operation, touchscreen data display, and sensor-based checking help buyers manage both daily production and format changes with greater control. The tool-less adjustments, up to 25 stored parameter profiles, and a 7-inch touchscreen for real-time operating data.

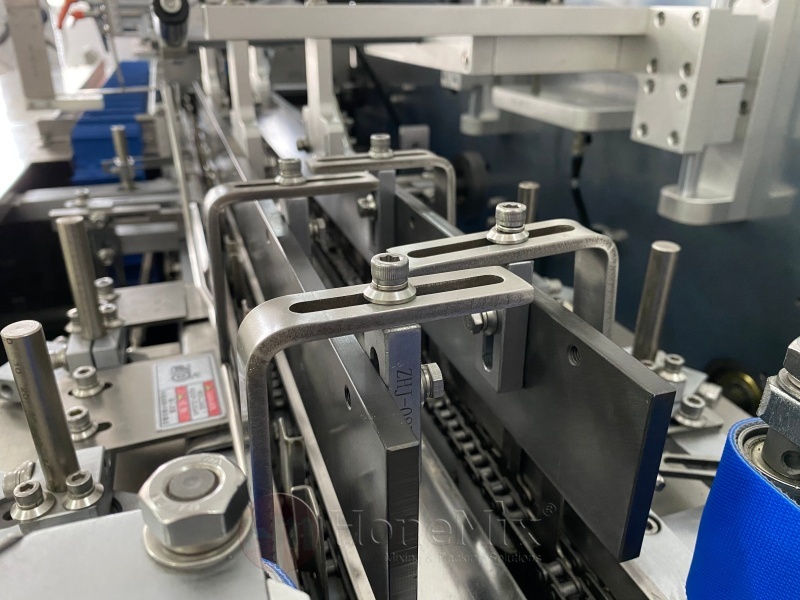

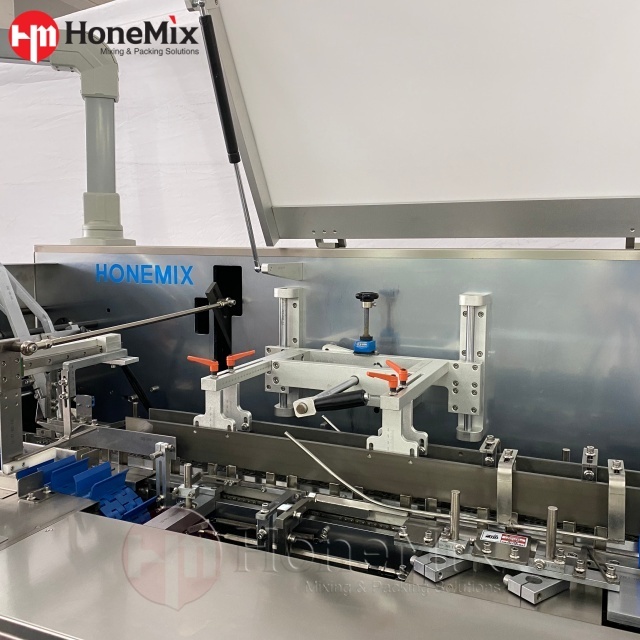

The machine combines carton opening, product collation, leaflet insertion, and carton closing into one streamlined workflow. This helps reduce handling errors and improves throughput on medium- to high-volume packing lines.
With a stated capacity of 80–120 cartons per minute, the HY-ZHJ-150 is suitable for manufacturers that need higher output without sacrificing packing consistency. This makes it a strong fit for contract manufacturing, fast-moving SKUs, and growing export brands.
The 6-set servo motor system, 8 sensors, and a 7-inch touchscreen showing count, defect rate, and speed. That means better visibility, smoother synchronization, and faster response to packing abnormalities.

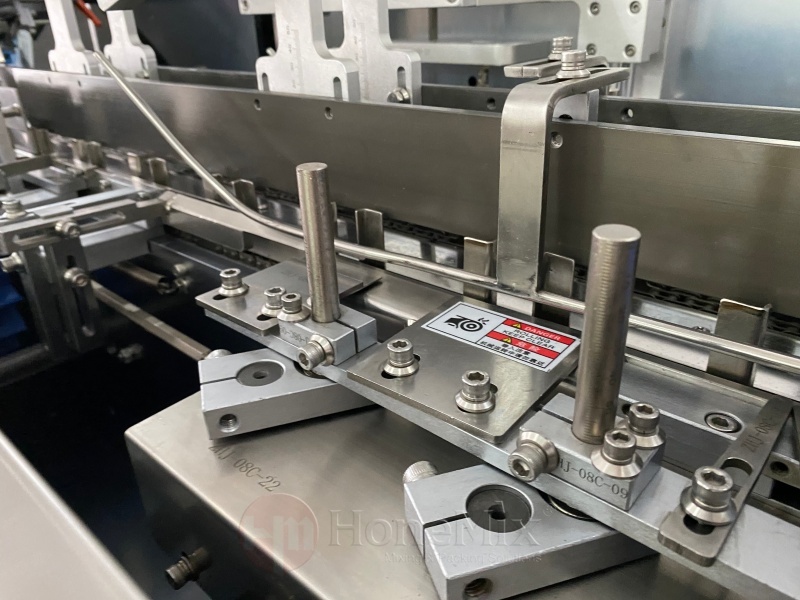

Guide rails, pushers, and folding components are described as tool-less adjustable, with common size changeovers completed in 8 minutes or less. Recipe storage for multiple formats helps reduce downtime when switching between product sizes or carton styles.
The machine is equipped to detect empty cartons, missing products, missing leaflets, and weak seals. Non-conforming cartons are automatically rejected, helping protect final packaging quality and reduce downstream complaints.
For factories planning broader automation, this automatic carton packing machine can be integrated with upstream and downstream machines. Compatibility with filling and labeling equipment and support for synchronization via Modbus protocol.
Industry | Suitable Products | Packaging Advantage |
|---|---|---|
Cosmetics | Cream tubes, skincare bottles, lotion bottles, serum cartons, soap bars | Improves retail presentation and packing consistency |
Pharmaceutical | Ointment tubes, blister-related cartons, medical daily-use products, leaflet-packed items | Supports organized carton loading and leaflet insertion |
Personal Care | Shampoo bottles, conditioner bottles, body wash bottles, mouthwash bottles | Handles common FMCG carton formats efficiently |
Oral Care | Toothpaste tubes, toothbrush kits, mouthwash products | Suitable for carton + leaflet combination packaging |
Household Care | Detergent sachets, cleaner bottles, cartridge-style cleaning products | Helps standardize outer packaging for retail or export |
Baby Care | Baby lotion bottles, diaper cream tubes, wipe packs | Supports neat, repeatable cartoning for sensitive product categories |
Item | Specification |
|---|---|
Model | HY-ZHJ-150 |
Machine Type | Automatic Fold And Tuck Cartoning Machine |
Capacity | 80–120 Cartons/Min |
Carton Size Range | Min. 50 × 20 × 15 mm; Max. 190 × 90 × 60 mm |
Carton Material | 250–350 g/m² |
Main Power | 1.5 kW |
Machine Dimensions | 3300 × 1150 × 1750 mm |
Main Functions | Carton Unfolding, Product Insertion, Leaflet Placement, Carton Closing |

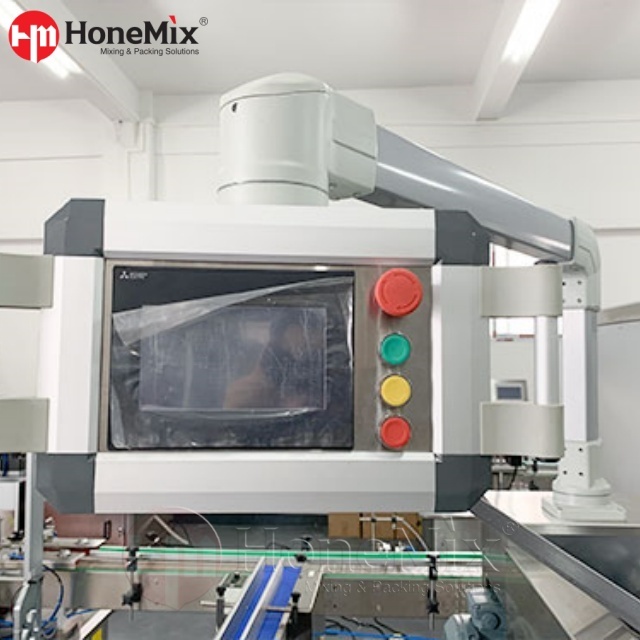

Control Interface | 7-Inch Touchscreen With Real-Time Data Display |
Drive System | Multi-Servo Synchronized Operation |
Quality Control | Sensor Detection For Empty Cartons, Missing Products, Missing Leaflets, Weak Seals |
Parameter Storage | Up To 25 Product Profiles |
Changeover | Tool-Less Adjustment, Common Changeover ≤ 8 Minutes |
Integration | Supports Connection With Upstream/Downstream Equipment |
Positioning Accuracy | ±0.3 mm |
Maintenance Convenience | Automatic monitoring plus accessible adjustments for routine operation |
Heating/Cooling Method | Not Applicable For Secondary Cartoning Equipment |
Material Grade | Product-contact material is generally not the key factor in outer cartoning; carton compatibility is the critical material parameter |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Option | Value |
|---|---|
Multi-Size Change Parts | Better fit for multiple carton formats and SKU variation |
Leaflet Feeding Configuration | Suitable for products requiring instruction inserts or promotional leaflets |

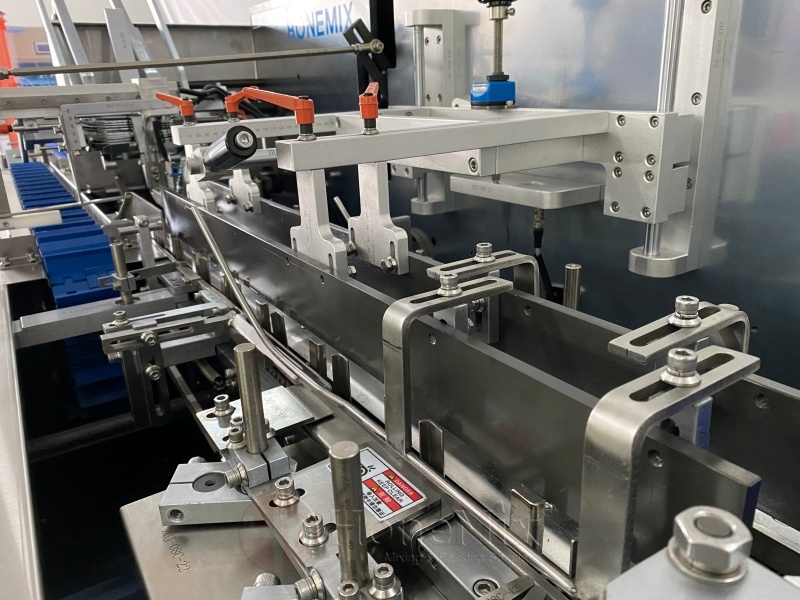

Product Infeed Customization | Better matching with bottles, tubes, sachets, and kit-style products |
Rejection And Inspection Setup | Additional control over defective pack removal |
Line Connection Solution | Easier integration with filling, labeling, and downstream packing equipment |
Parameter Recipe Setup | Faster switching between repeat production runs |
The source page already references leaflet insertion, line integration, recipe storage, and automated defect rejection, making these the most commercially relevant configuration points for inquiry-stage discussions.
It is suitable for a wide range of packaged products, including bottles, tubes, sachets, soap bars, toothbrush kits, and similar items used in cosmetics, personal care, pharmaceutical, oral care, household, and baby care packaging.
The range of 80–120 cartons per minute, making it suitable for manufacturers that need reliable medium- to high-output secondary packaging.
Yes. It supports leaflet placement as part of the automatic process, and leaflet feeding module can support up to three simultaneous inserts depending on configuration.
Yes. The tool-less adjustment of guide rails, pushers, and folding plates, with common size changeovers completed in 8 minutes or less, plus stored parameter recipes for repeat runs.
Yes. The machine can synchronize with upstream filling equipment and downstream labeling equipment, with support for Modbus-based line integration.
If you are looking for an automatic cartoning machine that helps improve packaging consistency, reduce labor costs, and support future line automation, the HY-ZHJ-150 is a practical solution for cosmetics, pharmaceutical, and daily care packaging.
