HPM-APF Automatic Perfume Filling Machine for Fragrance Bottles

HPM-APF Automatic Perfume Filling Machine for Fragrance Bottles Overview

The HONEMIX HPM-APF is a premium Fragrance Filling Machine engineered for manufacturers that need precision without sacrificing flexibility. It combines a rotary indexing table, high-accuracy filling technology, and intelligent controls to support stable output across diverse bottle styles and frequent product switches. This makes it especially suitable for perfume factories, OEM/ODM fragrance producers, and growing personal care brands that need reliable production efficiency with a strong presentation standard.

Unlike systems that require extensive rail adjustment for each format, this Rotary Table Filling Machine uses indexed bottle pockets and configurable stations to handle multiple bottle shapes in a more compact footprint. The platform can be configured with magnetic pump, peristaltic pump, or servo piston filling according to liquid characteristics and accuracy requirements.

Core Features And Advantages

1. Adjustable Bottle Holders

Puck-style holders adjust to fit most bottle diameters and heights on the market, reducing the need for bottle-specific fixtures on every SKU.

2. Sensor-Verified Station Logic

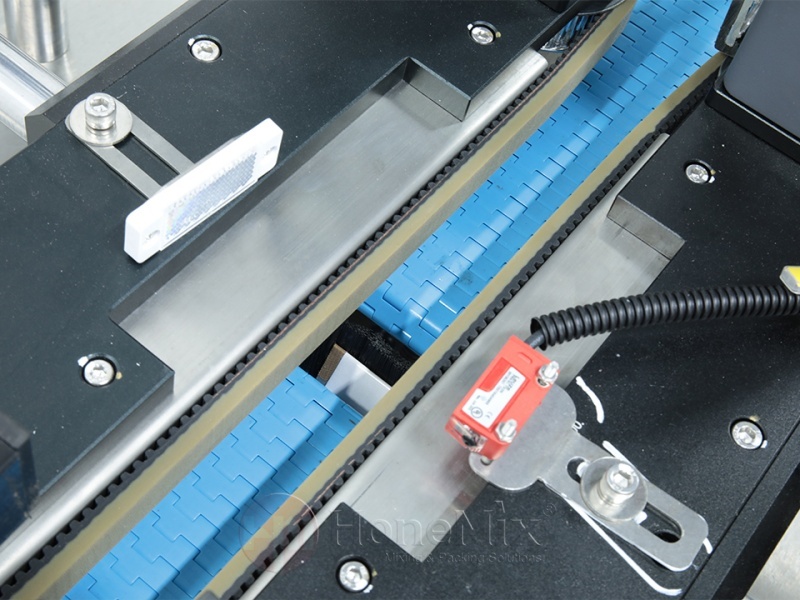

Fiber-optic and photoelectric sensors confirm bottle, pump, and collar presence at each station. If any component is missing, that station is skipped rather than running empty — reducing wasted product, damaged pumps, and jammed collars.

3. Dual-Stage Filling for Consistent Fill Levels

Three servo-piston fill strokes handle the bulk of the fill; a fourth vacuum fill brings every bottle to the same liquid level regardless of minor bottle-to-bottle variance — useful for clear glass bottles where fill-level consistency is visible on the shelf.

4. Independent Per-Head Control

Each filling head's cylinder radius, fill quantity, fill speed, and reset speed are set independently from the touch screen, and full recipes can be saved and recalled by product.

5. Industrial Control Platform

6. Stocked Wear Parts

Pump-head guide tubes, filling nozzles, crimping heads, pre-crimping heads, vacuum suction cups, couplings, conveyor chain plates, the pump-head cylinder, and explosion-proof solenoid valves are standardized, stocked components — not one-off machined parts, which keeps routine maintenance straightforward.

How the Process Works

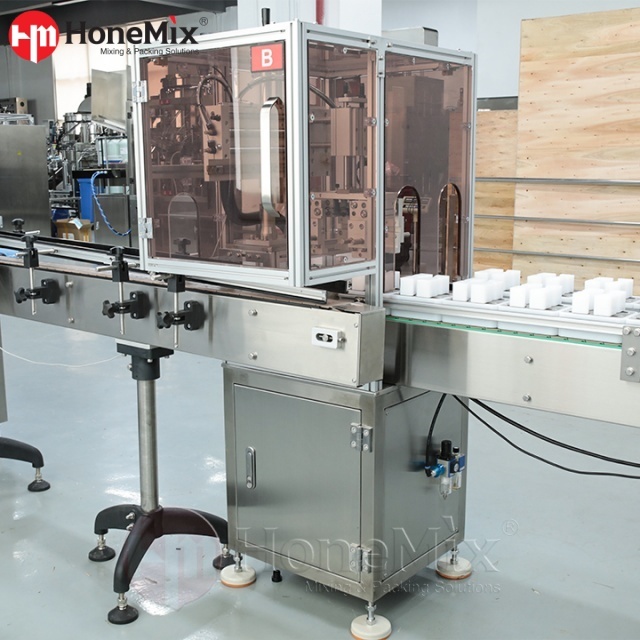

1. Bottle Loading — Empty bottles are placed into adjustable holders, which the conveyor carries into the main turntable. A fiber-optic sensor confirms each bottle is present before any downstream station activates.

2. Ionized Air Washing — Ionized air is blown into the bottle to neutralize static and draw out dust particles before filling.

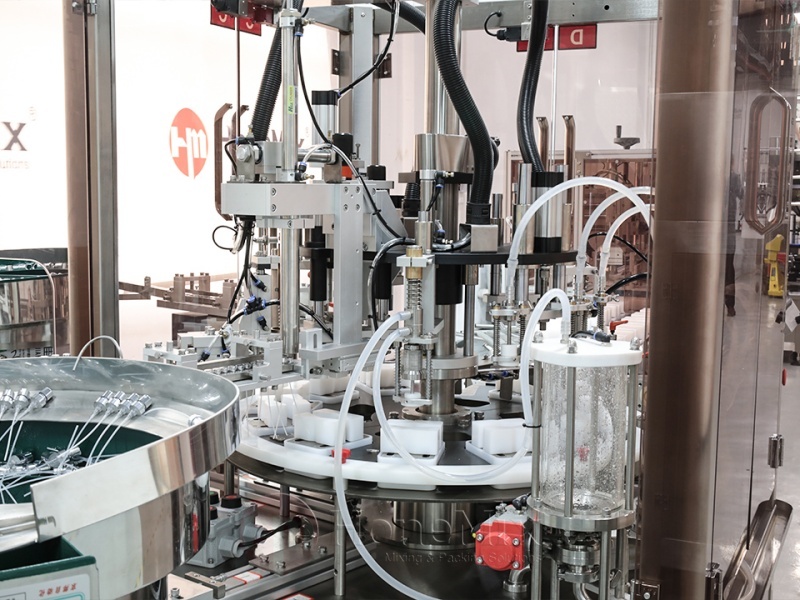

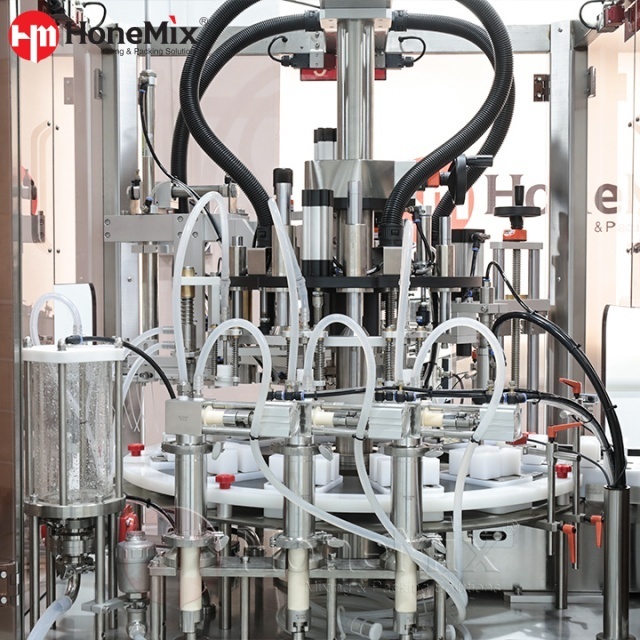

3. Filling — Each bottle receives three servo-piston filling strokes, followed by one vacuum (negative-pressure) fill to equalize the liquid level across all bottles. Fill volume and speed are set per head from the touch screen.

4. Pump Feed — The spray pump is picked up and placed onto the bottle neck — only when a bottle is present.

5. Pre-Crimping — The pump is pre-seated onto the bottle neck ahead of final crimping.

6. Crimping — The pre-seated pump is crimped firmly onto the bottle neck.

7. Collar Feed & Press — A collar is placed onto the bottle neck and pressed into position — only when a pump has been fitted.

8. Bottle Discharge — The finished bottle is automatically removed to the outfeed conveyor, and the holder recirculates for the next cycle.

Application Industries And Suitable Products

Technical Parameters

Voltage and frequency are configured to your local electrical standard.

Optional / Customizable Configurations

FAQ

1. Can this line handle different bottle shapes without new tooling?

The adjustable puck-style holders fit most bottle diameters and heights on the market today. Very different formats may still need a holder or guide change — send your bottle range and we'll confirm.

2. Why does the machine use both piston and vacuum filling?

The piston strokes fill most of the volume quickly; the vacuum fill afterward equalizes the liquid level across every bottle, so fill height looks consistent bottle to bottle — important for clear glass packaging.

3. What happens if a bottle, pump, or collar is missing at a station?

The corresponding station simply skips that cycle — no fill without a bottle, no crimp without a pump, no collar press without a pump fitted. This protects product and components from running into an empty position.

4. What's the actual production speed?

0–35 bottles per minute, adjustable from the touch screen. Real-world output depends on bottle size, fill volume, and crimping requirements.

5. Are wear parts easy to source later?

Yes — nozzles, crimping and pre-crimping heads, guide tubes, couplings, conveyor chain, and the main pneumatic components are standardized parts we keep in stock, rather than custom-machined pieces.

6. What electrical standard does it run on?

The reference configuration is three-phase 380V/60Hz; voltage, frequency, and phase are configured to your factory's local standard.
