For pharmaceutical manufacturers that need faster secondary packaging without compromising accuracy, this HONEMIX HY-ZHJ-HS Automatic High-Speed Pharmaceutical Cartoner brings carton opening, product insertion, leaflet folding, coding, and sealing into one automated process. As an automatic medicine cartoner, it is positioned for cleaner, more controlled, GMP-oriented packaging workflows where consistency, traceability, and production efficiency matter.
This pharmaceutical packaging cartoning machine is especially suitable for factories that want to reduce manual end-of-line handling, improve product presentation, and support multi-SKU production with faster format changeover. Its servo-driven architecture, inspection logic, and line integration capability make it a strong fit for pharmaceutical, medical device, and health product packaging lines.
| Quantity: | |
|---|---|
HY-ZHJ-HS
HONEMIX

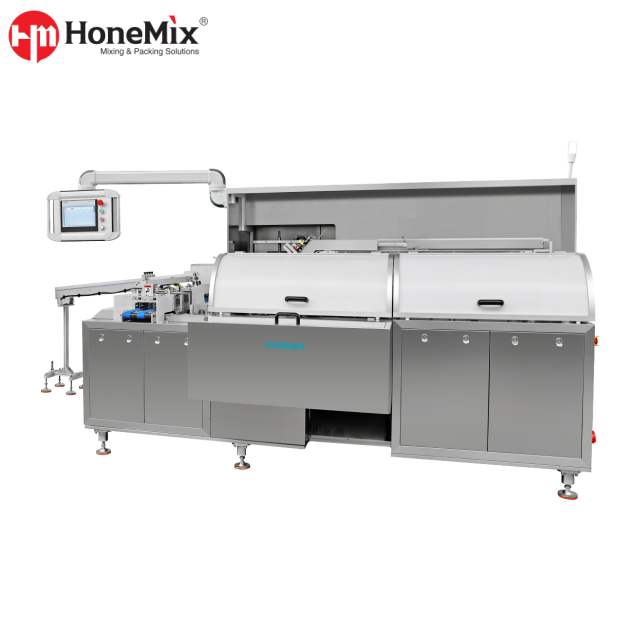

The HONEMIX high-speed cartoner for medicine is designed to convert flat carton blanks into finished retail cartons through a single continuous sequence: carton erection, product insertion, leaflet folding, batch or date printing, and hot-melt sealing. The source page highlights ±0.3 mm carton positioning accuracy, a 12-servo drive structure, up to 4-fold leaflet handling, and suitability for pharmaceutical packaging environments with GMP-oriented requirements.
This means a servo cartoning machine built not just for speed, but for packaging control. It addresses the decision points that matter most in commercial purchasing: stable output, consistent carton quality, hygiene, traceability, easier maintenance, and compatibility with broader packaging line automation.
The machine combines carton unfolding, product loading, leaflet folding, printing, and sealing in one platform. This reduces manual intervention between packaging stages and helps standardize carton presentation across repeated production runs.

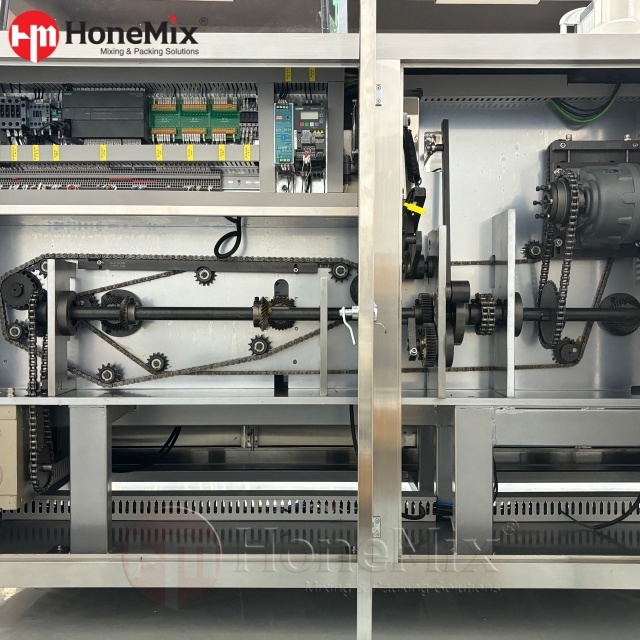

Its core drive structure uses 12 servo sets with 17-bit encoders, and the source page states carton positioning accuracy of ±0.3 mm. For pharmaceutical packaging, that level of control supports better repeatability, cleaner insertion, and more stable carton handling at commercial production speed.
The listed technical capacity is up to 260 cartons per minute, while the product description also emphasizes high-speed synchronized operation. This makes the machine suitable for manufacturers that need stronger end-of-line throughput without moving into a less controllable packaging process.

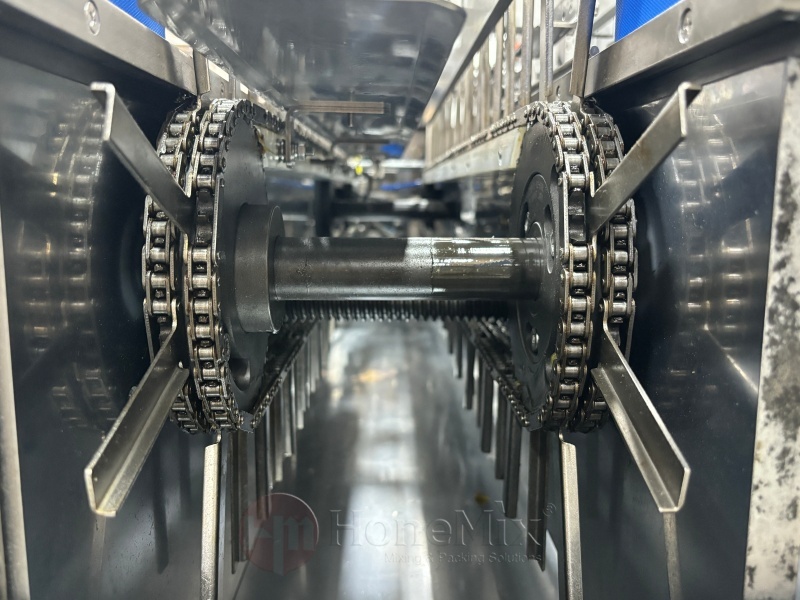

A 304 stainless steel structure, smooth surfaces, rounded corners, and a finish intended for easier cleaning and wipe disinfection.
The machine is described with multi-sensor monitoring for missing leaflets, empty cartons, product misalignment, and incomplete sealing, plus automatic rejection and rejection logging. It also supports batch number and expiration date printing through a 300 DPI thermal printer, helping buyers improve traceability and reduce packaging defects.
HONEMIX states that the machine supports one-click size change, common changeover within 10 minutes, and storage for 30 parameter sets. It also supports connection with upstream and downstream equipment through PROFINET, Modbus, and Ethernet-based monitoring, which is valuable for factories planning a more connected packaging line.
Industry | Suitable Products | Buyer Value |
|---|---|---|
Pharmaceuticals | Blister Packs, Tablets, Capsules, Syrup Bottles, Ampoules | Supports regulated packaging workflows, leaflet insertion, and product traceability |
Medical Devices | Syringes, Bandages, Diagnostic Kits | Helps standardize retail-ready cartons for sterile or instruction-based products |
Health Supplements | Vitamin Bottles, Herbal Extract Products, Protein Powder Packs | Improves packaging efficiency and presentation across multiple carton SKUs |
Cosmeceuticals | Medicinal Skincare, Treatment Creams, Oral Care Products | Combines pharmaceutical-style control with attractive secondary packaging |
Item | Specification |
|---|---|
Product Name | High-Speed Cartoner For Medicine |
Model Reference | HY-ZHJ-HS Automatic High Speed Cartoning Machine |
Capacity | ≤260 Cartons/Min |
Carton Size Range | Min. 80 × 25 × 15 mm; Max. 200 × 120 × 70 mm |
Carton Material | 250–350 g/m² |
Main Power | 3.7 kW |
Machine Dimensions | 4359 × 1490 × 1750 mm |
Drive System | 12-Set Servo Drive With 17-Bit Encoders |
Positioning Accuracy | ±0.3 mm |
Leaflet Folding | Up To 4 Folds |
Sealing Method | Hot Melt Adhesive Sealing |
Printing | 300 DPI Thermal Printer For Batch/Date Coding |
Changeover | Common Size Changeover ≤10 Minutes |
Recipe Storage | 30 Parameter Sets |
Communication | PROFINET / Modbus / Ethernet Monitoring |
Vacuum Function | Vacuum Suction Carton Opening |
Material Grade | 304 Stainless Steel |
Heating/Cooling Method | Not A Process Heating/Cooling Machine; Uses Hot Melt Sealing |
Homogenizing Performance | Not Applicable |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Product infeed matching for blister packs, bottles, ampoules, kits, or similar packaged items
Leaflet handling format based on leaflet size and fold requirement
Batch coding layout and print content setup
Sensor and inspection package depth for quality control requirements
Communication and remote monitoring setup for integrated lines
Carton window compatibility and insertion module adjustment
Carton size format planning for multi-SKU production
Upstream/downstream synchronization with blister, filling, labeling, or serialization-related equipment
It is suitable for pharmaceutical and related packaged products such as blister packs, tablets, capsules, syrup bottles, ampoules, medical devices, supplement packs, and selected cosmeceutical products that require carton loading and leaflet insertion.
The arton material compatibility at 250–350 g/m² in the technical parameter block, and the compatibility with corrugated paper, cardboard, coated paper cartons, and even window cartons with suitable adjustment.
The technical capacity is up to 260 cartons per minute. Actual production output should be assessed based on carton size, product type, instruction manual format, and inspection configuration.
Yes. The machine can connect with upstream and downstream equipment and supports PROFINET, Modbus, and Ethernet-based monitoring, making it suitable for line integration projects.
If you are comparing automatic medicine cartoner options for a new pharmaceutical line or an upgrade of your current secondary packaging process, send HONEMIX your product sample, carton size range, leaflet size, and target output. You can then receive a more precise recommendation on configuration, integration, and quotation for your production needs.
