The cosmetics and personal care industry is experiencing a massive operational shift. Recent industry data highlights a rapid transition toward sustainable packaging, specifically recyclable mono-materials and eco-friendly laminated structures. While these materials appeal to environmentally conscious consumers, they present a distinct engineering challenge on the factory floor. Eco-friendly plastics often possess narrower melting windows, requiring highly precise temperature controls during the sealing process to prevent scorching or weak bonds. Simultaneously, rising global labor costs are forcing manufacturers to abandon manual processes in favor of highly automated production lines.
Relying on outdated filling methods is a direct threat to your bottom line. Inconsistent dosing leads to expensive product giveaway. Messy spills cross-contaminate the sealing zone. Weak crimps result in high-value active serums leaking during transit. These flaws destroy consumer trust instantly. Upgrading your packaging automation is no longer an optional luxury; it is a critical engineering requirement for scaling production safely while maintaining strict Good Manufacturing Practice (GMP) compliance. This guide breaks down the technical specifications, operational mechanisms, and concrete selection criteria to help you integrate the correct machinery into your facility.
Key Takeaways
Substrate Versatility: Modern equipment must adapt to various materials, including polyethylene (PE), aluminum, and complex multi-layer barrier tubes, often requiring interchangeable sealing heads.
Volumetric Precision: Servo-driven dosing mechanisms ensure accurate volume control for high-viscosity formulations, keeping fill weight variations strictly within a ±1% tolerance.
Thermal Control: The choice of sealing technology—such as PID-controlled hot air, ultrasonic welding, or mechanical folding—is dictated entirely by the physical properties of your packaging material.
Scalability and ROI: Matching machine capacity (Tubes Per Minute) to your actual throughput requirements is the most critical factor in achieving a rapid return on investment.
Understanding the Role of the Equipment

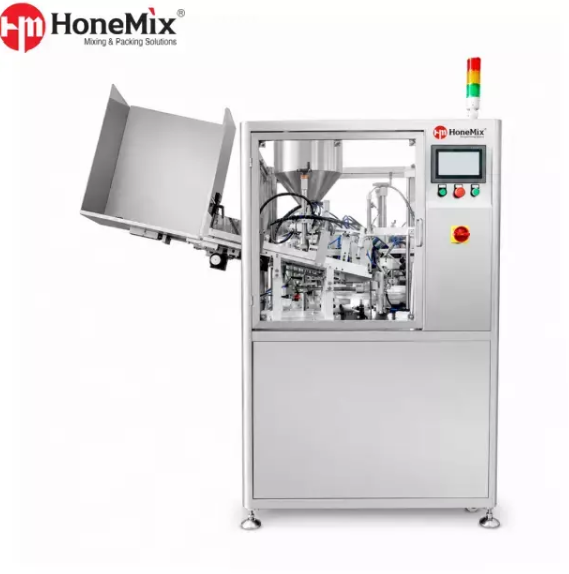

A modern cosmetic packaging line relies on synchronized automation to maintain hygiene, speed, and consistency. At the heart of this process, a Soft Tube Filling Machine operates as the primary processing unit. It handles the complete cycle: loading, orienting, dosing, sealing, and ejecting flexible packaging.
In the personal care sector, this equipment is exposed to a brutal variety of formulations. An engineer must calibrate the machine to handle lightweight daily lotions and highly flammable alcohol-based gels one day, then switch to heavy barrier creams and medical-grade ointments the next. Achieving a precise fill volume and a structurally sound seal is non-negotiable for long-term product stability. By replacing manual pacing with servo-driven mechanical precision, facilities optimize labor allocation and eliminate human error from the quality control equation.
Step-by-Step: Analyzing the Mechanical Workflow
To make an informed capital investment, facility managers must understand the sequential mechanical operations. A standard automated workflow relies on four highly synchronized stages.
Tube Loading and Orientation
The cycle initiates with an automated hopper feeding empty tubes down a chute. They are inserted into custom-machined pucks on a rotary index table. Because retail packaging is pre-printed, alignment is critical. A high-speed photoelectric sensor scans the tail of each tube for a printed registration mark. Instantly, a stepper motor rotates the tube. This guarantees the front branding faces the exact correct direction before the sealing jaws clamp down.
Precision Dosing and Bottom-Up Filling
Once oriented, the rotary table indexes the tube to the dosing station. Volumetric piston fillers draw bulk product from an overhead hopper and inject it deep into the tube cavity. The filling nozzle plunges to the bottom of the tube and retracts upward at a speed synchronized with the product flow. Why is this specific bottom-up technique so important? It actively prevents air pockets and bubbles from forming inside thick emulsions. Trapped air compromises both fill weight accuracy and the chemical stability of active skincare ingredients.
Heating, Sealing, and Batch Coding
Hermetically closing the open end requires a technology matched to the material. For standard plastics, a specialized nozzle descends into the tube, blasting targeted hot air to melt the inner polymer walls without damaging the outer artwork. Immediately following this, pneumatically driven cooling jaws compress the molten plastic. Embedded within these jaws are steel character blocks that stamp the batch number and expiration date directly into the seal, ensuring full traceability.
Trimming and Ejection
Aesthetically, a melted plastic seal can look rough. The unit indexes to a trimming station where a contoured mechanical blade cuts away excess material. This leaves a clean, retail-ready straight or curved finish. Finally, a mechanical ejector pin lifts the finished product out of the rotary puck, transferring it to a downstream conveyor.
Types of Machinery for Your Production Line
Selecting the appropriate tier of machinery requires a hard look at your current production volume and your three-year growth projection. Equipment configurations vary primarily by their automation level, drive mechanisms, and throughput capacity.
For startup brands or R&D labs, semi-automatic units process 10 to 30 tubes per minute (TPM). They are cost-effective but rely heavily on an operator to manually load empty tubes. However, for mid-to-large scale manufacturing, fully automated systems are the standard.

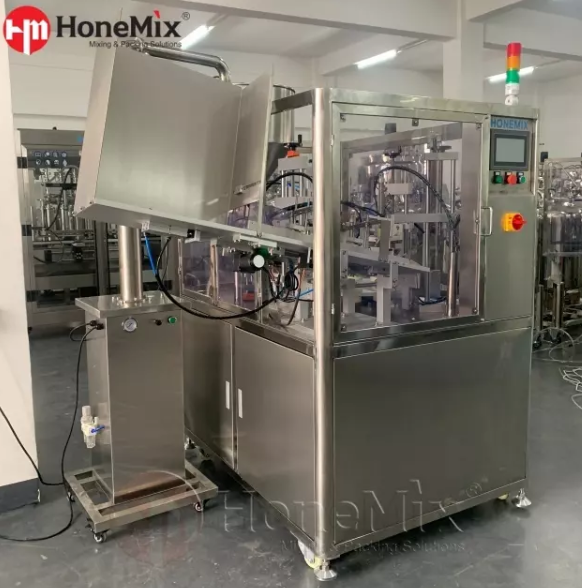

Consider a standard Cosmetic Tube Filling Machine designed for mid-scale operations. These units eliminate manual loading via an automated feeder and advanced PLC controls. Operating efficiently between 40 and 60 TPM, they can handle fill volumes ranging from 5ml to 250ml. This provides the ideal balance between operational efficiency and minimal labor overhead for standard retail production runs.

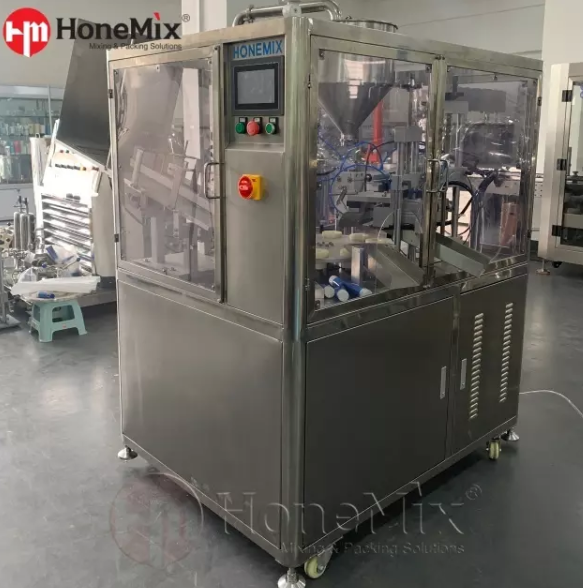

In contrast, facilities managing massive enterprise-level distribution require continuous, high-volume output. A Cream Tube Filling Machine engineered for high-speed performance utilizes multi-lane indexing and heavy-duty servo motors. These robust systems achieve speeds of 100 to 120 TPM. Built for rigorous 24/7 operations, they maximize ROI for high-demand consumables like toothpaste or mass-market lotions.
Core Equipment Comparison Table
Equipment Tier | Typical Speed (TPM) | Automation Level | Best Suited For | Key Engineering Feature |
Semi-Automatic | 10 - 30 | Manual Load, Auto Fill/Seal | R&D, Startups, Small Batch | Pneumatic foot-pedal operation |
Standard Automatic | 40 - 60 | Fully Automated | Mid-scale Skincare & Cosmetics | Single-nozzle, PLC touch screen control |
High-Speed Automatic | 100 - 120+ | Fully Automated | Mass Market, 24/7 Production | Dual-nozzle, Servo-driven indexing |
Matching Materials with Sealing Technology
Applying the wrong sealing method will inevitably result in burst seams and product leakage. The physical properties of your tube dictate the engineering solution.
Standard plastic and Polyethylene (PE) substrates require thermal bonding. Hot air sealing is the industry standard. Alternatively, ultrasonic technology uses high-frequency vibrations to generate localized friction heat. This creates a clean weld without external heat application, making it highly effective for heat-sensitive or flammable formulations.
Laminated tubes (ABL/PBL) contain multiple barrier layers to protect active ingredients from oxidation. High-frequency sealing or heated crimping jaws are utilized here. The jaws conduct thermal energy through the layers, securely fusing the internal plastic barriers.
Aluminum tubes require an entirely different mechanical approach. Because metal cannot be heat-sealed, the machinery physically folds the open end multiple times—typically using double, triple, or saddle folds. This mechanical interlocking creates a secure, airtight crimp suitable for pharmaceutical ointments.
Essential Engineering Features to Demand
When evaluating technical specifications, certain features separate standard commercial machinery from high-performance industrial assets.
Viscosity Handling & Anti-Drip Mechanisms
Cosmetics range from watery toners to dense body butters. A high-quality filler must incorporate advanced anti-drip technology. Blow-off nozzles use a quick burst of compressed air to sever the product stream. Suck-back valves pull a slight vacuum to draw residual product back into the nozzle. These mechanisms are critical. If residual cream drips onto the inner sealing area, the thermal bond will fail, leading to immediate batch rejection.
GMP Compliance and Sanitary Design
Regulatory compliance is mandatory. All product-contact parts—such as the hopper, rotary valve, and dosing piston—must be machined from 316L pharmaceutical-grade stainless steel. The equipment should feature sanitary tri-clamp connections and smooth, crevice-free welding seams to prevent bacterial buildup and facilitate rigorous Clean-In-Place (CIP) protocols.
Integrating the Machine into the Production Line
A filler does not operate in a vacuum. Its integration into your broader factory ecosystem dictates overall efficiency.
Upstream, the filling process relies on a consistent product supply. Connecting the filler’s hopper directly to large-scale vacuum homogenizing emulsifiers via sanitary transfer pumps ensures a closed-loop, contamination-free system. For thick products, the hopper must feature a specialized heating jacket and a mechanical agitator to maintain fluid homogeneity prior to dosing.
Downstream, sealed units discharge onto conveyors feeding into checkweighers. These devices automatically reject under-filled units. From there, products move to automatic cartoners and shrink wrappers. Integrating your filler into a comprehensive Skincare Manufacturing Equipment Solution creates a synchronized workflow, eliminating bottlenecks.
Common Challenges and Proactive Maintenance
Sustaining high throughput requires proactive troubleshooting and strict maintenance schedules.
Incomplete or leaking seals generally indicate a failure in temperature or pressure calibration. If a plastic seal appears brittle or scorched, the hot air temperature is set too high, or the heating duration is too long. Conversely, if the seal pulls apart under slight pressure, the temperature is too low, or the pneumatic cooling jaws lack sufficient clamping force. Operators must perform destructive burst testing at the start of every shift.
Inconsistent fill volumes often result from worn piston seals or air trapped in the bulk product. Calibrating the dosing piston regularly and maintaining proper hopper agitation will keep volumetric accuracy within a strict ±1% tolerance. Establish Standard Operating Procedures (SOPs) for daily cleaning and weekly inspection of consumable items like silicone O-rings and Teflon heating elements.
How to Select the Right Manufacturer
Procuring packaging machinery is a major capital expenditure. Selecting a competent engineering partner mitigates operational risks.
Begin by defining your required Tubes Per Minute (TPM) based on peak seasonal sales forecasts. Look beyond the initial purchase price; evaluate the machine's energy consumption, changeover speed, and the cost of spare parts.
Never bypass the Factory Acceptance Test (FAT). Supply the manufacturer with your actual cosmetic bulk and your specific empty tubes. This empirical testing validates that the machine handles your formulation without dripping and seals your exact material perfectly under real-world conditions.
Conclusion
Transitioning to automated tube filling and sealing is a pivotal step in scaling your cosmetic manufacturing operations. By eliminating manual inconsistencies, you protect your brand's reputation, reduce labor overhead, and ensure a premium, leak-proof finish for every product.
Whether you are packaging a volatile alcohol gel or a dense night cream, deploying the correct technology guarantees uncompromising efficiency and precision. Evaluate your production volume, understand your tube materials, and demand rigorous engineering standards from your equipment. To explore machinery tailored to your specific formulation and throughput requirements, visit our official website to find the perfect technical solution for your facility.
FAQ
What is the difference between a cosmetic tube filling machine and a standard liquid filler?
A cosmetic tube filler is highly specialized to execute bottom-up filling and immediate tail-sealing of flexible soft tubes within a single rotary index table. Standard liquid fillers dispense fluids into rigid bottles or jars from the top down and lack integrated thermal sealing or crimping mechanisms.
Can one machine fill both plastic and aluminum tubes?
Yes, but it requires substantial mechanical changeover. The machine must be equipped with interchangeable sealing heads. Plastic utilizes hot air or ultrasonic technology for thermal bonding, while aluminum requires a dedicated mechanical folding and crimping station.
How do you calibrate the fill volume on a tube filler?
Fill volume is calibrated by adjusting the stroke length of the volumetric dosing piston. On modern servo-driven machines, this is done digitally via the PLC touchscreen. On mechanical systems, it requires adjusting the eccentric wheel or handwheel that controls the piston's travel distance.
What causes cosmetic tubes to burst at the seal?
Burst seals are typically caused by three factors: contamination of the seal area (product dripping during the fill cycle), incorrect temperature settings (scorching or under-melting the plastic), or insufficient pressure from the pneumatic crimping jaws during the cooling phase.
How fast can a soft tube filling machine operate?
Operational speeds depend on the engineering configuration. Semi-automatic units process 10 to 30 tubes per minute. Standard automatic models handle 40 to 60, while high-speed, servo-driven rotary machines with dual-filling nozzles can exceed 100 to 120 tubes per minute.
Can the equipment handle highly viscous products like thick ointments or scrubs?
Absolutely. When equipped with a hopper agitator to prevent channeling, a heating jacket to maintain product fluidity, and a robust volumetric piston pump, the machine effortlessly processes high-viscosity cosmetics and particulate scrubs without clogging.
How do I clean the machine between different cosmetic batches?
Modern equipment features tool-less removable contact parts designed for Clean-In-Place (CIP) readiness. The 316L stainless steel hoppers, rotary valves, and nozzles can be rapidly dismantled, sanitized with hot water and cleaning agents, and reassembled to prevent cross-contamination.
