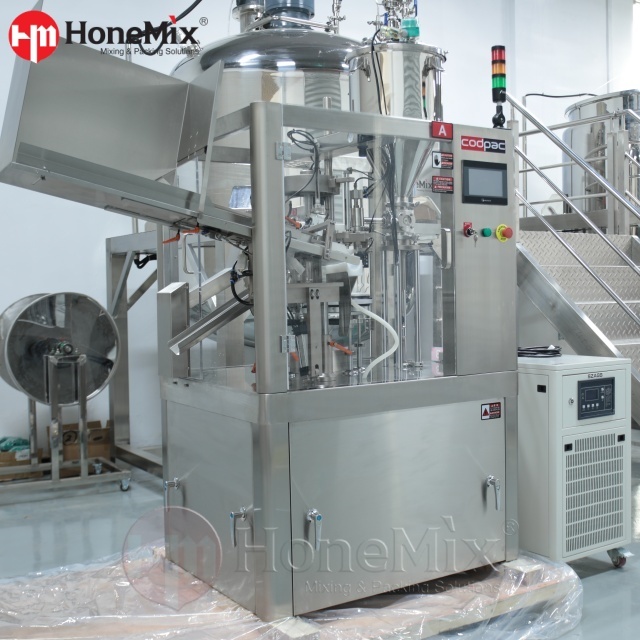

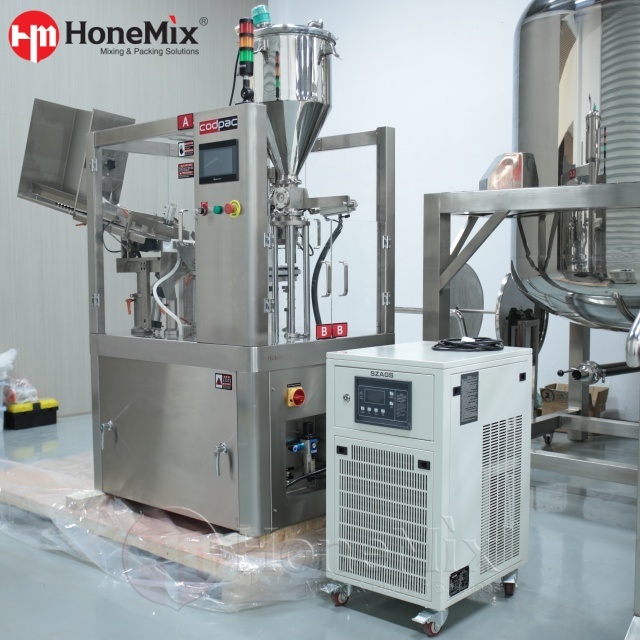

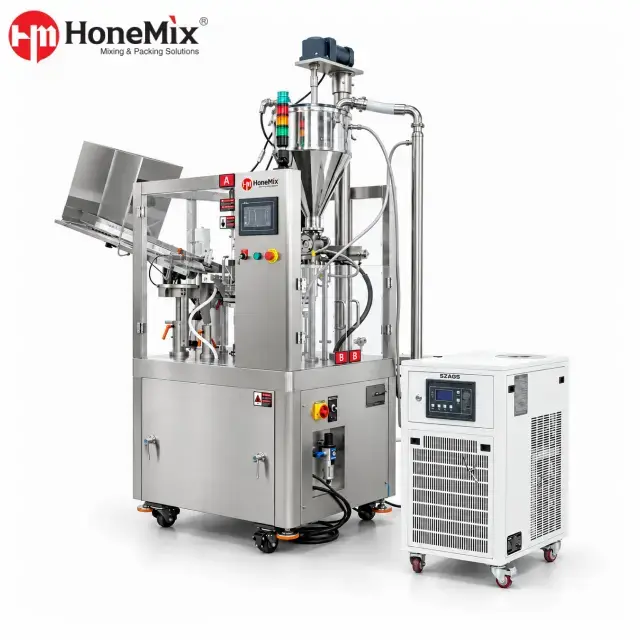

The HONEMIX HY-A60 Automatic Plastic Tube Filling and Sealing Machine is designed for manufacturers that need stable, hygienic, and efficient tube packaging for paste, cream, gel, and other viscous products. It combines automatic tube washing, feeding, filling, sealing, coding, and discharge in one compact system, helping buyers improve output consistency while reducing labor dependence.
| Quantity: | |
|---|---|
HY-A60
HONEMIX
For brands and factories running plastic tube packaging, the HY-A60 offers a practical balance of automation, precision, and production flexibility. This automatic tube filling machine is built for continuous industrial use across cosmetics, daily chemical, pharmaceutical, and food applications, especially where clean sealing, repeatable fill weight, and reliable code marking are required.
Compared with entry-level semi-automatic equipment, this plastic tube filling machine helps standardize output, reduce operator error, and support higher-volume production planning. Its closed drive structure, pneumatic tube handling, photoelectric tube orientation, and intelligent temperature control make it suitable for companies that want a more scalable tube packaging process rather than a basic stand-alone filler.

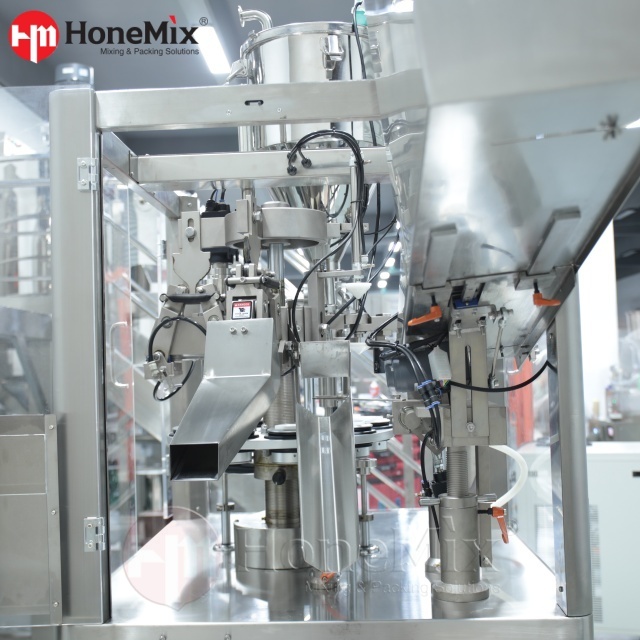

The HY-A60 uses a fully automatic PLC control system to handle the full process from tube loading to finished product discharge. For buyers, this means more stable operation, less manual dependency, and easier standardization across shifts.
With filling accuracy rated at ≤±1%, this tube filler sealer supports tighter control over net content, reduces material waste, and helps protect packaging quality standards in OEM and branded production.
The machine is equipped with an independent intelligent temperature control and cooling system, allowing sealing conditions to be adjusted for different plastic tube materials and wall thicknesses. This is important for buyers who need clean seals, low leakage risk, and a better finished-pack appearance.

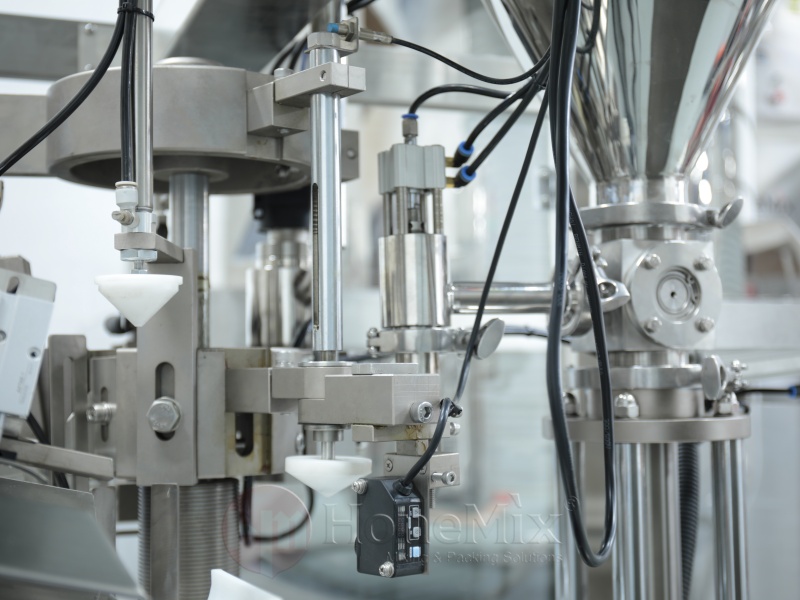

The system supports photoelectric mark detection, automatic orientation, and code printing, helping ensure accurate alignment and better packaging consistency for branded tubes.
All material-contact parts are made of 316L stainless steel, and the machine for GMP-oriented production environments. This makes it more suitable for buyers in cosmetics, food, and pharmaceutical applications where cleanability and corrosion resistance matter.
The closed drive design helps reduce dust ingress and supports long-term stable running. The machine also includes safety interlock shutdown and overload protection, while operators can adjust filling volume and production speed without complicated setup.
Industry | Suitable Products | Value |
|---|---|---|
Cosmetics | Facial cleanser, eye cream, foundation, body lotion, lip gloss | Consistent appearance, precise fills, cleaner sealing |
Daily Chemical | Toothpaste, hand cream, conditioner, shoe polish, detergent | Higher output with reduced labor input |
Pharmaceutical | Ointment, gel, topical liniment, herbal cream | Hygienic contact materials and controlled packaging process |
Food | Jam, honey, salad dressing, peanut butter, chocolate sauce | Suitable for viscous product filling in plastic tubes |
Parameter | Specification |
|---|---|
Model | HY-A60 |
Filling Volume | 1–250 ml/unit, adjustable |
Filling Accuracy | ≤±1% |
Production Capacity | 2400–3000 units/hour, adjustable |
Applicable Tube Diameter | Φ10–50 mm |
Applicable Tube Length | 50–200 mm |
Hopper Volume | 40 L |
Power Supply | 380V/220V, optional |
Working Air Pressure | 0.4–0.6 MPa |
Equipped Motor Power | 1.1 kW |
Total Machine Power | 5 kW |
Inner Wind Motor Power | 0.37 kW |
Convulsions Motor Power | 0.37 kW |
Overall Dimension | 1950 × 760 × 1850 mm |
Net Weight | About 950 kg |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
The HY-A60 can be configured for different production requirements through optional accessories and change parts.
Optional Item | Function | Commercial Value |
|---|---|---|

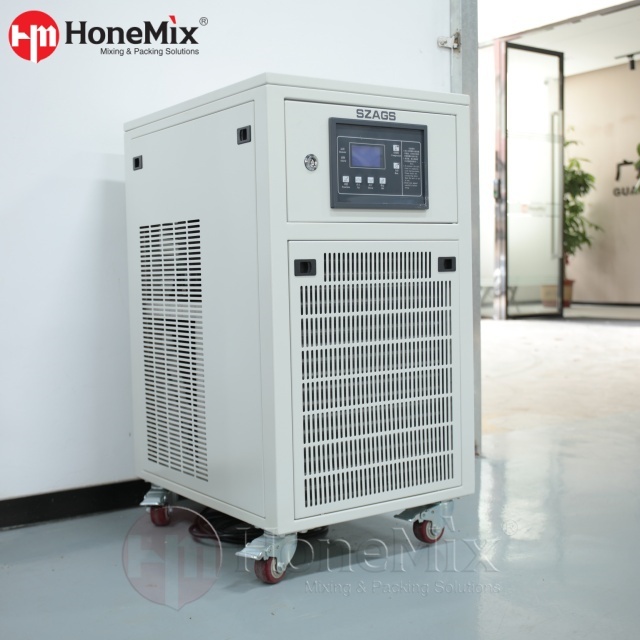

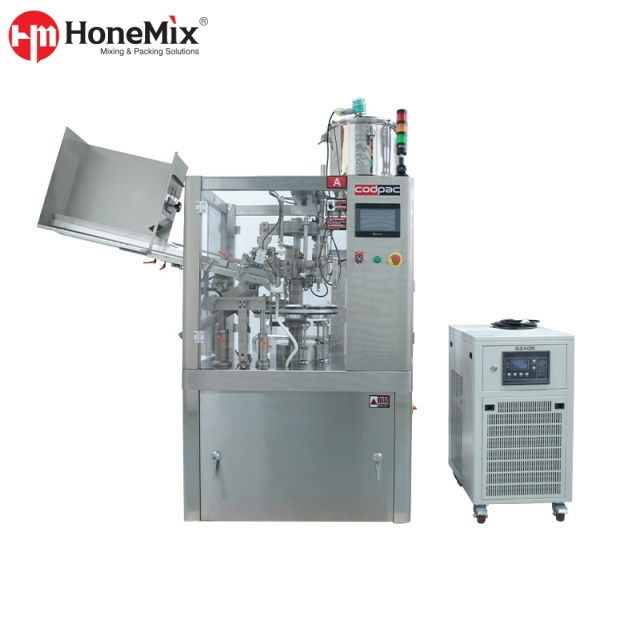

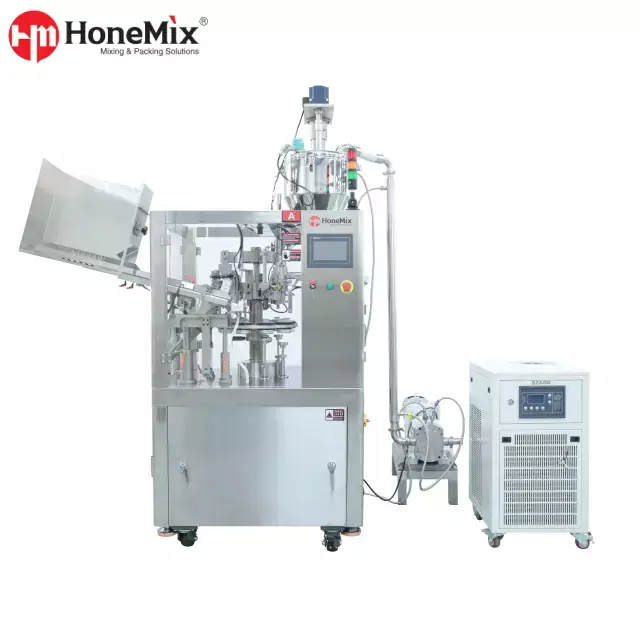

Chiller | Enhances sealing-zone cooling | Better sealing stability during long runs |
Date Coding Embossing | Prints batch number, production date, shelf life | Supports traceability and compliance |
Automatic Tube Feeding Magazine | Continuous tube supply | Improves automation and labor efficiency |
Change Parts | Adapts to different tube diameters and lengths | Faster format changeover and broader SKU coverage |
The HY-A60 is suitable for paste, cream, gel, liquid, and other viscous materials packed in plastic tubes. Typical applications include toothpaste, facial cleanser, ointment, hand cream, jam, lip gloss, and similar products.
The production capacity is 2400 to 3000 units per hour, and the speed is adjustable based on product characteristics, fill volume, tube size, and operating conditions.
The machine for pharmaceutical and food applications, and product-contact parts are made of 316L stainless steel. Buyers should still confirm local compliance requirements, validation standards, and material compatibility for their specific project.
No. The standard HY-A60 is a tube filling and sealing machine, not a vacuum emulsifying or homogenizing mixer. If your product requires vacuum processing or homogenization, those functions should be handled by upstream preparation equipment.
Yes. HONEMIX lists optional items such as a chiller, date coding embossing, automatic tube feeding magazine, and change parts for different tube dimensions. We also offer customized solutions for customer requirements.
If you are sourcing a tube filling and sealing machine for cosmetics, toothpaste, personal care, pharmaceutical ointments, or food pastes, the HY-A60 is a strong option for buyers who need stable output, hygienic construction, precise filling, and scalable automation.
Send your tube size, product viscosity, target output, and local voltage, and HONEMIX can help recommend the right configuration, optional devices, and full-line matching solution.
