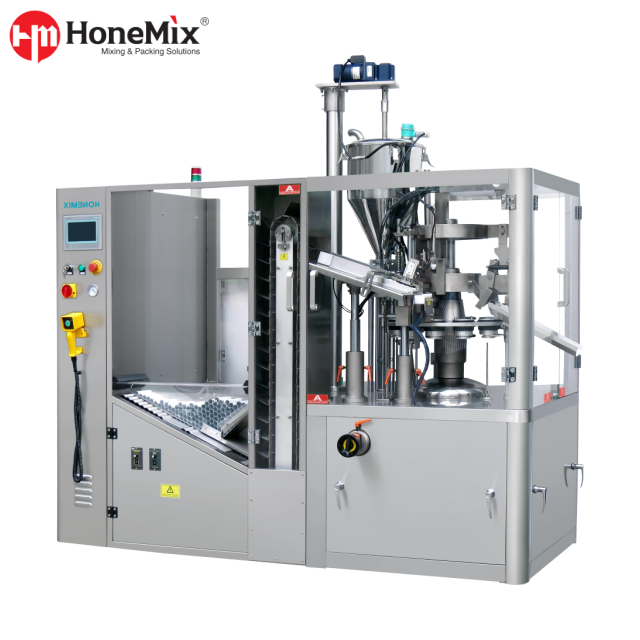

HY-ATF-HS Automatic High-Speed Soft Tube Filling Sealing Machine Overview
This High-Speed Tube Filling Machine is best suited for factories that need a more professional Soft Tube Sealing Machine for lotion products, hand care products, facial care products, and selected baby care applications. Compared with low-spec equipment, it combines automatic workflow, adjustable sealing parameters, touchscreen-based control, and safety protection in one compact platform.
The machine helps manufacturers maintain consistent sealing quality, reduce rework, and improve packaging efficiency across different lotion and cream SKUs.
Core Features And Advantages
1. Automatic Filling And Sealing Workflow
The machine is presented as an automatic process covering tube feeding, tube cleaning, mark checking, filling, heat sealing, coding, cutting, and finished tube discharge. For buyers, this means fewer manual touchpoints and a more controlled packaging process.
2. Capacity And Speed Range For Commercial Production
The rated production speed is 60–80 tubes/min. Actual output depends on product viscosity, tube dimensions, filling volume, sealing requirements, and machine configuration.
3. Control System That Supports Easier Operation
The PLC-based system with a 7-inch touchscreen and 25 pre-stored seal profiles, which is valuable for factories running multiple SKUs and frequent size or product changes. This improves operation convenience and helps reduce setup dependence on individual operators.
4. Tube Sealing Methods for Different Materials
The machine features a dual-heat sealing head with adjustable temperature and a cold-press cooling module for plastic and compatible laminated tubes, creating a more stable sealing process for both thin and thicker lotion formulations. For aluminum tubes, a dedicated folding or crimping configuration is used instead of heat sealing. Matching the sealing method to the tube material helps reduce leakage risk and improve finished-pack appearance.
5. Broad Tube Compatibility
Compatibility with plastic, laminated, and aluminum tubes, and also describes support for a wide range of tube diameters, lengths, and wall thicknesses. This provides greater flexibility when choosing the appropriate packaging specifications for different markets or product lines.
6. Maintenance And Safety Convenience
This machine features a transparent protective cover, emergency stop function, overheat protection, adjustable sealing parameters, and a guide on how to clean the sealing head in case of leakage. It reduces downtime, protects operator safety, and facilitates routine maintenance.
Application Industries And Suitable Products
Industry | Suitable Products | Buyer Value |
Cosmetics & Personal Care | Body lotion, moisturizing lotion, firming lotion, sensitive-skin lotion | Stable, attractive sealing for mass-market and premium personal care SKUs |
Hand Care | Hand lotion, hand cream, cuticle cream | Supports both small travel-size and larger family-size tube formats |
Skin Care | Facial moisturizer, anti-aging lotion, oil-control lotion | Better control for clean finished appearance and lower leakage risk |
Baby Care | Hypoallergenic baby lotion, diaper rash lotion | Suitable for brands that prioritize package integrity and safer product positioning |
Technical Parameters
Parameter | Specification |
Machine Type | High-Speed Soft Tube Filling and Sealing Machine |
Tube Application | Plastic, Laminated, and Aluminum Tubes |
Production Capacity | 60–80 pcs/min |
Filling Range | Max. 300 ml |
Metal Tube Size | Φ10–35 mm |
Plastic Tube Size | 10–60 mm |
Power | 9KW |
Voltage | 380V/50Hz, 220V/60Hz, 3PH |
Control System | PLC + 7-inch touchscreen with 25 pre-stored profiles |
Sealing Method | Heat Sealing for Plastic/Laminated Tubes; Folding or Crimping for Aluminum Tubes |
Safety Features | Protective cover, emergency stop, overheat protection |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Optional / Customizable Configurations
Tube size adaptation based on your SKU range
Filling volume range matched to your product portfolio
Voltage and electrical standard matched to destination market
Coding/date printing specification
Sealing parameter setup for different tube materials
Hopper and product-contact configuration based on viscosity and hygiene standard
Integration with upstream lotion mixing, vacuum emulsifying, or homogenizing systems
Integration with downstream cartoning or other packaging equipment
FAQ
1. What tube materials can this machine handle?
Compatibility with plastic, laminated, and metal tubes.
2. Is the machine easy to operate for multi-SKU production?
Yes. The PLC control, a 7-inch touchscreen, and 25 pre-stored seal profiles, which is useful for changeovers and repeat production.
3. What support can buyers expect after purchase?
We offer technical support, customized solutions, turnkey capability, and after-sales support.
4. What Products Is HY-ATF-HS Suitable For?
It is suitable for lotion, cream, hand cream, facial moisturizer, baby lotion and similar soft tube products.
5. Is This Machine Better Than A Semi Automatic Tube Filler?
Yes, if your production volume is higher and you need automatic tube feeding, filling, sealing, coding and finished tube discharge. For small batches, a semi automatic tube filler may be more cost-effective.
6. Can It Handle Different Tube Sizes?
Yes. Tube size adaptation can be configured according to tube diameter, tube length, filling volume and product requirement.
