HHM-SH Mobile Stainless Steel Mixing Tank

HHM-SH Mobile Stainless Steel Mixing Tank Overview

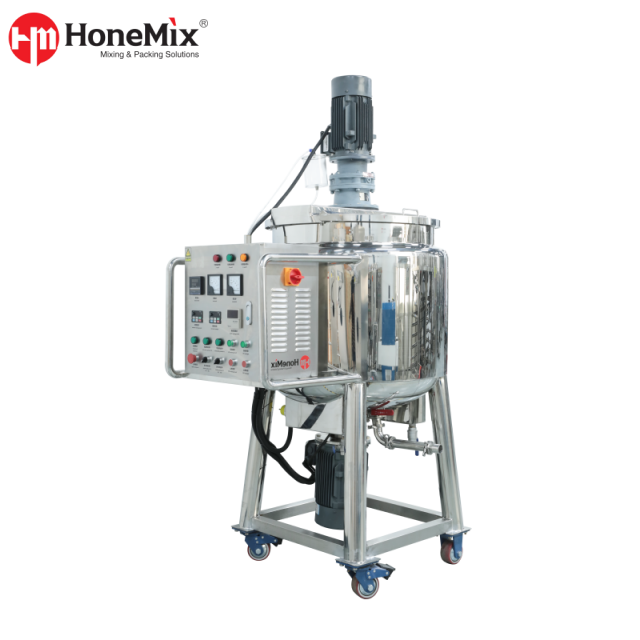

The HONEMIX Stainless Steel Mixing Vessel is engineered for manufacturers that need a more flexible process setup without compromising process control. Mounted on heavy-duty swivel casters with brakes, the tank can be moved between preparation, mixing, filling, and cleaning areas, making it a strong choice for contract manufacturing, pilot production, and growing factories with limited floor space.

This unit can be configured with anchor, paddle, propeller, or optional Homogenizer Mixing Tank assemblies depending on product viscosity and processing goals. For temperature-sensitive formulas, the tank can also be supplied as a Heated Mixing Tank or cooling tank with single-layer, double-layer, or triple-layer jacket structure. Standard operation is atmospheric, while pressure or vacuum-oriented configurations are available on request for specific process needs.

Core Features And Advantages

1. Mobile Design For Flexible Production Layout

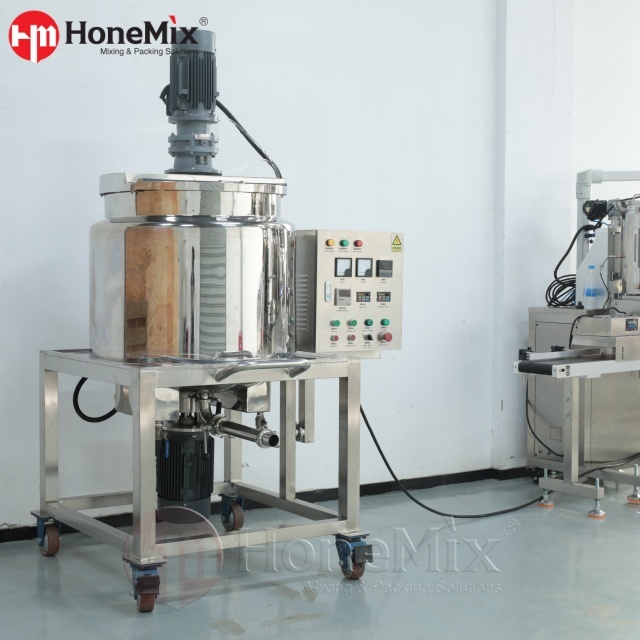

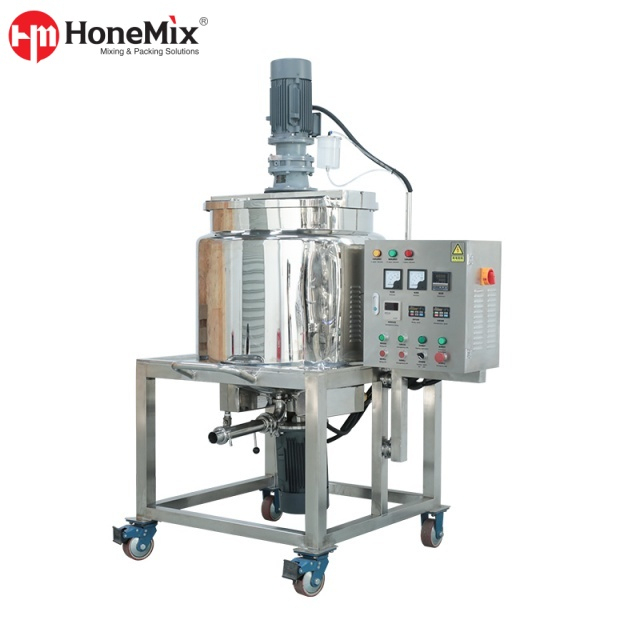

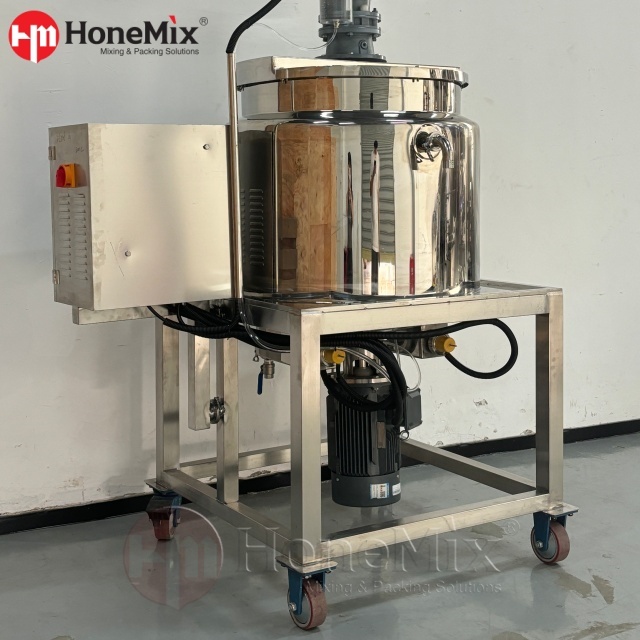

The tank is equipped with four swivel casters, including braking wheels, allowing operators to move the unit between workstations or position it closer to filling and transfer points. This helps factories improve workflow flexibility without committing to fully fixed piping architecture.

2. Hygienic Stainless Steel Construction

Product-contact parts are available in SUS304 or SUS316L stainless steel, with mirror, matte, or sanitary polish finishes. This supports hygiene, corrosion resistance, and easier cleaning for cosmetic, food, pharmaceutical, and household chemical applications.

3. Multiple Mixing Modes For Different Formulas

Depending on the product, HONEMIX can configure the tank with:

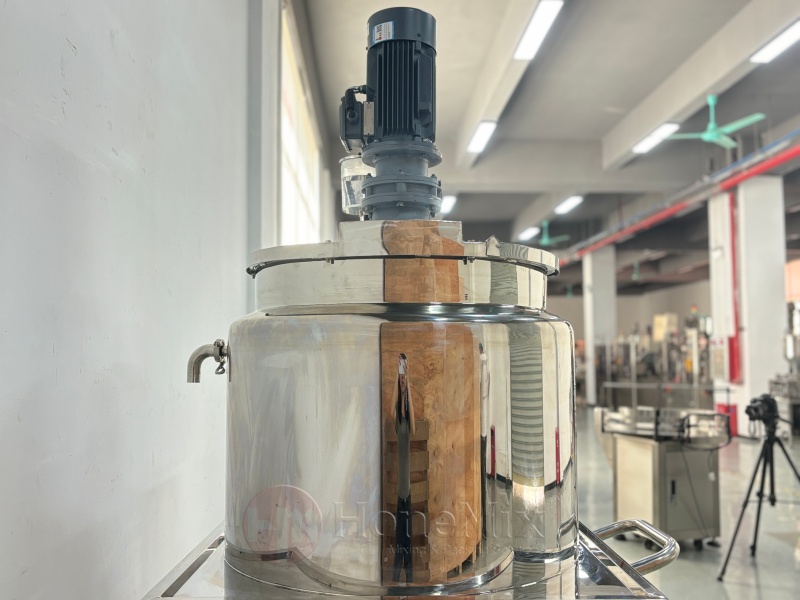

• Anchor or paddle agitator for medium to high viscosity products

• Propeller or turbine mixing for lower viscosity liquids

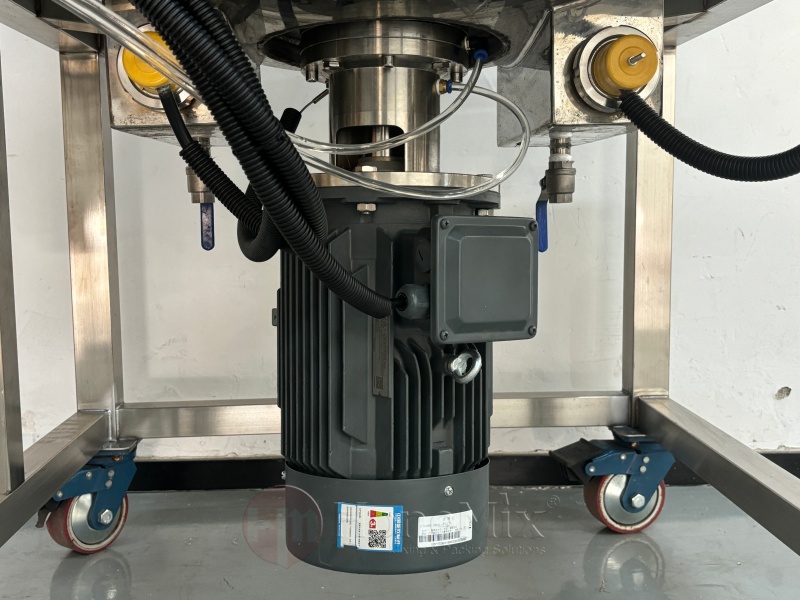

• Optional high-shear homogenizer for emulsification, dispersion, and particle size reduction

• Optional bottom magnetic stirring for closed or specialized processes





4. Heating And Cooling Options For Process Stability

The tank can be supplied with optional jacketed construction for heating or cooling, including single, double, or triple-layer design. It can be connected to steam, hot water, or chilled water systems, helping users manage viscosity, dissolve solids, and maintain process temperatures more consistently.

5. Speed Control Matched To Production Needs

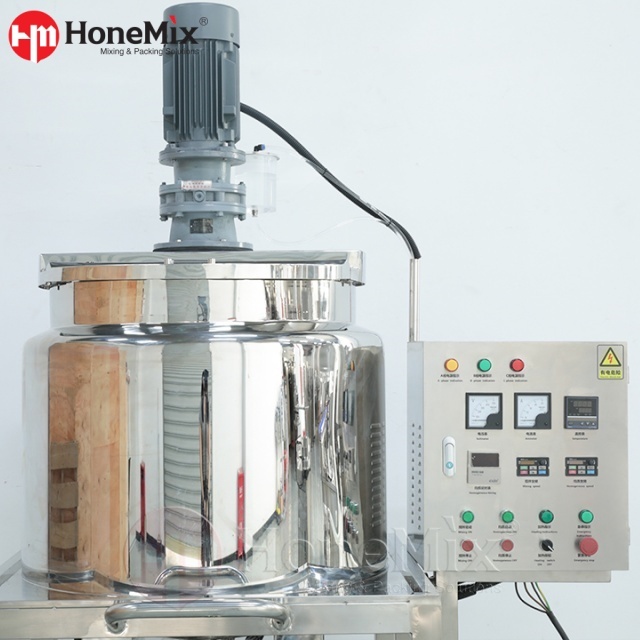

A typical agitator speed range is 0–60 rpm, with fixed-speed or variable-frequency drive configuration depending on the selected build. This gives buyers more control over shear level, mixing stability, and formulation repeatability.

6. Easy Operation, Drainage, And Cleaning

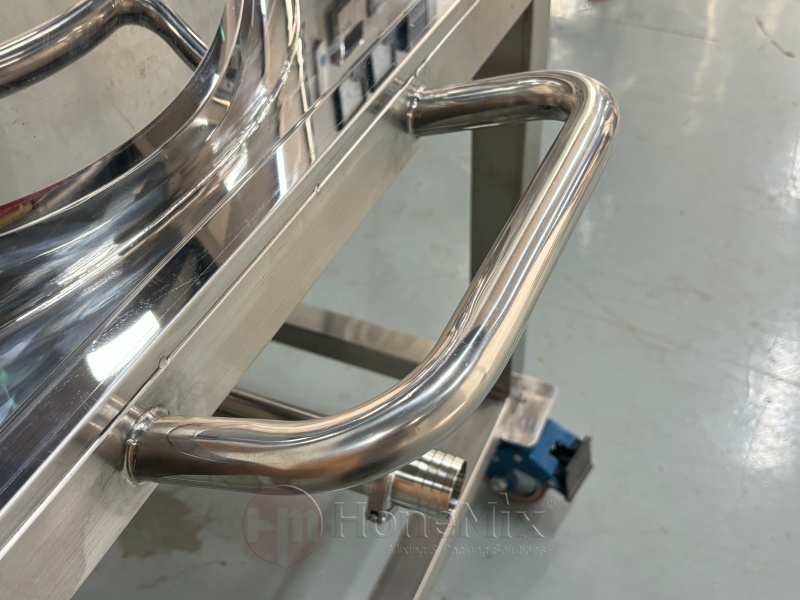

The sanitary design includes smooth welds, rounded transitions, removable or hinged lid options, and bottom discharge via sanitary butterfly or ball valve. CIP-oriented design can also be specified, helping reduce residue, shorten cleaning time, and simplify routine maintenance.

Application Industries And Suitable Products

Technical Parameters

Optional / Customizable Configurations

HONEMIX can customize the tank based on product type, process target, plant utilities, and hygiene standard. Available options include:

• Custom capacities from pilot scale to larger production scale

• SUS304 or upgraded SUS316L contact material

• Anchor, paddle, propeller, or high-shear homogenizer systems

• VFD speed control

• Single, double, or triple jacket structure

• Heating by steam, hot water, or thermal medium

• Cooling connection for chilled water circulation

• Pressure or vacuum function design on request

• Additional ports for temperature probe, sampling, powder charging, or instrumentation

• Insulation layer for better thermal efficiency

• Different lid, manway, valve, and outlet arrangements

• CIP-oriented cleaning design

FAQ

1. What capacity range is available?

The 200 liters mentioned above is for reference only, with customization available from 50 L to 1000 L and above. This makes the tank suitable for pilot, lab, and production-scale batch work.

2. Can this tank handle high-viscosity products?

Yes. For higher-viscosity products such as creams or pastes, HONEMIX lists anchor or paddle agitator options. An optional high-shear homogenizer can also be added when stronger emulsification or dispersion is required.

3. Is heating or cooling available?

Yes. The tank can be supplied with single-layer, double-layer, or triple-layer jacketed design for heating or cooling, depending on your process and plant utility requirements.

4. Does it support vacuum processing?

The standard configuration is atmospheric, but the source page states that pressure/vacuum design is optional. If your formula requires deaeration, low-foam mixing, or specialized process control, this should be specified at inquiry stage.

5. Is the tank easy to clean and maintain?

Yes. The product page highlights smooth sanitary construction, removable or hinged lid access, bottom discharge, and optional CIP compatibility. These features help reduce residue retention and make routine cleaning and maintenance easier.
