The HONEMIX HHM-C Sanitary Liquid Homogenizer Mixer is designed for low-to-medium-viscosity liquid production in the cosmetics, pharmaceutical, food, and chemical industries. Available in 100–5,000 L capacities, it combines GMP-verified sanitary construction, wall-scraping agitation, and bottom high-shear homogenization for consistent mixing, fine dispersion, and reliable batch quality.
Built with a three-layer insulated vessel with heating/cooling jacket, the system features SS316L product-contact surfaces and an SS304 jacket and outer shell. With push-button or automatic touchscreen control and direct or pump-assisted discharge options, the HHM-C can be configured to match different production requirements.
Consistent Batch Quality: Wall-scraping agitation and bottom homogenization support uniform mixing, dispersion, and emulsification.
GMP-Verified Design: SS316L product-contact surfaces and polished internal finishes support hygienic processing and easier cleaning.
Controlled Temperature: The heating/cooling jacket and separate insulation space support stable processing conditions.
Viscosity Flexibility: Independent speed control supports low-to-medium-viscosity liquid formulations.
Flexible Operation: Push-button or automatic touchscreen control options suit different production needs.
Efficient Product Transfer: Direct bottom discharge or pump-assisted transfer supports downstream production.
| Quantity: | |
|---|---|
HHM-C
HONEMIX

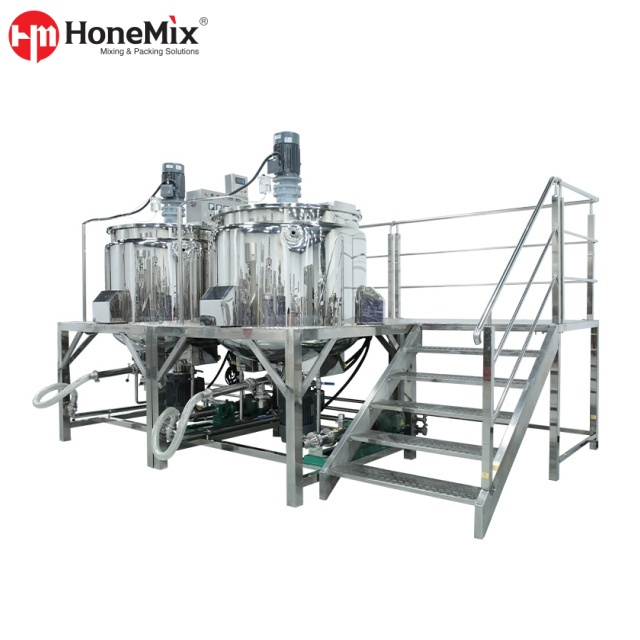

The HHM-C Liquid Homogenizer Mixer integrates agitation, high-shear homogenization, and temperature control in one production system for low-to-medium-viscosity liquids.
Its wall-scraping agitator promotes material circulation, while the bottom homogenizer supports dispersion and emulsification. The three-layer insulated vessel provides jacketed heating/cooling control with a separate insulation space to reduce heat loss.
Designed for cosmetics, pharmaceutical, food, and chemical manufacturing, the HHM-C supports products such as shampoo, conditioner, lotion, liquid soap, selected creams, sauces, and liquid formulations.
Eight standard models and flexible control and discharge options allow the system to be matched to different production requirements.
The HHM-C features GMP-verified sanitary construction with SS316L product-contact surfaces and an SS304 jacket and outer shell. The inner vessel has a 320-grit mirror-polished finish to help minimize material adhesion and support easier cleaning between batches. This sanitary design supports quality-sensitive liquid production across cosmetics, pharmaceutical, food, and chemical applications.

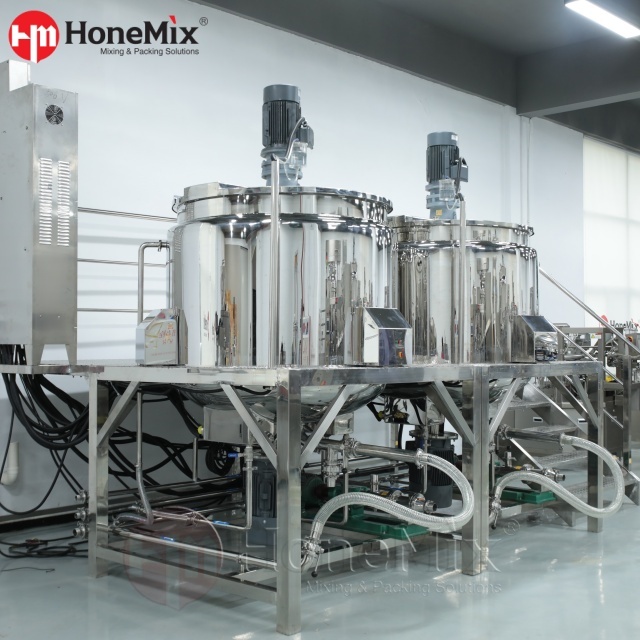

The three-layer vessel includes an inner 316L product chamber, a middle jacket for thermal oil or water circulation, and an insulated outer layer for heat retention and safer operation.The jacket can be used for heating or chilled-water cooling, with PT100 temperature control for better process accuracy.

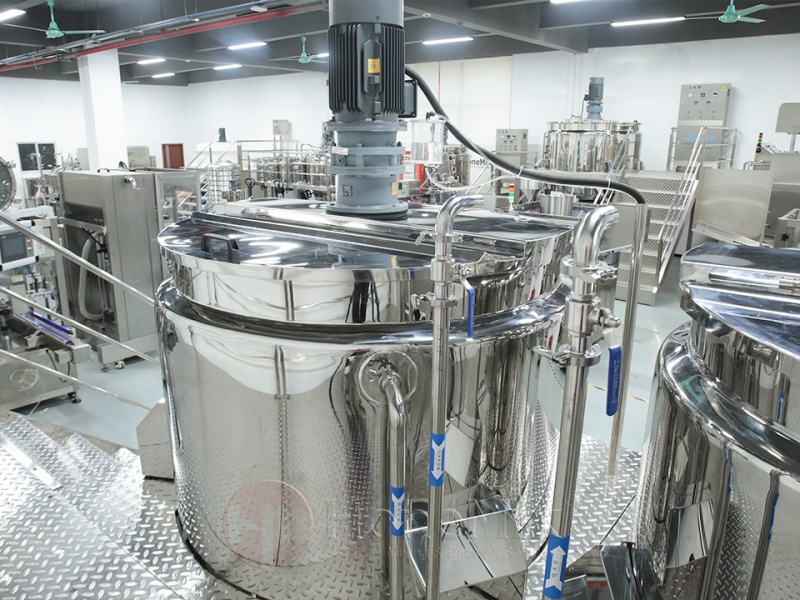

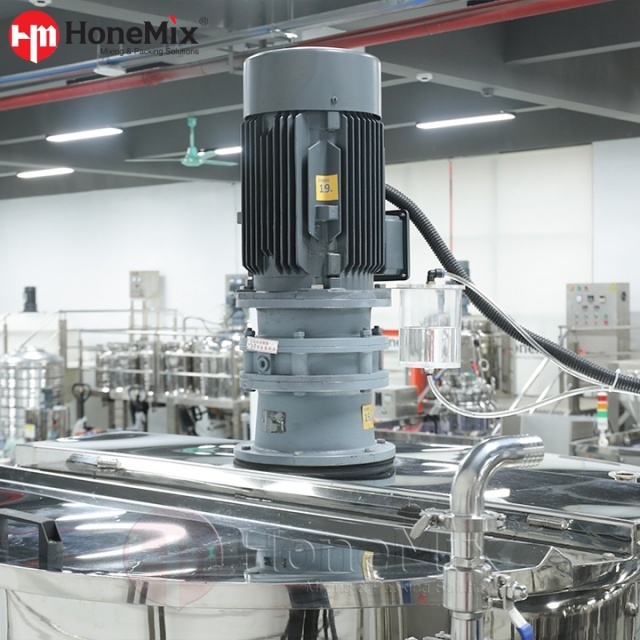

The main agitator uses SIEMENS or ABB drive power with a precision reducer. Its 45-degree wall-scraping blade design creates three-dimensional product flow, while PTFE scrapers help keep the vessel wall clean, improve heat transfer, and reduce residue buildup during mixing. The agitator speed is variable from 0 to 65 RPM.

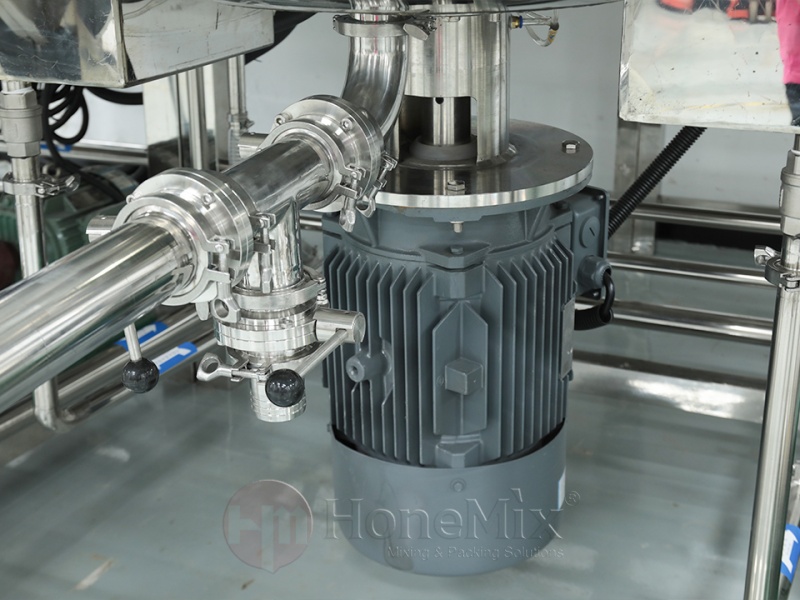

The bottom-mounted stator-rotor homogenizer is designed for dispersion, emulsification and particle-size reduction. In the confirmed configuration, homogenizer speed is adjustable up to 3600 rpm through an independent variable-frequency drive. Actual processing performance depends on product viscosity, batch volume, formula composition and operating conditions.
The HHM-C is available with push-button control or automatic PLC/HMI touchscreen control to suit different production requirements. Both options support convenient operation of the agitator, homogenizer, and applicable process functions, with adjustable mixing and homogenizing speeds.

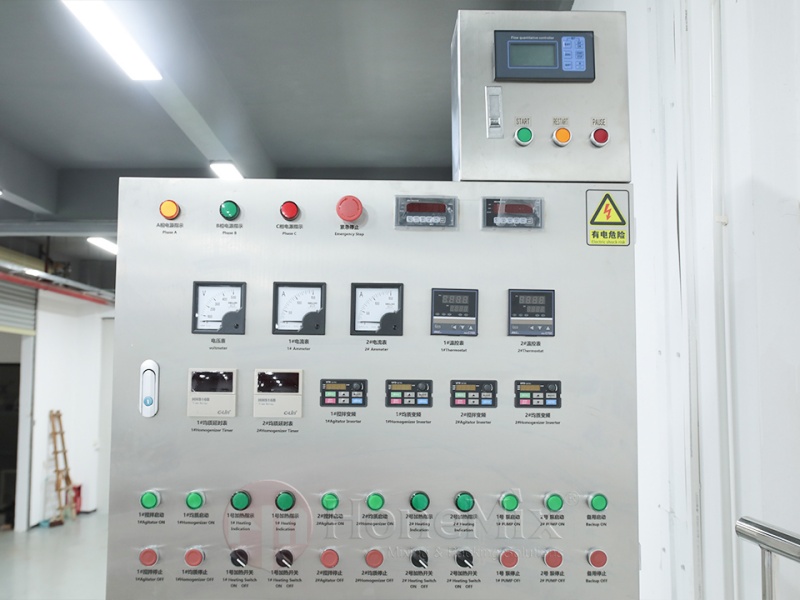

The independent electrical control cabinet can be configured with Schneider or Omron components and customized to regional electrical requirements.

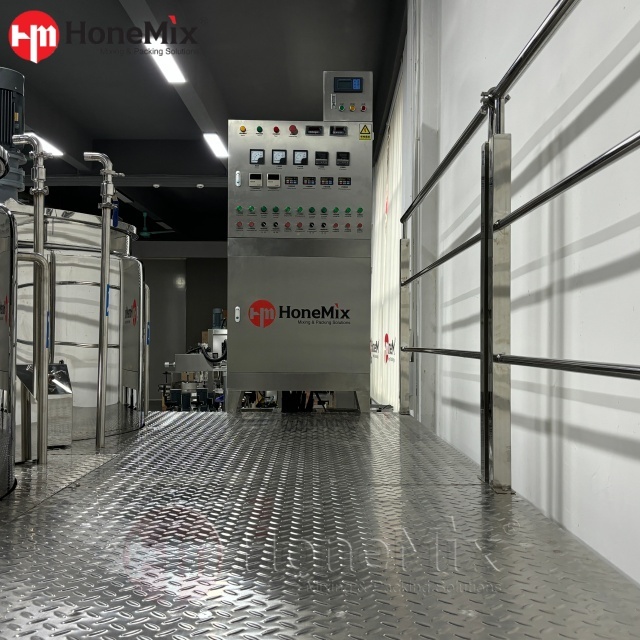

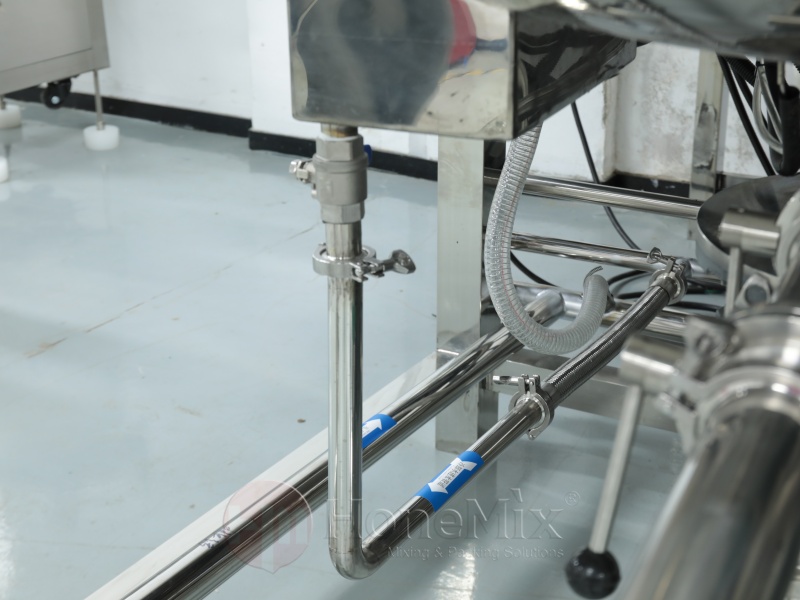

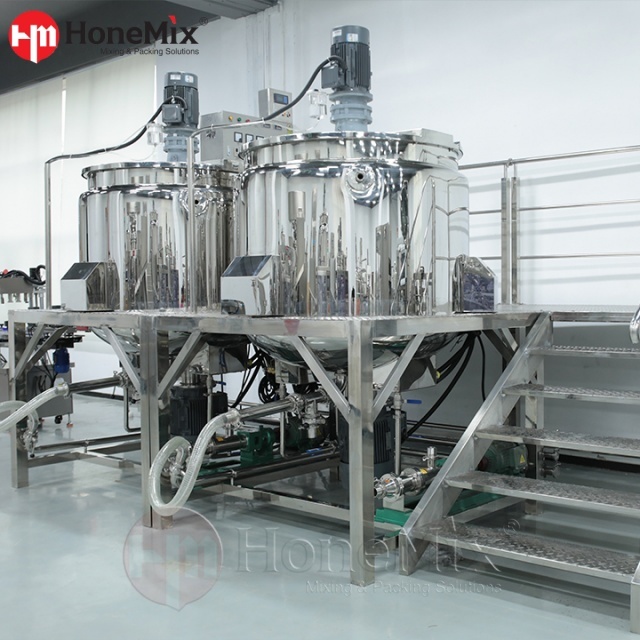

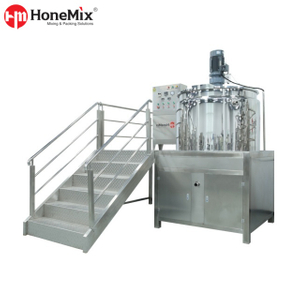

A bottom discharge valve supports more complete product evacuation, and the system includes an SS304 platform, staircase, and 1200 mm guardrails for easier access and safer inspection. Combined with the mirror-polished contact surface and wall-scraping design, this helps reduce operator effort during discharge, cleaning, and routine servicing.
Industry | Suitable Products |
|---|---|
Cosmetics | Shampoos, Conditioners, Body Washes, Lotions, Liquid Serums, Light Creams, Gels |
Home Care | Liquid Soap, Liquid Detergent, Dishwash, Household Cleaner |
Food | Liquid Seasonings, Dressings, Syrups, Low-to-Medium-Viscosity Sauces |
Chemical | Cleaning Solutions, Liquid Detergents, Selected Coatings, Low-to-Medium-Viscosity Chemical Formulations |
Pharmaceutical | Oral Liquid Preparations, Topical Lotions, Liquid Suspensions, Selected Gels And Emulsions |
Model / Capacity | Working Capacity (L) | Agitator Power (kW) | Agitator Speed (rpm) | Homogenizer Power (kW) | Homogenizer Speed (rpm) | Heating Method |
|---|---|---|---|---|---|---|
100L | 30–100 | 1.5 | 0–65 | 3 | 0–3600 | Electric / Steam |
200L | 60–200 | 2.2 | 0–65 | 4 | 0–3600 | Electric / Steam |
300L | 90–300 | 3 | 0–65 | 5.5 | 0–3600 | Electric / Steam |
500L | 150–500 | 4 | 0–65 | 7.5 | 0–3600 | Electric / Steam |
1000L | 300–1000 | 5.5 | 0–65 | 11 | 0–3600 | Electric / Steam |
2000L | 600–2000 | 7.5 | 0–65 | 15 | 0–3600 | Electric / Steam |
3000L | 900–3000 | 11 | 0–65 | 18 | 0–3600 | Electric / Steam |
5000L | 1500–5000 | 15 | 0–65 | 22 | 0–3600 | Electric / Steam |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Optional Configuration | Buyer Value |
|---|---|
Stainless Steel Pipeline | Connects water supply, heating/cooling utilities, and material transfer systems |
Flow Meter | Supports accurate water dosing and repeatable batch preparation |
Weighing Load Cells | Improves raw material dosing and batch control |
HMI & PLC Controller | Supports automatic control and a higher automation standard |
Discharge Pump | Transfers finished product from mixer to storage tank more efficiently |
Recirculation Homogenizer | Provides additional circulation and dispersion for formulations requiring extended processing |
The HHM-C is designed for low-to-medium-viscosity liquid and semi-liquid formulations, including shampoos, conditioners, lotions, light creams, gels, liquid soaps, detergents, sauces, and suitable pharmaceutical liquid products. Final suitability depends on formulation, viscosity, and processing requirements.
No. The vessel features SS316L product-contact surfaces and an SS304 jacket and outer shell. Materials for other product-contact components are confirmed according to the approved configuration.
The HHM-C series includes eight standard models from HHM-100 to HHM-5000, covering working capacities from 30 L to 5000 L across the range. Custom capacities are available according to production requirements.
The three-layer vessel features a heating/cooling jacket and a separate insulation space. Electric or steam heating options are available, while the jacket supports cooling through circulating media. The outer insulation space helps reduce heat loss during processing.
Send HONEMIX your required working capacity, product viscosity, heating and cooling requirements, preferred control system and discharge method.
Our engineering team will evaluate the process and recommend a suitable vessel, agitator, homogenizer and control configuration.
