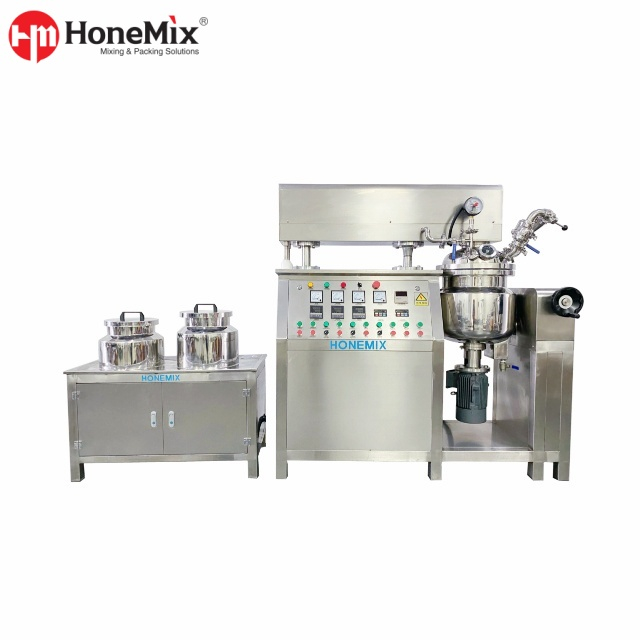

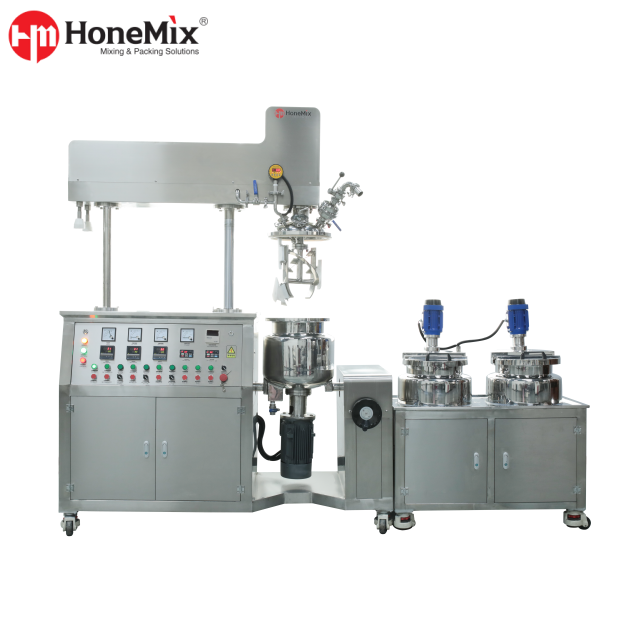

The HONEMIX HVE-BTL 20L Lab Vacuum Emulsifier Mixer for R&D and Pilot Use is designed for formulation development, pilot testing, and small batch production in the cosmetics, food, and pharmaceutical industries. This Laboratory Vacuum Emulsifier combines vacuum defoaming, high-shear homogenization, mixing, heating, cooling, and mechanical button control in one compact system to help manufacturers improve product texture, stability, and batch consistency.
As a professional Small Batch Vacuum Emulsifier, this machine is ideal for processing creams, lotions, gels, ointments, sauces, and other viscous or semi-viscous products. It is especially suitable for companies that need reliable process control and repeatable production results before scaling up to larger manufacturing lines.
| Quantity: | |
|---|---|
HVE-BTL
HONEMIX

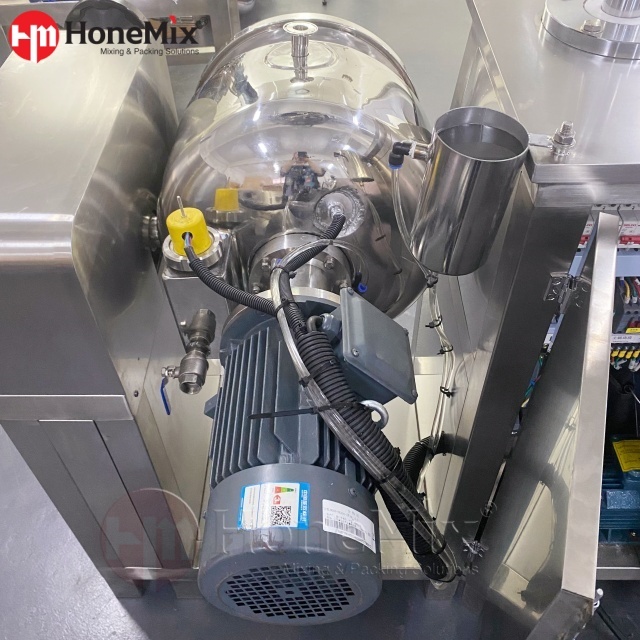

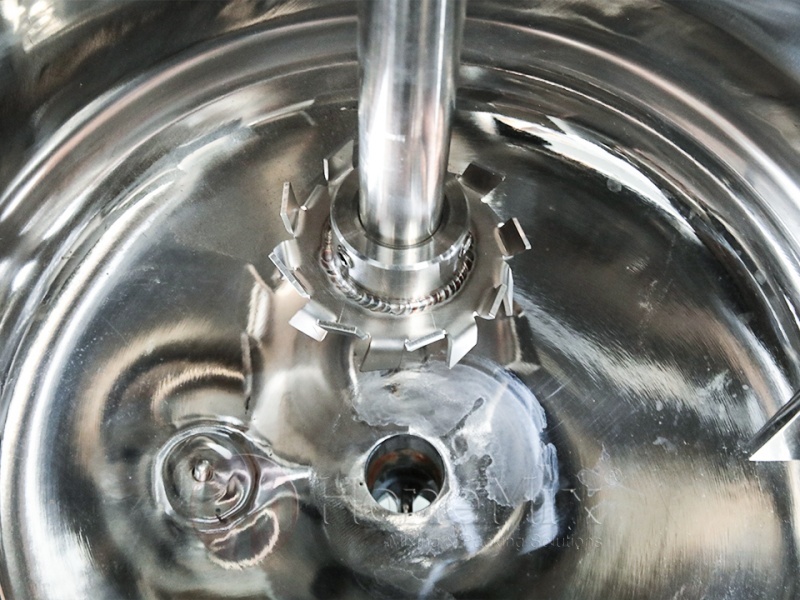

The 20L Lab Vacuum Emulsifier Mixer is equipped with a high-shear homogenizer with a speed range of 0–3000 rpm, providing efficient emulsification, fine particle reduction, and uniform dispersion. For manufacturers looking for a dependable Vacuum Emulsifier for Cream and Lotion, this machine helps produce smoother and more stable products with improved consistency from batch to batch.

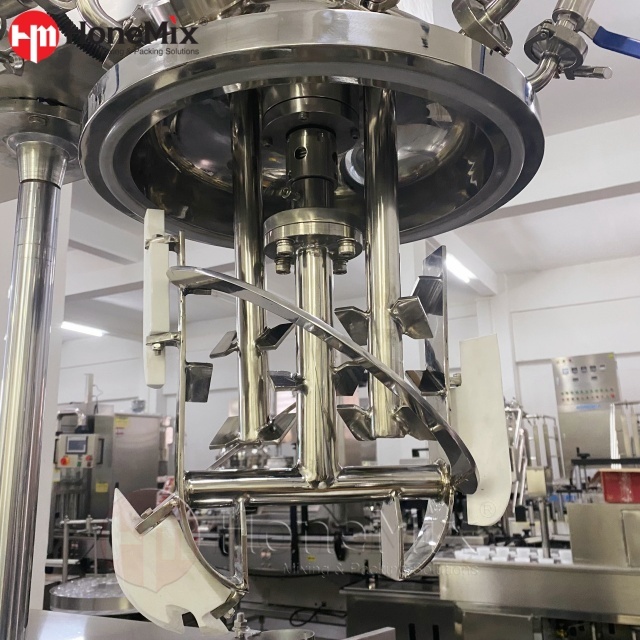

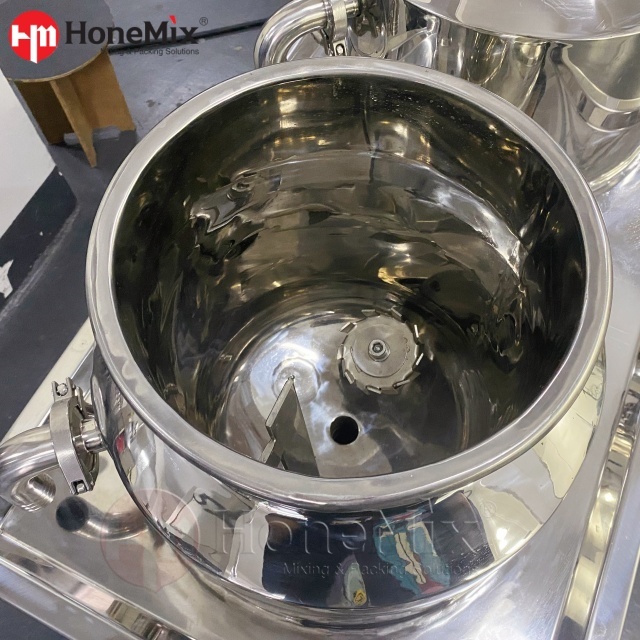

The stirring system runs at 0–65 rpm with frequency conversion and works together with the scraper structure to improve wall sweeping and material circulation. This helps reduce dead corners inside the tank and supports more even heat transfer during the mixing process.

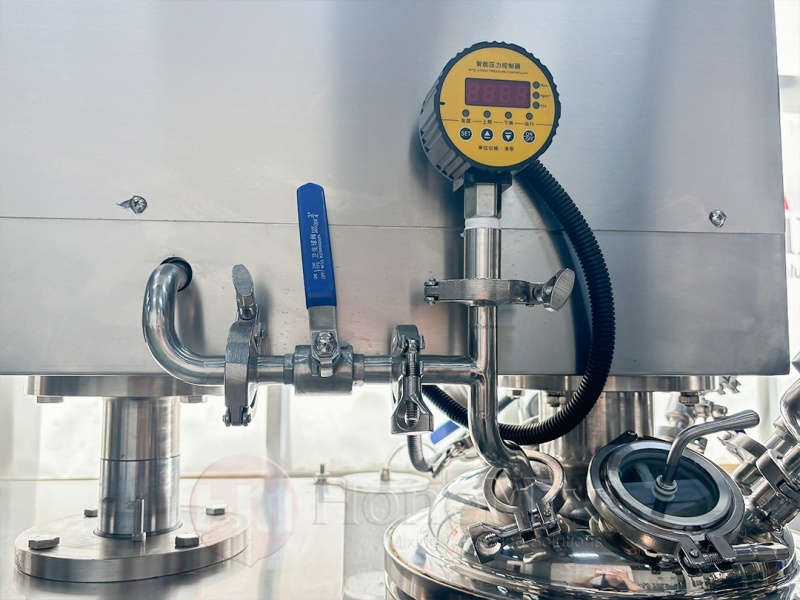

As a practical Laboratory Vacuum Emulsifier, this machine processes materials under vacuum conditions to help remove trapped air and reduce bubbles. This is particularly important for creams, lotions, gels, and ointments that require a smooth appearance and stable internal structure.
The vacuum function also helps improve product quality by reducing oxidation during processing. For buyers seeking a reliable Small Batch Vacuum Emulsifier, this feature adds real production value in both product performance and visual finish.
The product-contact parts are made of SUS316L stainless steel, while other structural parts use SUS304 stainless steel. This material configuration supports hygienic processing requirements in cosmetics, food, and pharmaceutical applications.
With electric or steam heating and a working temperature range from room temperature to 120°C, the machine is suitable for a wide range of formulations. Whether you need a 20L Lab Vacuum Emulsifier Mixer for cream development, lotion production, gel testing, ointment trials, or emulsified food products, this machine offers a practical and professional solution.
Industry | Suitable Products |
|---|---|
Cosmetics | Face Cream, Body Lotion, Sunscreen, Facial Mask, Foundation, Gel, Serum Base |
Food | Sauce, Jam, Cream-Based Products, Emulsified Food Products |
Pharmaceutical | Ointment, Gel, Cream, Emulsion |
Daily Chemical | Shampoo, Conditioner, Hand Sanitizer, Body Wash |
Parameter | Specification |
|---|---|
Model | HVE-BTL |
Working Capacity | 20L |
Homogenizer Power | 1.5 KW |
Stirring Power | 0.75 KW |
Hydraulic Power | 0.55 KW |
Vacuum Power | 0.55 KW |
Homogenizing Speed | 0–3000 rpm (Frequency Conversion) |
Stirring Speed | 0–65 rpm (Frequency Conversion) |
Heating Method | Electric / Steam (Optional) |
Temperature Range | Room Temperature to 120°C |
Contact Material | SUS316L / SUS304 |

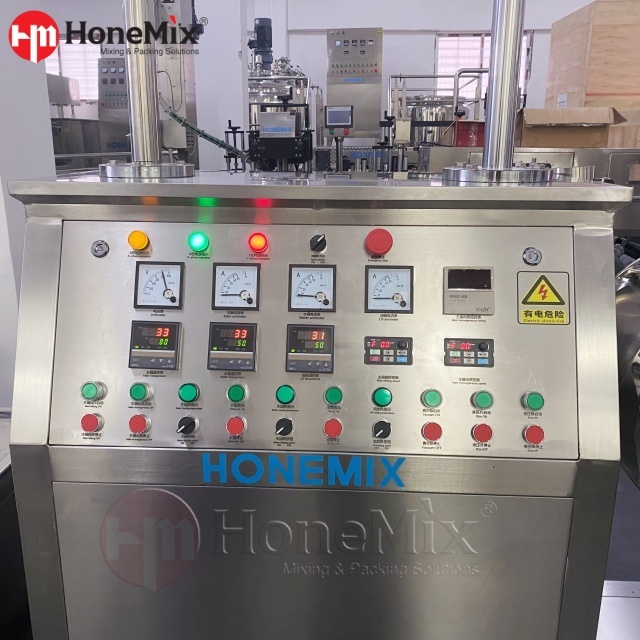

Control System | Mechanical Button Control(Customizable) |
Machine Weight | Approx. 600 KG |
Dimension | Customizable |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Advantage | Description |
|---|---|
Designed for R&D and Pilot Use | Ideal for formulation development, testing, and small batch production |
Strong Emulsification Performance | High-shear homogenizer supports fine and stable emulsification |
Better Product Quality | Vacuum function helps reduce bubbles and improve smoothness |
Easy to Clean | Hydraulic lifting structure improves tank access and maintenance |
Hygienic Construction | SUS316L contact parts support cleaner production requirements |
Flexible Heating Options | Electric or steam heating available for different production needs |
This machine is suitable for cream, lotion, gel, ointment, sunscreen, facial mask, foundation, hand sanitizer, shampoo, sauces, jams, and other emulsified or semi-viscous products used in cosmetics, food, and pharmaceutical applications.
Yes. With a 20L working capacity, this machine is designed for laboratory development, pilot tests, and small batch production, making it ideal for formula trials and process validation before larger-scale manufacturing.
The vacuum function helps remove air bubbles during processing, reduces oxidation, and supports smoother and more stable final products. This is especially important for cream, lotion, gel, and ointment formulations.
The machine uses a PLC + Touch Screen control system, making operation more convenient and allowing easier adjustment of processing parameters.
The product-contact parts are made of SUS316L stainless steel, while the other parts are made of SUS304 stainless steel, which supports hygienic production requirements.
Looking for a reliable Vacuum Emulsifier Mixer for cream, lotion, gel, ointment, or sauce production? Contact us today for pricing, technical details, and a customized solution based on your production needs.
