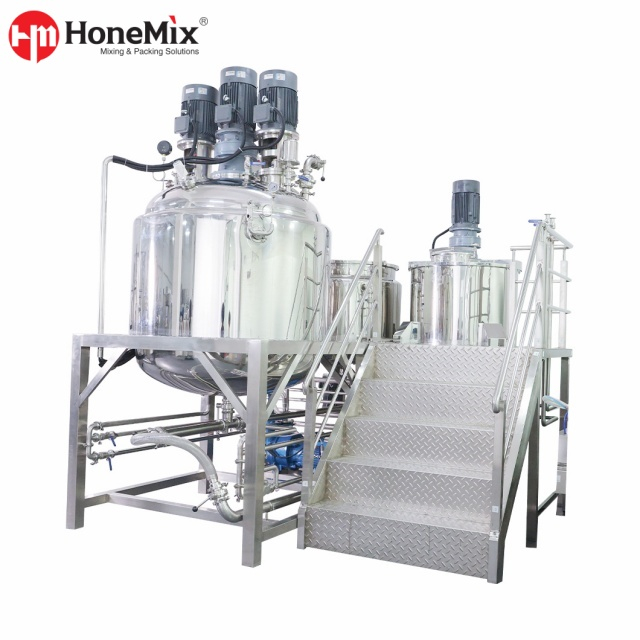

HTM-FC Toothpaste Making Machine – Integrated System 100–5,000 L

Built for Integrated Toothpaste Manufacturing

The HTM-FC brings multiple toothpaste processing stages into one coordinated production system. Its fixed-vessel design accommodates auxiliary preparation tanks, powder handling, process piping and controlled discharge to downstream filling equipment.

The system is suited to manufacturers establishing new toothpaste facilities, expanding production capacity or upgrading existing processing lines.

Core Features and Advantages

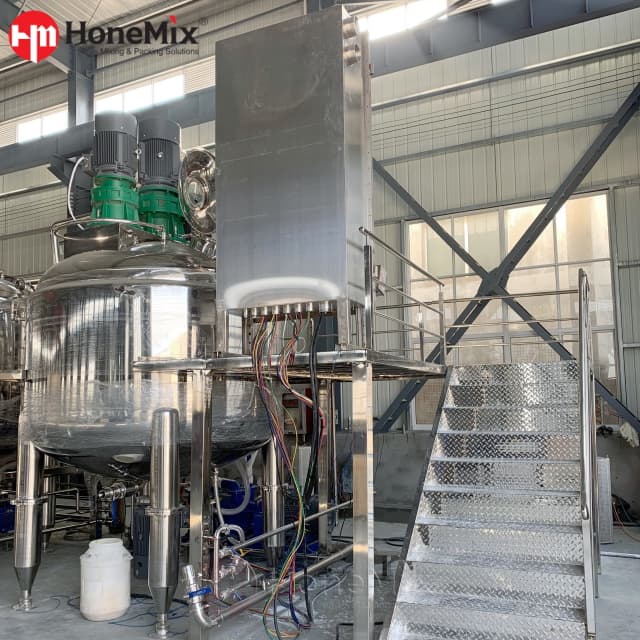

1. Fixed Production Layout

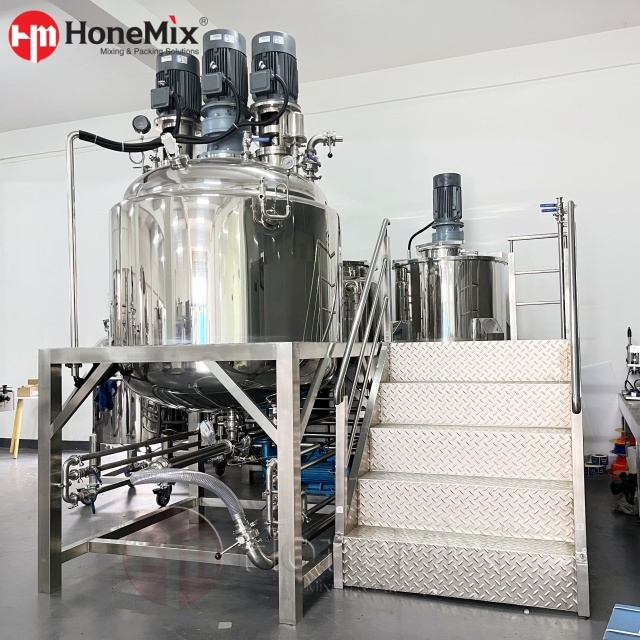

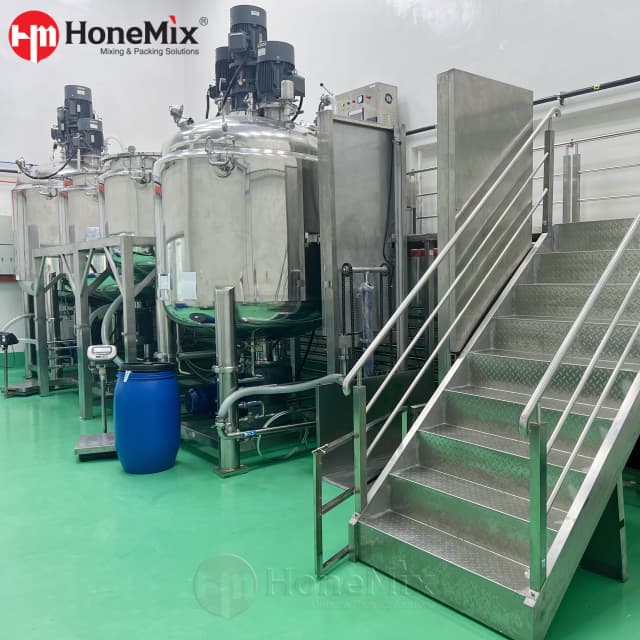

Integrates the main processing vessel, auxiliary tanks, piping and operator platform for organized industrial batch production.

2. Optional Powder Feeding

The HTM-FC can be equipped with a powder feeding system for controlled ingredient addition and reduced manual handling. Hopper and vacuum conveying options are available to accommodate different toothpaste formulations, batch sizes and factory layouts.

3. Consistent Paste Processing

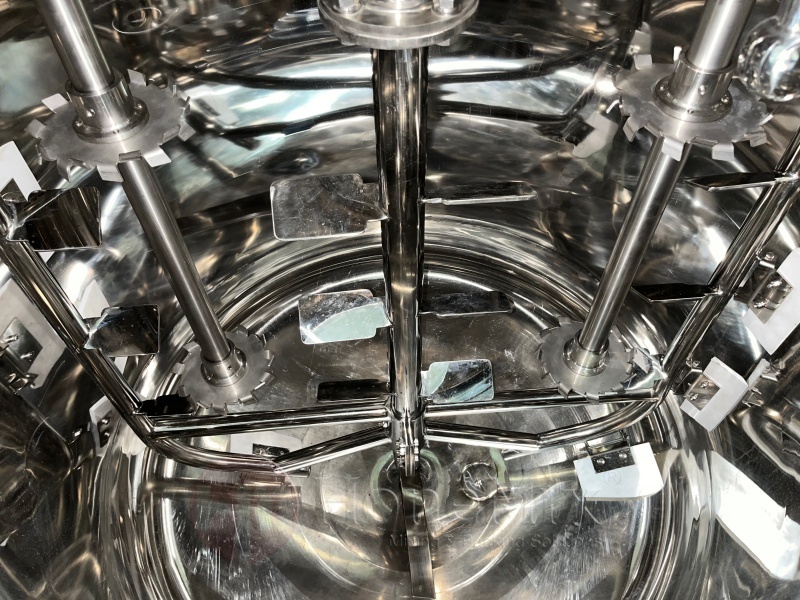

Combines bulk agitation, high-shear dispersion and vacuum deaeration to support uniform texture and reduce entrapped air.

4. Controlled Phase Preparation

Auxiliary tanks and jacket heating/cooling support the preparation and transfer of liquid ingredients according to the production process.

5. Production-Line Integration

Configure powder feeding, paste transfer, CIP connections and downstream filling interfaces within one coordinated factory layout.

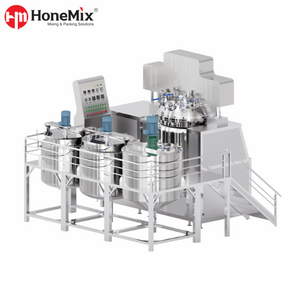

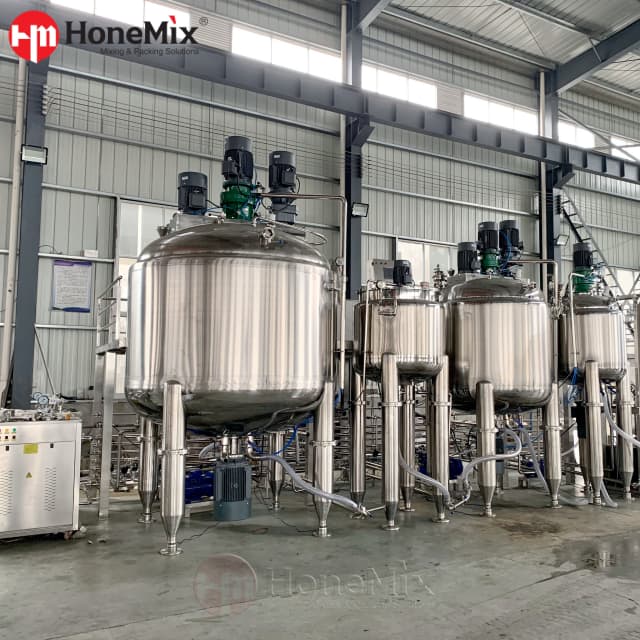

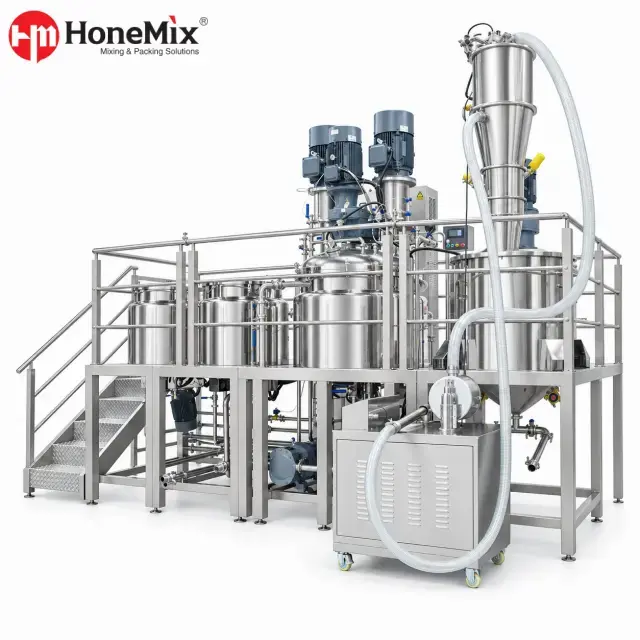

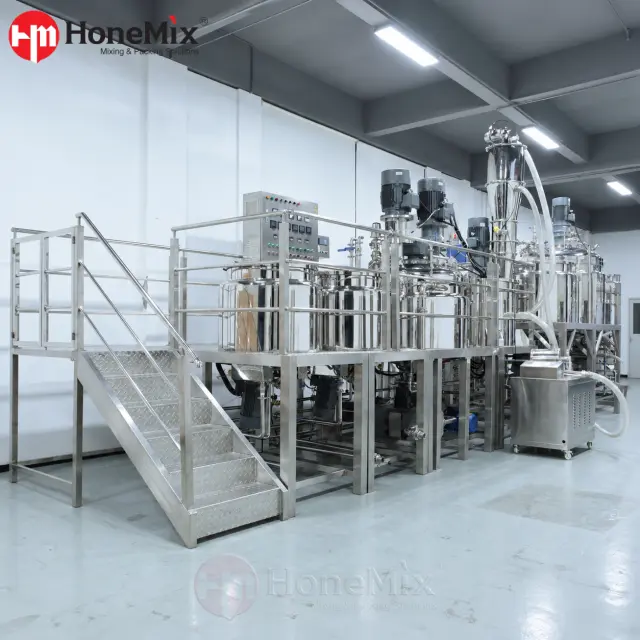

Integrated System Configuration

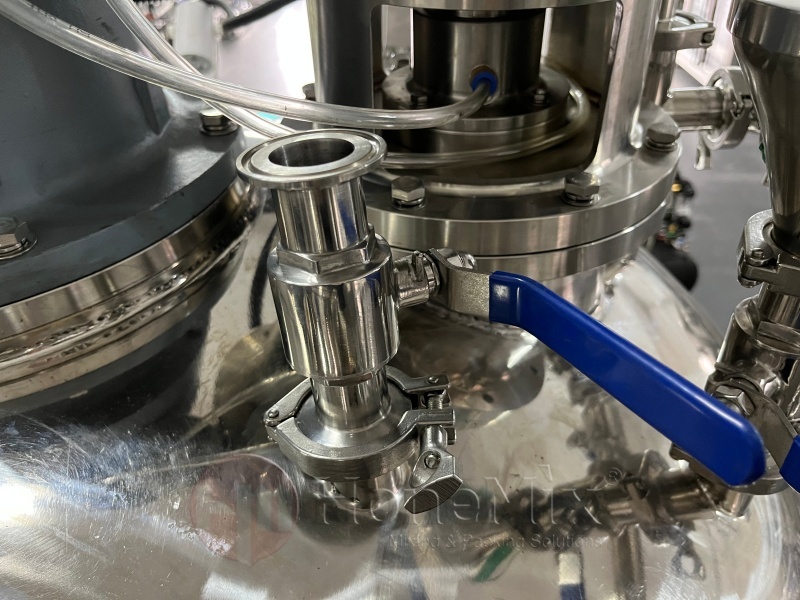

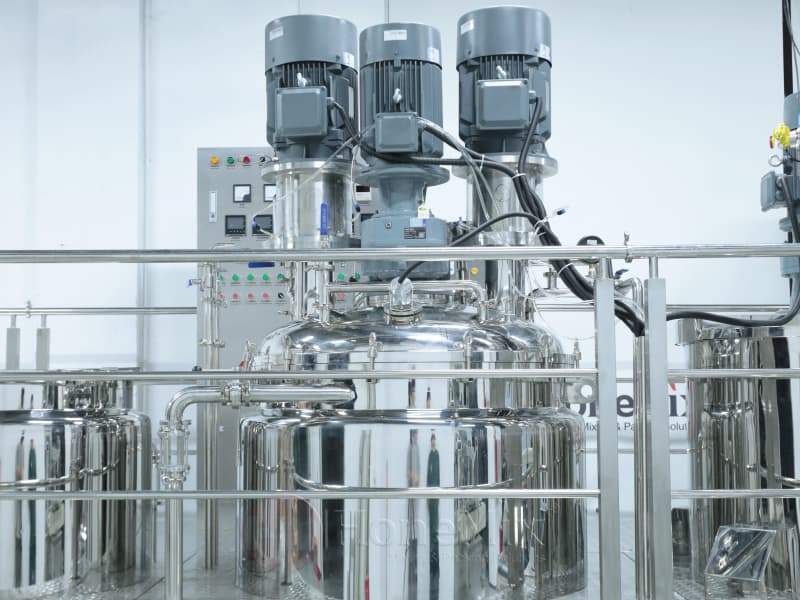

The HTM-FC combines a fixed main processing vessel with supporting equipment to suit the required production process.

Technical Specifications

Production Capacity and Motor Power

Reference configurations. Final motor selection, working capacity and system performance depend on the formulation, viscosity and approved technical specifications.

Standard Features and Configuration

Toothpaste Manufacturing Process

1. Phase Preparation

   Prepare the required liquid ingredients in the auxiliary tanks using the selected heating and agitation arrangement.

2. Powder Feeding

   Introduce ingredients through the configured feeding system, with vacuum conveying available for enclosed powder transfer.

3. Paste Processing

   Combine bulk agitation and high-shear dispersion to incorporate powders and develop a uniform paste.

4. Vacuum Deaeration

   Apply vacuum during the specified processing stages to reduce entrapped air and support consistent paste density.

5. Discharge & Transfer

   Transfer the finished toothpaste through the selected pump or pressure-discharge system to downstream filling equipment.

Suitable Toothpaste Products

Optional Production Equipment

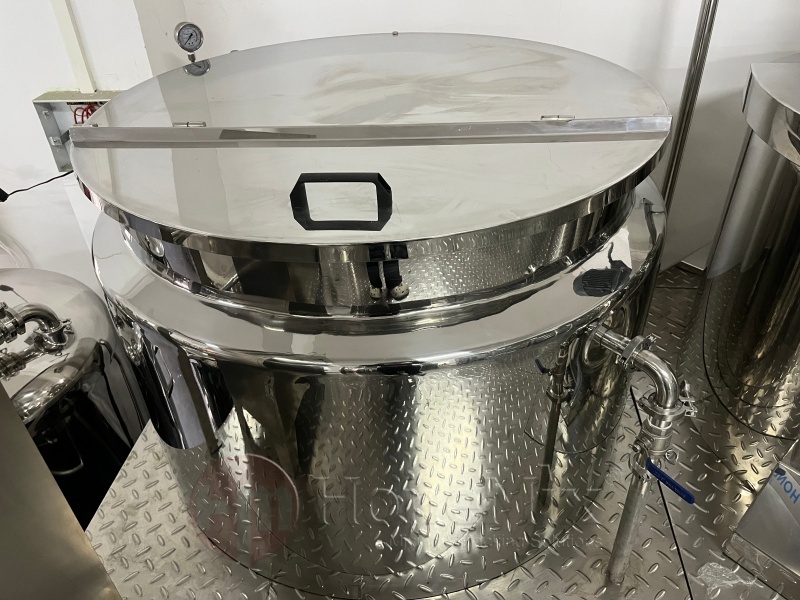

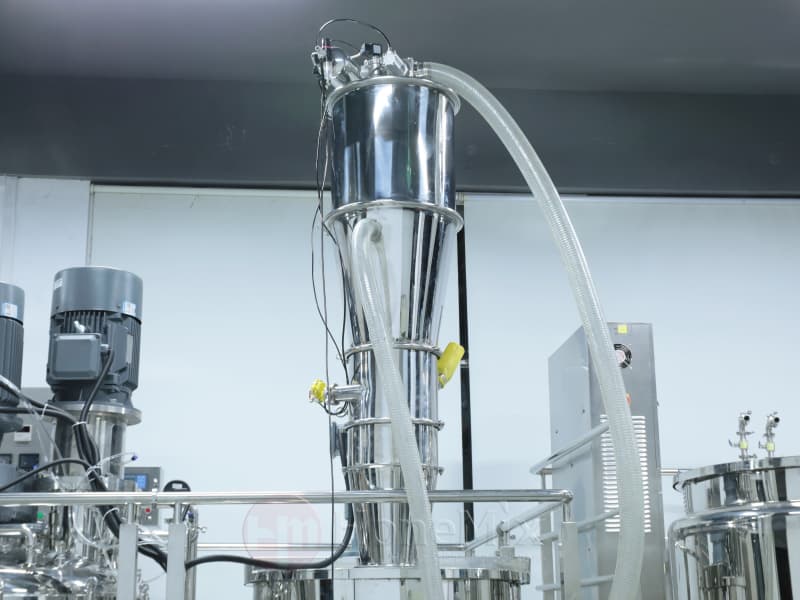

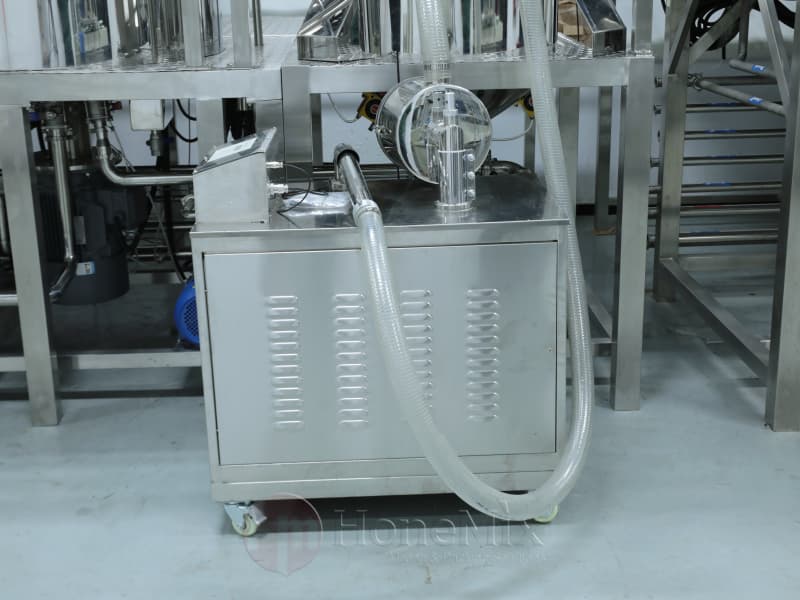

• Vacuum Powder Conveyor: Supports enclosed powder transfer with a filtered receiving hopper and pulse back-cleaning arrangement.

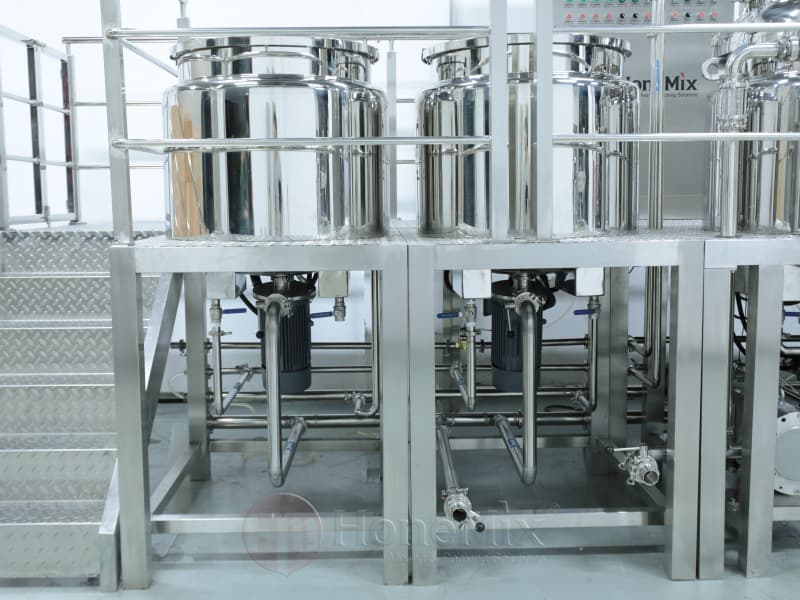

• Auxiliary Preparation Tanks: Configured for premixing ingredients and transferring prepared phases to the main vessel.

• CIP Interface: Connections for integrating a compatible cleaning system into the production layout.

• Downstream Filling Interface: Pump and piping arrangements for transferring finished toothpaste to tube filling and sealing equipment.

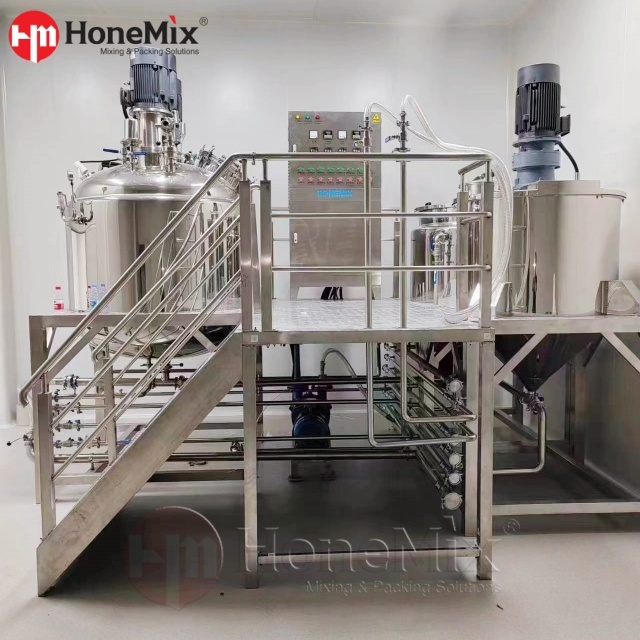

Factory Layout and Project Support

HONEMIX can configure the HTM-FC around the planned batch size, ingredient preparation process and available factory utilities.

System planning covers the vessel and auxiliary tank arrangement, powder handling, operator access, pipe routing and downstream equipment connections. Factory acceptance testing, technical drawings and commissioning support can be included in the agreed project scope.

FAQ

1. What is the difference between the HTM-FC and HTM-H?

The HTM-FC is a fixed integrated toothpaste manufacturing system with auxiliary tanks, powder handling and production-line interfaces. The HTM-H Hydraulic Lifting Vacuum Toothpaste Mixer  focuses on 50–500 L mixing, dispersion, vacuum deaeration and lifting access for cleaning and formula changeovers.

2. Is 1,000 L the actual production batch size?

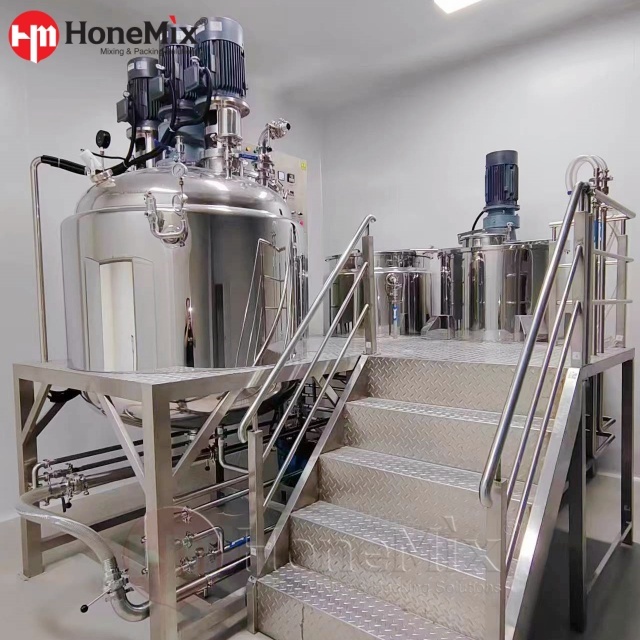

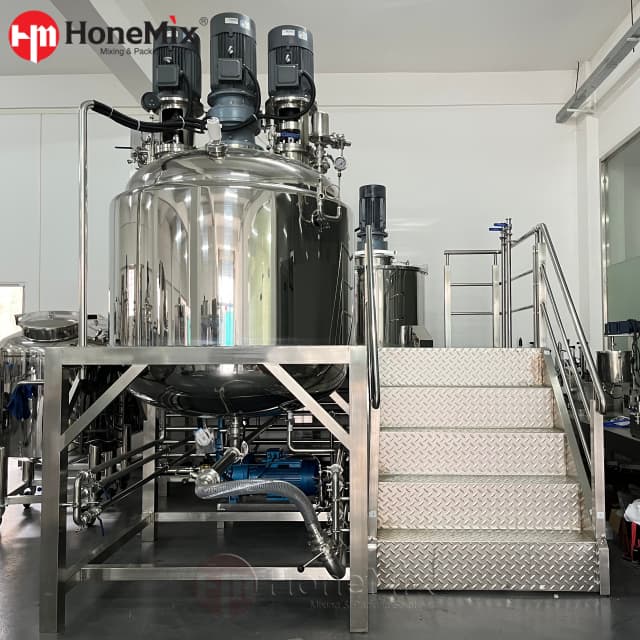

The 1,000 L reference configuration has a 1,000 L working capacity and a 1,300 L design vessel volume. The practical operating batch size depends on the formulation and process settings.

3. Does the system include automatic powder feeding?

Powder charging can be configured with a hopper or vacuum conveyor. The conveying capacity and equipment arrangement are selected according to the ingredients, batch size and factory layout.

4. Can the system connect to an automatic toothpaste filling line?

Yes. The finished paste can be transferred through a configured discharge system to compatible downstream tube filling and sealing equipment. Filling machinery is specified separately according to the project scope.
