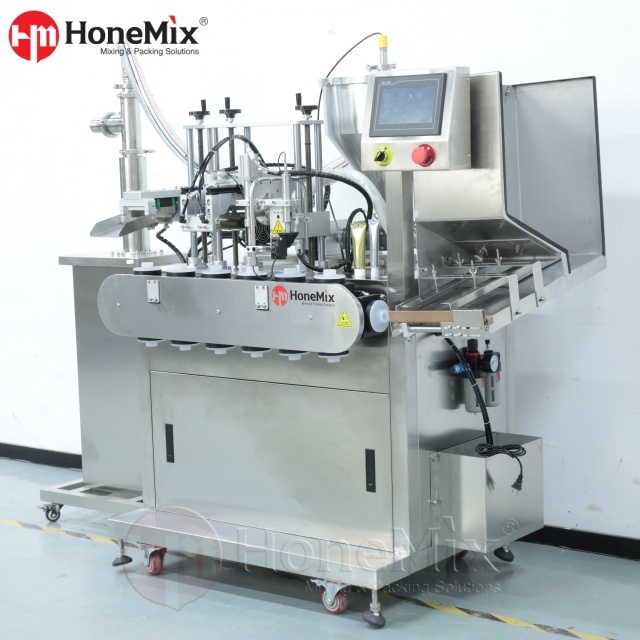

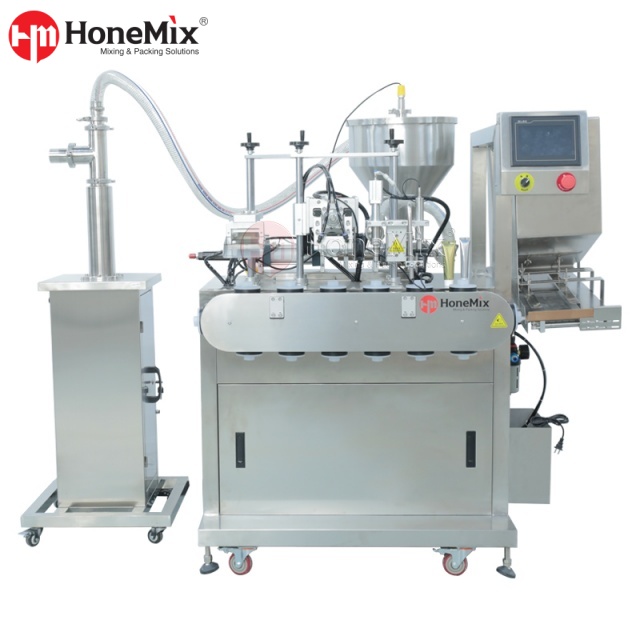

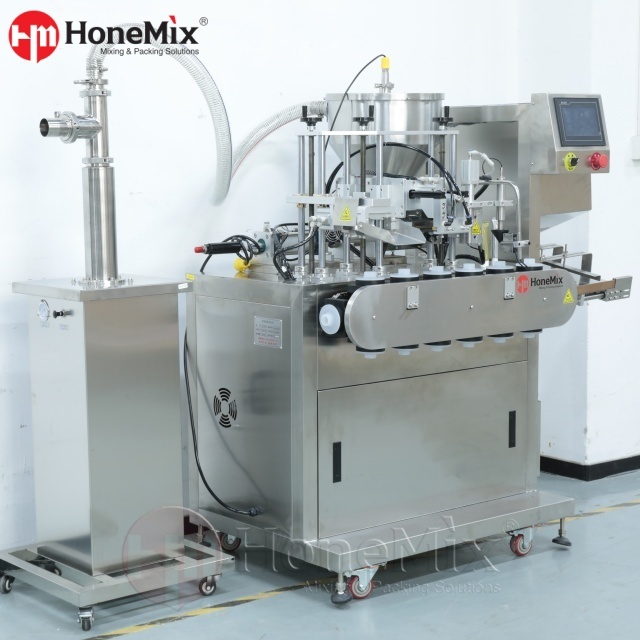

The HONEMIX HY-UTL Automatic Linear Ultrasonic Tube Filling Machine is designed for manufacturers that need precise dosing, stable sealing quality, and easier daily operation in a compact footprint. It is suitable for PE, PP, and laminated tubes, and supports automatic tube feeding, alignment, filling, ultrasonic sealing, coding, tail trimming, and finished product discharge in one integrated process.
This machine is a practical packaging solution suitable for small to medium batch production, pilot production, and flexible multi-SKU manufacturing. Its linear structure is particularly suitable for factories that require easier maintenance, faster workstation access, and higher space utilization (compared to traditional rotary designs).
| Quantity: | |
|---|---|
HY-UTL
HONEMIX
This Automatic Tube Filling Machine is engineered for brands and factories packaging creams, gels, ointments, pastes, and similar semi-viscous products in soft tubes. Compared with conventional rotary equipment, the linear architecture creates a cleaner working sequence and better accessibility for operators and maintenance teams.
It combines high filling precision, stable ultrasonic sealing, and straightforward digital control in a machine suited to cosmetics, pharmaceutical, daily care, food, and specialty chemical applications. For buyers focused on reliable output and lower operating complexity, it offers a strong balance between automation level, footprint, and practical ownership cost.
The biggest structural advantage of this Linear Tube Filling Machine is its straight-line arrangement of working stations. Operators can access each section more directly, while maintenance teams can inspect and replace parts with less downtime than more mechanically complex rotary systems.

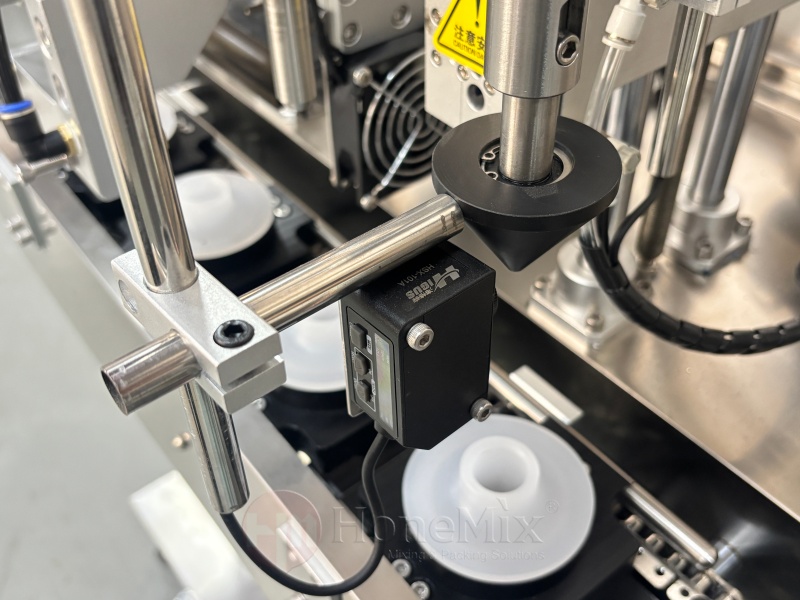

The machine integrates automatic tube feeding, automatic alignment, accurate filling, ultrasonic sealing, code stamping, tail cutting, and automatic ejection. That means less manual handling, more stable output, and better repeatability across production batches.

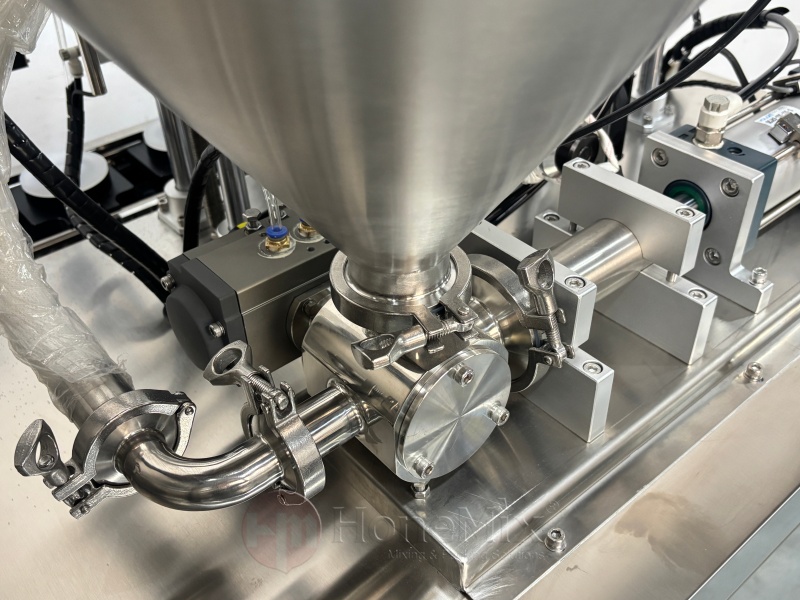

With a stated filling range of 10–250 ml and filling accuracy of ≤ ±1%, the system is built for manufacturers that care about yield control, lower product waste, and consistent finished pack weight. The source page also notes suitability for very small dose applications.

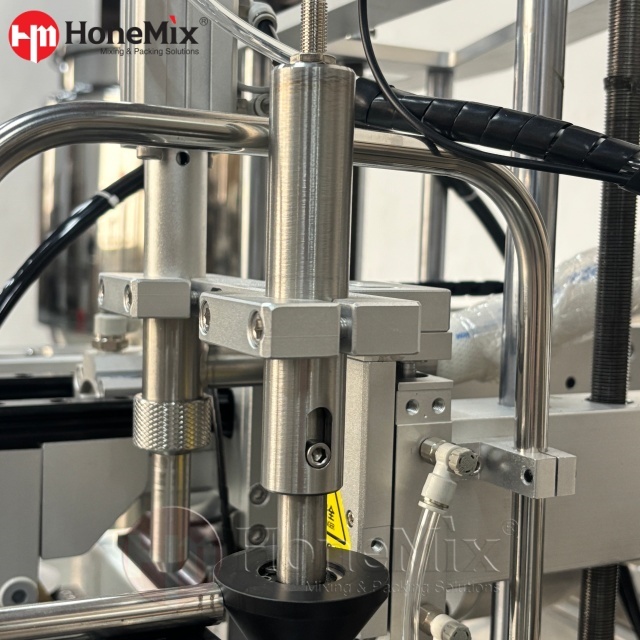

This Ultrasonic Tube Sealer uses electronically controlled sealing parameters to produce dependable seals on plastic and laminated tubes. Ultrasonic sealing supports clean sealing performance and helps reduce leakage risk while maintaining a neat finished appearance.

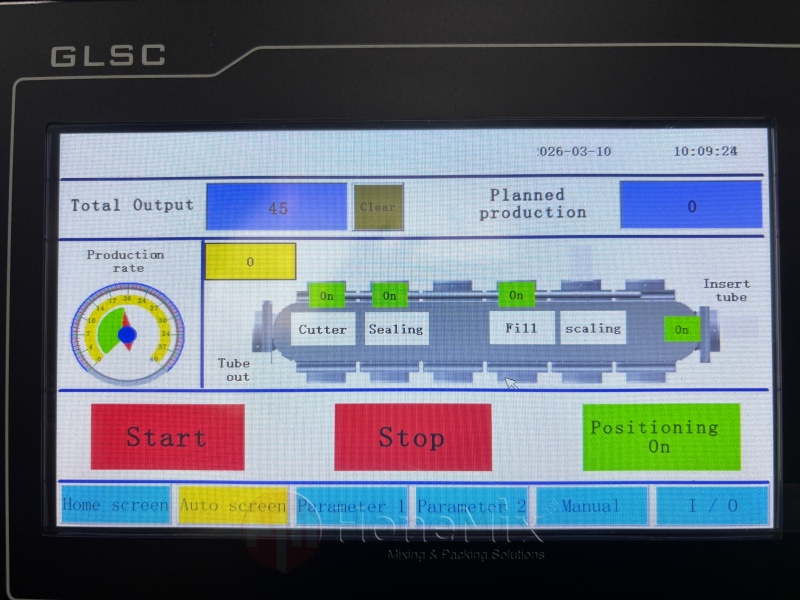

The PLC control system with a 7-inch or 10-inch color touch screen allows operators to adjust filling volume, sealing conditions, code information, and speed-related settings from one interface. Multi-parameter storage also supports quicker product changeovers and more efficient multi-SKU production.

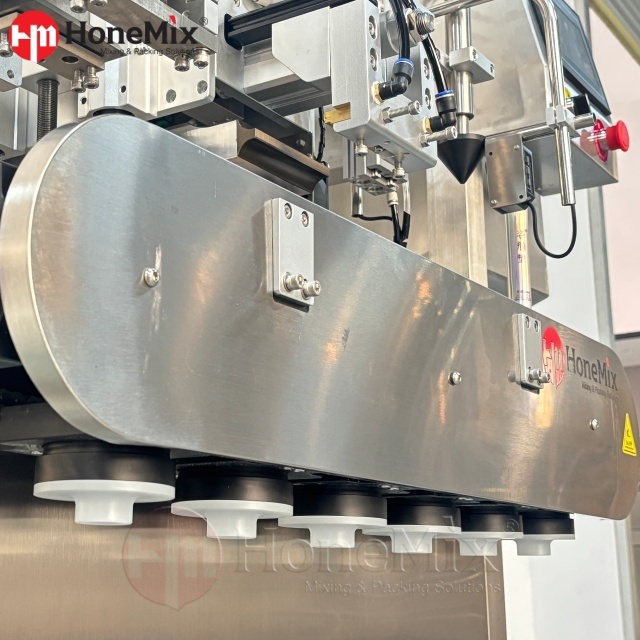

The main machine body is built from AISI 304 stainless steel, while product-contact components are made from AISI 316 stainless steel. This combination supports corrosion resistance, easier cleaning, and higher hygiene expectations in cosmetics, food, and pharmaceutical production.
This Laminated Tube Filling Machine is suitable for a broad range of products packed in PE, PP, and laminated tubes. The applications include:
Cosmetics
Pharmaceuticals
Daily care / personal care
Food
Animal care
Specialty chemical products
Facial creams
Lotions
Gels
Facial masks
Hair care products
Ointments
Topical medicines
Toothpaste and dental gels
Hand sanitizers
Body lotions
Honey
Jam
Sauces
Adhesives
Lubricating gels
Pet care ointments and gels
Parameter | Specification |
|---|---|
Machine Type | Automatic linear ultrasonic tube filling and sealing machine |
Applicable Tube Materials | PE, PP, laminated tubes, including polyfoil tubes |
Filling Volume Range | 10–250 ml |
Filling Accuracy | ≤ ±1% of set volume |
Sealing Technology | Ultrasonic sealing |
Coding Function | Single-side or double-side coding, customizable content |
Production Capacity | Up to 12 tubes/min |
Tube Size Adaptation | Standard plastic and laminated tube calibers; special sizes customizable |
Power Supply | 220V/380V, 50/60Hz |
Air Pressure | 0.6–0.8 MPa |
Dimensions | 1500 × 800 × 1600 mm |
Net Weight | 350 kg |
Control System | PLC controller + 7/10-inch color touch screen |
Machine Body Material | AISI 304 stainless steel |
Product Contact Material | AISI 316 stainless steel |
Hygiene Level | Food / pharmaceutical grade |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
HONEMIX positions itself as a manufacturer focused on cosmetic, food, and pharmaceutical equipment, with broader capability in complete production lines and turnkey project support. We are not just a supplier that provides a standalone machine, but also a supplier that supports process matching, production line layout, installation, and large-scale planning.
It is designed for PE, PP, and laminated tubes, including polyfoil tube types. This makes it suitable for many cosmetics, pharmaceutical, food, and daily care packaging projects.
A 10–250 ml filling range with ≤ ±1% filling accuracy, which helps control waste and improve batch-to-batch consistency.
Yes. It for small and medium-sized production batches, laboratory trials, and regular production use where flexibility and stable packaging quality are important.
Yes. The PLC system with color touch screen allows operators to set and store process parameters, making product changes easier and improving repeatability when running different SKUs.
We offer support including installation, commissioning, training, maintenance assistance, spare parts supply, and technical response.
If you are sourcing an Automatic Tube Filling Machine that can deliver reliable sealing, accurate dosing, hygienic construction, and easier maintenance, this HONEMIX model is a strong option for flexible tube packaging projects.
Send us your tube type, filling volume, product sample, target output, and electrical standard, and our team will help you confirm compatibility, recommend the right configuration, and prepare a quotation for your production needs.
