HONEMIX HY-A100 Automatic Tube Filling and Cartoning Machine is an integrated automatic tube filling and cartoning solution designed for manufacturers that need higher packaging efficiency, stable filling quality, and a more streamlined production workflow. It combines tube feeding, filling, sealing, coding, and cartoning in one coordinated line, helping cosmetic, pharmaceutical, and personal care brands reduce manual handling while improving output consistency.
It is a practical tube packaging line built for factories that want better hygiene, more reliable product presentation, and a scalable production process that supports long-term brand growth.
| Quantity: | |
|---|---|
HY-A100
HONEMIX

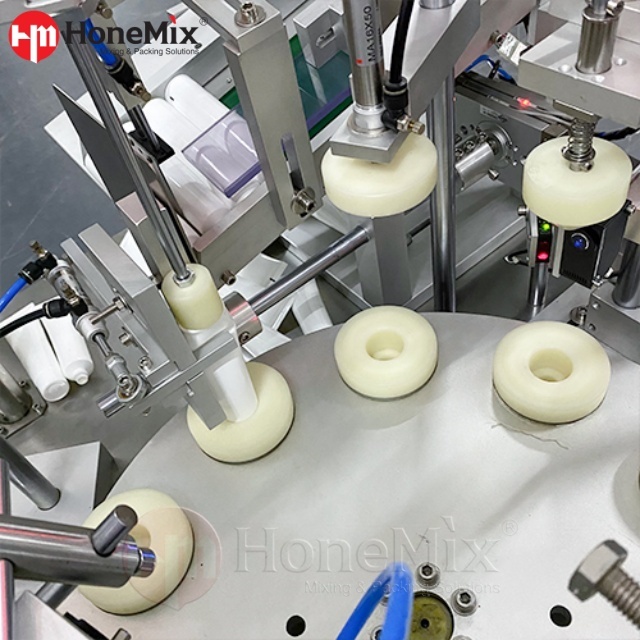

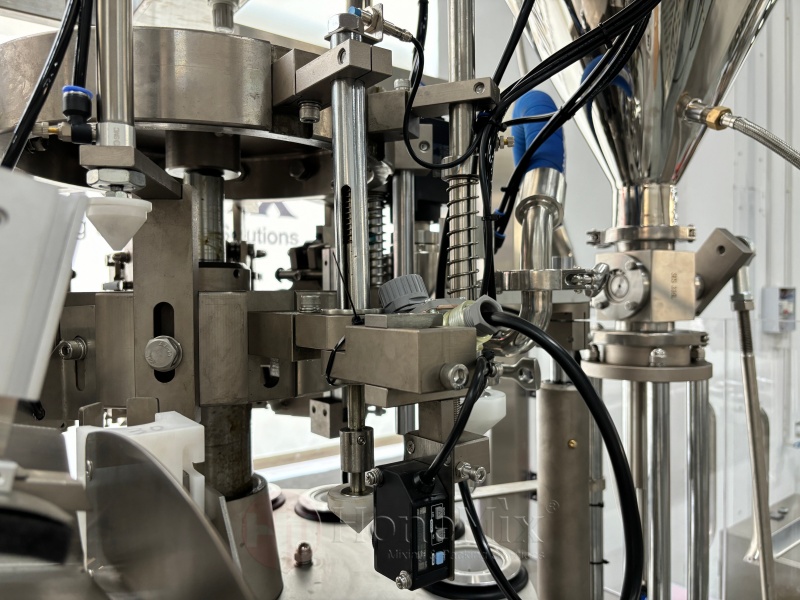

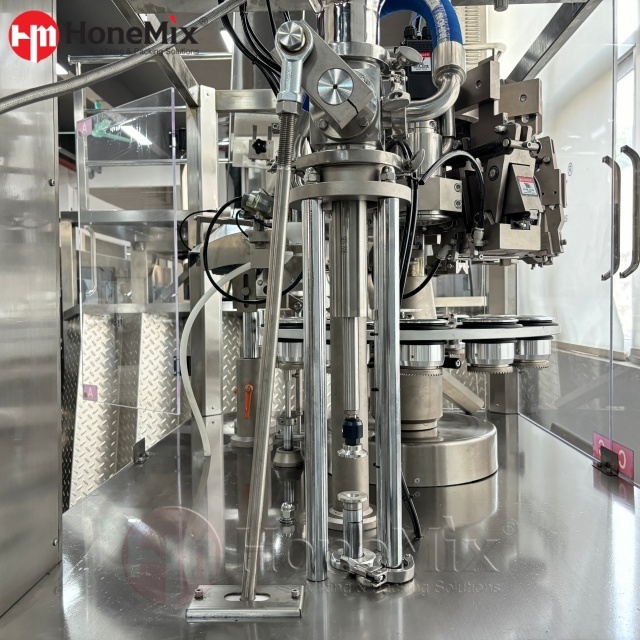

The HY-A100 Automatic Tube Filling and Cartoning Machine is developed for tube-based products that require both reliable primary packaging and efficient secondary packaging. The system completes automatic tube washing, feeding, mark detection, filling, sealing or folding, coding, discharge, and downstream cartoning within one integrated process.
This machine is especially suitable for manufacturers seeking a higher level of automation without the complexity of building a fully custom packaging line from the ground up. It helps improve product consistency, packaging appearance, production efficiency, and workshop organization while supporting a more professional and export-ready manufacturing standard.

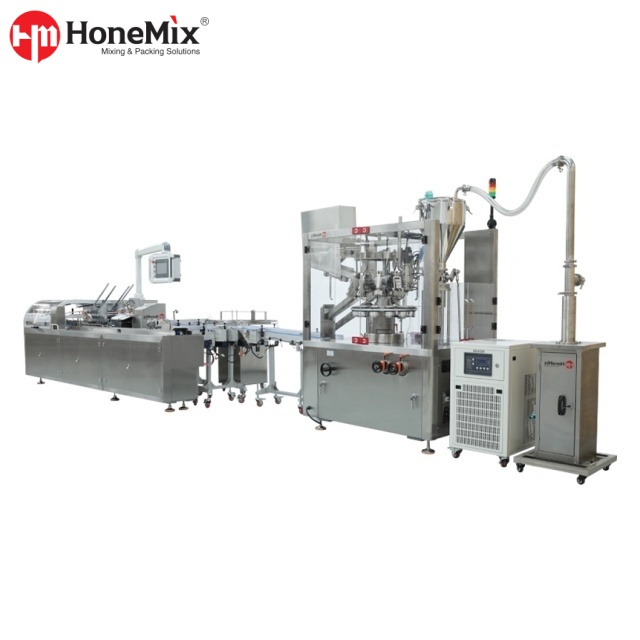

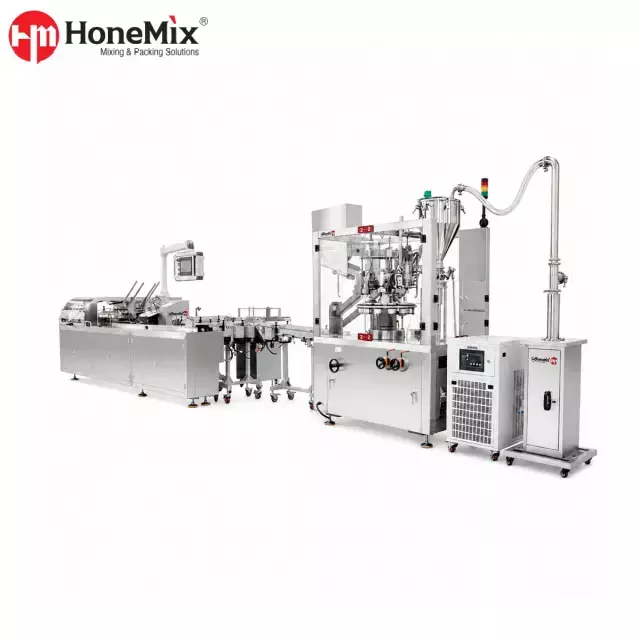

The HY-A100 connects tube filling and box cartoning in one coordinated line, reducing intermediate manual transfer and improving packaging continuity. This structure helps manufacturers reduce labor input while improving the overall packaging rhythm of the production floor.
The filling section uses an intelligent automatic control system, while the cartoning section is equipped with PLC and HMI operation. This combination improves control precision, simplifies parameter adjustment, and helps operators respond quickly to daily production needs.
The filling machine offers a capacity of 4,000–4,800 tubes per hour, while the cartoning machine runs at 90–150 boxes per minute. Adjustable speed control allows the line to match different product viscosities, package formats, and factory output targets.

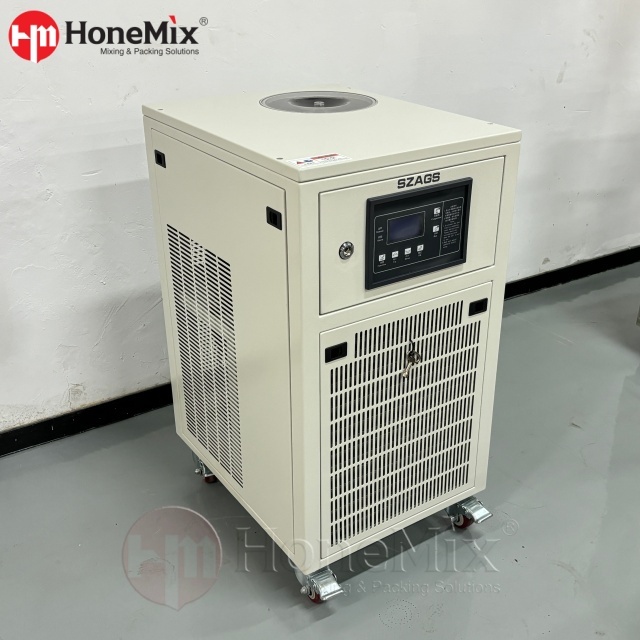

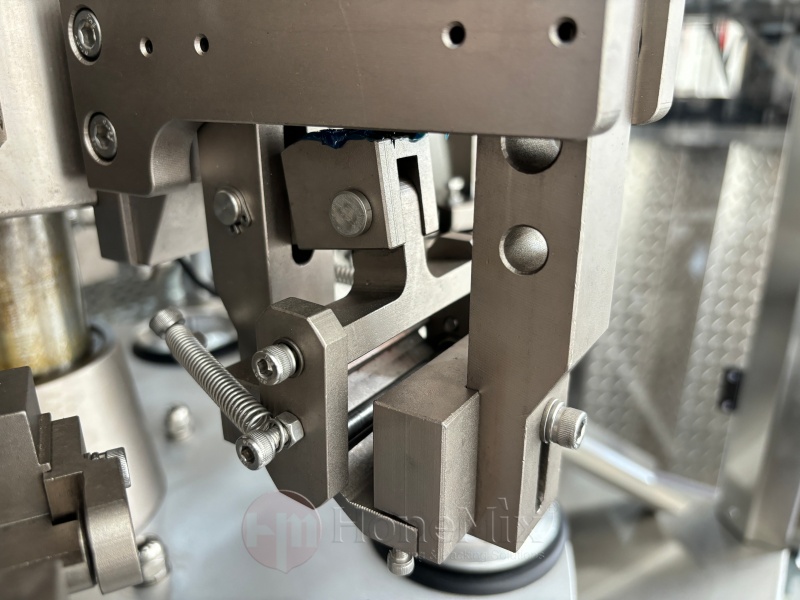

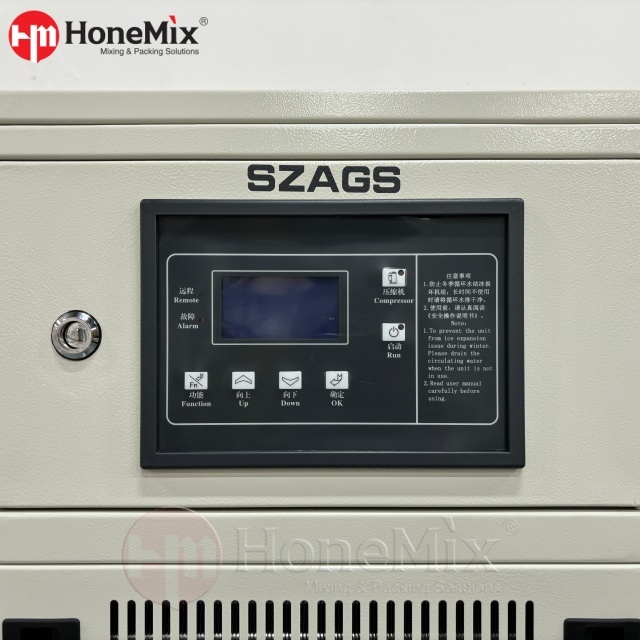

The machine is equipped with an intelligent temperature control and cooling system to support consistent sealing quality. This is especially important for buyers who need reliable seal appearance, low rejection rates, and stable operation across long production runs.
Product-contact parts are made of 316L stainless steel, supporting hygiene, corrosion resistance, and long-term durability. This makes the equipment suitable for applications where cleanliness and material compatibility are essential.

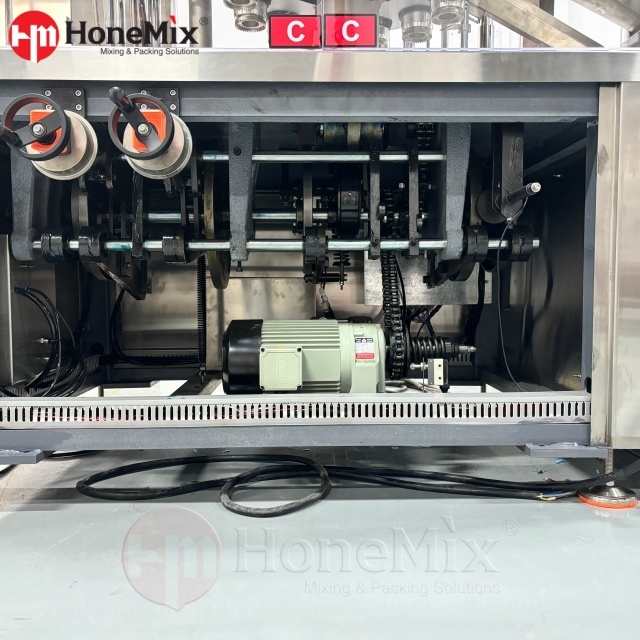

The machine is designed for convenient operation, parameter adjustment, and daily maintenance. Fault display functions and maintenance-friendly mechanical layout help reduce downtime and simplify routine servicing for factory teams.
Industry | Suitable Products | Typical Packaging Purpose |
|---|---|---|
Cosmetics | Facial Cream, Hand Cream, Essence Gel, Beauty Ointment | Retail tube filling, sealing, coding, and cartoning |
Pharmaceuticals | Ointment, Gel, Medical Cream, Topical Paste | Accurate filling and hygienic tube packaging |
Personal Care | Toothpaste, Skin Care Cream, Functional Gel | Consistent product filling and branded carton packaging |
Daily Chemical | Cleaning Gel, Protective Cream, Specialty Chemical Paste | Automated tube packaging for stable daily output |

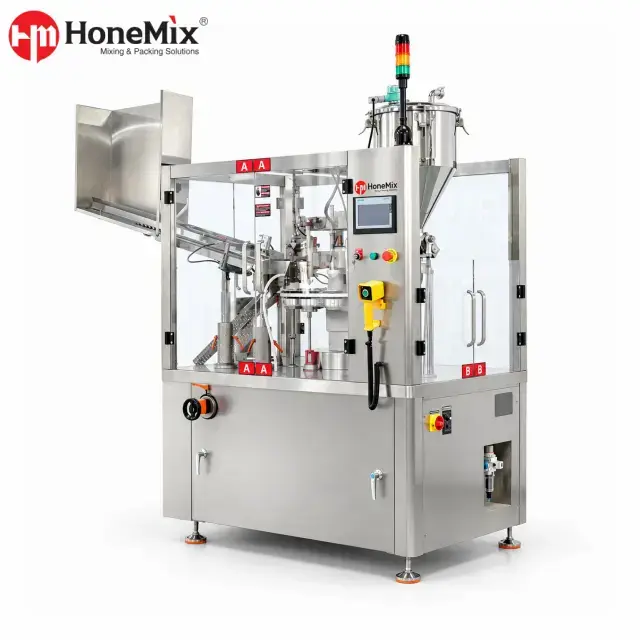

Parameter | Specification |
|---|---|
Model | HY-A100C |
Filling Volume | 1–400 ml/unit |
Filling Accuracy | ≤ ±0.5% |
Production Capacity | 4,000–4,800 units/hour |
Applicable Tube Diameter | Φ10–60 mm |
Applicable Tube Length | 50–240 mm |
Hopper Volume | 40 L |
Power Supply | 380V / 220V (optional) |
Air Pressure | 0.4–0.6 MPa |
Machine Power | 9 kW |
Tube Types | Plastic, Composite, Laminated, Aluminum |
Parameter | Specification |
|---|---|
Cartoning Capacity | 90–150 boxes/min |
Applicable Carton Size | Max 200 × 80 × 60 mm / Min 50 × 20 × 15 mm |
Applicable Leaflet Size | Max 260 × 190 mm / Min 100 × 100 mm |
Carton Paper Spec | 250–300 g/m² |
Leaflet Paper Spec | 55–65 g/m² |
Air Consumption | 20 m³/h |
Air Pressure | 0.50–0.7 MPa |
Motor Power | 1.5 kW |
Power Supply | 380V 50Hz |
Overall Dimension | 3600 × 1200 × 1600 mm |
Machine Weight | 1200 kg |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
HONEMIX provides not only stand-alone machines but also complete production line solutions for cosmetic, pharmaceutical, and personal care manufacturers.
We can customize the machine configuration based on your tube size, filling range, carton dimensions, production target, and workshop layout.
Strict quality control, durable machine construction, and reliable core components help ensure stable long-term production performance.
316L stainless steel contact parts, precise filling control, and stable sealing performance help support cleaner production and more consistent final products.
HONEMIX provides installation guidance, commissioning support, operator training, maintenance assistance, and responsive technical service for international buyers.
This machine is suitable for plastic tubes, composite tubes, laminated tubes, and aluminum tubes, giving manufacturers greater flexibility across different product lines.
The filling accuracy is ≤ ±0.5%, which helps reduce material waste and improves batch-to-batch consistency.
Yes. The HY-A100 is an integrated solution that combines tube filling, sealing, coding, and automatic cartoning in one coordinated packaging line.
Yes. It is suitable for cosmetics, pharmaceuticals, personal care products, and daily chemical products packed in tubes.
No. The HY-A100 is mainly designed for tube filling, sealing, and cartoning. Vacuum mixing or homogenizing is usually handled by upstream processing equipment.
Looking for a reliable Automatic Tube Filling Machine and Tube Cartoning Machine for your factory?
Tell us your tube diameter range, filling volume, target output, carton size, and product type. HONEMIX will recommend the most suitable configuration for your production needs and provide a professional tube packaging solution tailored to your factory.
