KH-AFM 10-Head Lipstick Filling Machine for Silicone Molds

KH-AFM 10-Head Lipstick Filling Machine for Silicone Molds Overview

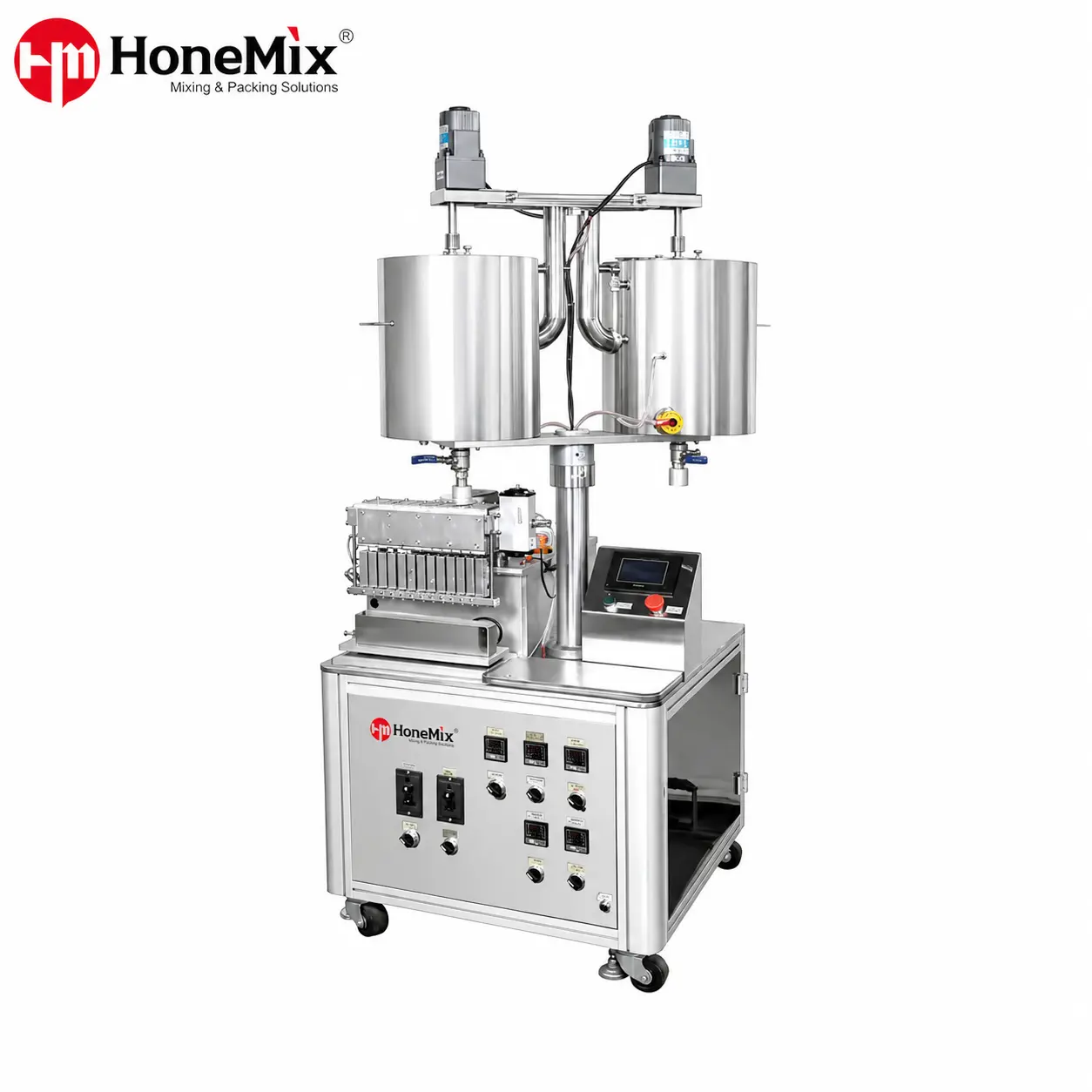

The HONEMIX KH-AFM is a heated 10-head lipstick filling machine developed for dispensing molten lipstick material into 10-cavity silicone molds.

This lipstick mold filling machine combines ten filling nozzles, piston-based volumetric dosing, dual heated hoppers and an adjustable filling-head assembly. It helps cosmetic manufacturers improve filling consistency while reducing the repeated manual work involved in pouring lipstick material cavity by cavity.

The standard filling range is 1-14 mL per piece, with a listed maximum filling volume of 20 mL. The stated filling accuracy is +/-0.1 mL, and the reference production speed is approximately 30-60 pieces per minute, depending on the formula, filling temperature, dose size and mold-handling method.

Send HONEMIX your silicone mold drawing, filling volume, lipstick working temperature and required output for a configuration review and quotation.

Core Features And Advantages

1. 10-Head Filling for Silicone Lipstick Molds

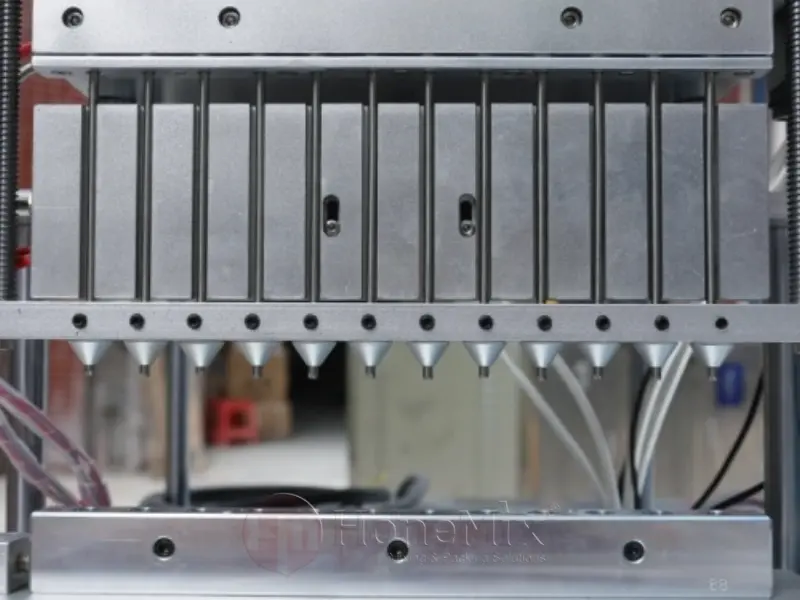

The KH-AFM is equipped with ten filling nozzles for filling a corresponding 10-cavity silicone lipstick mold in one cycle. Compared with manual cavity-by-cavity pouring, the multi-head design helps improve production efficiency and filling consistency.

For existing molds, HONEMIX can review the cavity spacing, mold dimensions and filling position before confirming the machine configuration.

2. Dual Heated Hoppers

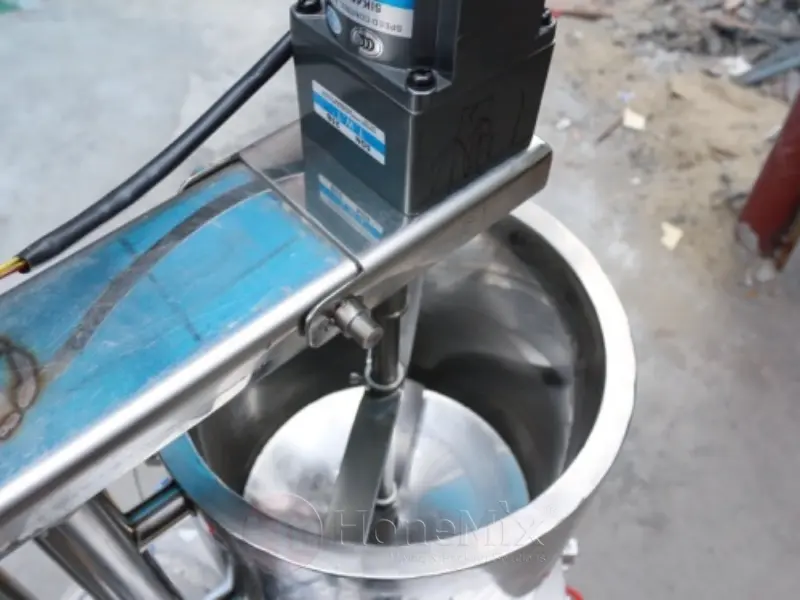

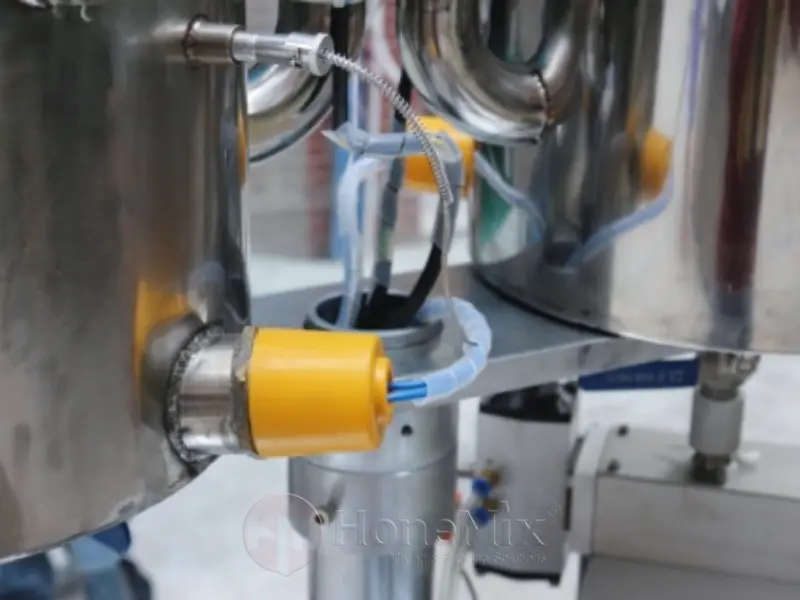

Two 20 L double-jacketed hoppers with oil-bath heating keep the lipstick material at a stable working temperature during filling.

The temperature control range is 0-180°C, with a typical operating range of 80-120°C. The heated hopper system helps maintain material flow and supports more stable dispensing of wax- and oil-based lipstick formulas.

3. Piston Volumetric Filling

The machine uses a piston-based volumetric filling system with the accuracy of ±0.1 mL.

This filling method provides repeatable dosing across multiple mold cavities and helps reduce filling variation and material waste. Final accuracy depends on the lipstick formula, filling temperature, target volume and nozzle configuration.

4. Flexible Filling Range

The standard filling range is 1-14 mL per cavity, with the maximum filling volume of 20 mL.

The machine can be used for:

• Standard lipstick bullets

• Mini lipstick

• Sample and travel-size lipstick

• Other molded wax-based cosmetic products, subject to testing

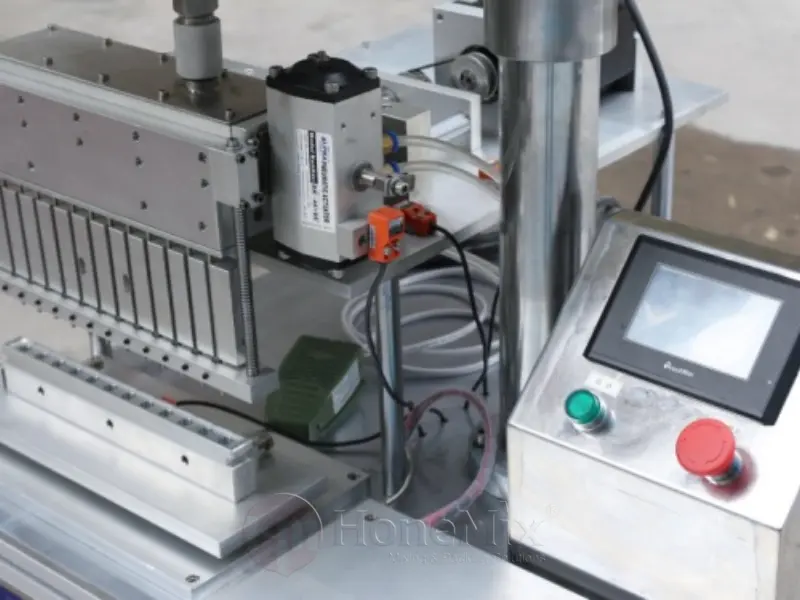

5. Manual and Semi-Automatic Operation

The KH-AFM supports manual and conveyor-assisted semi-automatic operating modes.

Available cycle-control options include foot-pedal and timed operation, allowing manufacturers to select a workflow based on mold format, production volume and labor arrangement. For projects requiring automatic mold loading, cooling, demolding or tube assembly, additional equipment can be integrated into the production line.

6. Adjustable Filling Head

The filling-head assembly can be raised or lowered to accommodate different mold, holder or container heights.

This adjustment simplifies product changeovers and allows the machine to be configured for different filling formats, subject to mold and nozzle compatibility.

7. Compact One-Operator Design

With machine dimensions of 800 × 750 × 1745 mm, the KH-AFM is suitable for small and medium cosmetic production areas.

The machine is designed for one-person operation and can be positioned between upstream lipstick melting or holding equipment and downstream cooling equipment.

8. Production Output

The production speed is approximately 30-60 pieces per minute.

Actual output depends on:

• Filling volume

• Formula viscosity

• Material temperature

• Mold-loading method

• Cooling workflow

• Operator setup

For an accurate configuration recommendation, you can provide the mold drawing, filling volume, working temperature, target output and factory power supply.

Typical Applications

Position in a Lipstick Production Line

The KH-AFM can be used as the filling section of a semi-automatic lipstick production line.

A typical process includes:

Raw Material Weighing
→ Wax and Oil Melting
→ Pigment Mixing and Homogenization
→ Heated Material Holding
→ KH-AFM Lipstick Mold Filling
→ Controlled Cooling
→ Demolding
→ Lipstick Tube Assembly
→ Appearance and Weight Inspection
→ Coding
→ Final Packing

Filling and cooling should be planned together because the following factors can affect the finished lipstick surface and shape:

• Filling temperature

• Mold temperature

• Cooling temperature

• Cooling time

• Formula shrinkage

• Mold cavity design

• Demolding method

• Ambient workshop temperature

If you plan to set up a complete lipstick production line, the KH-AFM can be integrated with upstream melt-mixing equipment and downstream lipstick cooling equipment.

Technical Parameters

Actual output and filling accuracy depend on formula viscosity, material temperature, filling volume, mold condition, nozzle configuration, operating mode and operator setup. Sample testing is recommended when the you have strict filling tolerances or a special lipstick formula.

Information Required for a Lipstick Filling Equipment Quote

To recommend a suitable machine configuration and provide an accurate quotation, please send:

1. Product type and formula description

2. Lipstick melting point

3. Target filling temperature

4. Filling volume per cavity

5. Material viscosity at filling temperature

6. Silicone mold drawing or physical sample

7. Mold dimensions and cavity spacing

8. Mold height and cavity depth

9. Required production speed

10. Working hours per shift

11. Number of shade changes per day

12. Preferred operating method

13. Factory voltage, frequency and phase

14. Downstream cooling method

15. Available installation space

Providing complete product and mold information can shorten the configuration-confirmation process.

FAQ

1. What Is a 10-Head Lipstick Filling Machine?

A 10-head lipstick filling machine has ten dispensing positions that can fill ten corresponding mold cavities during one operating cycle. The KH-AFM is designed primarily for a 10-hole silicone lipstick mold.

2. Can This Lipstick Mold Filling Machine Use Our Existing Mold?

It may be possible, but the mold must be checked for cavity spacing, overall dimensions, mold height, filling depth and nozzle position. Send a drawing or physical mold sample before quotation.

3. What Is the Filling Range?

The documented standard filling range is 1-14 mL per piece. The listed maximum filling volume is 20 mL. The practical range depends on the lipstick formula and filling temperature.

4. What Is the Production Speed?

The stated production speed is approximately 30-60 pieces per minute. Actual output depends on dose size, viscosity, temperature, mold loading and operating method.

5. Is the KH-AFM a Fully Automatic Lipstick Filling Machine?

No. This piece of machinery operates in a semi-automatic mode, utilizing manual input supplemented by a conveyor belt. In contrast, a fully automatic lipstick production line requires additional equipment for mold transport, cooling, demolding, and assembly.

6. How Does the Machine Keep Lipstick Material Hot?

The machine uses two double-jacketed hoppers with oil-bath heating.

7. How Much Does a Lipstick Filling Machine Cost?

Lipstick filling machine price depends on the mold configuration, nozzle spacing, operating method, electrical standard and optional equipment. Send your mold drawing, filling volume and target output for an accurate quotation.

8. Can HONEMIX Customize the Machine?

We can evaluate and customize the filling head position, mold compatibility, electrical configuration, and operation method based on your project requirements; the final customized solution depends on the molds, product formulation, and required production process.
