Are your tube seals failing under pressure? Weak closures can quickly ruin great products. They lead to messy leaks on retail shelves and costly material waste on the production floor. Because plastic and laminated tubes require highly precise thermal application, an incorrect machine setup is often the hidden culprit behind these recurring failures. In this comprehensive guide, we break down exactly when and why convective heating technology works best to ensure flawless, hermetic closures.

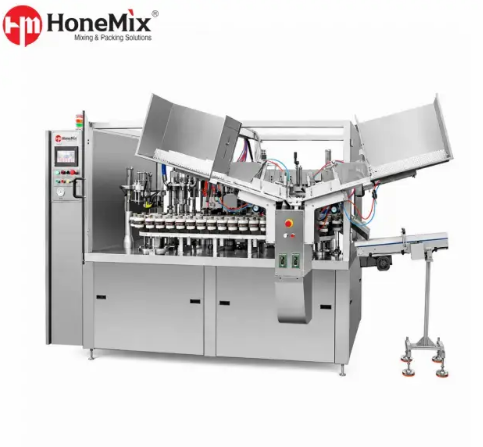

A Hot Air Tube Sealing Machine is a specialized industrial system engineered to close and seal the open ends of flexible packaging. Unlike traditional conduction sealing—which applies brute-force heat directly to the exterior of the tube—hot air technology utilizes a targeted convective heating process. In a practical production setting, a custom-designed nozzle drops directly into the open tail of the container. This nozzle directs a precisely controlled stream of superheated air against the inner walls of the packaging material, rapidly raising the inner polymer layer to its melting point.
Once the internal layer becomes molten, the nozzle retracts swiftly. The tube then immediately indexes to a sealing station. Here, mechanically or pneumatically driven chilled jaws clamp the open end shut. The intense physical pressure from these jaws forces the molten inner layers to interlock and fuse. Simultaneously, the chilled temperature rapidly sets the polymer to create an unbreakable bond. Finally, a trimming station shears the sealed end to ensure a clean, uniform cosmetic appearance.
This internal heating mechanism is a core component of modern automated packaging lines. It handles the entire lifecycle seamlessly, from loading empty tubes and injecting viscous creams to sealing and ejecting the finished item. By heating exclusively from the inside out, the exterior remains completely unaffected. This vital thermal management preserves the structural integrity of the packaging and protects sensitive external graphics, branding, and text from heat distortion or unsightly scorching.
 |  |  |
When evaluating tube closure technologies, production managers typically choose between hot air, ultrasonic, and high-frequency (radio frequency) sealing. Each method relies on a fundamentally different physical principle to achieve a hermetic seal. Ultimately, selecting the correct technology depends heavily on the packaging substrate and your facility's specific throughput requirements.
While hot air systems use convective heat applied to the interior, ultrasonic equipment generates high-frequency mechanical vibrations that create localized friction to melt the plastic. In contrast, high-frequency sealing uses electromagnetic energy to excite molecules within specific materials. This makes it the go-to choice primarily for pure aluminum metals or highly specialized laminates.
Feature | Hot Air Sealing | Ultrasonic Sealing | High-Frequency Sealing |
|---|---|---|---|
Heating Mechanism | Internal hot air stream | Mechanical friction (vibration) | Electromagnetic excitation |
Best Suited For | Plastic (PE, PP) & Laminates | Mono-layer Plastic tubes | Aluminum & specialized laminates |
Production Speed | High (Up to 100+ tubes/min) | Medium (Typically 30-50 tubes/min) | Medium to High |
Seal Appearance | Excellent, no external distortion | Good, but can leave tooling marks | Excellent for metals |
Empirical data from the factory floor indicates that convective thermal technology offers the most consistent performance for standard cosmetic, pharmaceutical, and chemical packaging. Although ultrasonic machines are highly energy-efficient and can power through product contamination in the seal area, they frequently struggle to match the high-speed output and flawless cosmetic finish provided by hot air setups.
Thermoplastic polymers, predominantly Polyethylene (PE) or Polypropylene (PP), possess unique thermodynamic properties that make them ideal candidates for internal heating. These materials have distinct melting points. Typically, PE melts around 115°C to 135°C, while PP requires slightly higher temperatures, ranging from 130°C to 171°C.
If an operator attempts to seal a standard plastic tube using external conductive heat—such as basic heated crimping jaws—the thermal energy must travel through the outer wall of the tube to reach the inner sealing surfaces. This clumsy thermal transfer often causes the exterior plastic to melt, stick to the metal jaws, and deform entirely. The resulting closure is structurally weak and visually unacceptable for retail display.
A dedicated Plastic Tube Filling and Sealing Machine circumvents this issue entirely. By delivering heat exclusively to the interior surface via the specialized nozzle, the exterior wall of the tube remains well below its melting threshold. The outer layer essentially acts as an insulating barrier during the heating phase. When the chilled jaws subsequently clamp down, the external surface remains pristine while the internal molten layers fuse perfectly. For instance, systems operating at 60 tubes per minute can seamlessly handle filling volumes from 5ml to 250ml, ensuring high burst strength and preventing any degradation of the external printed graphics.
Furthermore, laminated tubes combine the benefits of multiple materials, offering superior barrier properties to protect sensitive formulations from oxygen, moisture, and UV light degradation. These complex structures generally fall into two categories: Aluminum Barrier Laminate (ABL) and Plastic Barrier Laminate (PBL). Sealing them requires incredibly strict control over thermal dynamics.
PBL structures consist entirely of plastic layers. They usually feature an EVOH (Ethylene Vinyl Alcohol) core for barrier protection, sandwiched securely between PE layers. Convective air works exceptionally well here because the internal PE sealant layer reacts similarly to a standard mono-layer tube. The system efficiently melts the inner PE layer without compromising the delicate EVOH barrier.
In contrast, ABL tubes present a unique thermodynamic challenge. They contain a thin layer of aluminum foil integrated into the polymer matrix. Because aluminum is a highly efficient thermal conductor, applying heat to the inner polymer layer causes the aluminum to rapidly draw that heat away from the seal zone and up the body of the tube. If not properly calibrated, this rapid dissipation prevents the inner polymer from reaching its required melting point. To counteract this, investing in a specialized Laminated Tube Filling Machine is essential. Advanced models are configured with optimized airflow rates, precise nozzle designs, and exact dwell times to ensure the inner layer melts faster than the aluminum can steal the heat.

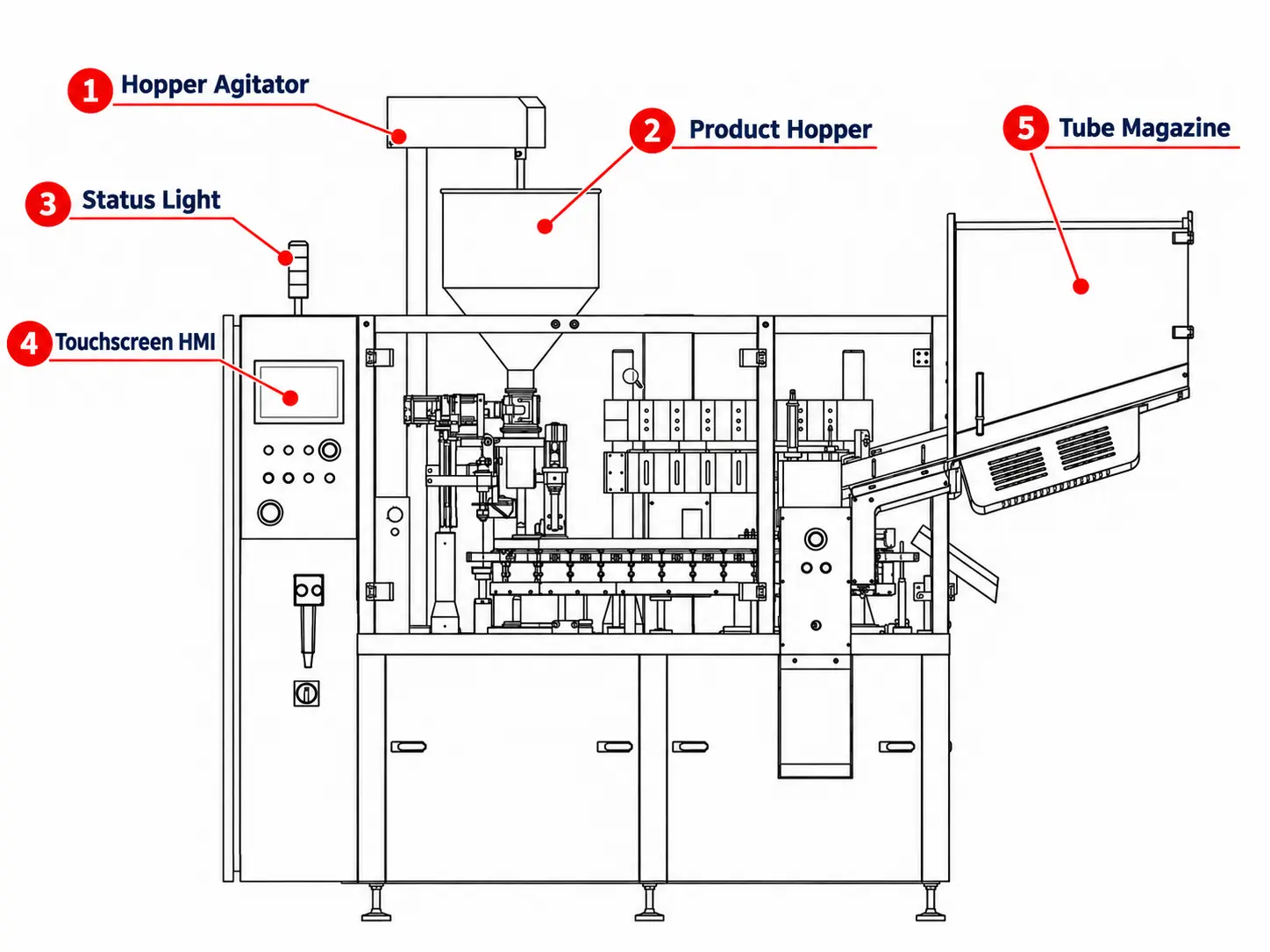

To fully understand why this system excels, it is necessary to examine the core architecture of the sealing module. It is a highly synchronized assembly of mechanical and thermodynamic components working in perfect unison.
The Custom Heating Nozzle is the most critical tool in the assembly. Engineered from robust stainless steel, it enters the tube just before the sealing station. It features specific exhaust ports designed to direct superheated air laterally against the inner walls rather than downward into the product. The geometry of the nozzle must precisely match the tube's diameter to prevent weak spots that lead to leakage.
Industrial-grade blowers generate a consistent volumetric flow of air, passing it through a high-wattage electrical heating element. PID (Proportional-Integral-Derivative) controllers constantly monitor the temperature via thermocouples. This ensures the heat remains stable within tight tolerances regardless of ambient factory drafts or temperature drops.
Once the inner layers are sufficiently melted, the tube indexes to the Crimping and Cooling Jaws. Driven pneumatically or by servo motors, these jaws apply exact pressure. Crucially, they are plumbed with a chilled water circulation system. This rapid transition from extreme heat to active cooling crystallizes the polymer instantly, finalizing the hermetic bond without allowing the plastic to warp or stick to the tooling.
After clamping, the top edge is often uneven. A precision cutting blade at the Trimming and Coding Station shears off the excess material, providing a straight, clean edge that meets retail presentation standards. Many systems also feature interchangeable steel type characters within the jaws to emboss batch numbers and expiration dates directly into the seal while the plastic is still malleable.
Achieving a flawless, leak-proof closure is not a matter of chance. It is the direct result of balancing three operational pillars: Temperature, Time, and Pressure. A deviation in any of these variables will immediately impact packaging integrity.
The air temperature must be high enough to achieve a thorough melt of the inner sealant layer but low enough to prevent blistering. Typical hot air temperatures range from 250°C to 450°C at the heater, though the actual temperature reaching the plastic is much lower. The ideal setpoint depends heavily on material thickness.
Dwell time refers to the duration the nozzle remains inside the tube and the time the cooling jaws remain clamped. In high-speed production, dwell times are measured in fractions of a second. If machine speed increases, dwell time decreases, necessitating a proportional increase in temperature to deliver the same thermal energy.
The clamping pressure must be sufficient to squeeze out trapped air and force the polymer chains to interlock. Insufficient pressure leads to micro-leaks, while excessive pressure can thin out the seal area, structurally weakening the tube end.
Tube Material | Typical Heater Temp (°C) | Airflow Rate | Jaw Cooling Temp (°C) |
|---|---|---|---|
Mono-layer PE | 250 - 300 | Medium | 10 - 15 |
Mono-layer PP | 280 - 330 | Medium to High | 10 - 15 |
PBL (Plastic Laminate) | 270 - 320 | Medium | 10 - 15 |
ABL (Aluminum Laminate) | 320 - 400 | High | 8 - 12 |
(Note: Exact parameters must be validated through empirical testing on specific equipment and materials.)
Even with sophisticated equipment, variables in ambient factory conditions, material batches, or machine wear can introduce defects. For instance, when an operator notices "angel hair" strings of plastic on the line, immediate action is required. Identifying the physical characteristics of a failed seal allows maintenance teams to apply objective troubleshooting protocols rather than guessing.
Pinholing and micro-leaks are tiny gaps often invisible to the naked eye, yet they fail during vacuum leak testing. Pinholes typically occur when the inner layer does not reach a sufficient melt state. The standard corrective action is to incrementally increase the hot air temperature or decrease the machine speed to increase dwell time.
If the seal area appears bubbled, discolored, or warped, the plastic has absorbed excessive thermal energy, leading to scorching or blistering. Troubleshooting involves lowering the temperature, increasing the airflow to prevent heat accumulation, or ensuring the cooling jaws are operating at the correct chilled temperature.
Stringing, or "angel hair," presents as microscopic threads of plastic stretching from the seal. It usually happens when molten plastic sticks to the nozzle as it retracts. Adjusting the nozzle retraction speed, increasing the upward exhaust vacuum, or slightly lowering the temperature can mitigate this issue.
When the seal is crooked or features sharp, protruding corners, the issue is mechanical. Operators must recalibrate the tube orientation sensors, adjust the alignment of the clamping jaws, or verify that the holding pucks are securing the packaging firmly.
Defect Characteristic | Primary Root Cause | Recommended Corrective Action |
|---|---|---|
Weak or Peeling Seal | Insufficient heat or pressure | Increase nozzle temperature; check jaw pneumatic pressure; verify heating time. |
Uneven Seal Thickness | Misaligned cooling jaws | Recalibrate jaw alignment; check for uneven wear on jaw serrations. |
Plastic Sticking to Jaws | Inadequate cooling process | Check chilled water flow and temperature; verify Teflon coating on jaws. |
Looking at recent packaging industry trends, there is a massive shift toward sustainable, mono-material plastic tubes designed for 100% recyclability. As global brands move away from complex mixed-material packaging to meet stringent environmental regulations, convective sealing technology is becoming even more critical. Mono-materials often have narrower melting windows compared to traditional blends. Consequently, they demand the precise, internal thermal application that only advanced hot air systems can provide.
This shift aligns with a broader industry push toward smart automation. Real-time temperature monitoring, data logging, and automated reject systems are no longer just compliance requirements; they are essential features for maintaining high yields with eco-friendly resins.
In pharmaceutical applications, equipment must also comply with Good Manufacturing Practices (GMP). Validation of the process involves Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ). Because hot air technology provides highly repeatable thermodynamic conditions, it is generally straightforward to validate compared to methods that rely heavily on mechanical friction.
Selecting the correct sealing machinery requires a pragmatic evaluation of a facility's production volume and operational goals. Over-specifying equipment leads to unnecessary capital expenditure, while under-specifying creates immediate production bottlenecks.
For low-volume or pilot-scale operations producing fewer than 30 items per minute, semi-automatic machines or entry-level rotary systems are usually sufficient. They offer high flexibility for frequent changeovers between different sizes, making them ideal for contract manufacturers handling small, diverse batches.
For medium to high-volume production (60 to 100+ units per minute), fully automated rotary or linear systems are mandatory. At these speeds, the precision of thermal delivery becomes exponentially more critical. High-speed machines often utilize dual-nozzle stations or pre-heating stations to gradually raise the polymer's temperature, ensuring a perfect melt without extending the overall cycle time.

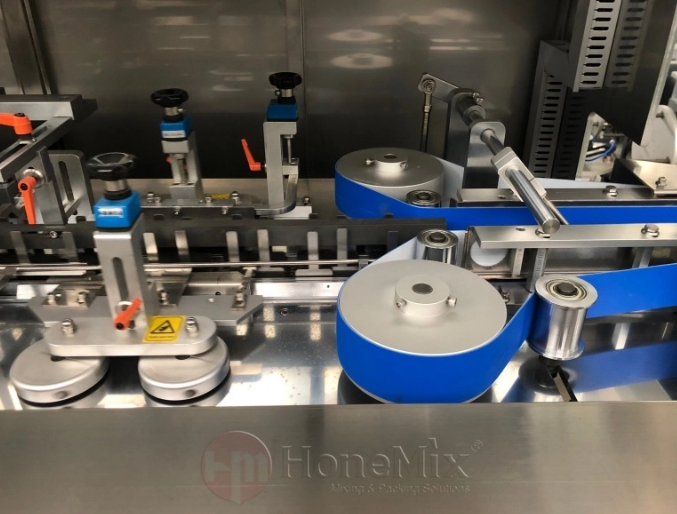

In a commercial manufacturing environment, the sealing process does not occur in a vacuum. It is the final critical step in a continuous packaging line. To achieve optimal efficiency, the hot air module must be perfectly synchronized with the upstream dosing and filling stations.

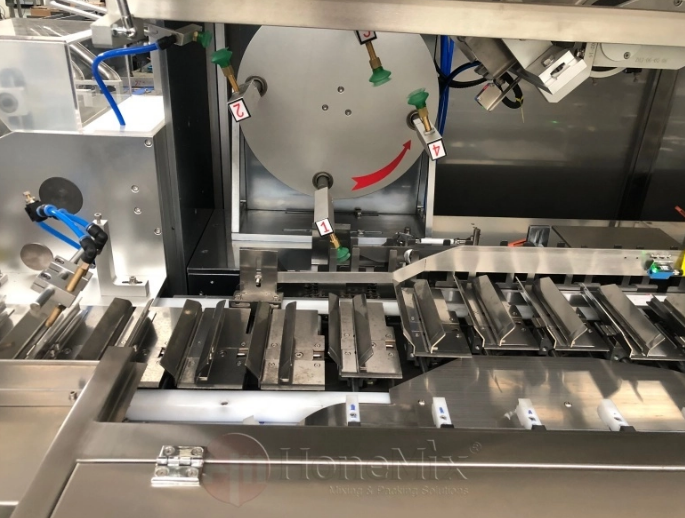

Advanced automatic tube filler and sealer systems utilize servo-driven indexing to provide smooth acceleration and deceleration. This keeps viscous products, like heavy pharmaceutical ointments, settled at the bottom of the tube before the heating nozzle descends. If the index table moves too abruptly, the product may splash upward, contaminating the seal area and causing immediate failure.
Integration also involves sophisticated sensor arrays. Photoelectric sensors detect the registration mark on the tube, rotating it to the correct orientation before filling. If upstream sensors detect a missing tube or an incorrect fill volume, the PLC will automatically disable the hot air nozzle for that specific index, preventing wasted energy and avoiding blowing superheated air into an empty plastic puck.
For a manufacturing facility to realize a strong return on investment, the equipment must operate reliably over a long lifespan. Implementing a structured preventive maintenance schedule is far more cost-effective than reacting to unexpected downtime.
Daily maintenance should focus on cleanliness. Operators must inspect the nozzles at the end of every shift. Because the nozzle enters the packaging directly after the filling station, there is a risk of product splashing onto the heating element. Cleaning the nozzles with approved solvents and soft wire brushes prevents carbonization, which would otherwise restrict airflow.
Weekly protocols require examining the mechanical systems. Technicians should verify the integrity of the Teflon coatings on the sealing jaws. Once this non-stick layer begins to degrade, aesthetics will immediately suffer. Monthly maintenance involves calibrating the PID temperature controllers against external thermometers and flushing the chilled water system to prevent mineral scale buildup.
Beyond technical specifications, decision-makers must analyze the Total Cost of Ownership (TCO) and the resulting Return on Investment (ROI). The initial capital expenditure of a convective system is generally moderate—often less expensive than high-end ultrasonic sealers, but slightly more complex than basic heated-jaw machines.
The true financial benefit lies in operational efficiency and exceptionally low reject rates. Because the outer layer is not subjected to extreme thermal stress, cosmetic damage is practically eliminated, directly saving material costs. Furthermore, digital temperature and airflow parameters can be saved as recipes in the PLC, reducing changeover downtime from hours to minutes and boosting the facility's overall throughput.
No. This technology is exclusively designed for thermoplastic materials (such as PE, PP, and laminated structures with plastic inner layers) that require melting to fuse. Pure aluminum does not melt at these temperatures and requires a mechanical folding and crimping process to create a secure closure.
The ideal temperature depends heavily on the thickness and composition of the material. Generally, the air generated at the heater ranges from 250°C to 400°C. However, the actual temperature that the inner wall reaches will be significantly lower, precisely hitting the polymer's melting point (usually between 120°C and 160°C).
Product contamination in the seal area (often called "product in the bite") prevents the plastic layers from fusing properly. To prevent this, ensure that the filling nozzles are equipped with positive shut-off valves or blow-off mechanisms to prevent dripping. Optimizing the filling speed and leaving adequate headspace (ullage) at the top of the container is also essential.
Delamination occurs when the applied heat separates the various layers of a laminated structure (e.g., separating the plastic from the aluminum barrier layer) rather than fusing the inner walls together. This is usually caused by excessive heating time or a temperature set too high. Reducing the heat and increasing the cooling jaw pressure often resolves this issue.
The lifespan of the internal heating element depends on usage hours and operating temperatures. In a standard single-shift operation, a high-quality heating element can last anywhere from 6 to 12 months. It is highly advisable to keep spare elements in the facility's inventory to prevent extended downtime.
Seal integrity is typically verified using a vacuum leak tester or a burst tester. In a vacuum test, the sealed tube is submerged in water inside a vacuum chamber; if bubbles appear when a vacuum is drawn, the seal has failed. Burst testing involves injecting air into the tube until it ruptures, ensuring the seal is stronger than the tube wall itself.
Hot jaw sealing applies conductive heat directly to the outside of the tube, which can distort printed graphics and cause the plastic to stick to the tooling. Hot air sealing, however, uses convective heat applied exclusively to the inside of the tube. This melts the inner sealant layer while leaving the outer aesthetic layer completely pristine and unaffected by extreme temperatures.
Ultimately, hot air sealing offers a highly reliable, aesthetically pleasing closure for flexible packaging. It works exceptionally well for plastic and laminated materials, provided operators diligently monitor temperature, time, and pressure settings. By implementing effective daily troubleshooting and proper maintenance routines, manufacturers can prevent costly material waste and ensure consistent production quality. Ready to upgrade your packaging line? Choosing the right equipment tailored to your specific volume and material guarantees your products remain secure from the factory floor to the consumer's hands. Explore industry-leading solutions and find the perfect match for your production needs at Hone Machine today.
