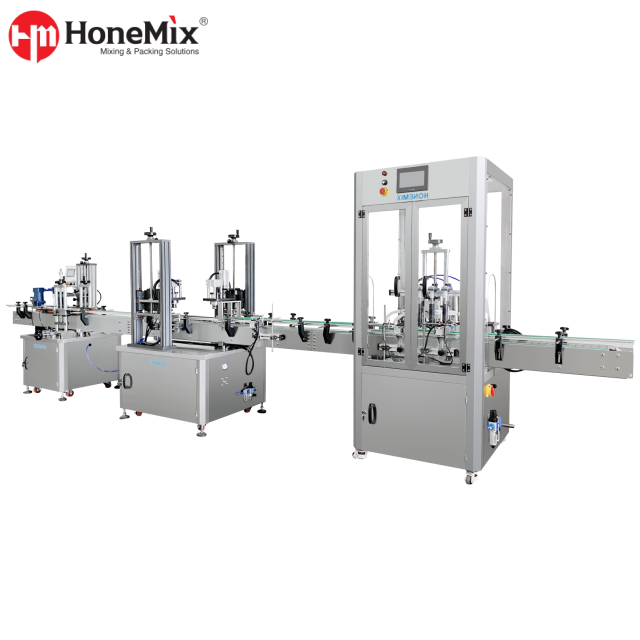

The HONEMIX HPM-APF is an automatic linear perfume filling and crimping line designed for commercial fragrance production using glass bottles with spray pumps or crimp closures.
Unlike compact rotary filling systems, this model uses a straight-line conveyor layout, allowing the filling and closure stations to be arranged sequentially along the production line. The system combines vacuum-assisted perfume filling, bottle transfer and spray-pump crimping to reduce manual handling between packaging stages.
It is suitable for perfume factories, fragrance brands and OEM/ODM manufacturers looking for a scalable perfume bottling line that can be integrated with upstream bottle feeding and downstream labeling or packaging equipment.
| Quantity: | |
|---|---|
HPM-APF
Honemix

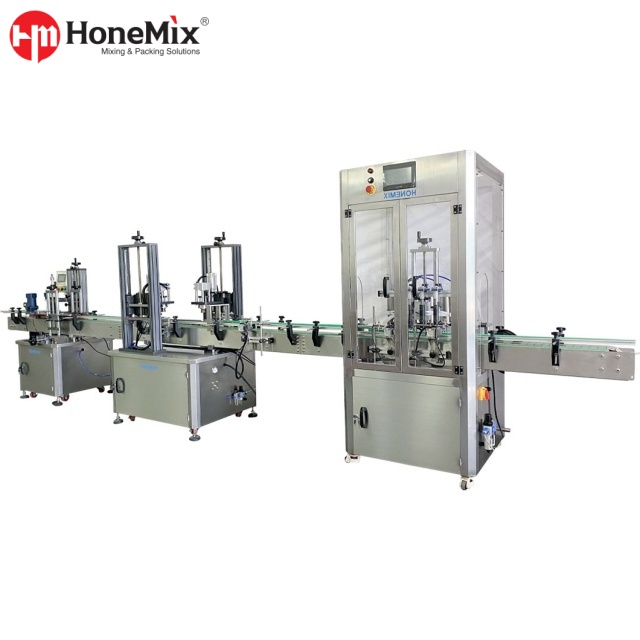

The HPM-APF processes perfume bottles sequentially along a straight conveyor rather than positioning all operations around a rotary indexing table.
A typical configuration includes:
Bottle Infeed → Vacuum Filling → Spray Pump Placement → Crimping → Bottle Discharge
Additional bottle feeding, pump feeding or downstream packaging equipment can be added according to the required automation level.
Perfume bottles enter the machine through a stainless steel conveyor and are guided into the filling position.
The linear layout provides accessible working space around the filling and closure stations and makes it easier to connect the system with other machines in a perfume packaging line.

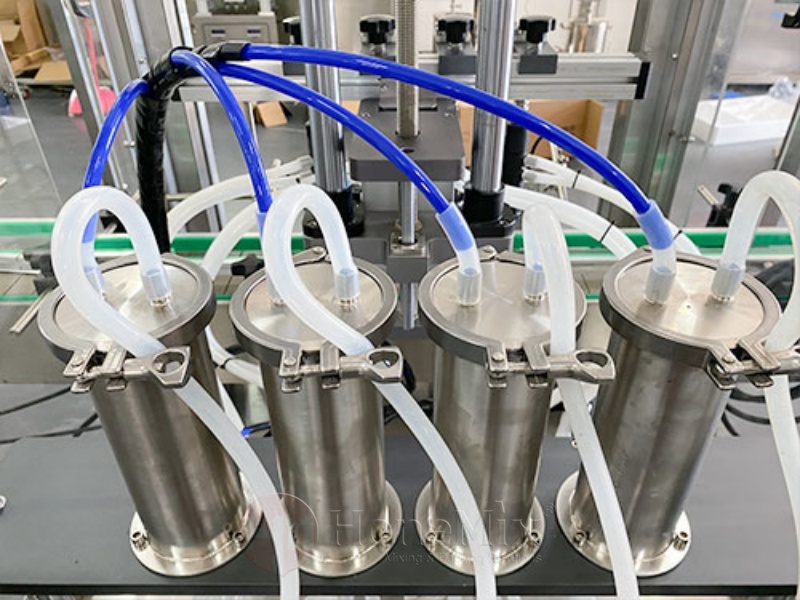

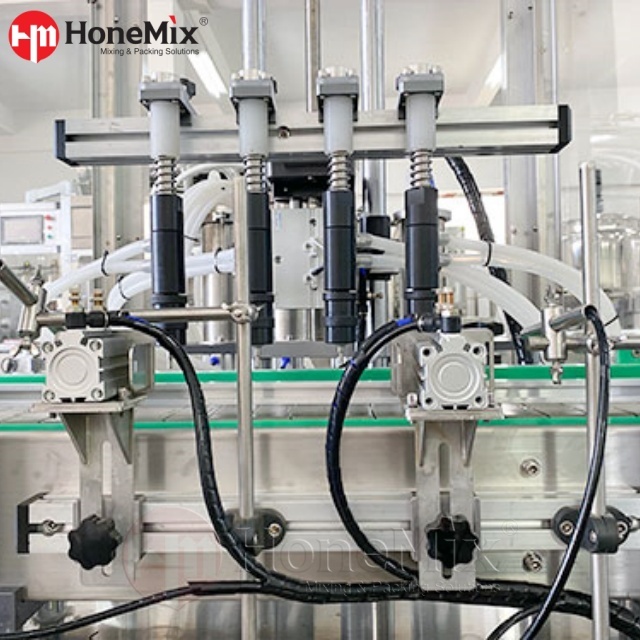

The filling station uses vacuum-assisted filling technology for low-viscosity fragrance liquids.
This filling principle is particularly suitable for perfume and other alcohol-based products where clean filling and consistent visible liquid levels are important.
The system can be configured with 2, 4 or 6 filling heads depending on the required production capacity.
After filling, bottles move toward the closure section.
Depending on the required configuration, spray pumps can be positioned manually or supplied through an automatic feeding and positioning system before crimping.

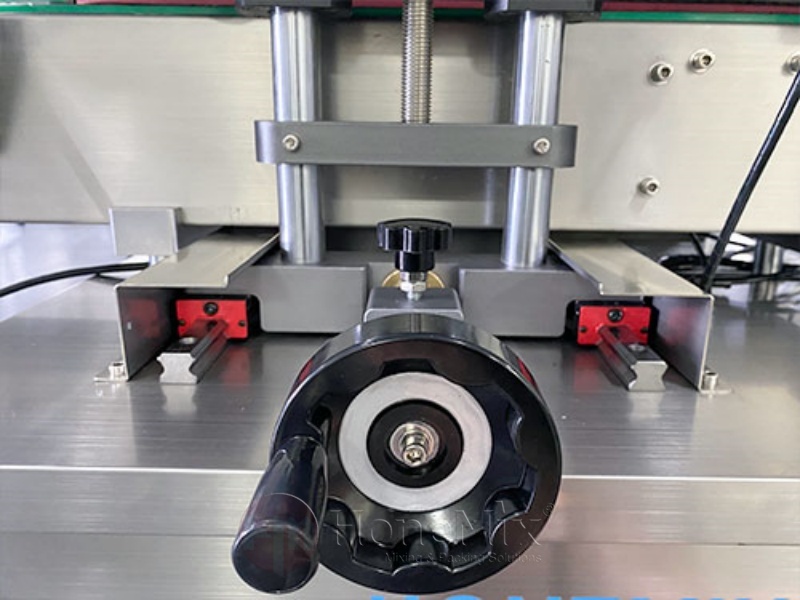

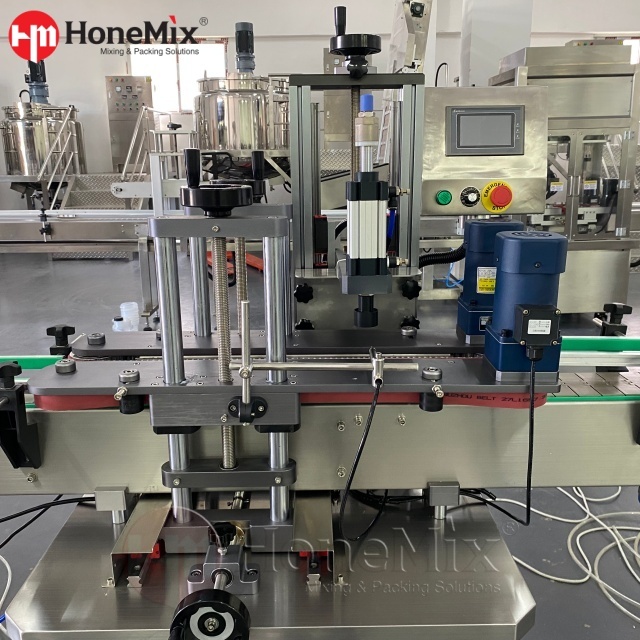

The crimping station secures the spray pump onto the perfume bottle neck.
Crimping tooling is configured according to the bottle neck, spray pump diameter and crimping dimensions to help achieve stable closure quality while reducing the risk of loose pumps or bottle damage.
After filling and crimping, finished bottles leave the machine through the conveyor and can continue directly to downstream equipment such as labeling, cartoning or cellophane wrapping machines.
A linear configuration is particularly useful when the perfume packaging process needs to be expanded or connected with additional equipment.
The straight conveyor layout makes the machine easier to connect with bottle loading, labeling, cartoning and other packaging equipment.
Different filling-head configurations can be selected according to production requirements.
A manufacturer can therefore configure the line around bottle size, filling volume and target output rather than using a fixed station arrangement.
Filling, conveying and crimping stations are positioned along the production direction, giving operators easier access for adjustment, inspection and maintenance.
The machine is designed for factories that want perfume filling and spray-pump crimping to operate as part of a continuous packaging workflow instead of as separate manual processes.
The HPM-APF is mainly designed for:
Perfume
Eau de Parfum (EDP)
Eau de Toilette (EDT)
Eau de Cologne
Fragrance Sprays
Body Fragrance Sprays
Bottle and closure samples should be confirmed before the final machine configuration is determined.
The line can be configured for different glass perfume bottles, including round, square, flat, oval and custom bottle shapes.
Machine configuration depends on more than filling volume. Important packaging information includes bottle dimensions, bottle stability, neck diameter, spray pump dimensions and crimping requirements.
For projects involving several bottle formats, guides, filling positions and crimping tooling can be adjusted or customized according to the required SKU range.
Parameter | Specification |
Model | HPM-APF |
Machine Structure | Linear Conveyor Type |
Filling Method | Vacuum-Assisted Filling |
Filling Heads | 2 / 4 / 6 Heads |
Filling Range | 5–500 ml Standard; Customizable |
Filling Accuracy | ≤±0.5% |
Production Capacity | 30–80 Bottles/Min |
Crimping Heads | 1 / 2 Heads |
Bottle Diameter | 10–80 mm, Adjustable |
Bottle Height | 30–250 mm, Adjustable |
Control | PLC + HMI Touch Screen |
Conveyor | Stainless Steel Chain Conveyor |
Product Contact Parts | SUS316L |
Machine Frame | SUS304 |

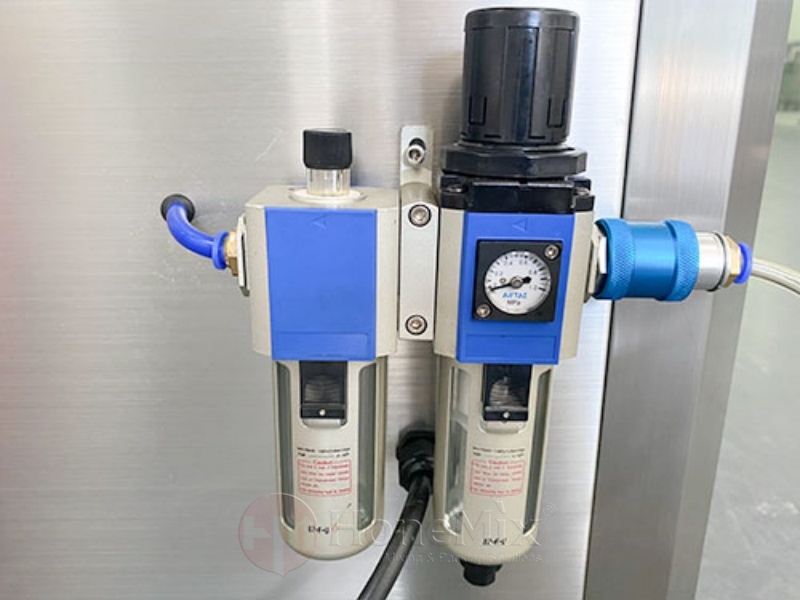

Air Pressure | 0.4–0.6 MPa |
Power | Approx. 2.5–5.0 kW |
Electrical Standard | Customized to Local Voltage / Frequency |
Specifications may vary according to bottle format, filling volume, closure design and required production speed.
The correct machine structure depends on production layout, bottle formats and automation requirements.
Comparison Item | Linear Filling & Crimping Line | Rotary Perfume Filling Machine |
Machine Layout | Straight Conveyor | Rotary Indexing Table |
Main Positioning | Filling & Crimping Production Line | Integrated Rotary Filling, Crimping & Collar Assembly Machine |
Station Arrangement | Sequential Inline Stations | Multiple Stations Around Rotary Platform |
Expansion | Easy to Connect with Additional Inline Equipment | Multiple Processes Integrated into Compact Footprint |
Typical Buyer Need | Scalable Packaging Line | Compact Integrated Automation |
For manufacturers that prefer a compact rotary system integrating filling, pump insertion, crimping and collar handling around one indexed platform, see our Rotary Perfume Filling Machine.
The linear perfume filling and crimping line can be configured according to the bottle, closure and required production capacity.
Available options may include automatic bottle loading, automatic spray-pump feeding, additional filling heads, double crimping heads, bottle detection, customized conveyor length, explosion-proof electrical configurations and connection with downstream packaging equipment.
The final configuration should be determined from actual bottle and pump samples whenever possible.
A perfume filling and crimping line combines fragrance filling and spray-pump crimping within one coordinated packaging process. It reduces manual bottle transfer between filling and closure operations and can be connected with additional packaging equipment.
A linear system moves bottles along a straight conveyor through sequential filling and closure stations. A rotary system positions bottles around an indexed rotary table and integrates several processing stations within a more compact machine footprint.
Yes. Vacuum-assisted filling is commonly suitable for low-viscosity fragrance liquids and can help achieve clean filling and consistent visible liquid levels in transparent perfume bottles.
The reference production range is approximately 30–80 bottles per minute. Actual output depends on filling volume, bottle dimensions, filling-head quantity, spray pump and crimping configuration.
Yes. Bottle guides, filling positions and closure tooling can be configured according to different round, square, oval, flat or custom fragrance bottles. Significant changes in bottle or pump dimensions may require additional change parts.
Yes, automatic pump feeding and positioning can be configured according to the project. The crimping tooling is matched to the bottle neck and spray pump dimensions.
Yes. The linear conveyor structure is suitable for connecting with automatic labeling, cartoning and other downstream perfume packaging equipment.
Every perfume packaging project differs in terms of bottle dimensions, spray pumps, and production requirements. Please provide HONEMIX with your specific needs, and we will configure a linear perfume filling and crimping production line tailored to your actual requirements.
