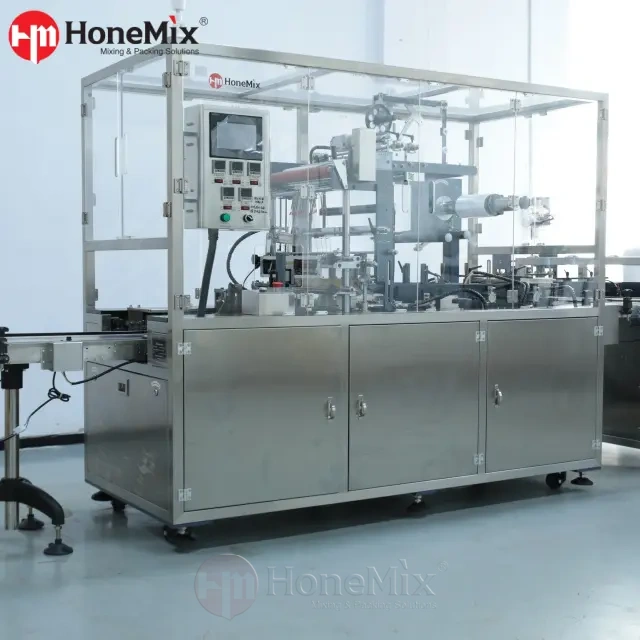

HY-330A Automatic Cellophane Overwrapping Machine

HY-330A Automatic Cellophane Overwrapping Machine Overview

The HY-330A fills the gap between compact box wrappers and slower large-format overwrapping systems. With a production speed of 50–70 packs/min and a carton-length range of 45–270 mm, it delivers commercial-line throughput without limiting you to small perfume or medicine boxes.

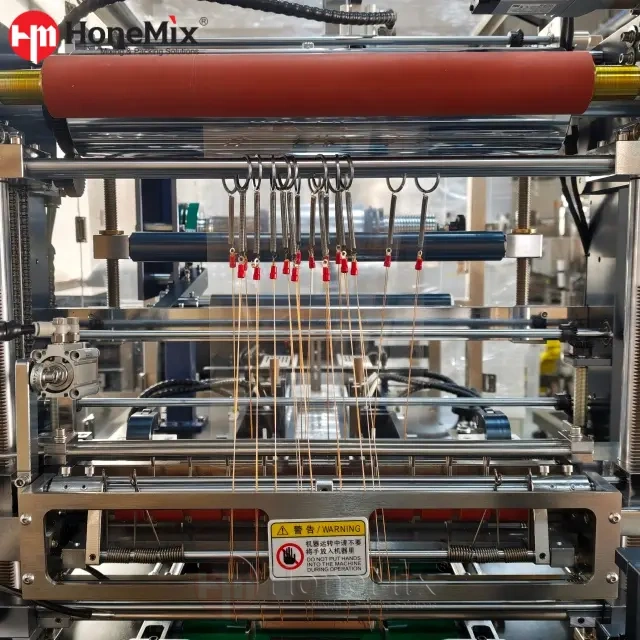

The machine runs on a fully controlled carton-transfer path: cartons enter the wrapping section, film is cut to length, wrapped around the box, and the seams are finished in sequence. This gives more consistent film placement than manual wrapping and removes a repetitive manual step at the end of your packaging line.

This equipment category is widely known in the industry as a Cellophane Wrapping Machine or Automatic Cello Wrap Machine. The HY-330A runs on 0.02–0.04 mm BOPP double-sided heat-sealing film. To confirm compatibility with your product, send us your carton and film samples.

How the Overwrapping Process Works

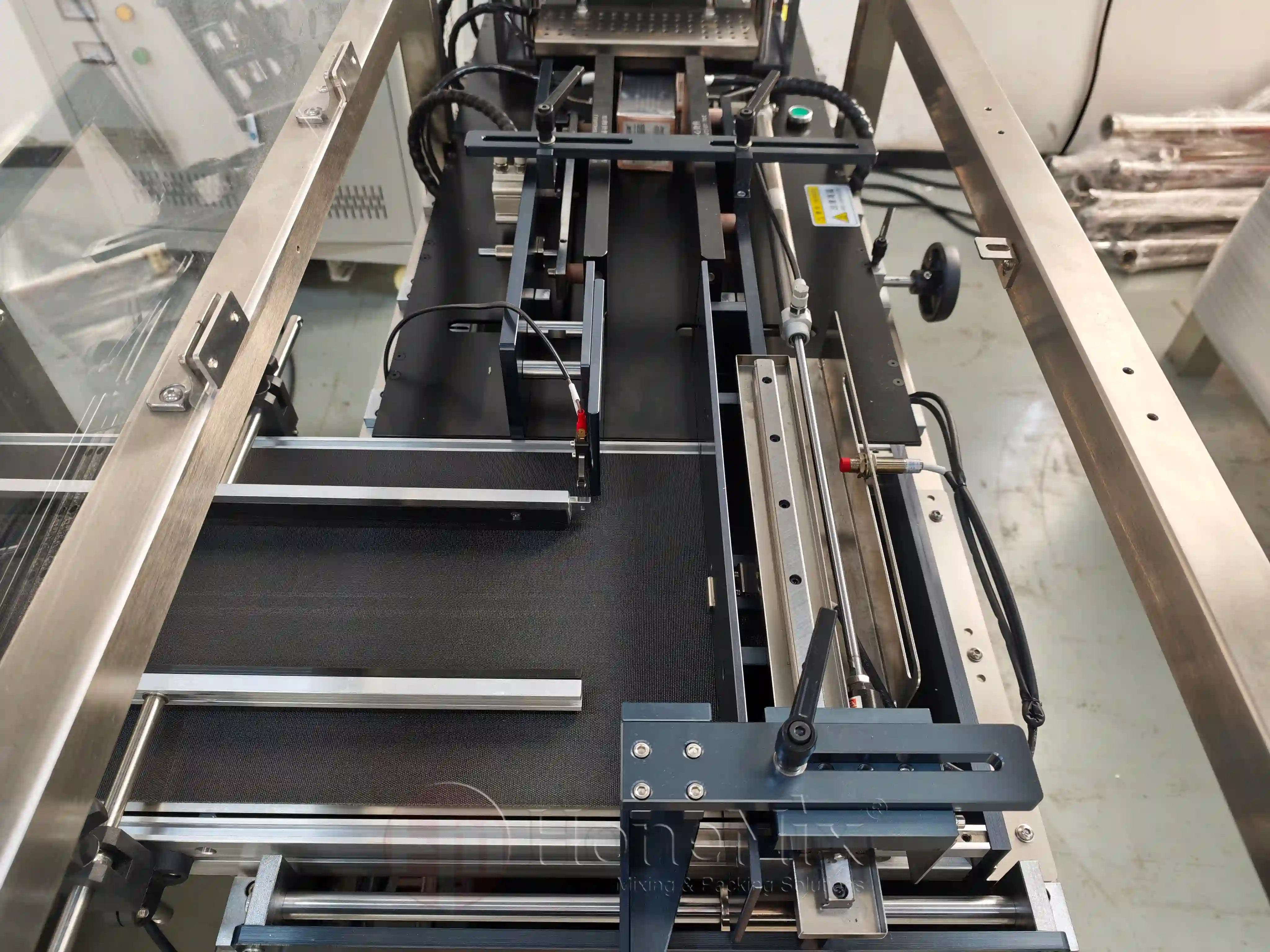

1. Carton Infeed — Cartons enter the machine in a fixed orientation, with consistent spacing for continuous high-speed feeding.

2. Film Cutting & Initial Wrapping — BOPP film is measured, cut, and positioned around the carton for the selected format.

3. Primary Film Folding — Film is wrapped around the main carton surfaces to form the initial overwrap.

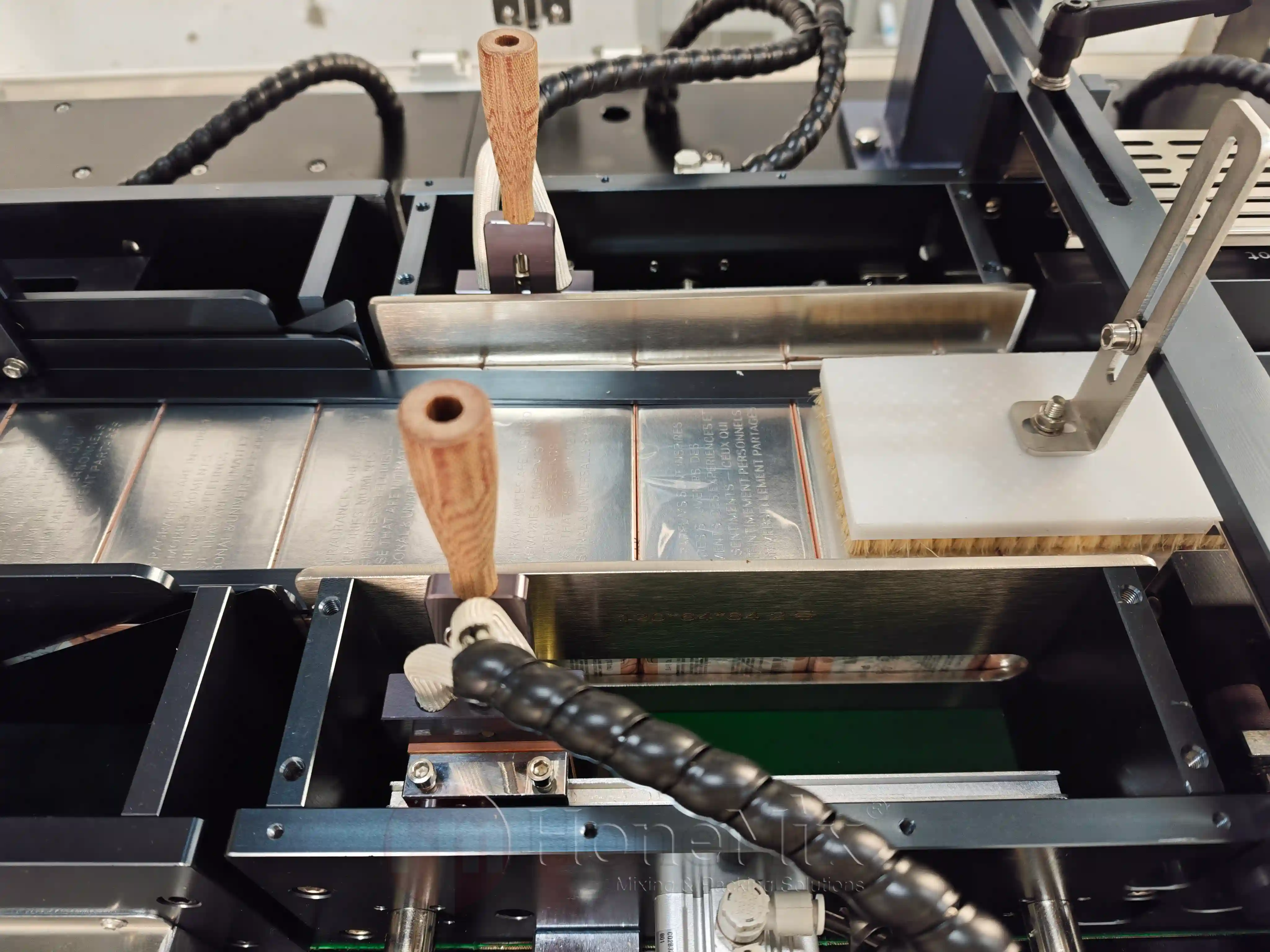

4. Long-Side Sealing — The longitudinal film overlap is sealed to stabilize the wrap before the end folds.

5. Corner Folding — Left and right corners are mechanically formed for a clean, repeatable end profile.

6. Upper Film Folding — The upper flap is folded into sealing position.

7. Bottom Film Folding — The lower flap is folded to complete the end structure.

8. Dot Sealing — Localized sealing points secure the film at the folds, per the selected wrap design.

9. Flat Sealing — The wrap is finished for a clean, flat outer appearance.

10. Carton Transfer — The wrapped carton moves to the discharge conveyor.

11. Product Discharge — Finished packs exit for collection or downstream conveying and inspection.

Core Engineering Features

1. High-Speed Output

Production speed: 50–70 cartons/minute. Output varies with carton dimensions, film behavior, fold design, and sealing settings — the HY-330A is built to keep pace with a medium-speed automatic cartoner.

2. Wide Carton Format Range

• Length: 45–270 mm

• Width: 35–190 mm

• Height: 18–85 mm

This range covers tall perfume cartons, cosmetic gift boxes, skincare cartons, personal-care boxes, pharmaceutical cartons, and other medium-to-large retail packaging.

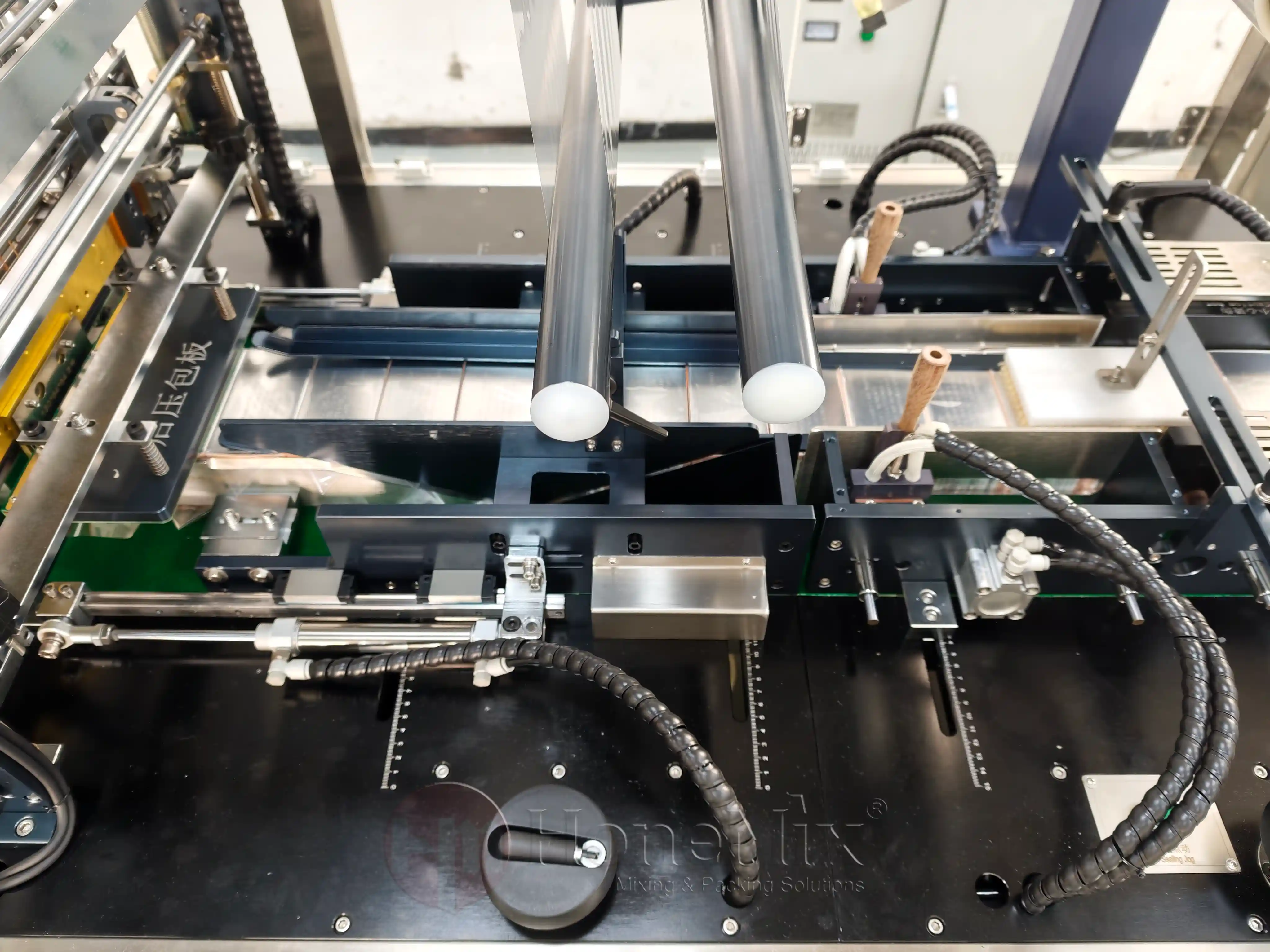

3. Servo-Controlled BOPP Film Feeding

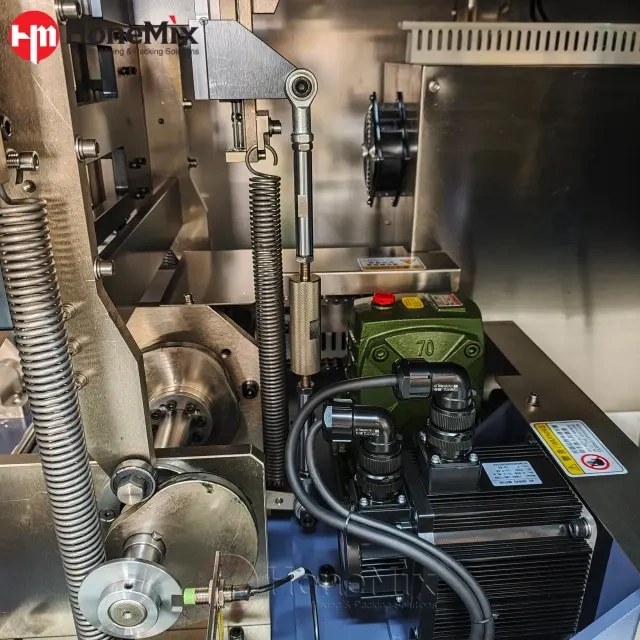

Dual HCFA servos independently control film feeding and carton pushing, keeping film length and carton transfer synchronized cycle after cycle. For multi-SKU lines, share your minimum and maximum carton sizes so we can pre-configure the format parts and adjustment range.

4. Two Finished-Wrap Styles

• Six-Sided Flat Wrapping — a neat, closely formed film finish across all carton surfaces. Best suited to premium fragrance, cosmetics, personal-care, and gift-box packaging where shelf presentation matters.

• Dot-Wrapping — localized sealing points as part of the fold and closure design.

We'll recommend the right method for your product after reviewing your carton shape, film, and appearance requirements.

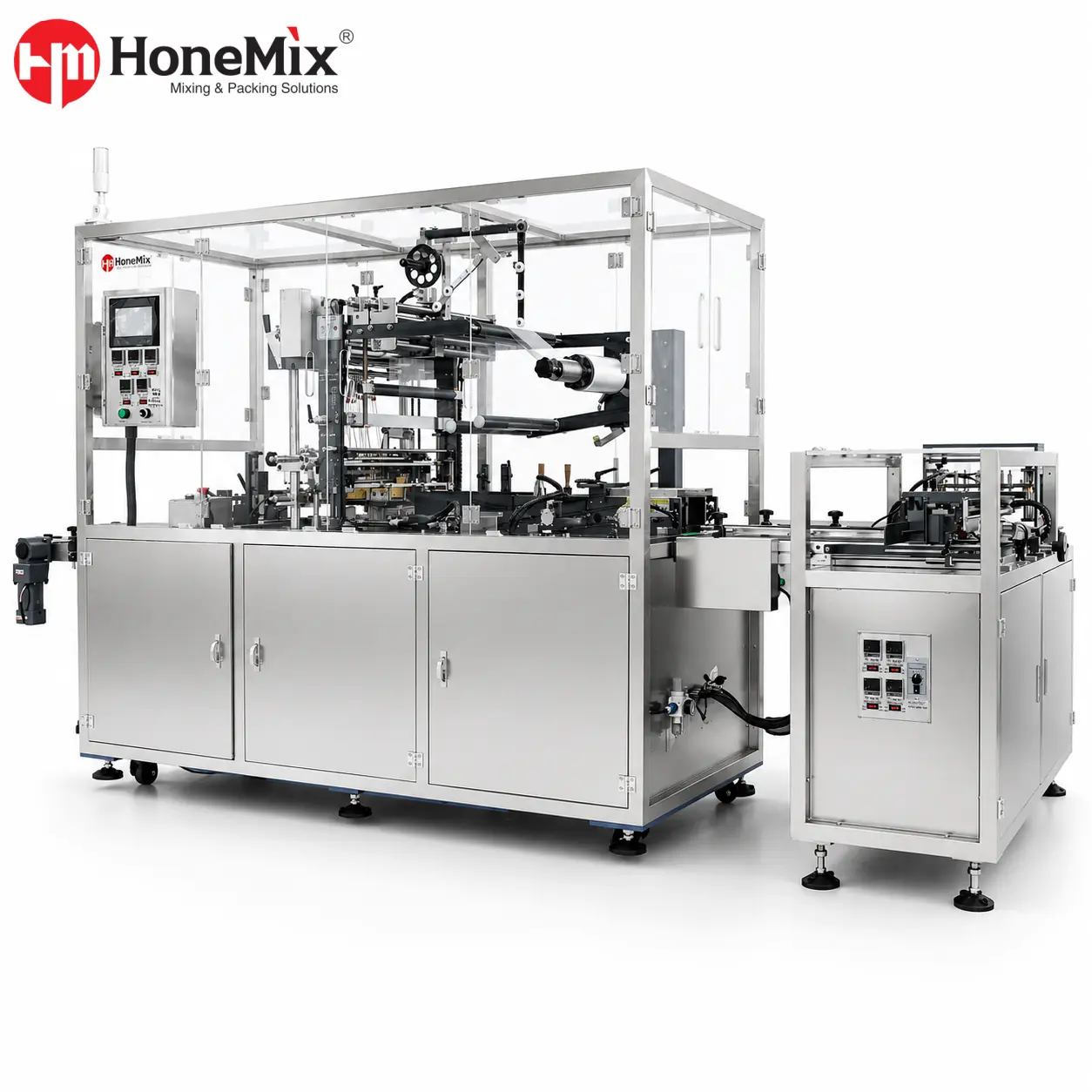

6. Dedicated Six-Sided Flat-Wrapping Module

A separate flat-wrapping device (with its own power, weight, and footprint — see specs below) lets you plan the full equipment layout around your factory space, conveyor direction, and upstream cartoning equipment.

7. Industrial Control Platform

8. Built for Line Integration

The HY-330A installs downstream of an automatic cartoning machine. Our engineering team will work with you to confirm conveyor height, carton orientation, production direction, upstream output speed, buffer distance, carton spacing, control-signal connection, and available floor space — so the two machines run in sync without carton pile-up.

Applications

We recommend confirming suitability against your carton's dimensions, rigidity, surface coating, and film structure with a sample test.

Technical Specifications

Main Machine

Six-Sided Flat-Wrapping Device

Film & Carton Requirements

Cartons should have stable dimensions, sufficient rigidity, and a surface that holds up under film tension and sealing heat.

Film specification:

• Material: BOPP double-sided heat-sealing film

• Thickness: 0.02–0.04 mm

• Max roll outer diameter: φ280 mm

• Roll core inner diameter: φ72 mm

We suggest you send the paper box to us for sample testing — carton coating, film friction, sealing temperature, and fold geometry can all affect the finished appearance, even within the standard size range.

Request a Quote

To get an accurate quote and configuration, send us:

• Carton dimensions for each SKU (min, max, and most common)

• Carton and film samples

• Preferred wrap style: six-sided flat or dot-wrapping

• Target output (packs/min)

• Photos or video of your upstream cartoning process

• Factory voltage, frequency, and compressed-air conditions

• Available production-line space and conveyor direction

• Tear-tape or coding requirements, if any

Why the HY-330A for Medium & Large Cartons?

Most compact cellophane wrappers are built for small boxes at lower speeds. The HY-330A is built for wider cartons at commercial throughput — choose it if:

• Your current wrapper can't handle cartons up to 270 × 190 × 85 mm

• Manual wrapping is giving you inconsistent folds

• Manual film handling is capping your line's output

• Your cartoner runs faster than your current wrapper

• You're deciding between six-sided flat and dot-wrapping presentation

• You're wrapping perfume, cosmetic, pharmaceutical, or personal-care cartons

• You run several medium-to-large carton SKUs

FAQ

1. What's the maximum carton size for the HY-330A?

L45–270 × W35–190 × H18–85 mm. All three dimensions need to fall within range — we also recommend testing rigidity, surface finish, and feeding stability with a sample.

2. What's the real-world production speed?

50–70 cartons/minute. Exact output depends on carton size, film thickness, wrap style, sealing settings, and carton spacing.

3. Does it use real cellophane film?

"Cellophane wrapping machine" is the common industry name for this equipment. The HY-330A actually runs on 0.02–0.04 mm double-sided heat-sealing BOPP film. Other film types need sample testing before we confirm compatibility.

4. What's the difference between six-sided flat wrapping and dot-wrapping?

Six-sided flat wrapping forms and finishes the film across all carton surfaces for a neat, tight look. Dot-wrapping uses localized sealing points as part of the fold and closure. We'll help you pick the right one based on your carton and packaging goals.

5. Can it connect to an automatic cartoning machine?

Yes — it's designed to run downstream of one. We'll confirm conveyor height, carton orientation, production direction, speed matching, and control signals during line-layout review.

6. Is tear tape included?

Not as standard. Tell us your film and easy-open requirements and we'll confirm whether a tear-tape module fits your configuration.

7. Can one machine handle several carton sizes?

Yes, within the standard adjustment range — though different cartons may need guide adjustments or format parts. Send us your min, max, and most frequent carton samples for evaluation.

8. What do you need for an accurate quote?

Carton dimensions for each SKU, carton and film samples, preferred wrap style, target output, local power supply, compressed-air conditions, and a line-layout drawing or floor-space dimensions.
