HONEMIX offers a HY-A800 Dual Head Tube Filling Sealing Machine designed for manufacturers that need higher output, stable filling accuracy, and cleaner tube presentation across cosmetics, pharmaceuticals, food, and chemical applications. This Automatic Tube Filling Machine combines dual-head productivity, PLC-based control, and broad tube compatibility, helping buyers evaluate throughput, hygiene, changeover flexibility, and long-term operating value in one platform. For buyers comparing a Tube Sealing Machine For Plastic And Aluminum Tubes, the HY-A800 stands out for its 60–140 tubes/min standard capacity, ≤±1% filling accuracy, and support for both metal/aluminum and plastic/composite tube formats.
| Quantity: | |
|---|---|
HY-A800
HONEMIX

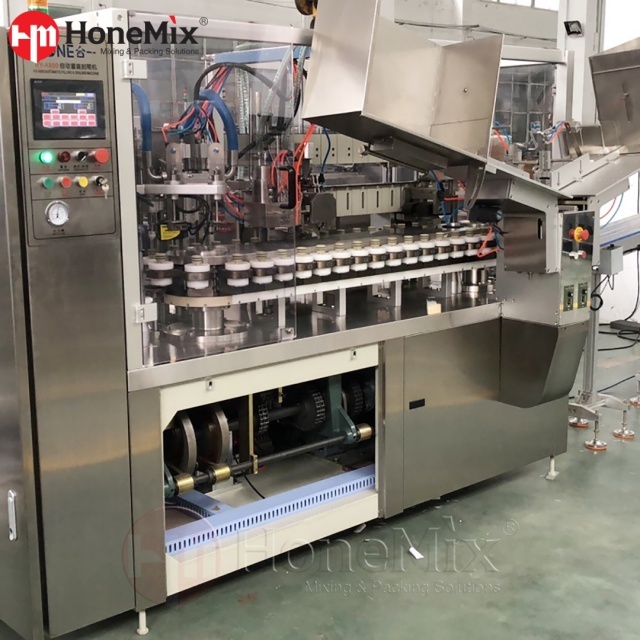

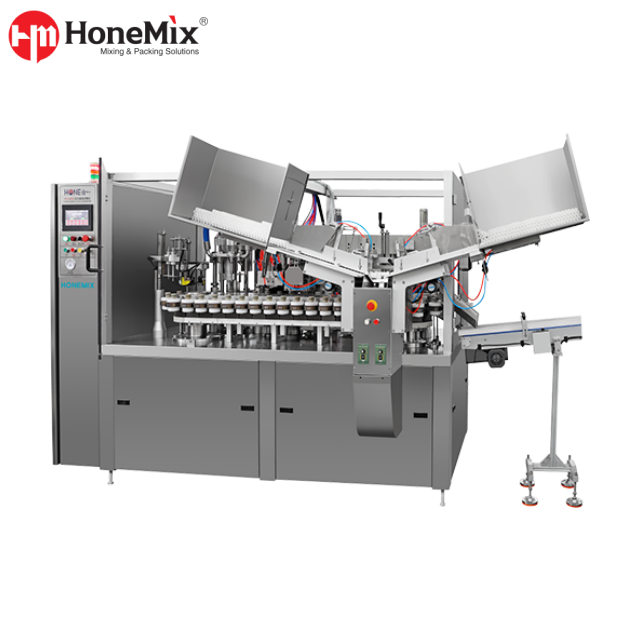

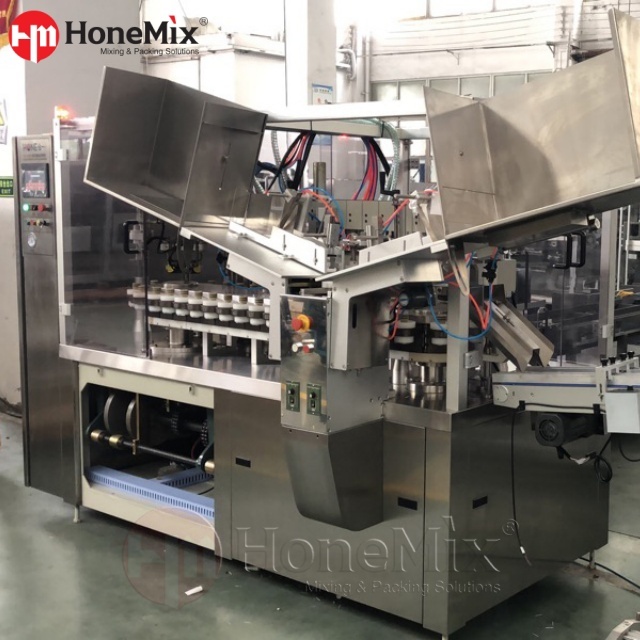

The HONEMIX HY-A800 is a premium dual-head packaging solution for companies that want more than a basic catalog machine. It is engineered for full-process tube handling, from automatic tube feeding and mark alignment to filling, sealing, coding, and discharge, making it a strong fit for factories balancing output growth with quality control.
The main advantage is not just speed, but usable speed: a machine that combines adjustable production capacity, high filling precision, tube-material flexibility, and export-oriented compliance in one platform. The machine data covers 60–140 pieces/minute as the standard production range, with some high-speed configurations reaching 120–150 pieces/minute, while the control system supports recipe memory and fault prompts for smoother day-to-day operation.
The machine uses a double-head synchronous filling and sealing structure to raise throughput compared with conventional single-head systems. This makes it a good investment for plants targeting mid-to-high volume tube packaging while controlling per-unit labor and operating cost.
HONEMIX specifies ≤±1% filling precision with servo-driven filling control. For buyers producing cream, gel, ointment, sauce, or semi-fluid products, that level of control helps reduce underfill and overfill risk while improving batch-to-batch consistency.
The platform covers two main configurations: GF-800L for metal/aluminum tubes with mechanical fold sealing, and GF-800F for plastic/composite tubes with 6 kW inner heating. This gives procurement teams a more scalable route when they need one equipment platform for different packaging formats.
The control system combines a PLC programmable controller with an LCD touch screen. Operators can monitor output, view alarms, store parameters, and recall settings for faster format changeover, which is especially valuable for OEM/ODM plants running multiple SKUs.
The standard machine includes a 304 stainless steel frame and 304/316L stainless steel material-contact components, with GMP-, CE-, and ISO-oriented positioning. This is important for buyers in regulated or hygiene-sensitive sectors where cleaning, corrosion resistance, and export readiness matter.
The equipment includes external adjustment points, digital position display, no-tube detection, low-air-pressure alarm, and protective-door shutdown logic. The structure is described as easy to dismantle and clean, and optional CIP is available for customers prioritizing faster sanitation and reduced maintenance downtime.
Industry | Suitable Products | Value |
|---|---|---|
Cosmetics | Facial cream, lotion, eye cream, hand cream, cleansing balm, foundation, lipstick-related paste products | Better appearance consistency, flexible SKU handling, cleaner seals |
Pharmaceuticals | Ointments, creams, gels, dental compounds, medical paste products | Higher hygiene expectations, coding traceability, precision filling |
Food | Salad dressing, ketchup, mustard, butter, cream, jam | Food-grade contact materials, faster output, leak-resistant sealing |
Daily Chemicals | Toothpaste, shoe polish, grease, coatings | Reliable tube handling, stable filling, adaptable tube formats |
Adhesives & Industrial | Adhesives, sealants, specialty pastes | Customizable filling/sealing setup for different viscosities and tube materials |
Item | Specification |
|---|---|
Model | HY-A800 |
Machine Type | Dual Head Tube Filling And Sealing Machine |
Standard Capacity | 60–140 tubes/min |
High-Speed Range | Up to 120–150 tubes/min on high-speed configuration |
Filling Accuracy | ≤±1% |
Control System | PLC + LCD Touch Screen |
Turntable Speed | 3–10 rpm, stepless regulation |
Air Requirement | 0.55–0.65 MPa, 0.1 m³/min |
Power | 2 kW / 2.2 kW depending on model |
Dimensions | 3270 × 1470 × 2000 mm |
Weight | 2200 kg |
Certifications | GMP, CE, ISO |
Parameter | GF-800L | GF-800F | Notes |
|---|---|---|---|
Tube Material | Metal / Aluminum Tubes | Plastic / Composite Tubes | Special tube materials can be discussed |
Tube Diameter | φ13–φ35 mm | φ13–φ60 mm | Customizable from φ10–φ60 mm |
Tube Length | 50–220 mm | 50–220 mm | Customizable up to 250 mm |
Filling Capacity | 3–150 ml | 3–400 ml | Larger capacities can be customized |
Filling Precision | ≤±1% | ≤±1% | Suitable for GMP-oriented production |
Production Capacity | 60–140 pcs/min | 60–140 pcs/min | High-speed versions available |
Sealing Method | Mechanical Fold Sealing | Inner Heating Sealing | GF-800F heating power: 6 kW |
Motor Power | 2 kW | 2.2 kW | 380V/220V, 50Hz; overseas voltage can be customized |
Control Method | PLC + LCD Touch Screen | PLC + LCD Touch Screen | Supports memory and fault alarm |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
Option | Purpose |
|---|---|
Inert Gas Filling Device | Helps support sensitive or oxidation-prone products |
CIP Online Cleaning System | Reduces cleaning time and supports hygiene-focused production |
Servo-Driven Tube Feeding Mechanism | Improves automation and feeding consistency |
Automatic Finished Product Collection And Conveying | Streamlines end-of-line handling |
Explosion-Proof Configuration | Suitable for certain flammable production environments |
Voltage Customization | Adapts to overseas electrical standards |
Tube Diameter / Length Customization | Matches specific packaging formats |
Larger Filling Capacity Customization | Supports broader product volume requirements |
The HY-A800 range covers metal/aluminum tubes and plastic/composite tubes through different model configurations. This makes it suitable for buyers packaging products across multiple markets or product lines.
The standard production range is 60–140 tubes per minute, and some high-speed versions can reach 120–150 tubes per minute depending on configuration and application.
HONEMIX specifies ≤±1% filling precision with servo-controlled filling. That level of accuracy is important for buyers who need more stable net content control and less product waste.
Yes. It is for cosmetics, pharmaceuticals, food, adhesives, and daily chemicals, and states that material-contact parts use 304/316L stainless steel with GMP-, CE-, and ISO-oriented compliance.
Need a dual-head tube filling solution that matches your tube type, filling range, output target, and compliance requirements?
Send us your product viscosity, tube material, tube size, target capacity, and filling volume range. HONEMIX can help you evaluate the right HY-A800 configuration, optional functions, and line integration plan for your factory.
