HCM-CH Custom Hydraulic Lifting Vacuum Emulsifying Mixer

Quick Configuration Overview

HCM-CH Custom Hydraulic Lifting Vacuum Emulsifying Mixer Overview

The HCM-CH Custom Hydraulic Lifting Vacuum Emulsifying Mixer is built for production teams that need greater process flexibility. Different formulas often require different mixing behavior. A high-viscosity cream may need strong wall scraping and vacuum deaeration, while a lower-viscosity emulsion may benefit from internal circulation, external circulation or a circulation homogenizer. For this reason, the HCM-CH series can be engineered as a custom mixing platform instead of a single fixed configuration.

The hydraulic lifting system allows the cover and mixing assembly to rise for easier material charging, cleaning, inspection and maintenance. The vacuum working environment helps reduce air bubbles during mixing and emulsification, improving product appearance, texture and filling stability. Heating and cooling can be matched to your formula process, helping manufacturers manage dissolving, emulsifying, viscosity control and batch repeatability.

For buyers in cosmetics, skincare, pharmaceutical, food and personal care manufacturing, this machine is especially useful when the product range includes several viscosities or when the factory wants one system adapted to different processing requirements.

Core Features And Advantages

1. Customized Mixing Structure For Different Viscosities

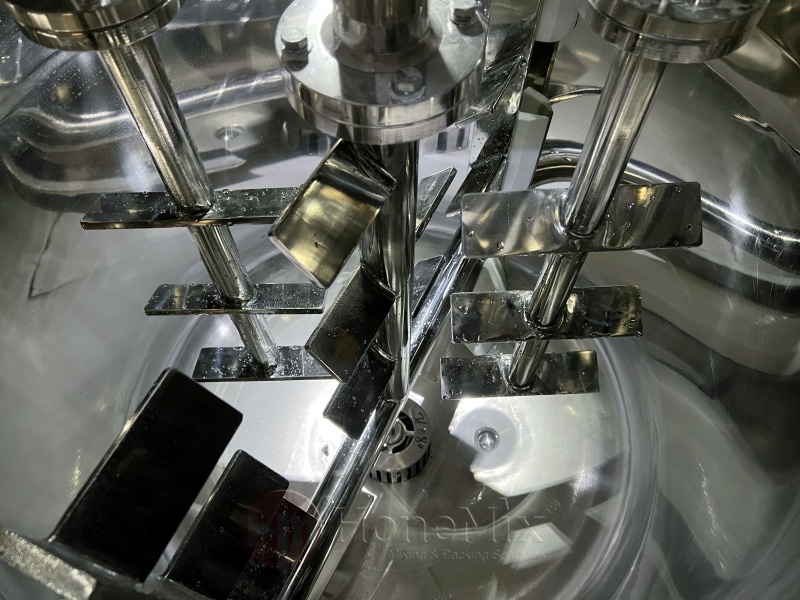

The HCM-CH mixer can be equipped with different agitation structures according to product characteristics. Available options include bidirectional mixing, helix frame mixing, wall-scraping agitation, paddle mixing, anchor mixing and dispersing structure.

This allows the machine to support low, medium and high-viscosity formulas such as cream, lotion, gel, ointment, paste and emulsion products. For sticky or thick materials, the wall-scraping system helps reduce product residue on the vessel wall and supports more even heat transfer during processing.

2. Multiple Homogenizing Options

Different products require different shear intensity and circulation behavior. The HCM-CH series can be configured with:

• Top Homogenizer for direct high-shear emulsification inside the main vessel

• Circulation Homogenizer for repeated material circulation and finer dispersion

• High-Speed Homogenizer for strong emulsifying, particle reduction and texture improvement

• External Homogenizing System for formulas that need stronger circulation and more controlled processing

This flexibility makes the machine suitable for factories producing various product types on one platform.

3. Internal And External Circulation Designs

According to the process requirement, the mixer can be designed with internal circulation, external circulation or a combined circulation system. Internal circulation supports efficient movement inside the vessel, while external circulation can improve material transfer, repeated homogenizing and process control for selected formulas.

Available layout examples include:

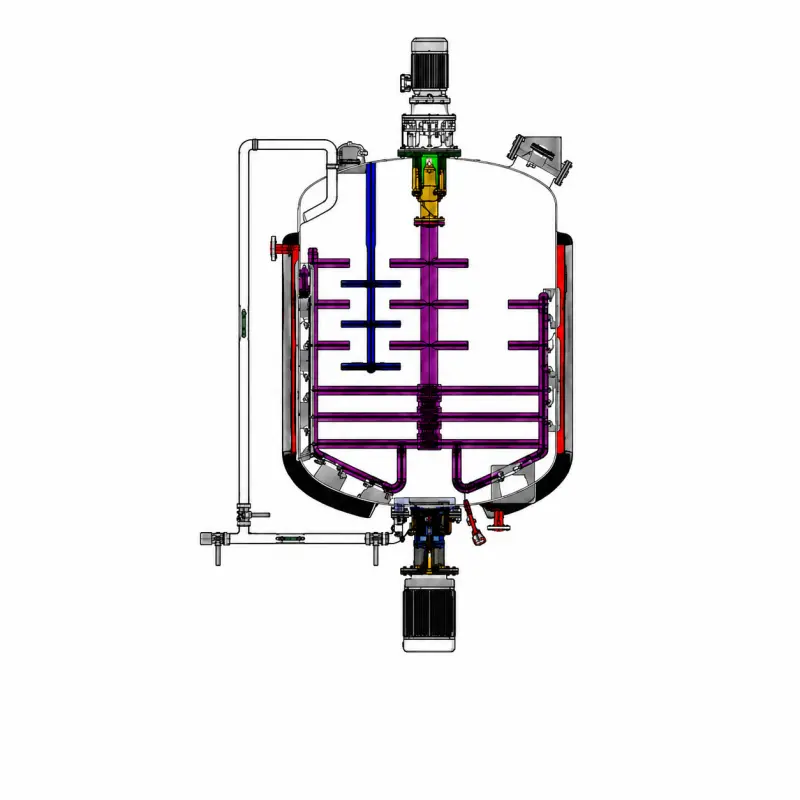

Single Way Mixing Internal & External Circulation

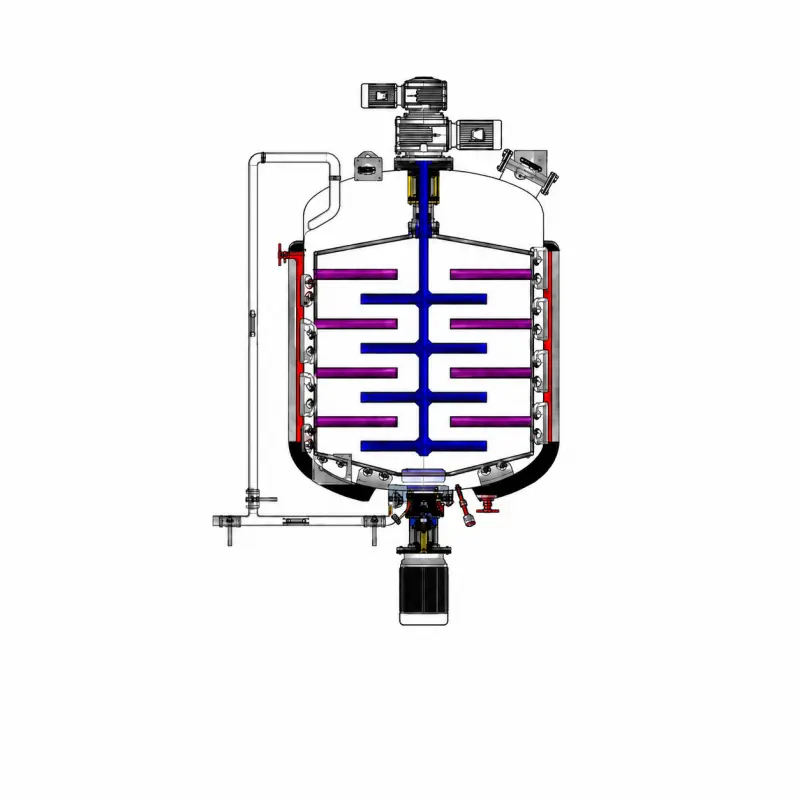

Double Way Mixing Internal & External Circulation

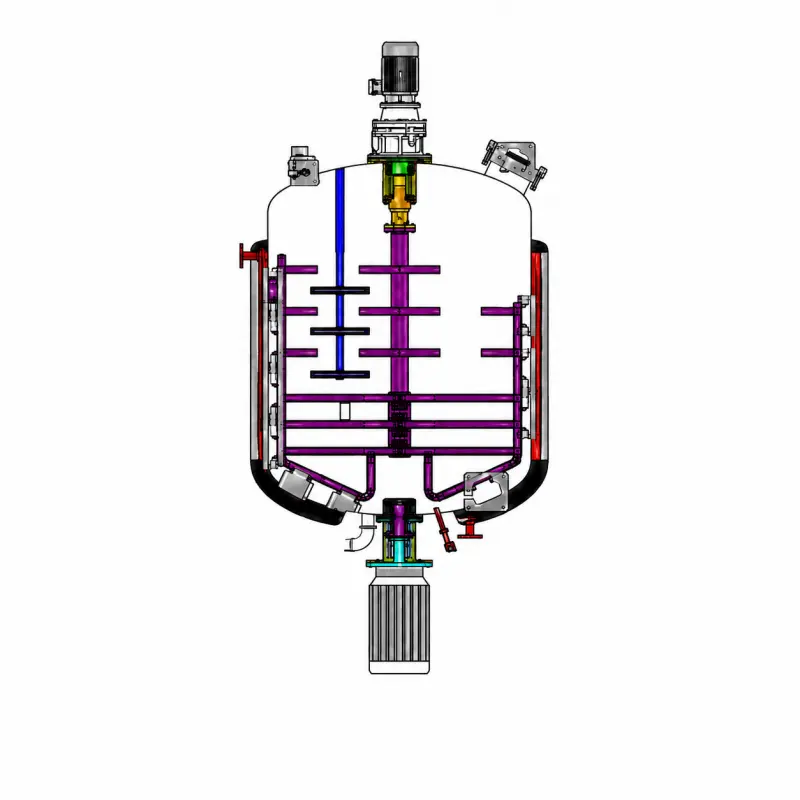

Single Way Mixing Internal Circulation

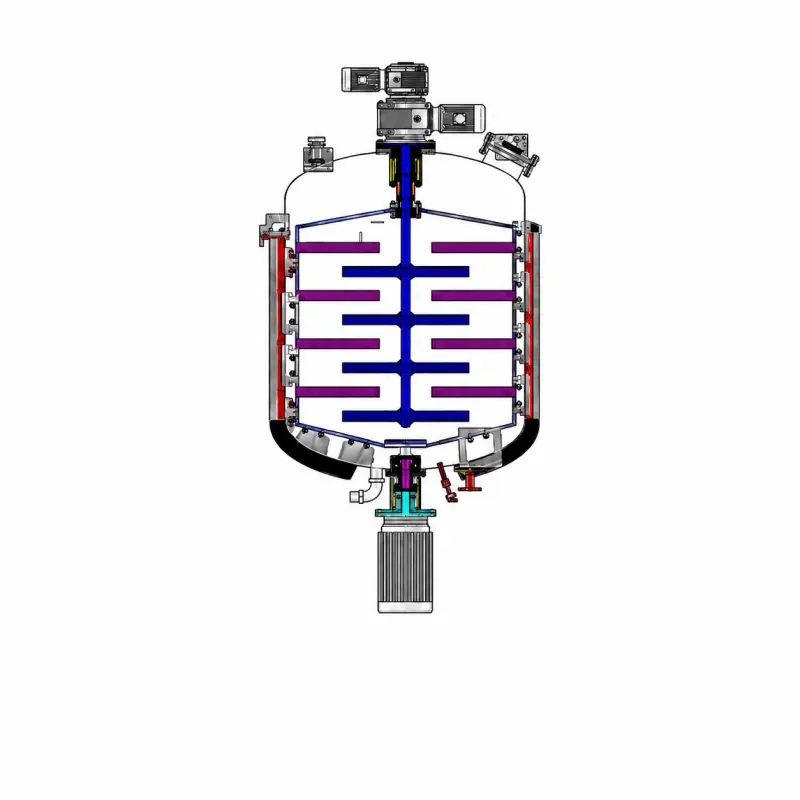

Double Way Mixing Internal Circulation

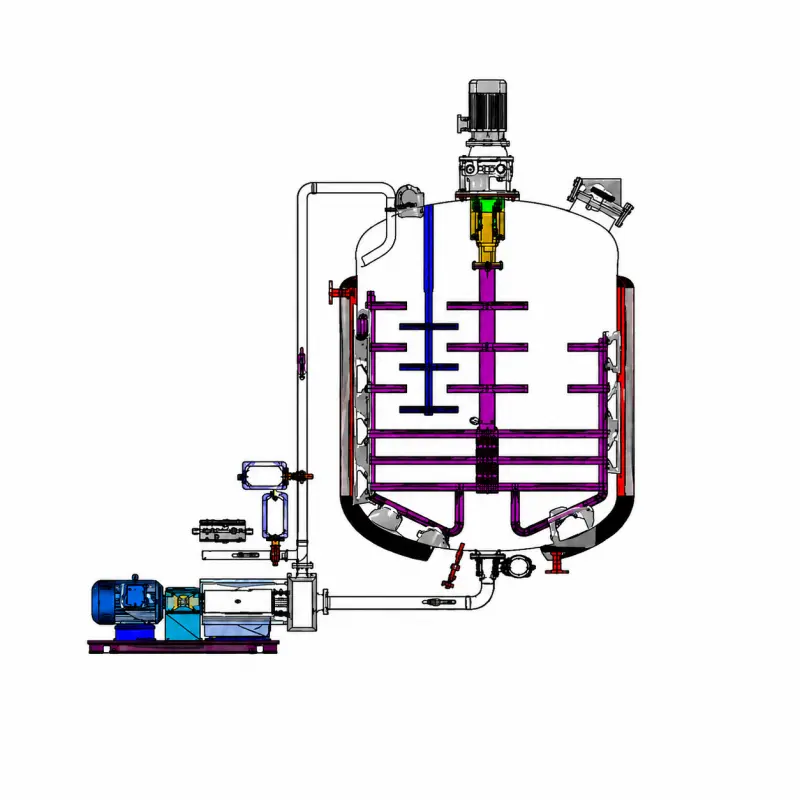

Single Way Mixing & External Homogenizer

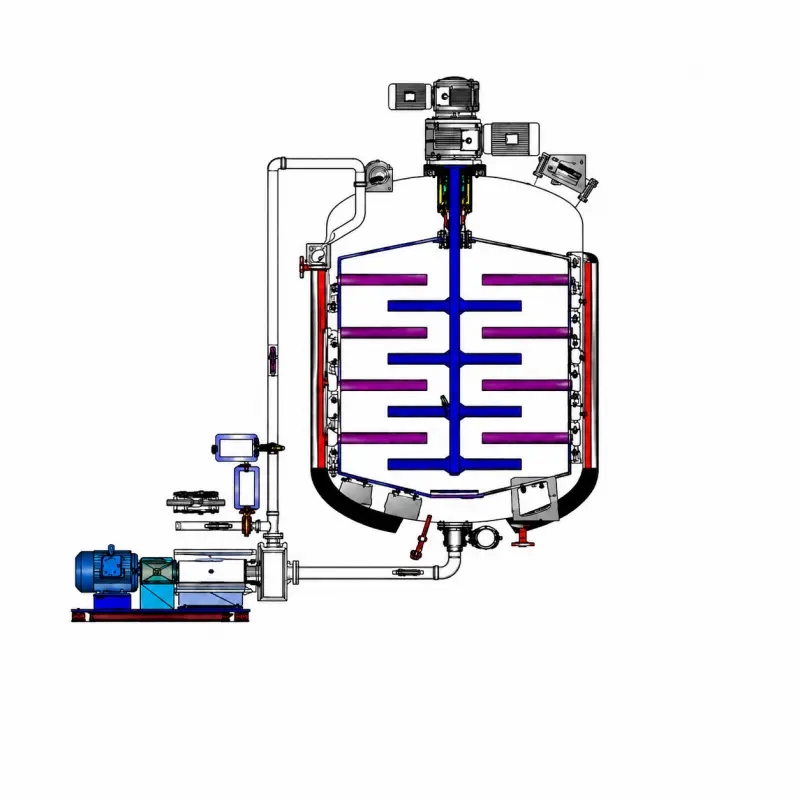

Double Way Mixing & External Homogenizer

4. Vacuum Processing For Cleaner Texture

Vacuum mixing helps remove air trapped during powder addition, liquid mixing and high-speed homogenizing. This is important for cosmetic creams, gels, ointments and emulsions where bubbles can affect appearance, density, filling accuracy and product stability.

For manufacturers focused on premium product texture, vacuum deaeration supports smoother product appearance and more consistent batch quality.

5. Electric Or Steam Heating Options

The HCM-CH system can be supplied with electric heating or steam heating according to the factory’s utilities and production preference.

Electric heating is suitable for plants that need a simpler independent heating system, while steam heating is often preferred by factories with existing steam supply and larger production capacity. Heating and cooling jacket design can be customized according to formula temperature requirements.

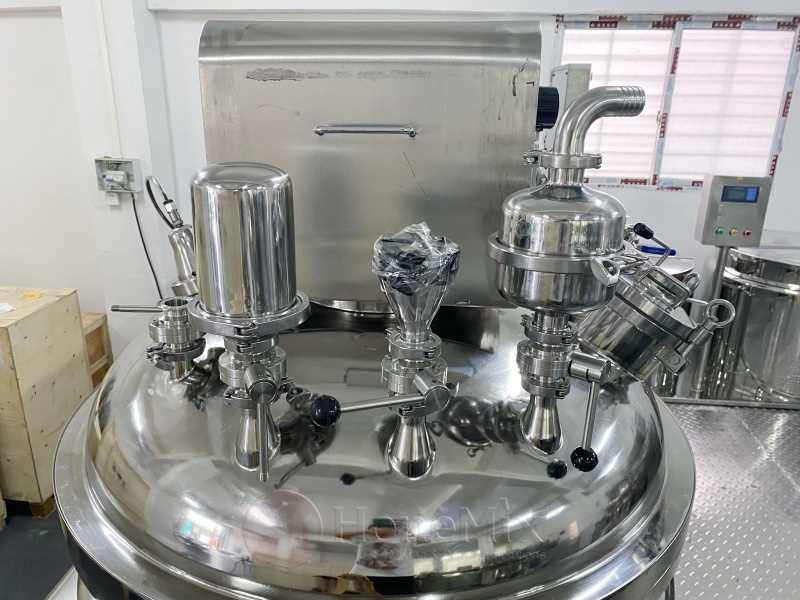

6. Hydraulic Lifting For Easier Operation

The hydraulic lifting structure allows the cover and mixing system to move upward after processing. This makes material charging, vessel inspection, cleaning and maintenance easier than fixed-cover designs.

For factories that process multiple formulas, this can help reduce changeover difficulty and improve daily operation efficiency.

7. Flexible Valve, Piping And Control Options

The machine can be configured with manual valves or automatic pneumatic valves. Piping layout can be designed according to the workshop space, material flow and downstream equipment arrangement.

Control options include HMI operation, automatic control system, flow meter option, load cell option and terminal PC control system. This helps buyers choose the correct automation level based on production scale, operator experience and budget.

Suitable Products

The HCM-CH Custom Hydraulic Lifting Vacuum Emulsifying Mixer is suitable for:

• Face Cream

• Body Lotion

• Moisturizing Cream

• Sunscreen Cream

• Cosmetic Gel

• Hair Mask

• Conditioner

• Ointment

• Pharmaceutical Cream

• Emulsion Products

• Personal Care Paste

• Household Chemical Cream Or Gel Products

Suitable Industries

Why Choose HCM-CH Custom Configuration?

Many manufacturers do not only need “a vacuum emulsifying mixer”. They need a machine that matches their formula, viscosity, heating method, filling process and factory layout. The HCM-CH series is designed for this type of project.

Before recommendation, HONEMIX can review your product type, target batch size, viscosity, heating requirement, homogenizing requirement, power supply, available workshop space and preferred automation level. Based on this information, we help configure a more practical mixing solution instead of offering only a standard model.

Recommended Buyer Information Before Quotation

To recommend a suitable HCM-CH configuration, please send:

FAQ

1. What Is The HCM-CH Custom Hydraulic Lifting Vacuum Emulsifying Mixer Used For?

It is used for vacuum mixing, emulsifying, heating, cooling and homogenizing creams, lotions, gels, ointments, pastes and other viscous or semi-viscous products.

2. Can The HCM-CH Mixer Be Customized?

Yes. Heating method, agitator structure, homogenizer type, valve control, piping layout, power supply, automation level and machine layout can be customized according to the production requirement.

3. What Homogenizer Options Are Available?

The machine can be configured with top homogenizer, circulation homogenizer, high-speed homogenizer or external homogenizer depending on the product and process requirement.

4. Is This Machine Suitable For High-Viscosity Cream?

Yes. With wall scraping, anchor mixing, helix frame mixing or double-way mixing options, the HCM-CH mixer can be adapted for medium and high-viscosity cream, paste and ointment products.

5. What Information Is Needed Before Quotation?

Product type, batch size, viscosity, heating method, homogenizing requirement, power supply, control preference and workshop layout are helpful for recommending the correct configuration.
