HCM-CF Customized Fixed Vacuum Emulsifying Mixer

Quick Configuration Overview

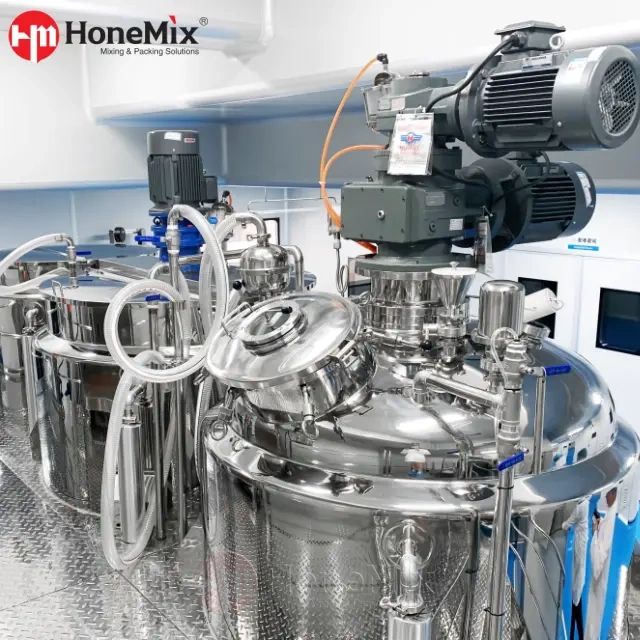

HCM-CF Customized Fixed Vacuum Emulsifying Mixer Overview

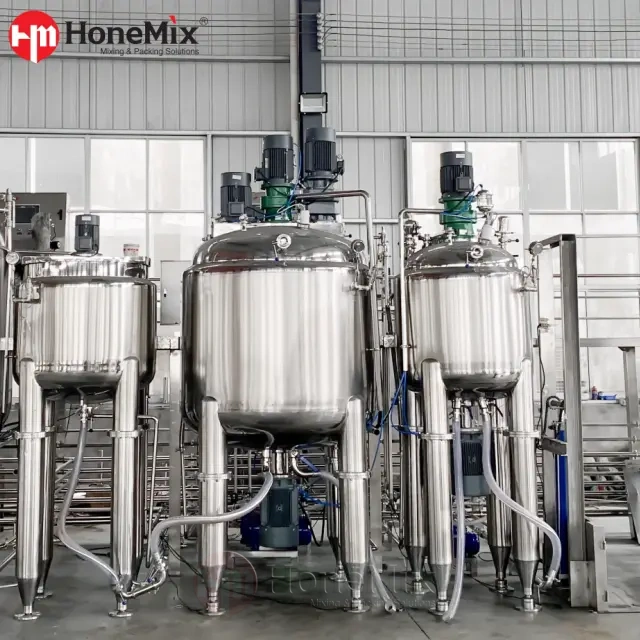

The HCM-CF Customized Fixed Vacuum Emulsifying Mixer is built for production plants that need a reliable emulsifying system with a fixed installation layout. It is especially suitable for medium and large production areas where the mixer is connected with raw material tanks, vacuum system, transfer pipeline, discharge pump, storage tank or filling equipment.

During production, the machine combines vacuum processing, heating, mixing, scraping and homogenizing in one system. The vacuum environment helps remove trapped air from the product. The agitator keeps materials moving inside the vessel, while the homogenizer provides high-shear force for emulsification, dispersion and texture improvement.

For buyers producing cosmetic cream, body lotion, sunscreen, gel, ointment, hair care products or paste products, the HCM-CF series can be built around the actual formula and production process instead of using only one standard structure.

Core Features And Advantages

1. Fixed Type Design For Stable Production Layout

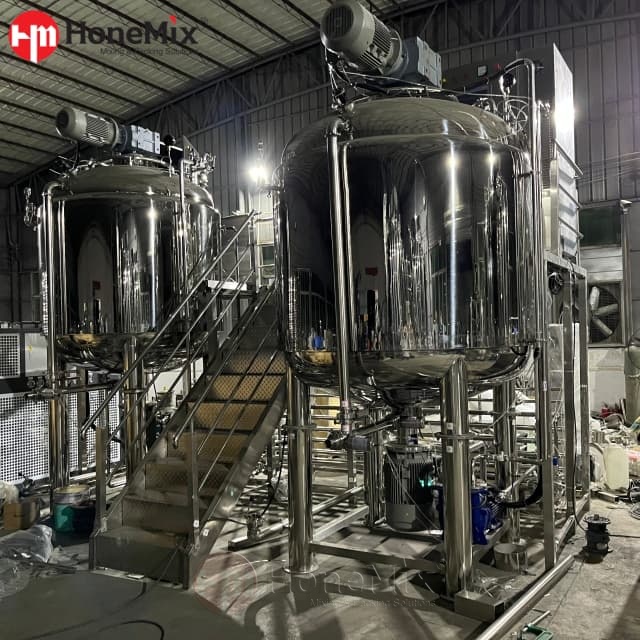

The HCM-CF adopts a fixed vessel structure. This is suitable for factories that want the emulsifying mixer to stay in one defined production position.

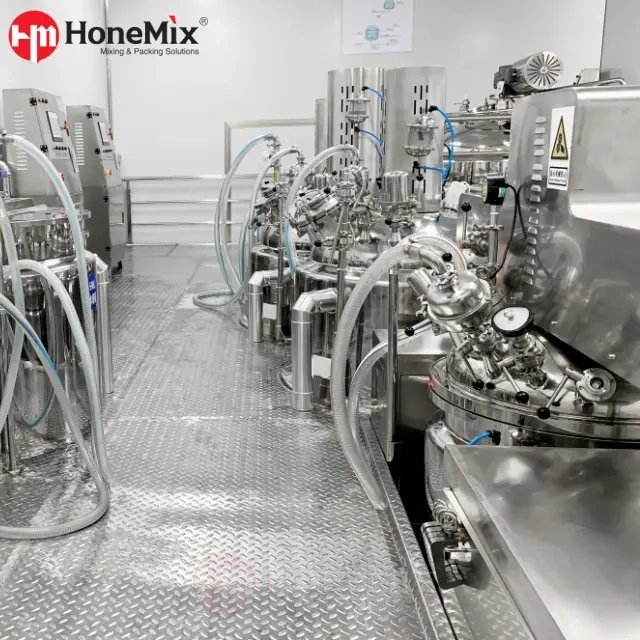

A fixed type design is often preferred when the production line includes fixed pipelines, automatic feeding, discharge systems, working platforms, downstream storage tanks or filling machines. It helps create a more organized production flow and is easier to plan for medium or large workshops.

2. Custom Tank Structure With Flange Type Design

The main vessel can be designed with a flange type tank structure according to the process requirement. This supports a stronger connection between the tank body, cover, sealing system and process ports.

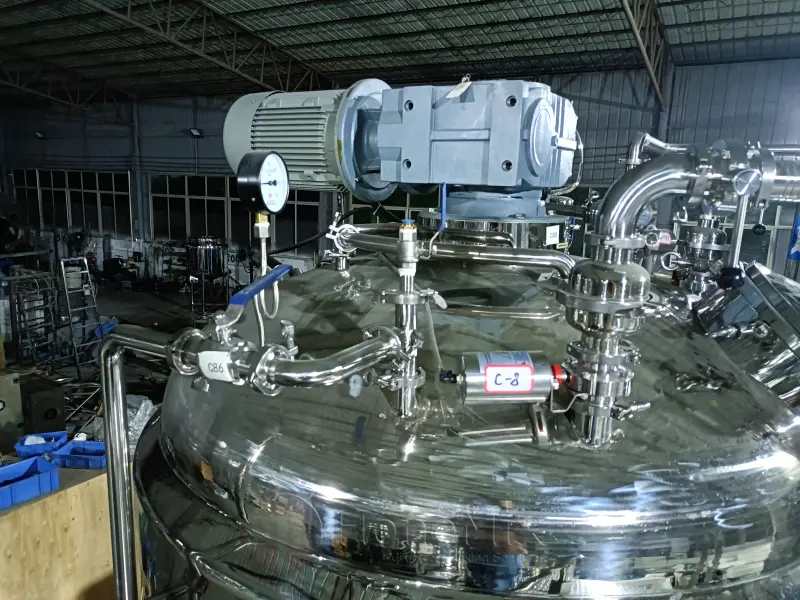

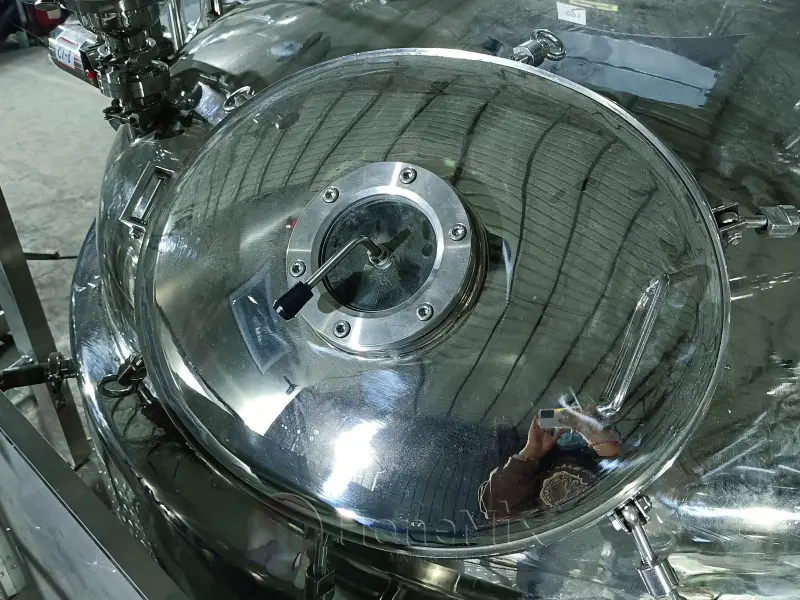

The tank size, jacket design, material contact parts, manhole, sight glass, vacuum port, feeding port, discharge outlet and cleaning connection can be adjusted according to the actual production process.

This makes the machine suitable for different products such as skincare cream, lotion, gel, ointment, paste, emulsion and other viscous materials.

3. Flexible Heating Options

The HCM-CF can be supplied with electric heating or steam heating.

Electric heating is suitable for factories that need an independent heating system without relying on steam utilities. Steam heating is often selected by manufacturers with existing boiler systems or larger production capacity.

Heating and cooling can be designed according to formula requirements, helping the product dissolve, mix, emulsify and cool under a more controlled process.

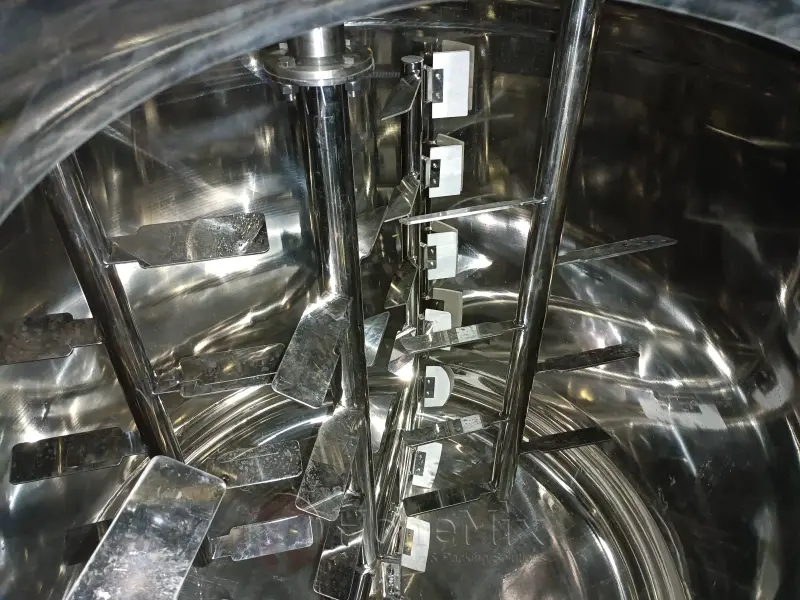

4. Multiple Agitator Structures For Different Viscosities

Different products need different mixing behavior. The HCM-CF can be configured with several agitator structures, including:

• Bidirectional Mixing

• Helix Frame Agitator

• Wall Scraping Agitator

• Paddle Mixing

• Anchor Mixing

• Disperser

For high-viscosity cream or paste, the wall scraping structure helps reduce material sticking on the vessel wall and improves heat transfer. For medium-viscosity lotion or gel, paddle, anchor or bidirectional mixing can be selected according to the product flow.

This flexibility helps manufacturers process different formulas with a more suitable mixing structure.

5. Homogenizer Options For Emulsification And Texture Control

The homogenizer can be selected according to product type, particle size requirement, shear demand and production process.

Available options include:

For skincare cream, gel, lotion and ointment production, the correct homogenizer selection helps improve product smoothness, stability and batch consistency.

6. Manual Or Automatic Valve Control

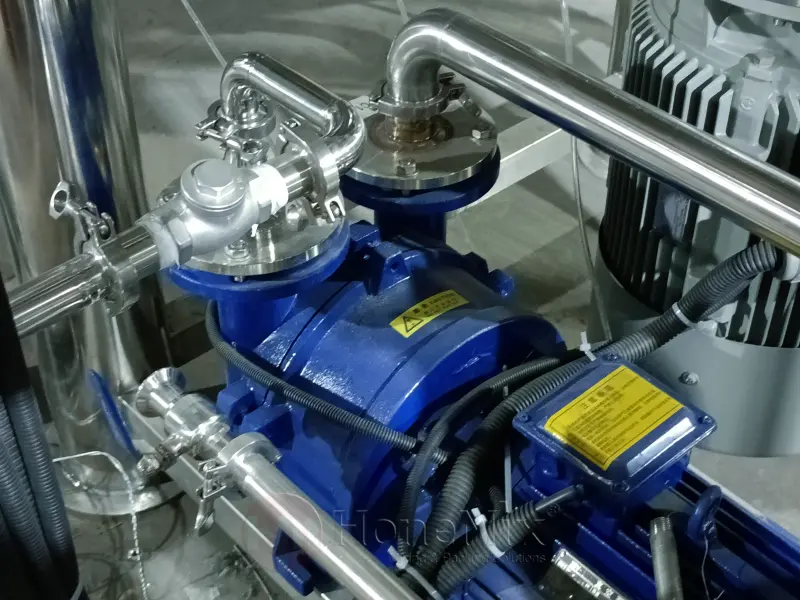

The piping and valve system can be designed with manual control or automatic pneumatic control.

Manual control is suitable for factories with simple production processes or lower automation requirements. Automatic pneumatic control is more suitable for production lines that need better process control, repeated operation and easier integration with other equipment.

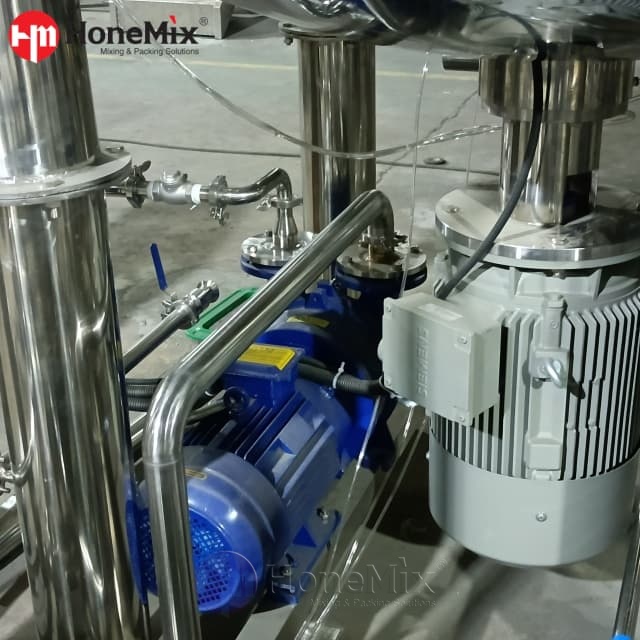

The piping layout can also be customized according to factory space, raw material feeding method, discharge direction and downstream equipment.

7. Control System Options

The HCM-CF can be equipped with different control levels based on production requirements and budget.

Available options include:

• HMI Touch Screen

• Automatic Control System

• Terminal PC Control System

• Flow Meter Option

• Load Cell Option

For factories that require formula records, batch control, automatic feeding or higher repeatability, a more advanced control system can be selected.

Suitable Industries

Why Choose HCM-CF Fixed Type Design?

The HCM-CF is suitable for buyers who need a stable production system instead of a movable or lifting type structure. It is especially useful when the factory already has a planned production area, fixed pipeline direction, platform operation requirement or connection with upstream and downstream equipment.

Before recommending the machine configuration, HONEMIX can review your product type, viscosity, batch size, heating requirement, homogenizing method, power supply, control preference and workshop layout. Based on this information, we help configure a practical fixed type vacuum emulsifying system for your production process.

Recommended Buyer Information Before Quotation

To recommend the correct HCM-CF configuration, please provide:

FAQ

1. What Is The HCM-CF Customized Fixed Type Vacuum Emulsifying Mixer Used For?

It is used for vacuum mixing, heating, emulsifying, homogenizing and deaerating cream, lotion, gel, ointment, paste and other viscous or semi-viscous products.

2. What Is The Difference Between Fixed Type And Lifting Type Vacuum Emulsifying Mixer?

A fixed type mixer keeps the main vessel in a fixed position and is suitable for stable production layouts, fixed pipelines and platform operation. A lifting type mixer allows the cover or mixing system to rise for easier cleaning and material handling.

3. Can The HCM-CF Mixer Be Customized?

Yes. Tank structure, heating method, agitator type, homogenizer type, piping layout, valve control, power supply, control system and factory layout can be customized according to production needs.

4. Is The HCM-CF Suitable For High-Viscosity Cream?

Yes. It can be configured with wall scraping, anchor mixing, helix frame mixing or bidirectional mixing to support medium and high-viscosity products.

5. Can This Machine Connect With Filling Equipment?

Yes. The HCM-CF can be connected with transfer pumps, storage tanks, filling machines, capping machines and complete production line systems according to the factory layout.
