Designed for modern oral care and cosmetic manufacturers, the HONEMIX HTM-H Vacuum Toothpaste Mixer for Cosmetics deaeration, controlled heating, high-shear mixing, and intelligent process control in one integrated system. It is built to deliver smooth, stable, bubble-free paste while improving batch consistency, reducing rework, and making production easier to standardize across operators and product lines.
It is a production-focused solution for brands and factories that care about texture uniformity, hygiene, repeatability, and scalable output from pilot batches to larger commercial runs.
| Quantity: | |
|---|---|
HTM-H
HONEMIX

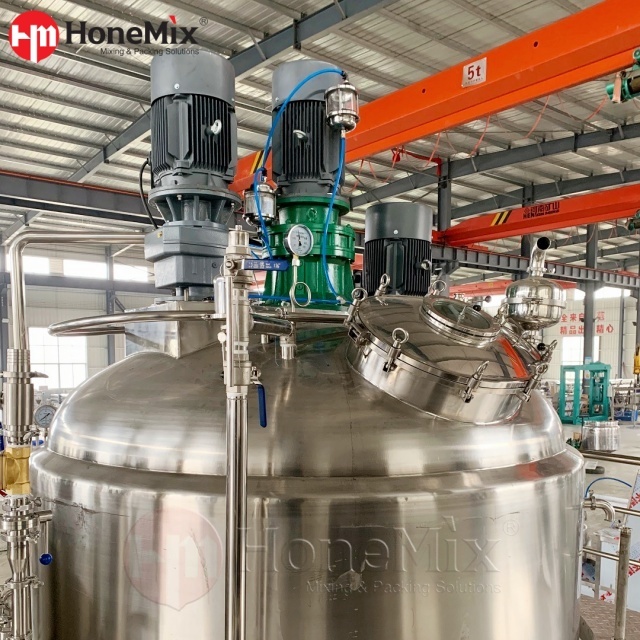

The HONEMIX Vacuum Toothpaste Mixer is engineered for homogeneous mixing of toothpaste, cosmetic paste, gel, and other high-viscosity products. By combining an outer anchor agitator with an inner high-shear rotor under vacuum conditions, the system removes entrapped air while improving ingredient dispersion, texture stability, and visual quality.
It means better control over product appearance, more reliable filling performance, less oxidation risk, and a more professional production process that is easier to validate and scale.
The system operates under stable vacuum to reduce entrapped air during mixing. This helps improve paste density, appearance, shelf stability, and downstream filling performance, especially for toothpaste and cosmetic formulations where surface finish and texture consistency matter. The vacuum range is -0.08 to -0.096 MPa.

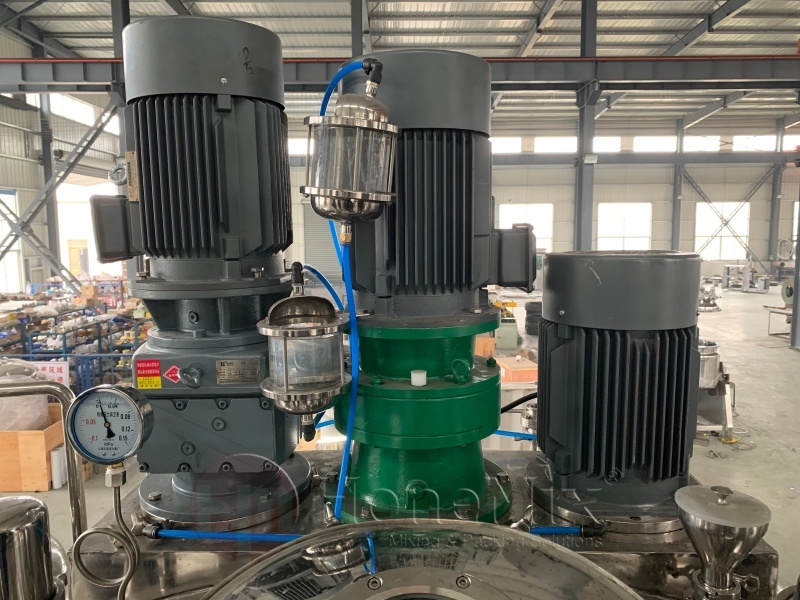

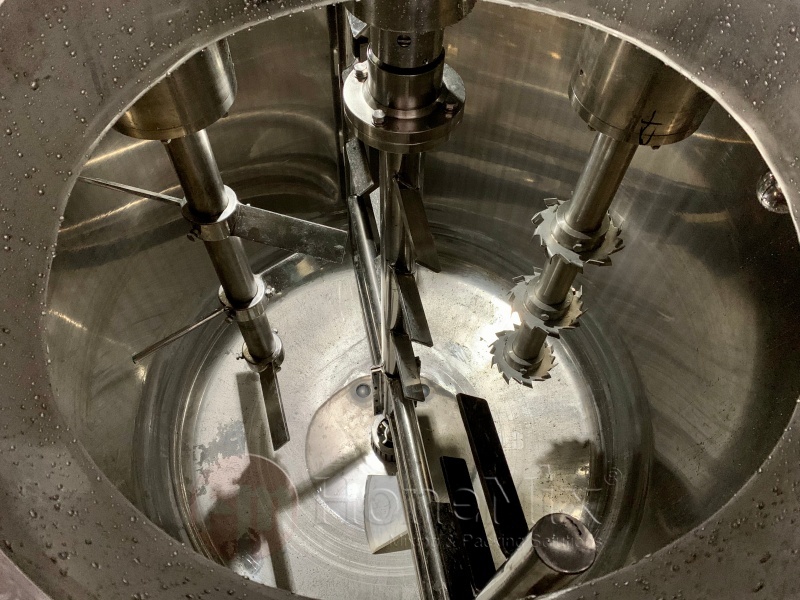

A dual-shaft structure combines bulk agitation with high-shear dispersion, allowing powders, liquids, and viscous additives to be incorporated more efficiently. HONEMIX states an adjustable speed range of 150–1500 rpm and particle reduction to ≤5 μm, which supports more uniform active ingredient and color distribution.
The jacketed vessel supports a working temperature range of 5–80°C in the confirmed configuration. Temperature-control accuracy can reach ±1°C under specified operating conditions. Actual performance depends on batch volume, heating or cooling medium, sensor position and product characteristics.
Product-contact parts are described as 316L stainless steel with a surface finish of Ra ≤0.4 μm. This helps support cleaner processing, easier cleaning, and higher hygiene standards for oral care, cosmetic, and pharmaceutical-adjacent applications.
The 7-inch color touchscreen PLC system stores up to 30 recipes and monitors vacuum level, temperature, and stirring speed in real time. For factory managers and engineers, this makes operation more standardized and reduces dependence on operator judgment alone.
The machine can be supplied with a CIP connection, quick-opening vessel access and an integrated cleaning program. Compatibility with high-pressure washing must be confirmed according to the selected electrical protection level, seals, instruments, bearings and vessel design.
This Vacuum Toothpaste Mixer is suitable for manufacturers that need stable mixing, deaeration, and controlled processing of paste-like products.
Oral care manufacturing
Cosmetics and personal care
Daily chemical production
Pharmaceutical auxiliary and oral gel processing
OEM and ODM contract manufacturing
Fluoride toothpaste
Whitening toothpaste
Medicated gel toothpaste
Sensitive-teeth paste
Children’s toothpaste
Facial cleansing balm
Lip balm paste
Solid lotion and conditioning balm
Oral gel and similar paste-based formulations
Other high-viscosity personal care products
Item | Specification |
|---|---|
Product Name | HONEMIX Vacuum Toothpaste Mixer for Cosmetics |
Working Capacity | 50–500 L |
Suitable Product Type | Toothpaste, cosmetic paste, oral gel, viscous paste formulations |

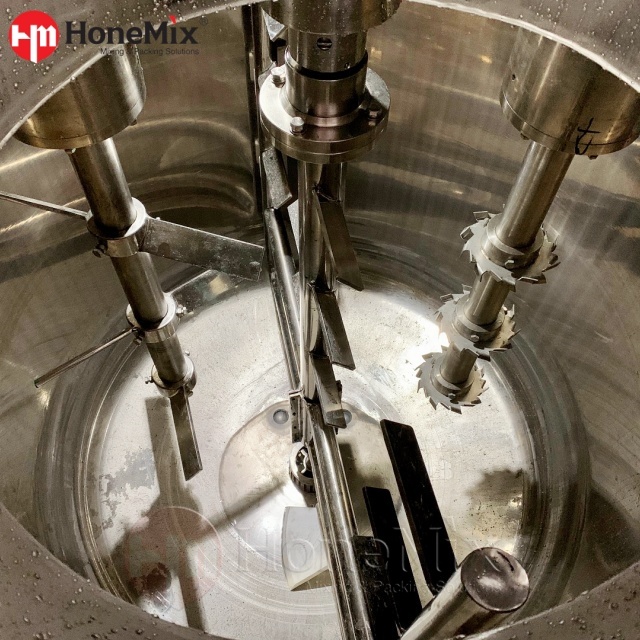

Mixing Structure | Outer anchor agitator + inner high-shear rotor |
Speed Range | 150–1500 rpm adjustable |
Homogenizing Result | Particle size reduction to ≤5 μm |
Vacuum Degree | -0.08 to -0.096 MPa |
Vacuum Pump Capacity | 20 m³/h |
Temperature Control Range | 5–80°C |
Temperature Accuracy | ±1°C |
Product Contact Material | 316L stainless steel |
Surface Finish | Ra ≤0.4 μm |
Maximum Supported Viscosity | Up to 200,000 cP |
PLC/HMI | 7-inch color touchscreen |
Recipe Storage | Up to 30 recipes |
Data Function | Real-time monitoring and USB data export |
Cleaning Method | CIP interface, quick-opening lid |
High-Pressure Cleaning Compatibility | Up to 80 bar |
Power Supply | 380V, 50/60Hz, three-phase four-wire |
Total Installed Power | 15 kW |
Stirring Motor Power | 11 kW |
Vacuum Pump Power | 4 kW |
Typical Batch Time | 15–30 minutes |
Abrasive Compatibility | Suitable for common toothpaste abrasives |
Final specifications can be adjusted based on product characteristics, batch size, and factory requirements.
To better match different production needs, HONEMIX can position this system as a flexible toothpaste manufacturing machine rather than a one-size-fits-all unit.
Customized working volume
Different heating methods based on plant utility conditions
Cooling integration for temperature-sensitive formulas
Manual or higher-level intelligent CIP system
Water metering solution

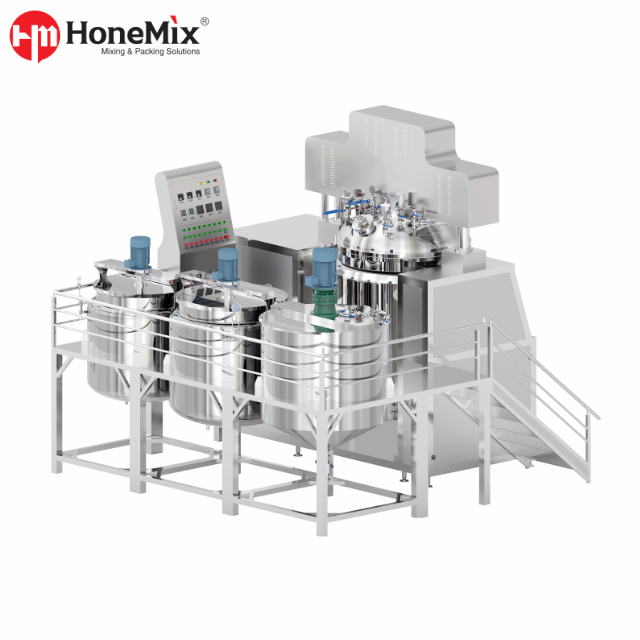

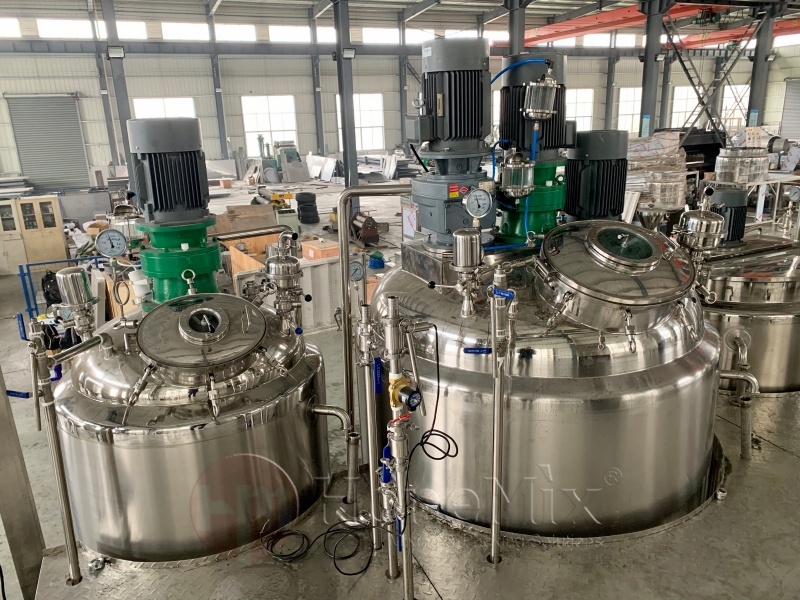

Pre-mix boiler / water phase tank / glue tank integration
Powder hopper configuration
Colloid pump integration

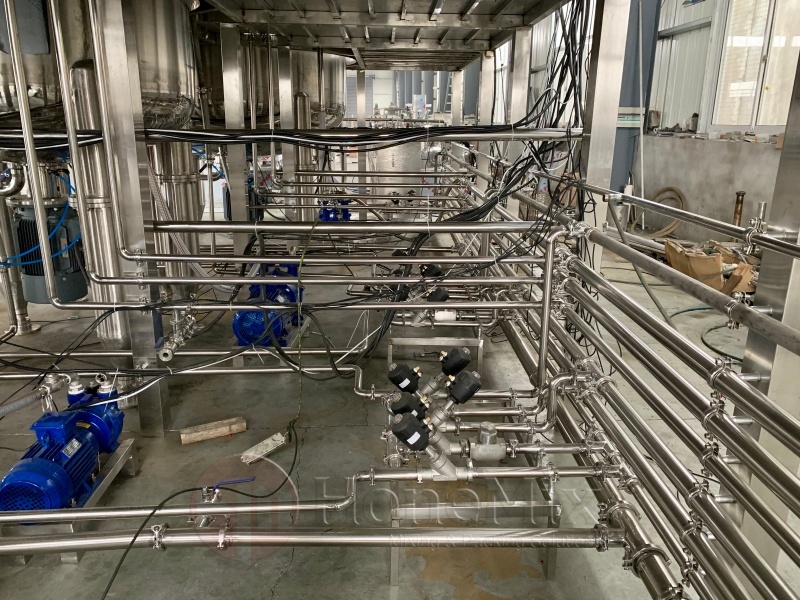

Platform and piping layout customization
Voltage and electrical standard customization for export markets
Additional safety interlocks or process monitoring points
Production-line matching with filling and packaging equipment
The mixer is designed primarily for toothpaste, oral gel and other approved high-viscosity paste formulations that require powder dispersion, vacuum deaeration and controlled mixing. Selected cosmetic or pharmaceutical paste applications can also be evaluated after reviewing the formula, viscosity, abrasiveness and process requirements.
The currently published working capacity range is 50–500 L, which makes the machine suitable for pilot-scale production as well as larger commercial batches depending on the selected model.
Vacuum mixing helps remove entrapped air from the paste, which supports a smoother appearance, more stable texture, lower oxidation risk, and improved filling performance. We lists a vacuum range of -0.08 to -0.096 MPa for this machine.
Yes. The agitator and rotor are made with wear-resistant tungsten carbide and are suitable for common abrasives such as hydrated silica and calcium carbonate, which is important for longer equipment life in toothpaste production.
Yes. The machine is presented with a 7-inch PLC touchscreen, recipe storage, CIP interface, quick-opening access, and an integrated cleaning program concept. These features help reduce operator workload, speed up product changeovers, and support hygiene control.
A vacuum toothpaste mixer is commonly used to mix toothpaste because it can disperse powders, hydrate thickeners, scrape the tank wall, homogenize the paste and remove trapped air under vacuum.
Toothpaste can trap air during powder addition and high-viscosity mixing. Vacuum deaeration helps improve paste smoothness, density, appearance and filling stability.
Looking for a Vacuum Toothpaste Mixer, a reliable Toothpaste Manufacturing Machine, or a premium Cosmetic Paste Mixer for your next production project? Send HONEMIX your product type, target batch size, viscosity range, heating requirement, and preferred control level. We will help you evaluate the right configuration for stable, hygienic, and efficient paste production.
