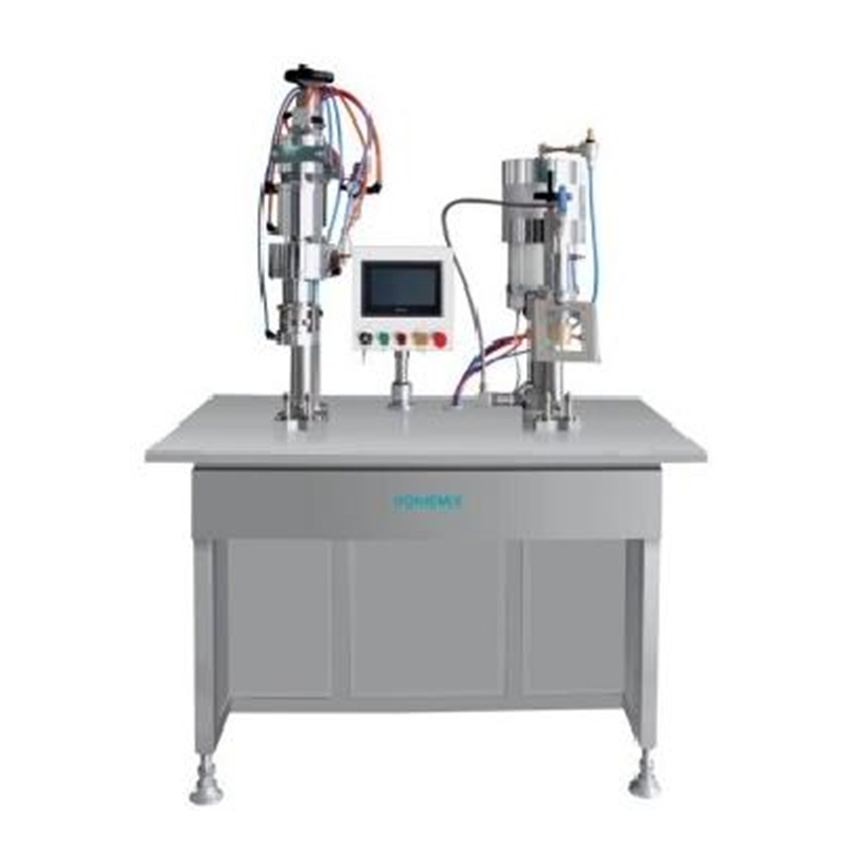

The machine uses touch screen+PLC program control to ntegrate the filing of compressed air(or N2) and sealing, and then the filling of raw materials; it is especially suitable for the filing of water-based aerosol products; it has high speed and convenient operation, accurate measurement, good sealing air tightness, pressure can be adjusted arbitrarily and so on.
lt can beiled with tinplate and aluminum aerasol cans with one-nch can mouth specifications commonly used in China. It is suitable for fling medium-viscosity solvents such as water and oil emulsion solvents. It can also be used for liquid filing in food, chemical, daily chemical, pharmaceutical and other industries.
| Quantity: | |
|---|---|

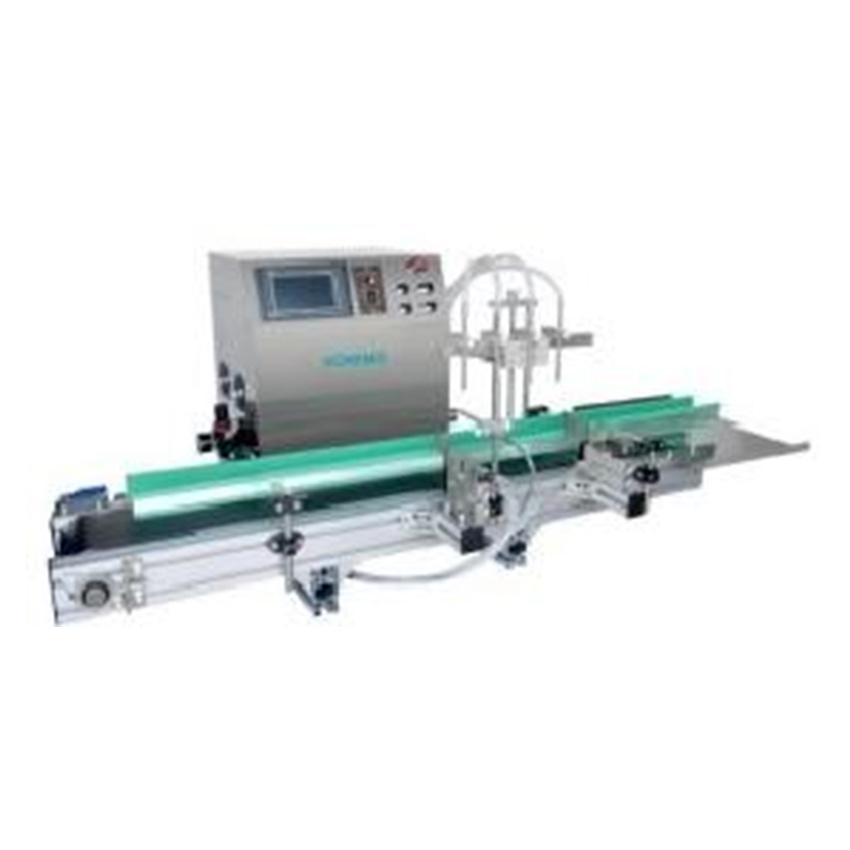

The Semi Auto Filler for Liquids is a flexible filling solution designed for small-to-medium batch liquid production, combining manual pouch/bottle loading with automated volumetric filling to balance efficiency and adaptability. Unlike fully automated fillers that require large production volumes, this machine handles 5-5000ml filling volumes with ±0.5% accuracy, making it ideal for startups and SMEs in beverage, cosmetic, and pharmaceutical industries. It reduces manual filling time by 60% while minimizing material waste (<2% per batch), outperforming manual pouring that typically wastes 8-10% of liquids.
Precision Volumetric Filling: Equipped with a piston-type filling system (piston diameter: 20-100mm) with 5-5000ml adjustable volume. The servo-driven piston ensures consistent filling across batches, even for viscous liquids (up to 10,000 cP).
Flexible Loading Design: Manual positioning platform with adjustable guide rails (width: 50-300mm) accommodates bottles, pouches, jars, and cans. Foot pedal control triggers filling, allowing operators to adjust container position for optimal accuracy.
Liquid Compatibility: Teflon-lined filling nozzles (3 sets included: 8mm, 12mm, 16mm) handle water-based liquids (e.g., juice), oil-based liquids (e.g., essential oil), and corrosive liquids (e.g., cleaning agents) without corrosion.
User-Friendly Operation: 5-inch touchscreen displays filling volume, speed, and count (up to 999,999 units). No programming required—simply rotate the volume adjustment knob and press “Start” for immediate operation.
Food & Beverage: Filling of small-batch sauces (e.g., hot sauce, honey), flavored syrups, and craft beer into glass bottles or plastic pouches.
Cosmetics & Personal Care: Dispensing of shampoo, conditioner, body wash, and facial toner into travel-sized bottles (50ml) or bulk containers (5L).
Pharmaceuticals: Filling of oral syrups, disinfectant sprays, and medical lotions into amber glass bottles with precise dosage control (meets GMP standards).
Household Chemicals: Pouring of liquid detergent, window cleaner, and fabric softener into plastic bottles, with anti-drip nozzles to avoid container contamination.
Q: What is the maximum filling speed?
A: Achieves 900 bottles per hour for 500ml volumes and 300 bottles per hour for 5000ml volumes—speed adjusts via the touchscreen (5-30 fills per minute).
Q: Can it handle foamy liquids like beer or dish soap?
A: Yes, the anti-foam filling nozzle with 45° angled outlet reduces foaming by 80%; the nozzle height is adjustable (10-150mm) to submerge in liquid and minimize air contact.
Q: How to clean the filling system between different liquids?
A: The quick-disconnect nozzle and food-grade silicone hoses allow disassembly in 2 minutes for manual cleaning; optional CIP adapter connects to a water supply for automated rinsing.
Q: What power and space does it require?
A: Operates on 220V, 50/60Hz (single-phase) with total power of 1.5KW. Dimensions: L800W600H1200mm, fitting on standard workbenches (minimum 0.5m² space).
The Semi Auto Filler for Liquids is a flexible filling solution designed for small-to-medium batch liquid production, combining manual pouch/bottle loading with automated volumetric filling to balance efficiency and adaptability. Unlike fully automated fillers that require large production volumes, this machine handles 5-5000ml filling volumes with ±0.5% accuracy, making it ideal for startups and SMEs in beverage, cosmetic, and pharmaceutical industries. It reduces manual filling time by 60% while minimizing material waste (<2% per batch), outperforming manual pouring that typically wastes 8-10% of liquids.
Precision Volumetric Filling: Equipped with a piston-type filling system (piston diameter: 20-100mm) with 5-5000ml adjustable volume. The servo-driven piston ensures consistent filling across batches, even for viscous liquids (up to 10,000 cP).
Flexible Loading Design: Manual positioning platform with adjustable guide rails (width: 50-300mm) accommodates bottles, pouches, jars, and cans. Foot pedal control triggers filling, allowing operators to adjust container position for optimal accuracy.
Liquid Compatibility: Teflon-lined filling nozzles (3 sets included: 8mm, 12mm, 16mm) handle water-based liquids (e.g., juice), oil-based liquids (e.g., essential oil), and corrosive liquids (e.g., cleaning agents) without corrosion.
User-Friendly Operation: 5-inch touchscreen displays filling volume, speed, and count (up to 999,999 units). No programming required—simply rotate the volume adjustment knob and press “Start” for immediate operation.
Food & Beverage: Filling of small-batch sauces (e.g., hot sauce, honey), flavored syrups, and craft beer into glass bottles or plastic pouches.
Cosmetics & Personal Care: Dispensing of shampoo, conditioner, body wash, and facial toner into travel-sized bottles (50ml) or bulk containers (5L).
Pharmaceuticals: Filling of oral syrups, disinfectant sprays, and medical lotions into amber glass bottles with precise dosage control (meets GMP standards).
Household Chemicals: Pouring of liquid detergent, window cleaner, and fabric softener into plastic bottles, with anti-drip nozzles to avoid container contamination.
Q: What is the maximum filling speed?
A: Achieves 900 bottles per hour for 500ml volumes and 300 bottles per hour for 5000ml volumes—speed adjusts via the touchscreen (5-30 fills per minute).
Q: Can it handle foamy liquids like beer or dish soap?
A: Yes, the anti-foam filling nozzle with 45° angled outlet reduces foaming by 80%; the nozzle height is adjustable (10-150mm) to submerge in liquid and minimize air contact.
Q: How to clean the filling system between different liquids?
A: The quick-disconnect nozzle and food-grade silicone hoses allow disassembly in 2 minutes for manual cleaning; optional CIP adapter connects to a water supply for automated rinsing.
Q: What power and space does it require?
A: Operates on 220V, 50/60Hz (single-phase) with total power of 1.5KW. Dimensions: L800W600H1200mm, fitting on standard workbenches (minimum 0.5m² space).
