Typical Production and Packaging Process

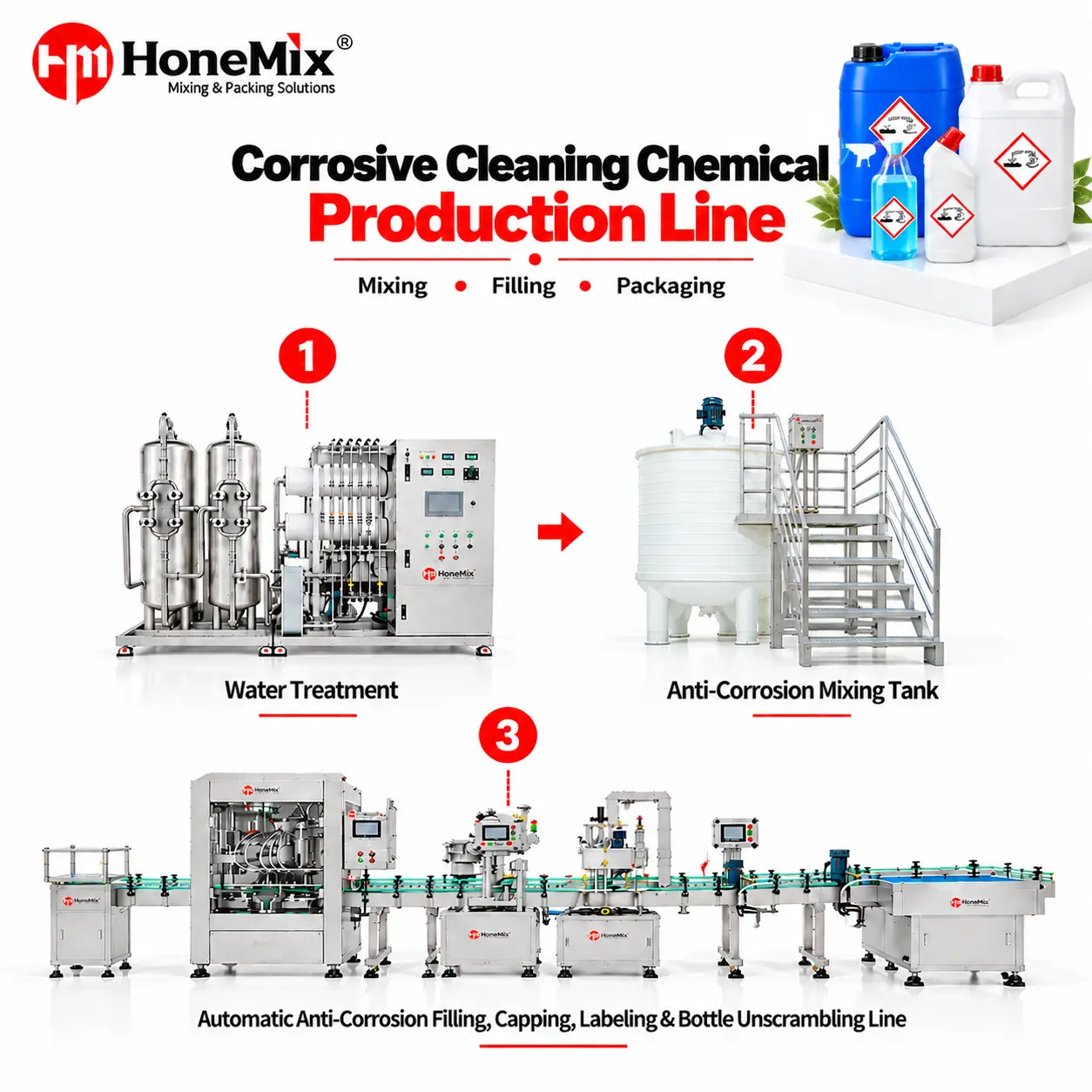

Process Water Preparation, When Required → Raw Material Charging and Chemical Mixing → Batch Transfer → Finished Product Storage → Bottle Unscrambling → Corrosion-Resistant Filling → Capping → Labeling → Optional Coding, Inspection and Case Packing
The final line layout is configured according to batch capacity, container dimensions, filling volume, target output and required automation level.

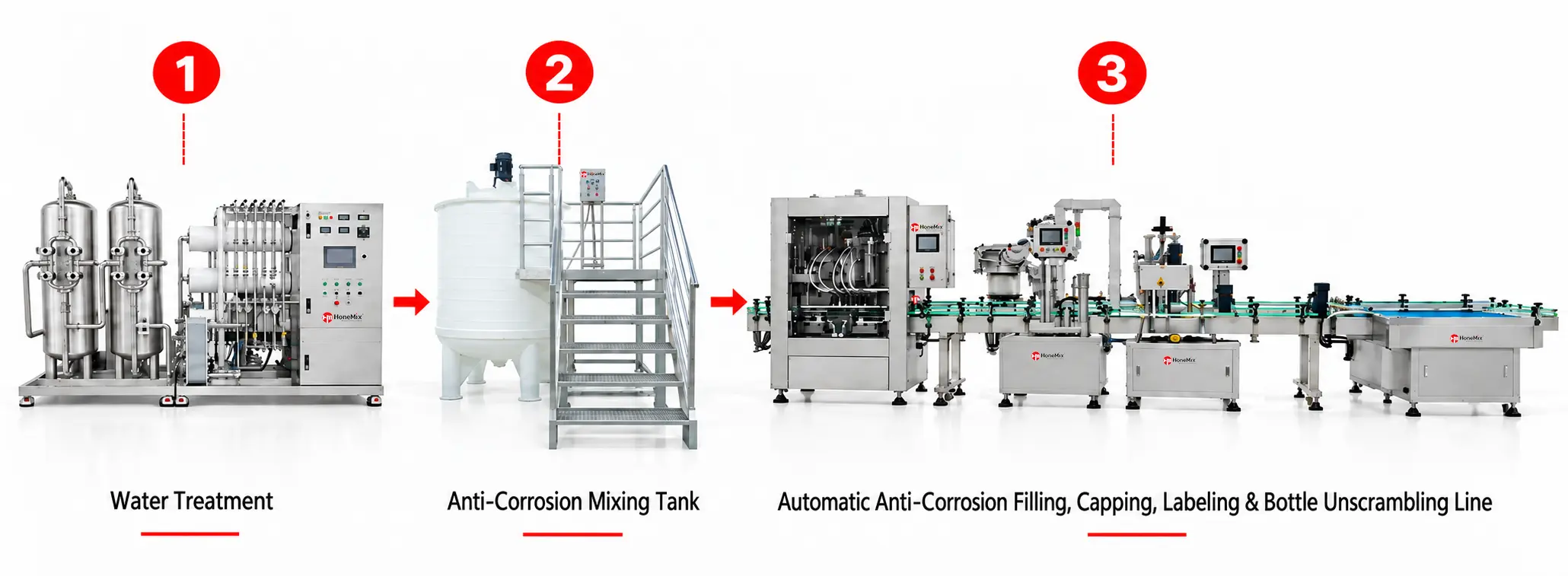

Corrosive Cleaning Chemical Production line Process Equipment
Complete Chemical Processing Equipment
HONEMIX customizes tank materials, capacity, piping, valves, seals, connections and other components to meet your process requirements.
Water Treatment System
Prepare process water according to incoming water quality and formulation requirements. The HRO system supports single-pass RO, double-pass RO and RO + EDI configurations, with treatment capacity selected according to production demand and required water quality.
Water treatment is integrated when the chemical formulation or process-water specification requires it. The treatment configuration is determined by the actual water analysis and production requirements.
Anti-Corrosion Chemical Mixing Tank
The HPM chemical mixing tank is designed for bulk mixing of aggressive chemical media, including compatible acidic and alkaline formulations. Its corrosion-resistant construction, paddle agitation and variable-frequency speed control support consistent batch preparation.
Standard models range from 500 L to 5,000 L. PP or PTFE tank options are available, with tank materials, capacity and stirring parameters configured according to the working medium and process conditions.
Automatic Anti-Corrosion Filling Line
The HY-AFM chemical filling machine integrates automatic bottle unscrambling, quantitative filling, capping and labeling in a coordinated packaging line configuration.
Product-contact materials and filling technology are selected according to chemical compatibility, viscosity and filling requirements. Available filling principles include magnetic pump, peristaltic pump, piston filling with PTFE seals and diaphragm valve systems.
Cleaning Chemicals This Line Can Handle
HONEMIX configures chemical processing and packaging equipment for compatible formulations such as:
Acidic Cleaners: Toilet Bowl Cleaners, Descalers and Limescale Removers
Alkaline Cleaners: Industrial Degreasers and Heavy-Duty Cleaning Solutions
Bleach-Based Cleaners: Selected Hypochlorite Cleaning Formulations
Industrial Cleaning Chemicals: Surface Cleaners, Process Cleaning Liquids and Specialized Chemical Solutions
Selected Disinfecting Products: Formulations requiring corrosion-compatible mixing, storage and filling equipment
Final equipment selection depends on the exact chemical composition, concentration, temperature and other operating conditions. Products with different chemical properties may require different contact materials, seals and filling systems.
Engineered Around Chemical Compatibility
Corrosion-Resistant Material Selection
Match tank construction, filling components, seals, valves and transfer piping to the chemical medium. Available filling contact materials include SUS316L stainless steel, PTFE, PFA, Hastelloy and titanium, subject to the final configuration.
Filling Technology Matched to the Product
Select the appropriate filling principle according to viscosity, chemical behavior, filling volume and dosing requirements. The configuration supports consistent filling while addressing material compatibility and leakage risks.
Integrated Mixing, Storage and Packaging
Connect batch preparation, intermediate storage and automatic bottle packaging in one coordinated production layout. Optional downstream equipment can support coding, inspection and secondary packaging.
Customized Capacity and Automation
Configure batch volume, storage capacity, filling heads, bottle handling and line integration according to current production needs and planned expansion.
Frequently Asked Questions
1. What equipment is required for a corrosive cleaning chemical production line?
A typical line includes process-water treatment when required, a corrosion-resistant chemical mixing tank, customized storage tanks and an automatic anti-corrosion filling line. Coding, inspection and secondary packaging can be added according to production requirements.
2. Can one chemical mixing tank handle both acidic and alkaline cleaners?
Equipment can be configured for selected products, but compatibility must be checked for each formulation. Chemical concentration, temperature and material exposure determine the appropriate tank construction, seals, valves and transfer components. One material configuration should not be assumed suitable for every chemical.
3. Does every corrosive cleaning chemical line require reverse osmosis water treatment?
No. The HRO system is selected according to incoming water quality, the product formulation and the required process-water specification. The treatment stages and capacity are configured around those requirements.
4. What is the difference between a standard chemical filling machine and a corrosive liquid filling machine?
A corrosive liquid filling machine requires product-contact materials, seals and a filling system compatible with the specific chemical medium. The correct configuration helps control corrosion, contamination and leakage risks while maintaining the required dosing performance.
5. Can HONEMIX customize storage tanks and filling capacity?
Yes. Storage tank capacity, materials and connections can be customized. The HY-AFM filling line supports different filling-head configurations and filling volumes, with the final output determined by the product, container and complete line setup.
Build the Line Around Your Actual Production
Tell us what products you plan to produce and your target production capacity. We’ll recommend a tailored equipment configuration for your production line.
