Shampoo Production Line Configuration
From Raw Materials to Finished Shampoo Bottles

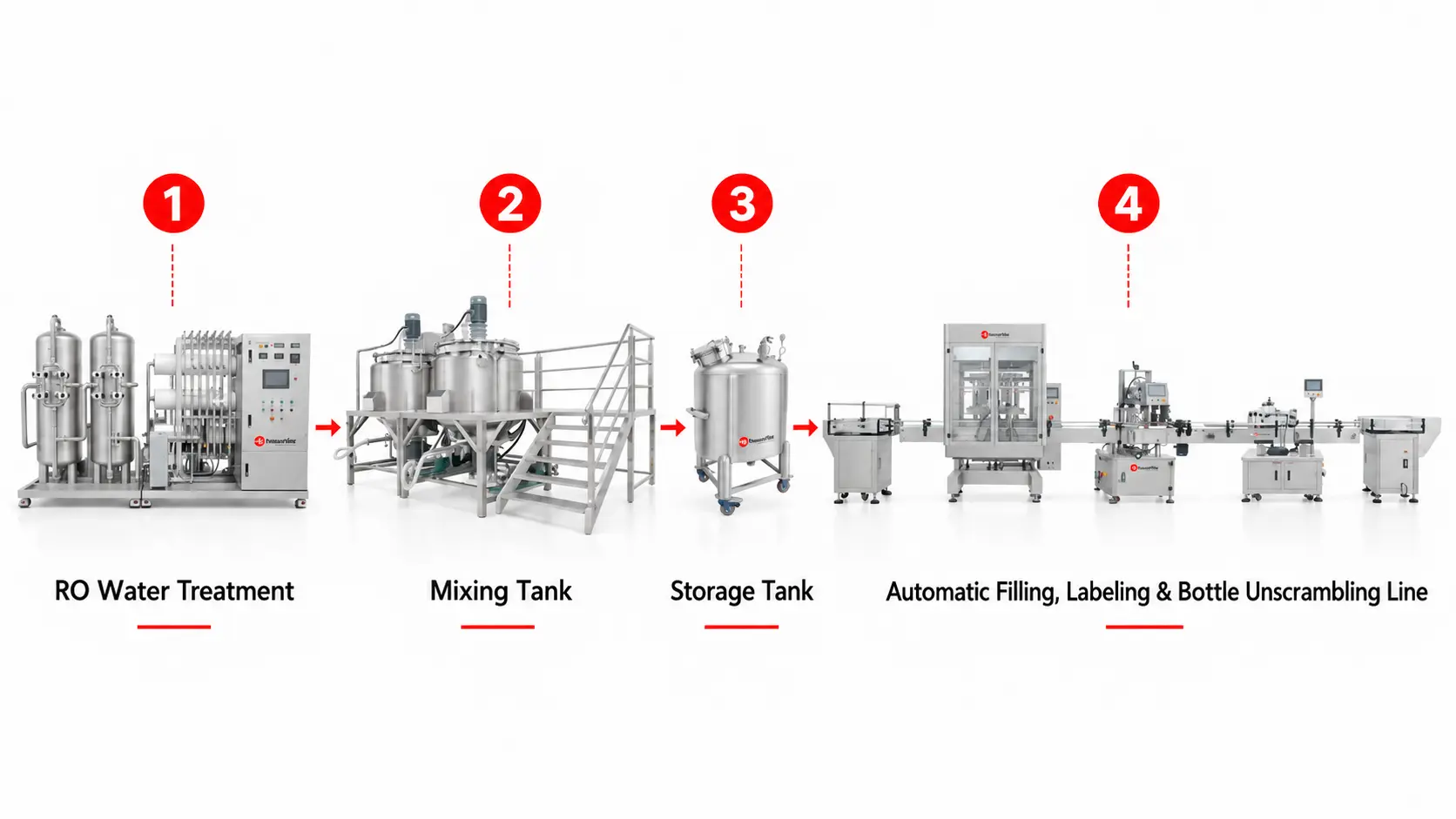

A complete shampoo production line connects water preparation, shampoo mixing, bulk handling and automatic bottling. HONEMIX selects the equipment to match production capacity, formulation requirements and the packaging process.
1. Water Preparation (①)
HRO Reverse Osmosis Water Treatment
2. Shampoo Mixing & Processing (②)
HHM-C Sanitary Liquid Homogenizer Mixer
OR HHM-SH Mobile Mixing Tank
3. Bulk Storage & Transfer(③)
HST-SLP Sealed Storage Tank (Optional)
4. Automatic Shampoo Bottling(④)
AFM-LP Automatic Servo Piston Filling Line
Bottle Feeding → Filling → Capping → Labeling → Collection
5. Secondary Packaging (OPTIONAL)
HY-ZHJ-120 Automatic Cartoning Machine
OR FSM-L Automatic PE Film Shrink Wrapping
Available Configurations
Complete shampoo manufacturing and bottling lines
Shampoo mixing and bulk storage systems
Automatic shampoo bottle filling and packaging lines
Sanitary pumps, piping, valves, conveyors and auxiliary equipment are included according to the agreed production configuration.
Shampoo Production Line Process Equipment
Shampoo Manufacturing Equipment
HONEMIX combines selected processing and packaging equipment into a practical shampoo manufacturing system. Individual machines and complete production lines are available.
HRO Reverse Osmosis Water Treatment
Process Water Preparation
Prepares purified process water for shampoo manufacturing. Treatment capacity and purification stages are configured according to the incoming water quality and production requirements.
HHM-C Shampoo Mixing Machine
100–5,000 L Reference Range | Mixing & Homogenizing
The HHM-C combines variable-speed agitation, wall-scraping mixing and jacketed heating/cooling in a sanitary SS316L-contact vessel.
Its independently controlled homogenizer provides additional dispersion when required, while controlled agitation supports routine shampoo blending and viscosity adjustment.
AFM-LP Automatic Shampoo Filling Line
Integrated Bottle Filling & Packaging | Approx. 30–40 BPM
The AFM-LP combines automatic bottle feeding, servo piston filling, capping, labeling and finished bottle collection in one coordinated line.
Available with 2, 4, 6 or 8 filling heads, the system supports different shampoo viscosities, bottle sizes and packaging requirements. Actual complete-line output depends on the approved configuration.
Shampoo Line Capacity & Configuration
An effective shampoo manufacturing plant requires the mixing system and bottling line to work at compatible production rates.
HONEMIX evaluates both batch capacity (L/batch) and packaging output (bottles/min) before confirming the equipment configuration.
Mixing Capacity
Select working volume according to production batch size, formula processing time and the number of products manufactured.
Bottling Performance
Match filling heads, bottle volume, cap type and labeling requirements to the desired packaging speed.
Storage & Production Flow
Intermediate holding tanks or additional mixing vessels can be introduced when the bottling schedule requires continuous product supply.
Factory Layout
Tank positioning, transfer routes, operator access, cleaning space and utility connections are incorporated into the proposed arrangement.
Project Engineering & Support
As a machinery manufacturer, HONEMIX supports shampoo production projects with equipment engineering and factory-based technical assistance.
1. Equipment Configuration
Recommended machine models, processing options and an itemized quotation based on the required manufacturing and packaging capacity.
Equipment arrangement drawings, dimensions and main utility connection requirements for the approved line.
3. Factory Inspection & Testing
Machine operation checks and factory acceptance testing (FAT), including sample-based trials where included in the agreed inspection scope.
4. Installation & Technical Guidance
Equipment documentation, installation instructions and commissioning support according to the project agreement.
Frequently Asked Questions
1. What Equipment Is Needed for a Shampoo Production Line?
A typical shampoo production line includes water treatment, a shampoo mixing machine, product transfer equipment and an automatic bottling line. Storage tanks and secondary packaging equipment are added according to the factory's production requirements.
2. What Is the Difference Between a Shampoo Making Machine and a Shampoo Production Line?
A shampoo making machine is primarily used for blending and processing the shampoo formulation. A complete shampoo production line includes the associated equipment needed to prepare, transfer, fill, cap, label and collect the finished bottles.
3. Does Shampoo Manufacturing Always Require High-Shear Homogenization?
No. Many conventional shampoos can be manufactured with controlled agitation. High-shear homogenization may be useful for specific ingredient dispersion requirements, depending on the formulation.
4. How Much Does a Shampoo Production Line Cost?
The cost depends on the processing capacity, machine configuration, automation level, bottle formats and optional equipment. HONEMIX provides a project-specific quotation after reviewing the manufacturing and packaging requirements.
5. Can the Equipment Also Produce Shower Gel or Body Wash?
Selected mixing and filling equipment can also handle compatible liquid personal care products. The configuration must be checked against each formulation's viscosity, foaming behavior and processing requirements.
For additional processing guidance, see our Liquid Personal Care Manufacturing Equipment Solution.
Build the Line Around Your Actual Production
Tell us what products you plan to produce and your target production capacity. We’ll recommend a tailored equipment configuration for your production line.
