A Plant-Level Solution
A successful lip products factory requires more than selecting filling equipment. Every production stage must work together to maintain product consistency, minimize material handling, balance line output and support efficient operation.
HONEMIX plans the production system around:
Process Flow: Define the sequence from material preparation through finished-product packaging.
Equipment Integration: Match upstream processing, product-specific filling and downstream packaging modules.
Factory Layout: Coordinate equipment positioning, material transfer, operator access and maintenance space.
Production Capacity: Balance processing, filling, cooling and packaging according to target output and operating schedules.
Future Expansion: Plan modular connections and space allowances for additional products, packaging formats or production capacity.
The result is a coordinated manufacturing workflow designed for your product portfolio rather than a collection of independently selected machines.

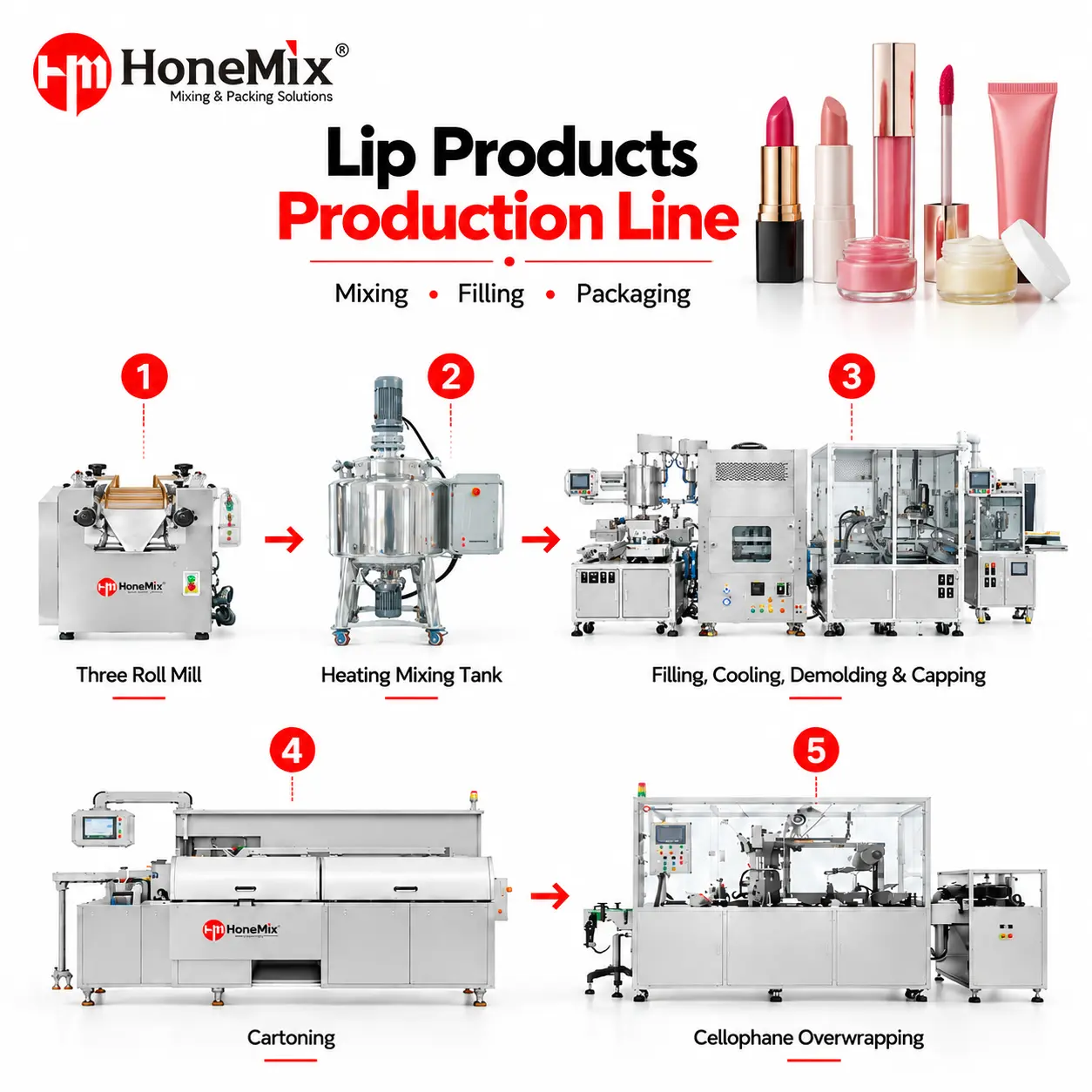

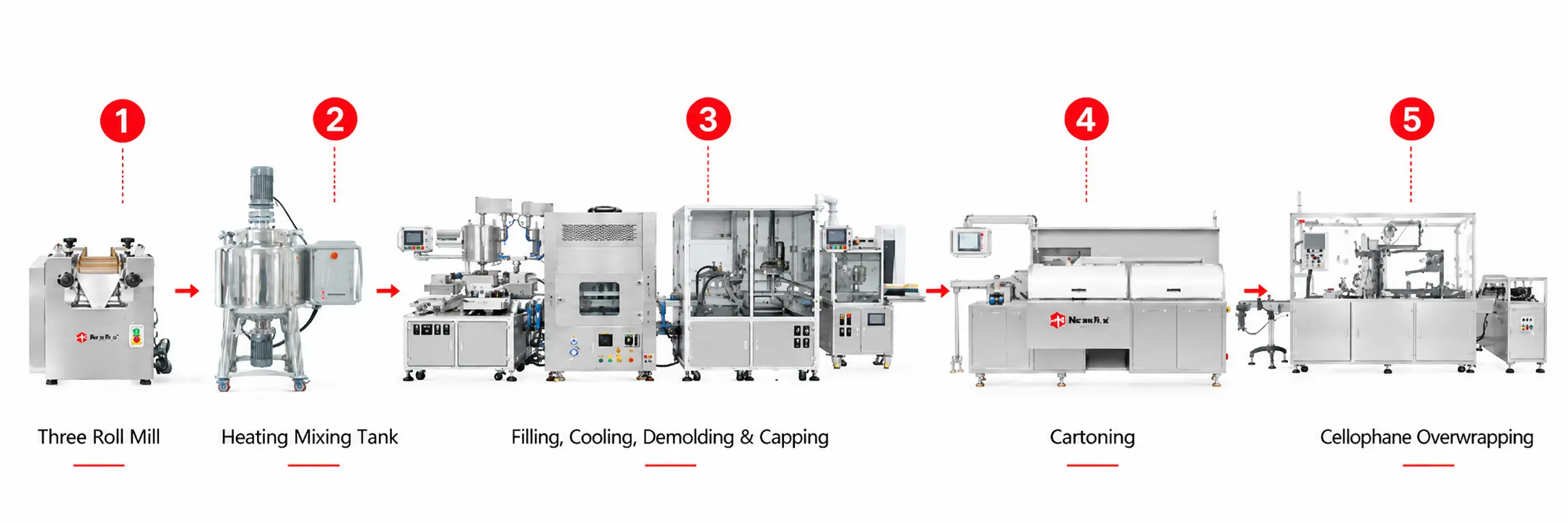

Lip Products Production Line
1. Standardized Upstream Processing Modules
Solid lipstick, lip balm and liquid lip gloss have different material characteristics, but their production systems can share a common engineering platform for material preparation, mixing, optional pigment processing and controlled transfer.
The exact sequence is determined by the formulation. Pigment dispersion and three-roll milling are selected where color development and fineness require them, while vacuum deaeration and heated holding are configured according to material properties and process requirements.

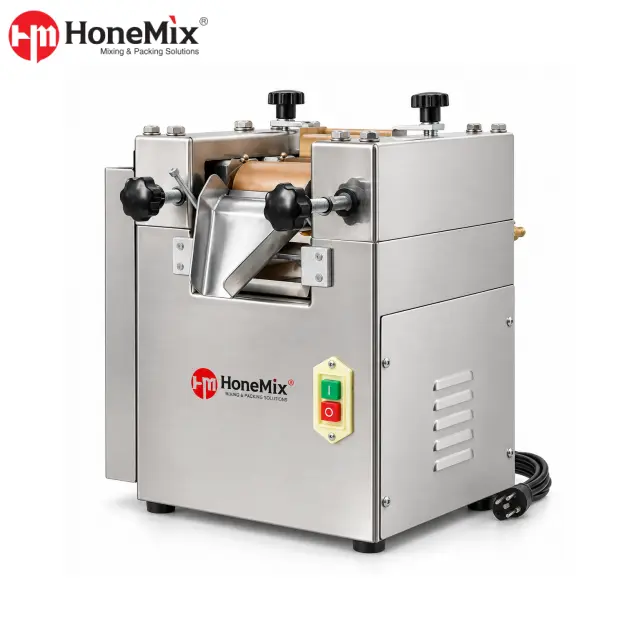

Pigment Dispersion and Grinding
For pigment-rich lipstick and other color-critical formulations, a dedicated dispersion and grinding stage helps achieve the required pigment fineness and color uniformity before downstream processing.
Related equipment:
Formula Preparation and Heated Mixing
Prepare waxes, oils, butters, pigments and other ingredients using a mixing and material preparation system matched to the formulation. Heating, mixing and material transfer are coordinated to maintain suitable processing conditions before filling.
Related equipment:
Vacuum Deaeration and Temperature-Controlled Transfer
Where required by the formulation, vacuum deaeration helps reduce entrained air before filling. Temperature-controlled holding, suitable transfer arrangements and buffer capacity are planned to support stable feeding into the selected filling or forming route.
The upstream configuration is modular: compatible preparation and transfer systems can be shared where appropriate, while product-specific processing requirements remain separate.
2. Three Product-Specific Manufacturing Routes
The middle section of the plant is configured according to the product's physical state, filling method, cooling requirements and primary packaging. HONEMIX selects the appropriate processing route instead of applying one standard filling system to every lip product.
Route A: Solid Lipstick and Molded Stick Products
Process: Material Preparation → Pigment Processing, Where Required → Mold Filling → Reheating and Cooling → Demolding → Tube Capping → Product Inspection
Molded lipstick production requires coordinated material temperature, mold handling, filling, cooling and demolding. The line layout must connect these stages while allowing efficient product transfer and finished-unit collection.
Related equipment:
The wider plant can connect this product-specific route to shared upstream preparation and the appropriate downstream packaging modules.
Route B: Lip Balm and Wax-Based Lip Care Products
Lip balm requires a processing and filling arrangement matched to its formulation and package format. Stick products and jar products follow different filling and finishing sequences.
Heated Material Preparation → Filling → Cooling → Cap Feeding and Pressing → Inspection
Related equipment:

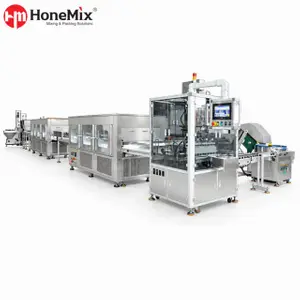

Heated Material Preparation → Jar Filling → Cooling, Where Required → Capping → Inspection
Related equipment:
The plant layout accommodates the selected package format, product transfer requirements and downstream finishing sequence. Jar-based lip balm and petroleum jelly products can be planned as a dedicated filling route within the wider facility.
Route C: Liquid Lip Gloss and Lip Oil
Process: Formula Preparation → Pigment Processing, Where Required → Viscous Liquid Filling → Closure or Applicator Assembly → Capping → Inspection
Liquid lip products require a filling arrangement matched to their viscosity, container opening, filling volume and closure design. Products using brush-and-plug packaging need a different finishing sequence from products packed in compatible squeeze tubes.
Wand-applicator tube route:
Suitable for compatible lip gloss, lip oil and similar small-volume cosmetic packages.
Suitable for compatible lip care products packaged in tubes.
HONEMIX coordinates the selected filling route with upstream material preparation and downstream packaging to create a coherent production workflow.
3. Standardized Downstream Inspection and Packaging Modules
After product-specific filling and forming, the selected routes can converge on a common downstream engineering platform. The exact equipment combination depends on the package design, required inspection level, retail presentation and output target.
Inspection and Product Verification
Provide appropriate inspection points for product appearance, container condition, closure quality and other defined acceptance criteria. Inspection and reject-handling arrangements are integrated according to the production requirements.
Batch Coding and Traceability
Integrate coding equipment at the appropriate point in the line to apply batch identification, production dates or other required product information.
Connect primary-pack discharge and conveying to automatic carton forming, product feeding and carton closing where retail cartons are required.
Related equipment:
Overwrapping and Final Packaging
For products requiring an additional protective retail finish, an overwrapping module can be integrated after cartoning.
Related equipment:
Case packing, finished-goods handling and palletizing can also be planned according to shipping requirements, available floor space and the required level of automation.
Plant Layout and Production Line Integration
A turnkey lip products project must account for the relationship between processing equipment, packaging machinery and the factory environment.
HONEMIX coordinates the following engineering considerations:
1.Process and Material Flow
Arrange preparation, filling, cooling, inspection and packaging stages to establish a practical production sequence and reduce unnecessary product handling.
2.Line Balancing and Transfer
Coordinate conveyors, transfer points, buffer positions and operating speeds so that one stage does not unnecessarily restrict the output of the next.
3.Packaging and Changeover Requirements
Plan for the required range of stick, tube and jar formats, including compatible tooling, product transfer arrangements and changeover access.
4.Factory Space and Utilities
Review the available floor plan, equipment footprint, operator access, maintenance clearance and relevant utility interfaces before finalizing the layout.
Where future growth is planned, reserve suitable space and integration points for additional filling routes, packaging equipment or higher-capacity downstream systems.
Turnkey Project Planning and Implementation
HONEMIX supports the development of a coordinated production system from initial requirements through equipment integration and project delivery, with the final scope defined for each project.
Requirement Review: Confirm product categories, formulations, packaging drawings, target output and operating schedule.
Process Planning: Define shared upstream modules, product-specific manufacturing routes and downstream packaging requirements.
Equipment and Layout Coordination: Select compatible equipment and plan material transfer, line interfaces and factory positioning.
Integration and Testing: Coordinate the selected equipment configuration and arrange factory testing and pre-shipment inspection according to the agreed project scope.
Project Handover: Define delivery, commissioning, training and technical support arrangements according to the project requirements.
This approach helps manufacturers coordinate the full production workflow while keeping equipment selection aligned with actual product and factory needs.
Lip Products Turnkey Project References
Customized Lip Balm and Lipstick Production Lines in Belarus
See how HONEMIX configured two dedicated production lines around the distinct processing and finishing requirements of lip balm and molded lipstick.
Customized Lip Balm and Shea Butter Jar Filling Project in the USA
Explore a project reference for jar-based personal care production and multi-line equipment planning.
Frequently Asked Questions
1. Can one factory manufacture lipstick, lip balm and lip gloss?
Yes. A multi-product factory can combine compatible upstream preparation and downstream packaging modules with dedicated filling or forming routes for each product family. Formula compatibility, cleaning requirements, changeovers and packaging formats must be assessed during planning.
2. Do all lip products require pigment grinding and vacuum deaeration?
No. Pigment dispersion and three-roll milling are used when required by the formulation and color specifications. Vacuum deaeration is selected according to the material's behavior and process requirements. The final sequence should be based on formulation evaluation rather than a fixed process imposed on every product.
3. Can HONEMIX integrate new equipment with existing production lines?
Existing equipment can be evaluated for integration based on its process role, operating speed, transfer interfaces, control requirements, available space and compatibility with the proposed production workflow.
4. Can the plant be expanded when production demand increases?
Yes. The initial layout can account for planned product additions, new packaging formats and potential capacity expansion. The practical scope depends on available space, existing equipment and the required level of integration.
Provide your product list, relevant formulation characteristics, container or packaging drawings, target production output, batch size, operating schedule and available factory layout. These details help establish the appropriate process routes and equipment interfaces.
