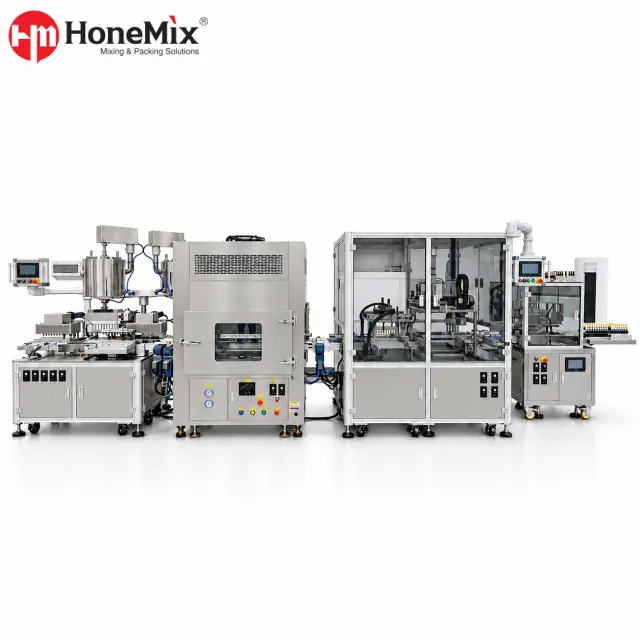

Streamline Lipstick Filling from Mold to Finished Product

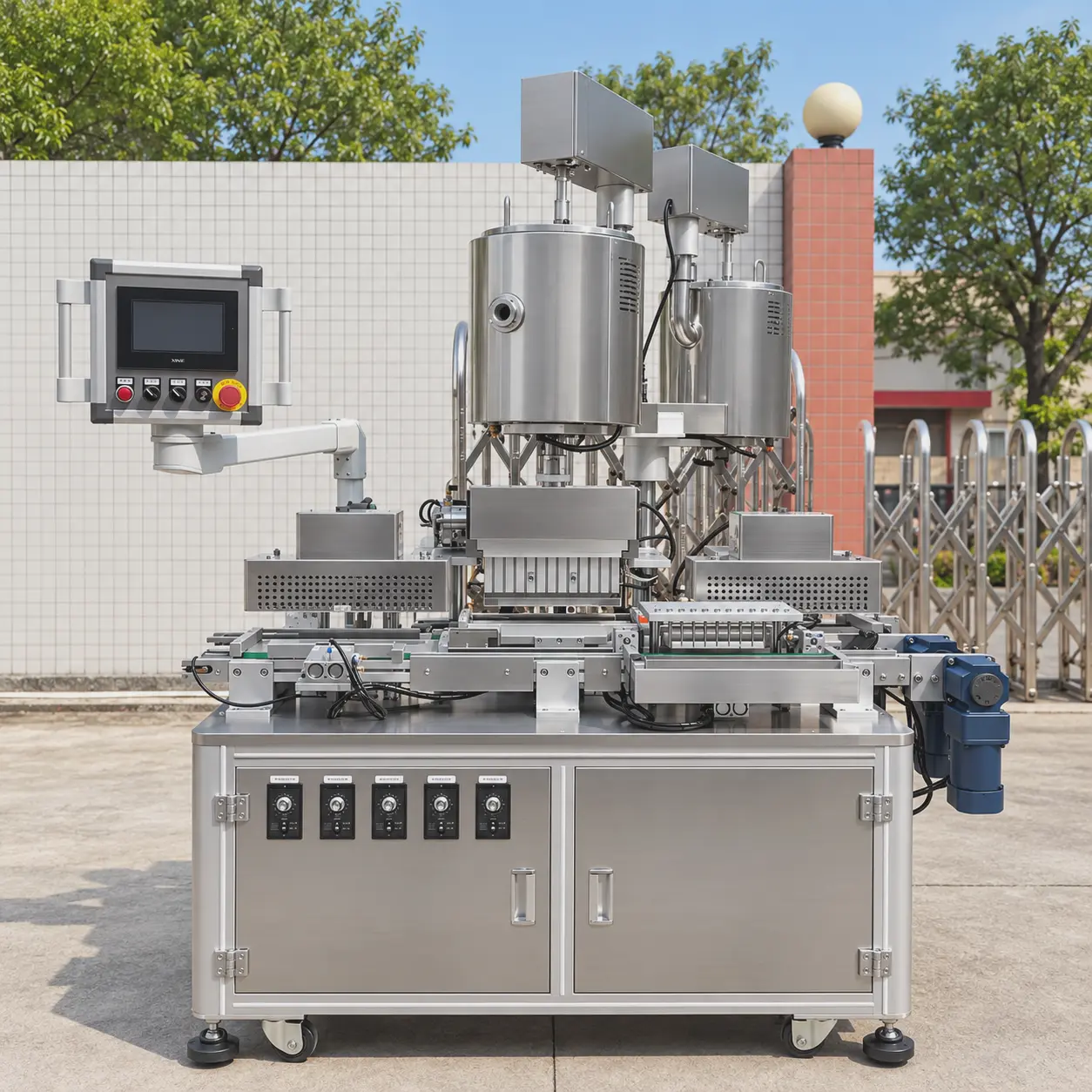

Simplify lipstick production with the HY-KHL Automatic 12-Head Lipstick Filling Machine. Integrating servo-controlled filling, reheating, cooling, pneumatic demolding and tube capping, it brings key production stages together in one coordinated system. With adjustable 1–14 mL filling and dual 20 L temperature-controlled mixing hoppers, the HY-KHL supports precise dosing and efficient handling of molded lipstick products.
Customized to Your Production Needs
Need a different configuration? HONEMIX can customize molds, auxiliary equipment and supporting systems to match your product specifications, packaging formats and production requirements.
The process combines controlled hot filling with cooling and mechanical demolding to support consistent molded lipstick production.
Core Features And Advantages

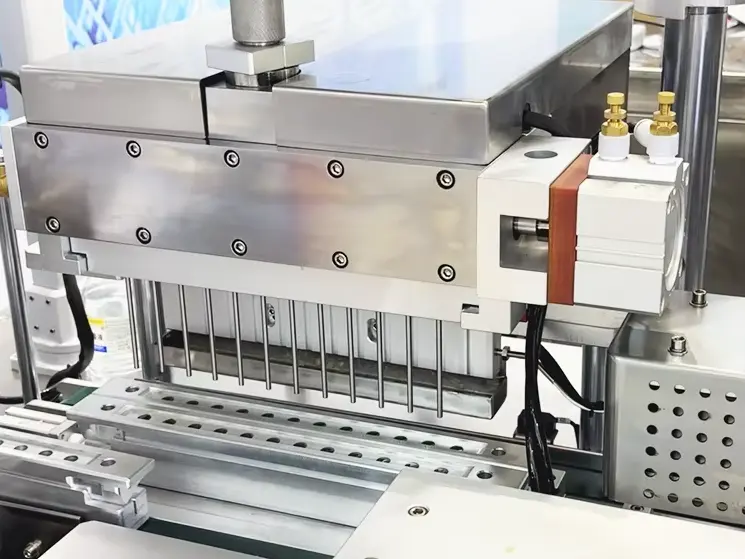

1. 12-Head Servo Piston Filling
Twelve filling heads dispense molten lipstick into compatible 12-cavity molds. Servo-controlled piston dosing supports adjustable filling volumes from 1 to 14 mL, helping maintain consistent filling across multiple cavities.
2. Temperature-Controlled Material Supply
Two 20 L hoppers feature adjustable mixing and temperature control to maintain suitable material flow during filling. Hopper mixing speed is adjustable from 1 to 90 rpm, with a maximum hopper temperature of 120°C.

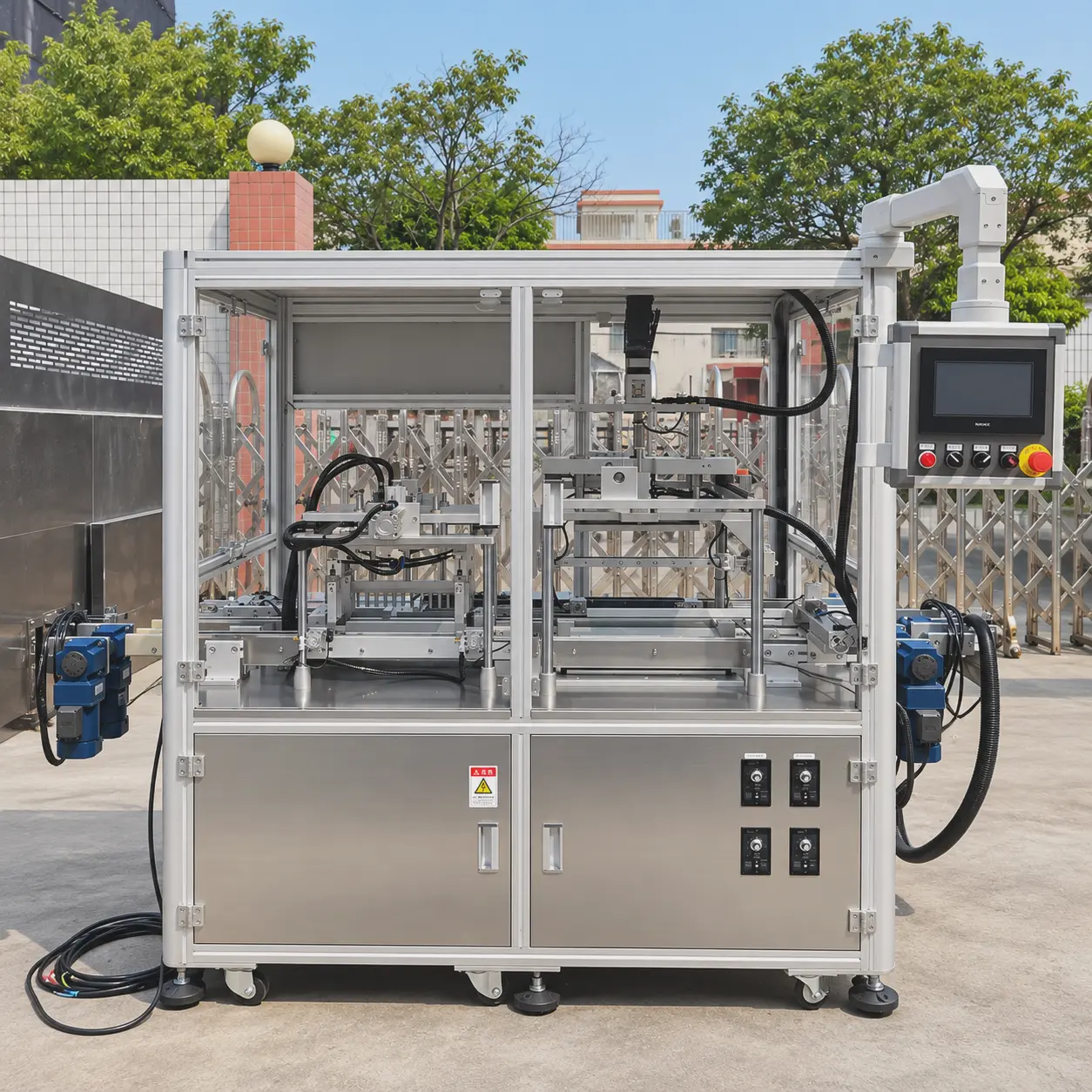

3. Integrated Cooling & Demolding
The cooling tunnel supports controlled lipstick solidification after filling. Pneumatic clamping demolding then releases the molded products for the next processing stage.

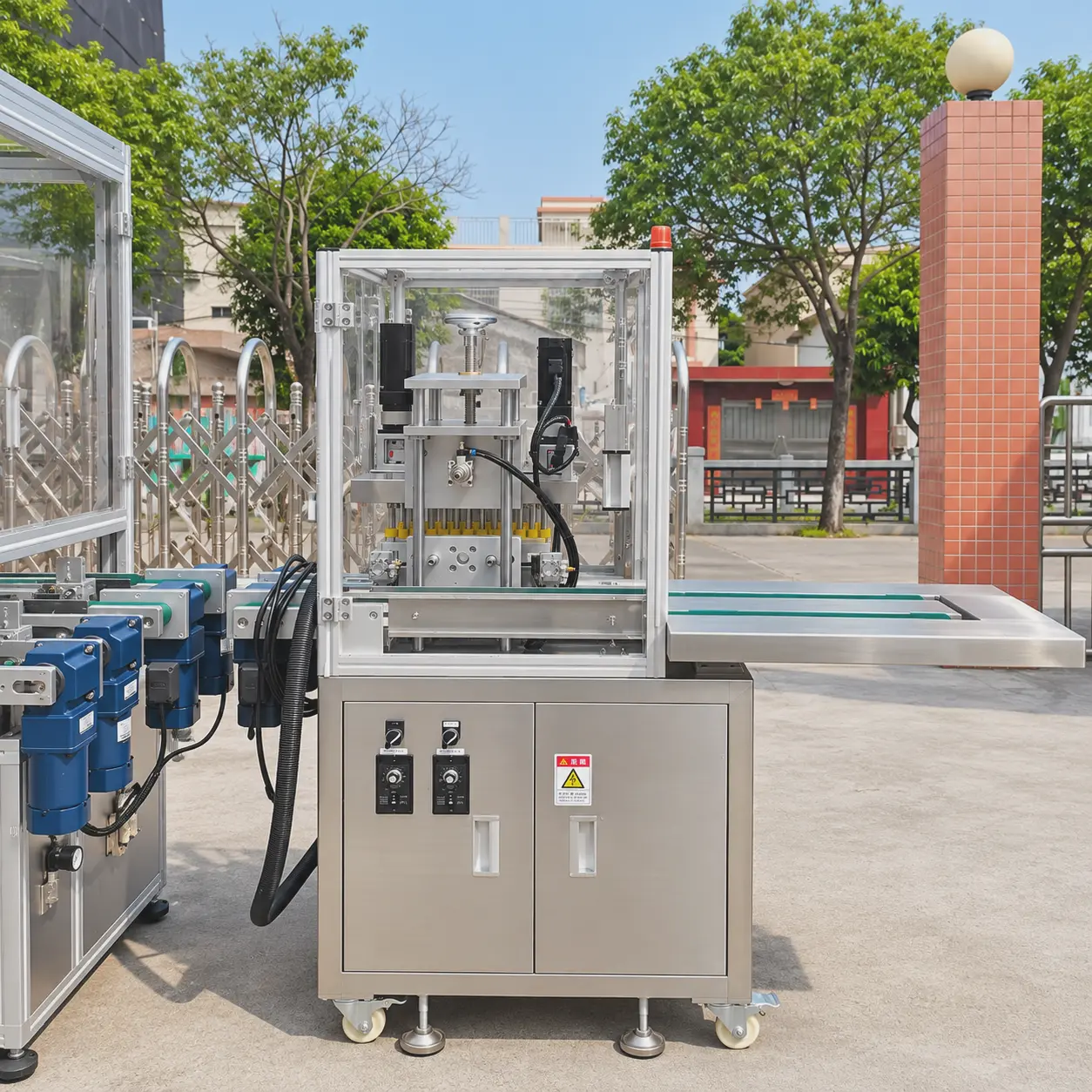

4. Automatic Tube Screw Capping
A motor-driven belt system screws the lipstick tubes into place after demolding, reducing repetitive manual handling during finishing.

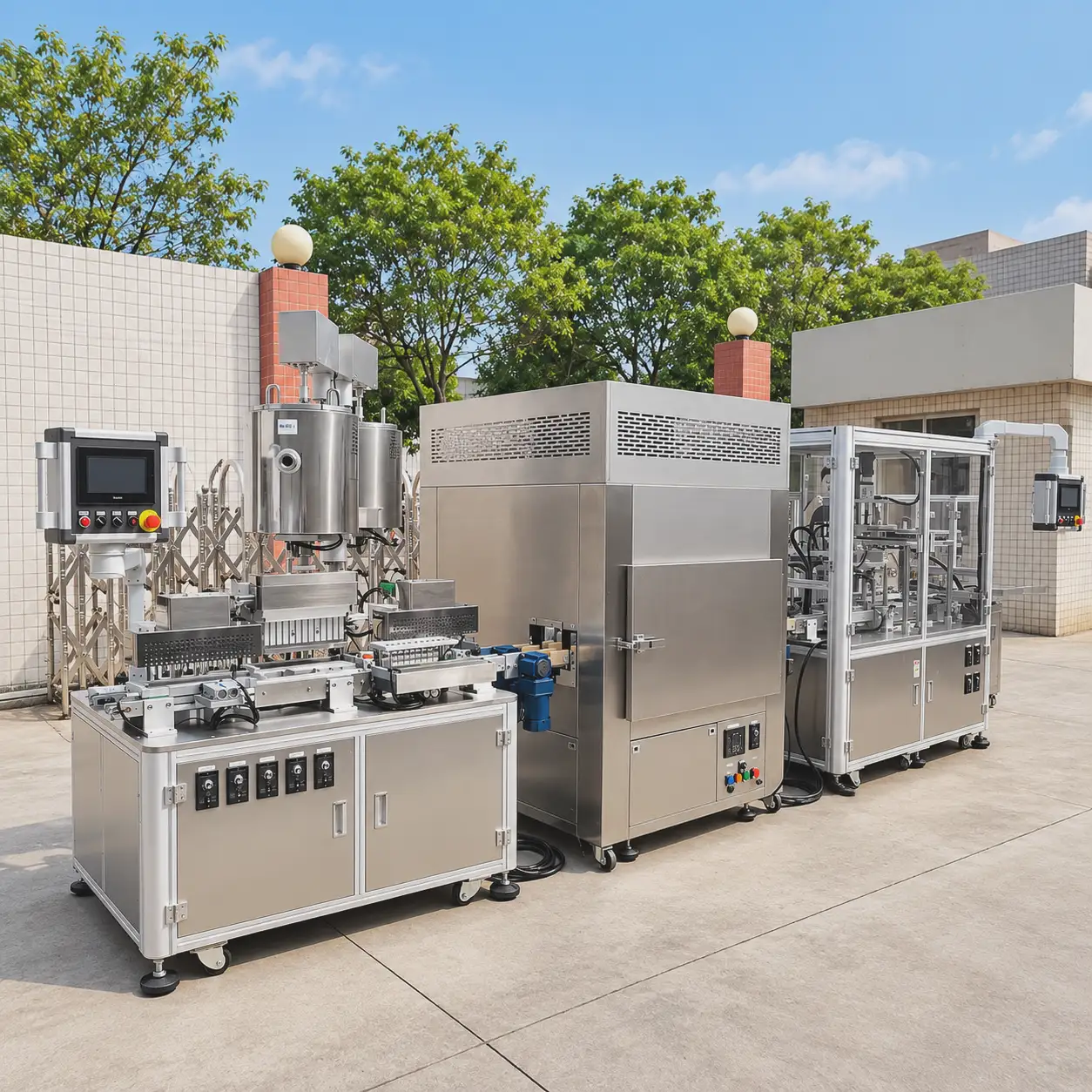

5. Coordinated Production Workflow
The integrated system connects filling, cooling, demolding and capping operations. Mold placement, process checks, finished-product inspection and collection follow the configured operating workflow.
6. Custom Mold & Equipment Configuration
HONEMIX can customize compatible mold configurations and supporting equipment according to product dimensions, tube design, formula requirements and production targets.
Technical Specifications
Item
Specification
Model
HY-KHL
Machine Type
Automatic 12-Head Lipstick Filling, Cooling, Demolding & Capping System

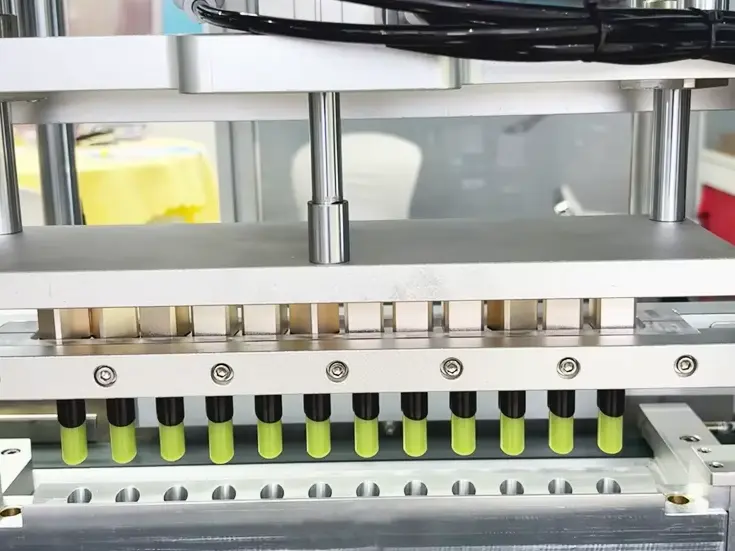

Compatible Mold
12-Cavity Metal Mold
Filling Method
Servo-Controlled Piston Quantitative Filling
Filling Volume
1–14 mL, Adjustable
Filling Accuracy
±1.5%
Rated Production Capacity
4 Molds/Min
Number of Operators
4
Overall Dimensions
6253 × 1360 × 2000 mm
Total Power
17 kW
Power Supply
380 V / 3 Phase / 50 Hz
Working Air Pressure
≥6 kg/cm²
Hopper Configuration
20 L × 2
Hopper Mixer
90 W; 1–90 rpm, Adjustable
Maximum Hopper Temperature
≤120°C
Cooling Method
Air Cooling
Cooling Tunnel
4 HP; −15°C; 5 kW, as specified
Listed Cooling Time
5–15 Minutes, Subject to Process Requirements
Demolding Method
Pneumatic Clamping
Capping Method
Motor-Driven Belt Screw Capping
The specifications above are for reference only. Actual parameters can be customized to meet your production requirements.
Applications
The HY-KHL is suitable for producing lipstick and similar molded cosmetic stick products. Mold configurations and processing parameters can be customized to match different product specifications, formula characteristics and packaging requirements.
Customized Lipstick Production Equipment
Every lipstick product has specific requirements for mold dimensions, filling volume, processing temperature and tube design.
HONEMIX configures the equipment around your actual production requirements, including:
Mold Compatibility: Mold drawings, cavity layout and product dimensions.
Filling Requirements: Target filling volume, formula temperature and dosing specifications.
Cooling & Demolding: Cooling conditions and demolding requirements based on the product and mold.
Capping Compatibility: Tube dimensions, closure design and capping requirements.
Supporting Equipment: Additional machinery and production line integration according to your process and factory layout.
Send HONEMIX your product specifications, mold drawings and target output to receive a suitable equipment configuration.
FAQ
1. What is the filling range of the HY-KHL?
The specified filling range is 1–14 mL, adjustable through the servo-controlled piston filling system.
2. What is the production process?
The workflow covers mold preheating, filling, reheating, cooling, demolding and tube screw capping, followed by finished-product inspection and collection.
3. Can the mold configuration be customized?
Yes. HONEMIX can assess mold drawings, cavity arrangement and product dimensions to determine a compatible configuration. Additional mold sets can be supplied according to project requirements.
