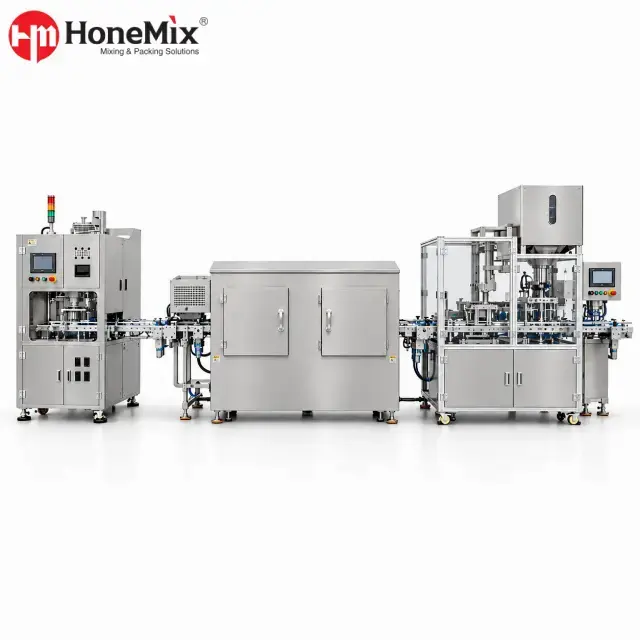

HY-CGL Automatic 12-Head Lip Balm Filling & Cooling Line

Automatic Lip Balm Filling Machine & Cooling Line Working Process

Tube and Mold Positioning → 12-Head Servo Filling → Reheating → Cooling → Automatic Cap Feeding → Cap Placement and Pressing → Mold Return

The filling, reheating, cooling and capping stages are coordinated within one production line. Loading arrangements and any additional handling equipment are configured according to the required production workflow.

Core Features And Advantages

1. 12-Head Servo-Controlled Filling

• Fills 12 units per 12-hole mold.

• Adjustable filling volume from 1–14 mL.

• Servo-controlled piston dosing for repeatable filling.

• Photoelectric sensing supports automatic filling operation.

2. Heated Hopper with Adjustable Mixing

• 30 L hopper with an 800 W heater and temperature controller.

• 90 W agitator with adjustable speed from 1–90 rpm.

• Hopper temperature up to 120°C, according to the supplied specifications.

• Supports stable material conditions during filling.

3. Integrated Reheating and Cooling

• Reheating system for controlled remelting of the filled product surface.

• Cooling tunnel with a specified cooling temperature of −15°C.

• Adjustable process settings according to the formula, mold and required finish.

• Coordinated reheating and cooling help establish the finished product shape and surface.

4. Automatic Cap Feeding and Pressing

• Single-track vibratory bowl for automatic cap feeding.

• 12-arm vacuum-pickup manipulator for cap placement.

• Servo-controlled, adjustable arm spacing from 13–24 mm.

• Automated cap placement and pressing reduce manual handling.

5. Conveyor and Mold Return System

• Three-lane conveyor with a dedicated mold return conveyor.

• Coordinates mold movement between filling, reheating, cooling and capping.

• Supports a streamlined production cycle and organized material handling.

6. PLC and HMI Control

• PLC-based automatic control with an HMI interface.

• Independent temperature control for each heating unit.

• Servo-controlled positioning and adjustable manipulator spacing.

• Operating parameters can be configured for compatible products and tooling.

Technical Specifications

Specifications are for reference. Actual performance depends on product formulation, mold configuration, cooling requirements and operating conditions. Final parameters can be customized to meet your production needs.

Applications

The HY-CGL is designed primarily for lip balm sticks and compatible small-format, wax-based cosmetic stick products.

• Lip Balm Sticks

• Tinted Lip Balm

• Other Compatible Wax-Based Cosmetic Sticks

Product compatibility depends on formula properties, filling temperature, container dimensions and mold design. HONEMIX confirms the configuration against your product samples and requirements.

Standard Configuration

The HY-CGL line includes:

1. Automatic 12-Head Lip Balm Filling Machine

2. Thirty Sets of 12-Hole Lip Balm Molds

3. Cooling Tunnel

4. Three-Lane Conveyor and Mold Return Conveyor

5. Reheating System

6. Automatic Manipulator Cap Feeding and Pressing System

The standard configuration focuses on filling, reheating, cooling and cap pressing. Upstream material preparation and downstream labeling, coding, inspection and packaging equipment can be added according to project requirements.

Customized Lip Balm Production Solutions

Every lip balm formula and package has specific processing requirements. HONEMIX configures the lip balm filling machine and auxiliary equipment around your actual production needs.

Customization options include:

• Filling System: Filling volume, dosing settings and compatible product viscosity.

• Molds and Containers: Mold dimensions, cavity configuration, tube dimensions and product format.

• Temperature Control: Hopper heating, reheating settings and cooling conditions.

• Cap Handling: Cap dimensions, manipulator spacing and pressing requirements.

• Line Integration: Conveyor layout, material preparation, tube handling, inspection, coding, labeling and packaging.

• Factory Requirements: Production capacity, electrical standards and available installation space.

Need a different configuration or additional equipment? HONEMIX can customize the machine setup and integrate compatible auxiliary equipment to build a production line around your product and factory requirements.

FAQ

1. Can the Lip Balm Making Machine Produce Lip Balm Directly from Raw Materials?

The HY-CGL is designed for filling, reheating, cooling and cap pressing. Its 30 L heated hopper maintains and mixes prepared lip balm material during production but does not replace a dedicated melting and mixing system. For production starting from raw materials, HONEMIX can supply a compatible heated mixing tank to complete the upstream preparation process.

2. How Does the Lip Balm Cooling Tunnel Work?

After filling, the line uses a reheating stage followed by an air-cooling tunnel to help achieve the required product surface and shape. The specified cooling temperature is −15°C, and the cooling time is 5–15 minutes per piece. Actual cooling requirements depend on the formula, mold design and product dimensions.

3. Can HONEMIX Customize the Lip Balm Production Line for Different Products?

Yes. HONEMIX customizes the lip balm filling line according to filling volume, formula properties, tube dimensions, mold design, cap specifications and production targets. Additional equipment, including heated mixing tanks, coding systems, inspection equipment and packaging machines, can be integrated to meet your manufacturing requirements.
